Key switch actuator 1Z1R 2 p, M22-WRS/KC11/I 216526

local index:
AKO001MOEL
Catalog No:
216526
EAN code:
4015082165260
Manufacturer: EATON
Function: 1NO 1NC 0CO
Number of holes: 1
Color: Gray
Price:
67,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

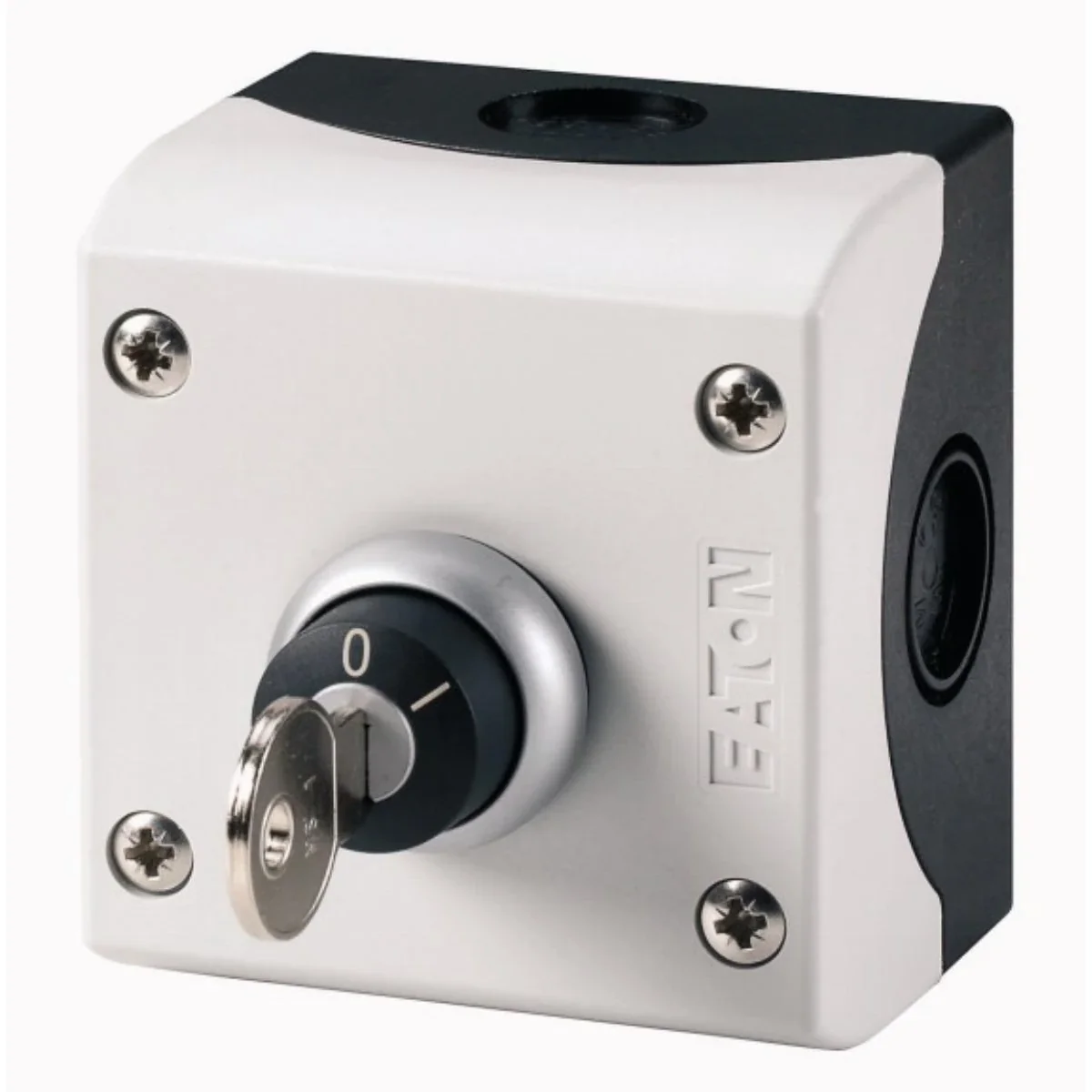

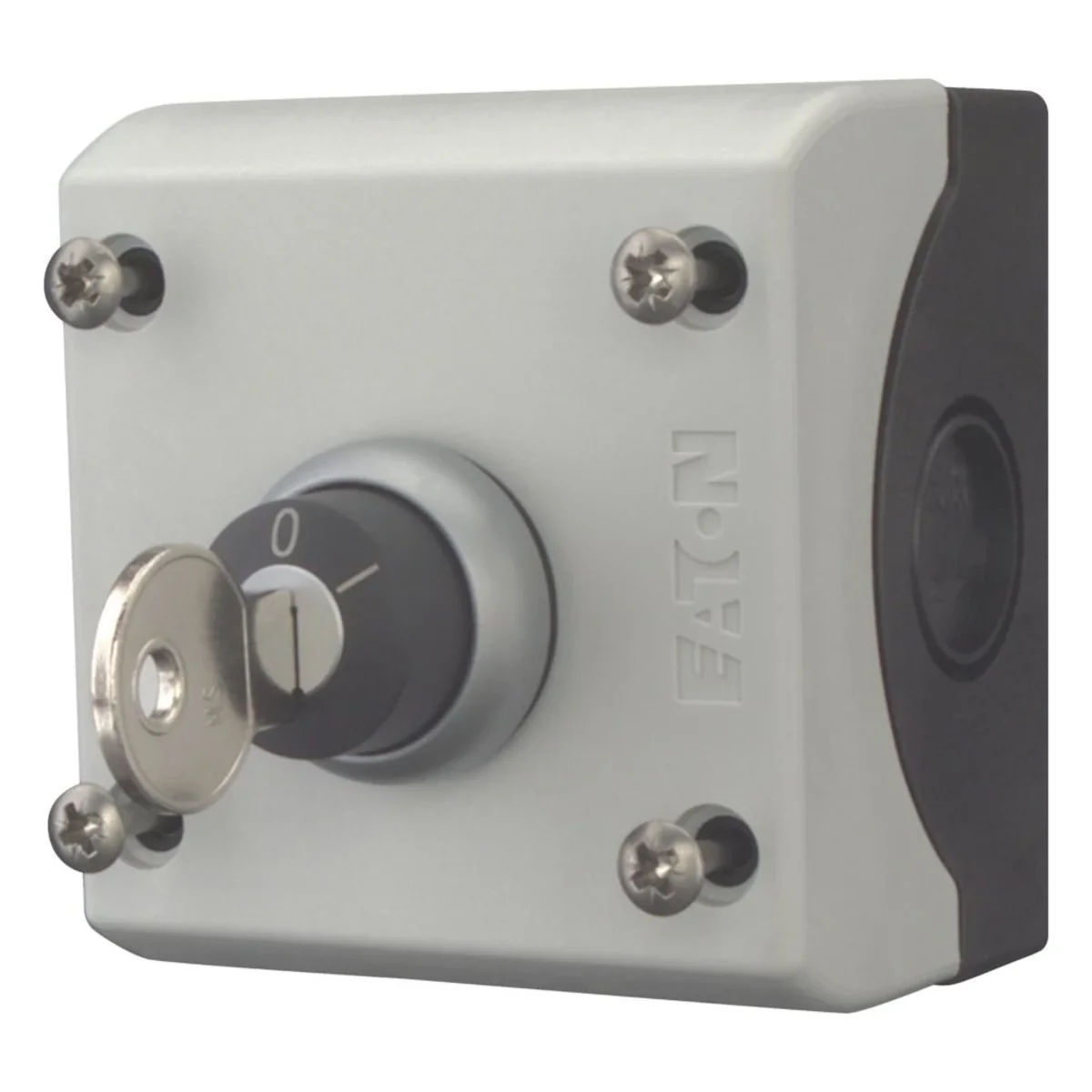

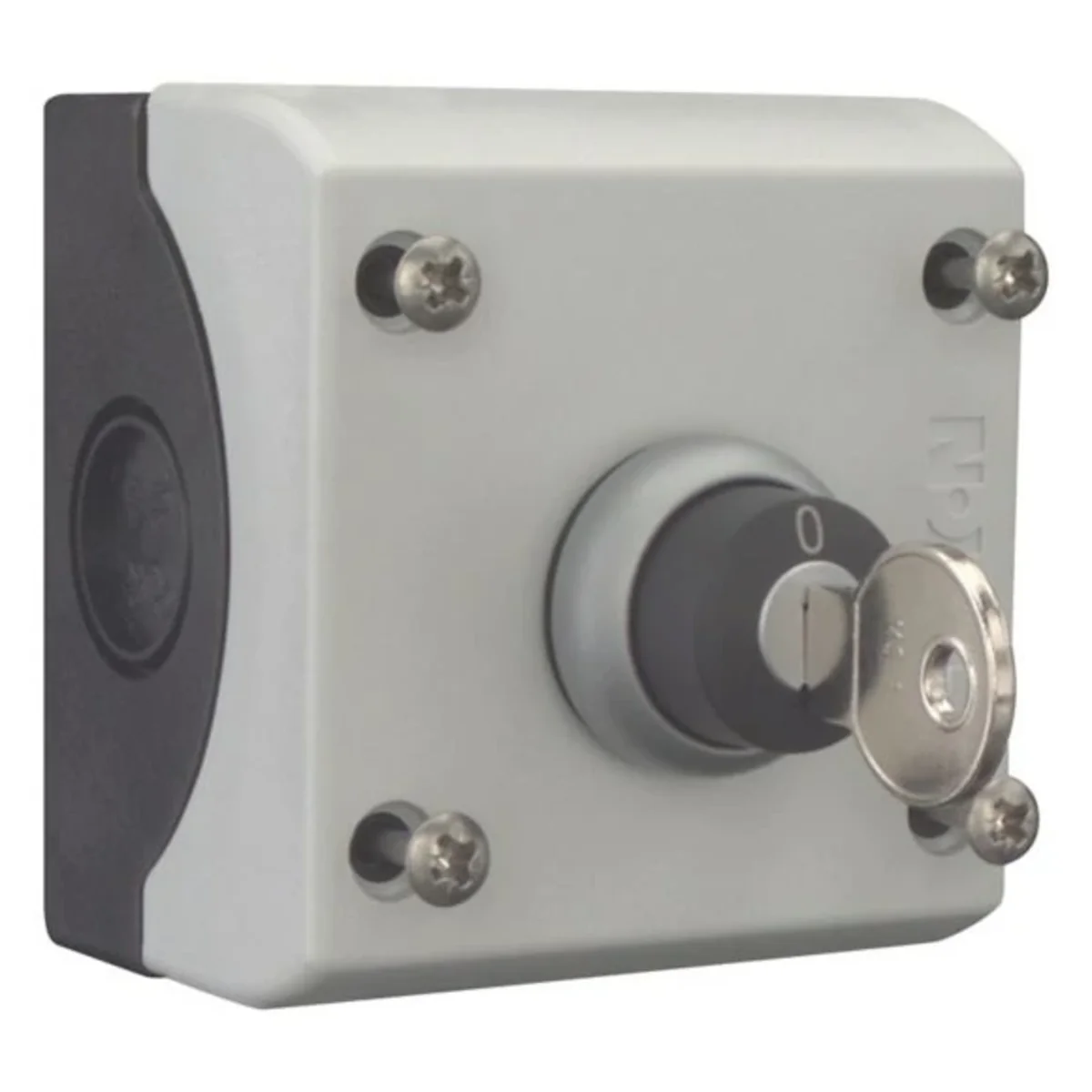

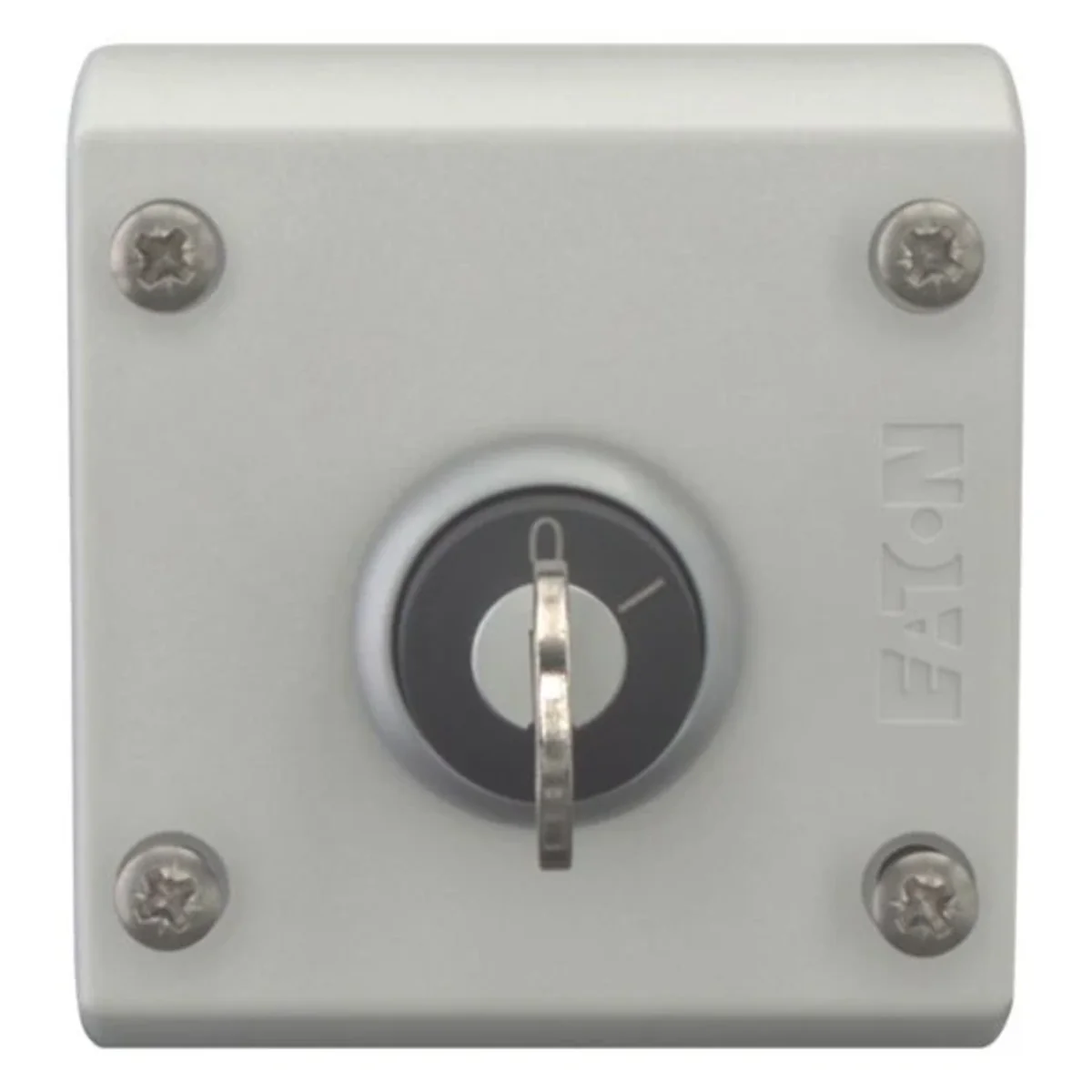

Key-operated switch - 2 positions, non-return MS1 lock, with 1 key.

Technical data

  • Function
    1NO 1NC 0CO
  • Color
    Gray
  • Accurate color
    Gray
  • Number of holes
    1
  • Level of security
    IP66

Other technical data

  • Number of command positions
    1
  • Number of indicator lights
    0
  • Number of selector switches
    1
  • Suitable for emergency stop
    No
  • Rated control supply voltage AC 60 Hz
    115 ... 500 V
  • Colour housing cover
    Grey
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Number of push buttons
    0
  • Number of key switches
    1
  • Number of mushroom-shaped push-buttons
    0
  • Rated control supply voltage AC 50 Hz
    115 ... 500 V
  • Rated control supply voltage DC
    24 ... 220 V
  • Housing material
    Plastic
  • Number of contacts as normally closed contact
    1
  • Degree of protection (IP)
    IP66

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,229
Volume (m3) 0,001
Width (m) 0,075
Length (m) 0,112
Depth (m) 0,083
