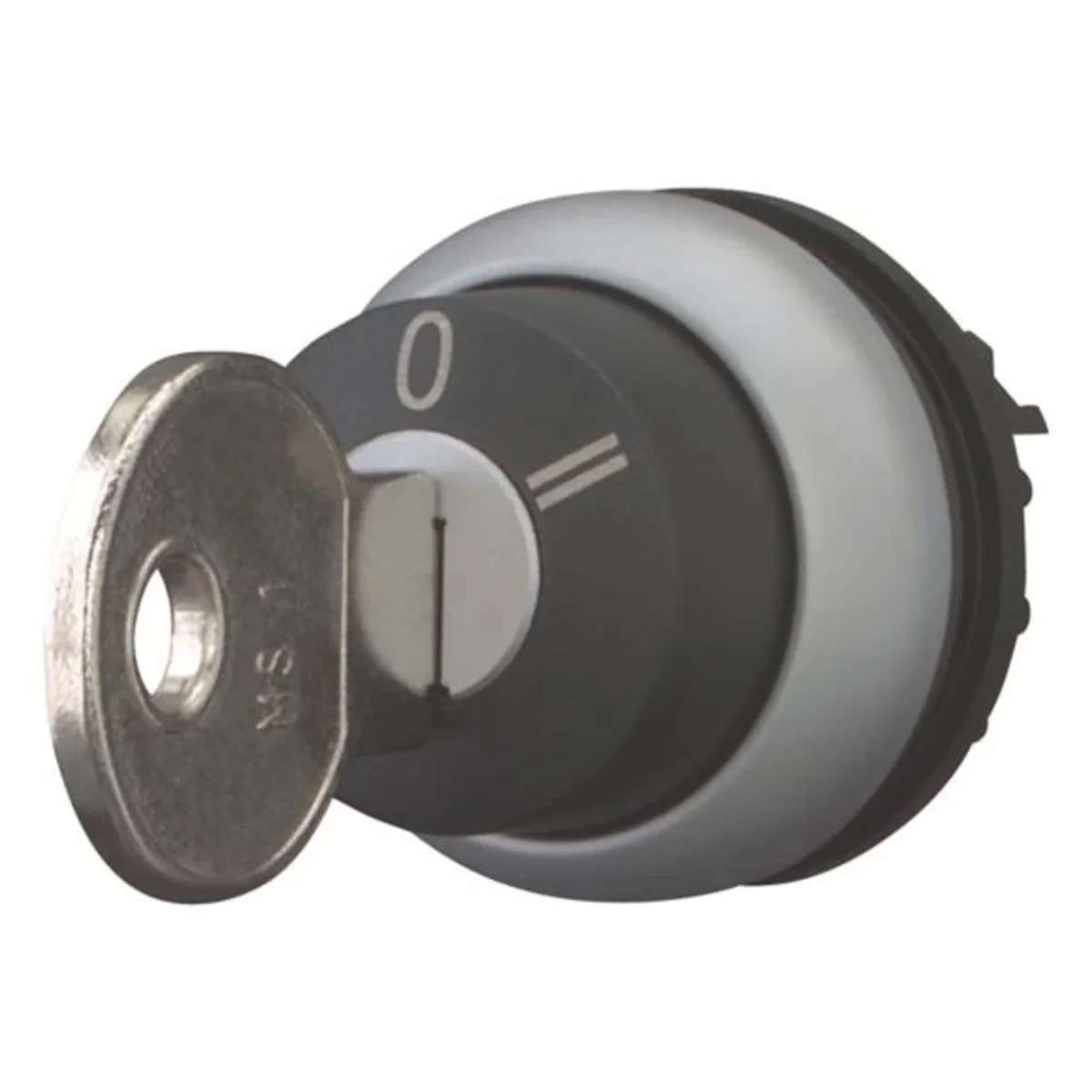

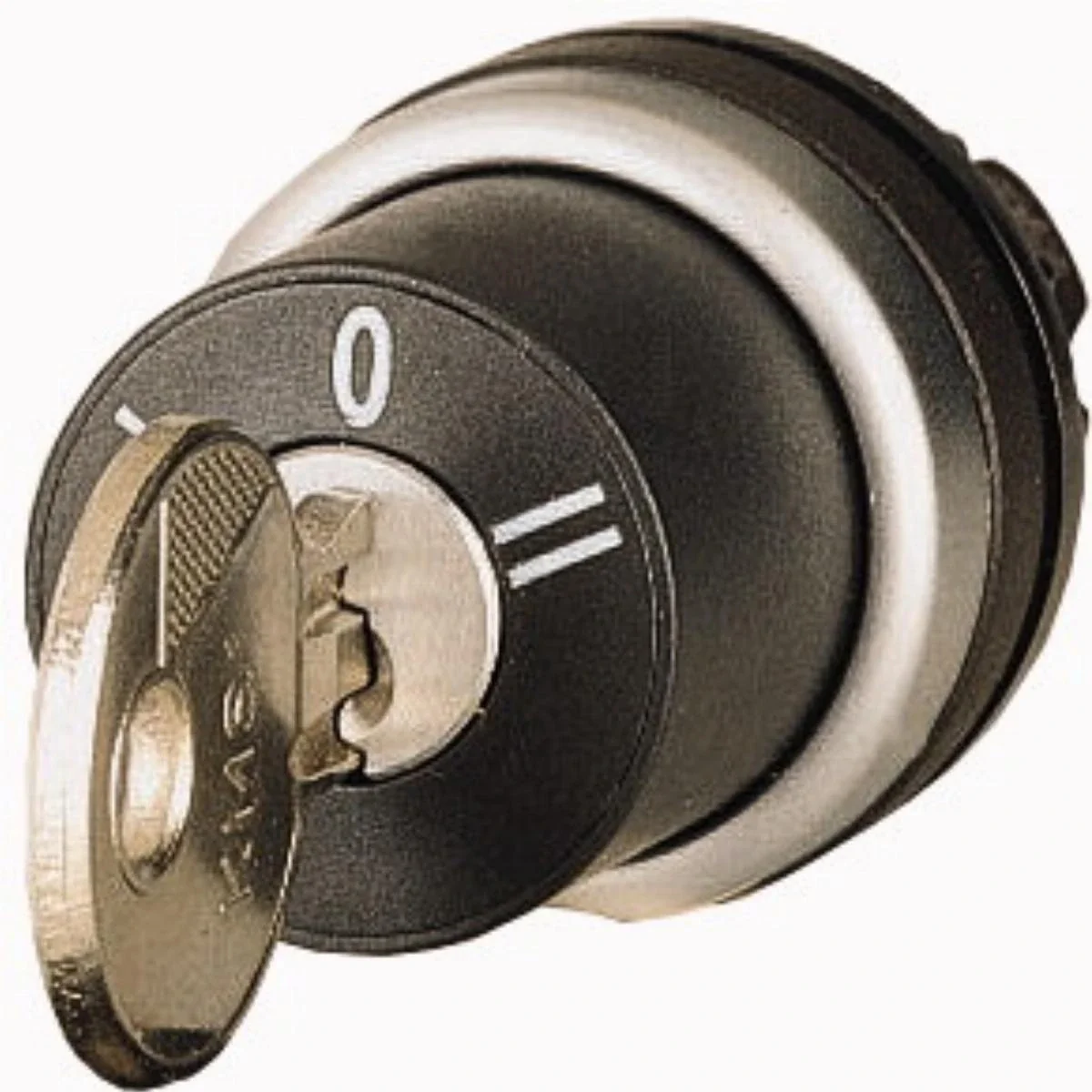

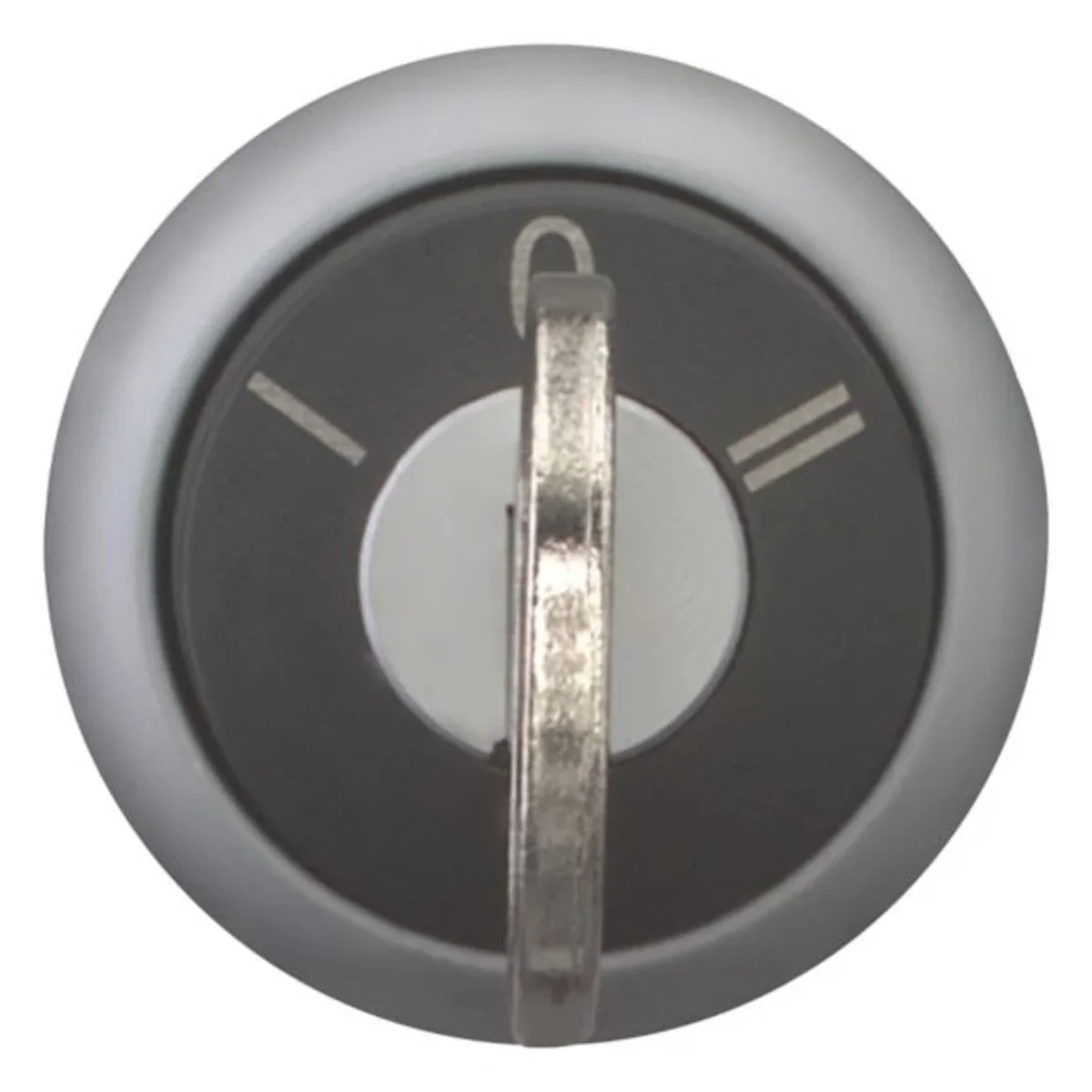

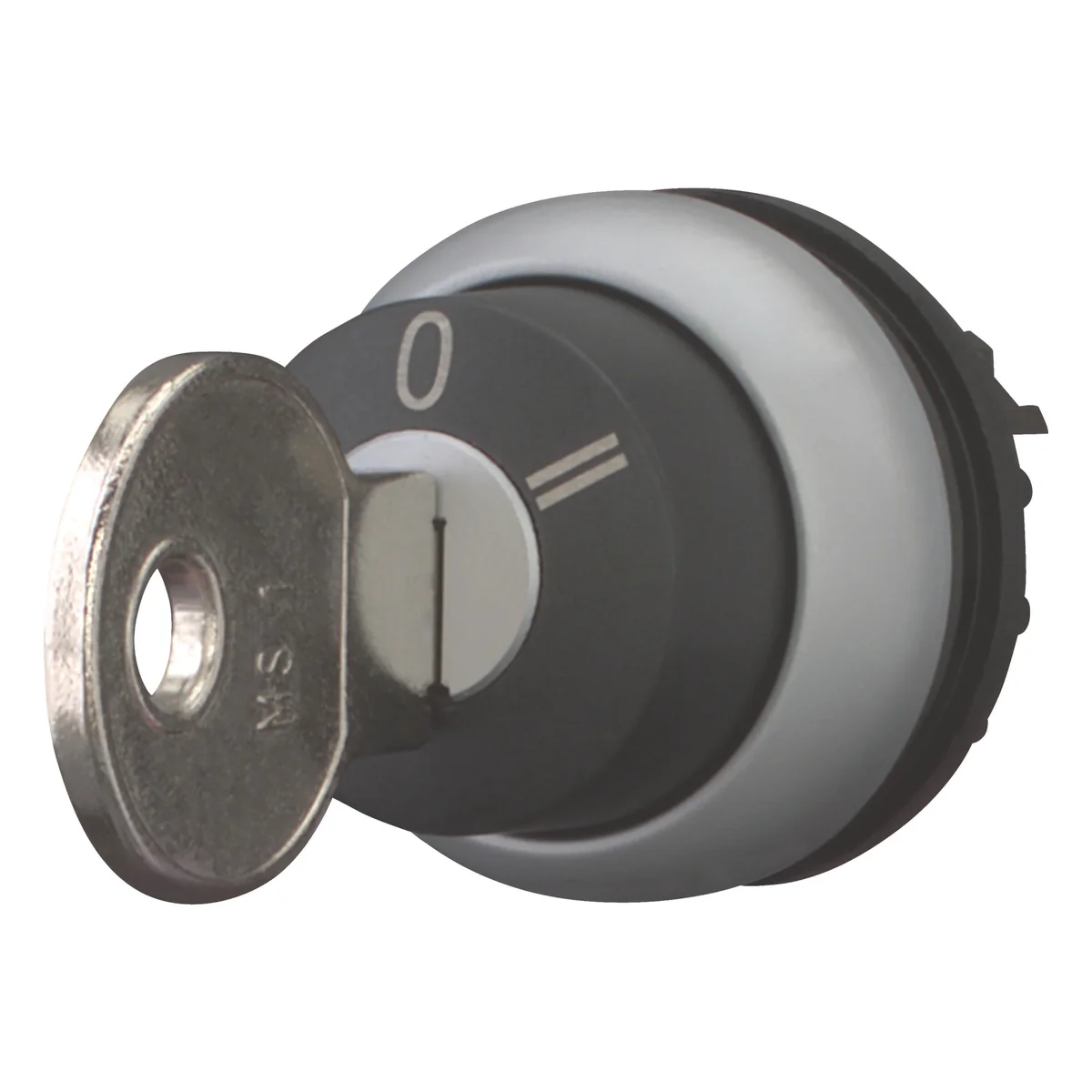

Key operated switch actuator 3 positions, M22-WRS3 216900

local index:
AKS306MOEL
Catalog No:
216900
EAN code:
4015082169008
Manufacturer: EATON
Action: No return
Face ring color: Titanium
Execution: MS1 lock
Price:
44,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 6 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Key switch actuator 3 positions

Technical data

  • Action
    No return
  • Execution
    MS1 lock
  • Face ring color
    Titanium
  • PKWIU
    26.20.16.0

Other technical data

  • Number of switch positions
    3
  • Suitable for illumination
    No
  • Colour indicator light cap
    Other
  • Hole diameter
    22.5 mm
  • Height opening
    0 mm
  • Spring-return
    No
  • Material front ring
    Plastic
  • Type of control element
    Key
  • Colour control element
    Black
  • Construction type lens
    Round
  • Width opening
    0 mm
  • Switching function latching
    Yes
  • With front ring
    Yes
  • Degree of protection (IP), front side
    IP66

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,034 0,170
Volume (m3) 0,000 0,000
Width (m) 0,032 0,068
Length (m) 0,072 0,075
Depth (m) 0,032 0,065
