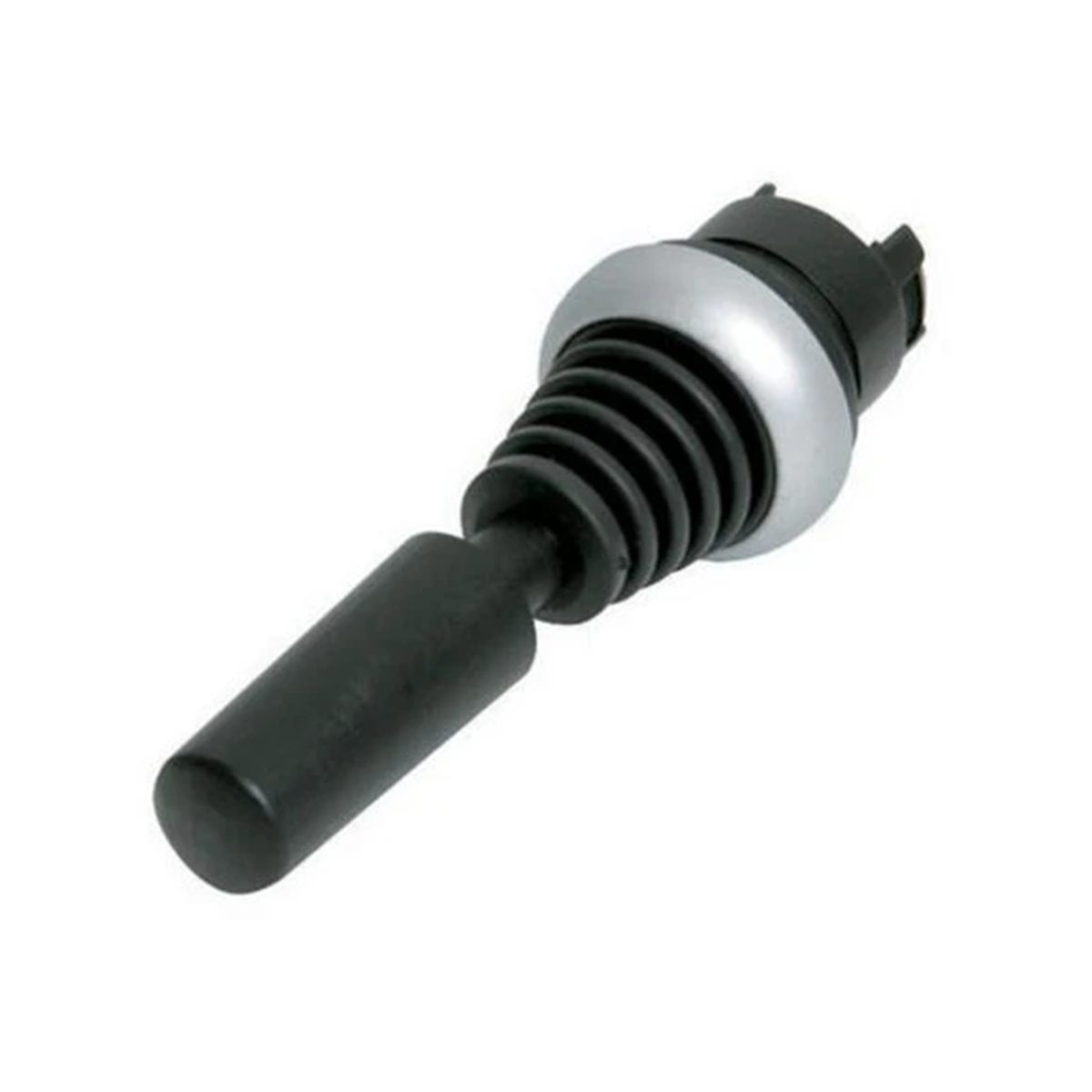

Joystick, 2 connection points, horizontal 111508

local index:
AKS451MOEL
Catalog No:
111508
EAN code:
4015081110681
Manufacturer: EATON
Length [mm]: 75
Face ring color: Chrome
Face ring material: Plastic
Price:
65,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The joystick of the RMQ-Titan range is offered in a spring-return version. In a straight direction of movement, horizontal. The button complies with the degree of protection IP66 and has been approved for use worldwide.

Technical data

  • Length [mm]
    75
  • Face ring material
    Plastic
  • Hole diameter [mm]
    22.5
  • Face ring color
    Chrome
  • Level of security
    IP66

Other technical data

  • Rated operation current Ie at AC-21, 400 V
    0 A
  • Joy stick length
    75 mm
  • Number of switch positions
    2
  • Number of normally closed contacts per actuation direction
    0
  • With retraction in 0-position
    Yes
  • Coder
    No
  • With front ring
    Yes
  • Colour front ring
    Titanium
  • Degree of protection (NEMA)
    4X, 13
  • Centre mounting, hole diameter
    22.5 mm
  • Number of actuation directions
    2
  • Number of normally open contacts per actuation direction
    0
  • Number of make-and-break contacts per direction
    0
  • Locking in 0-position
    No
  • Analogue output signal configurable
    No
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP66

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,043
Volume (m3) 0,000
Width (m) 0,065
Length (m) 0,075
Depth (m) 0,068
