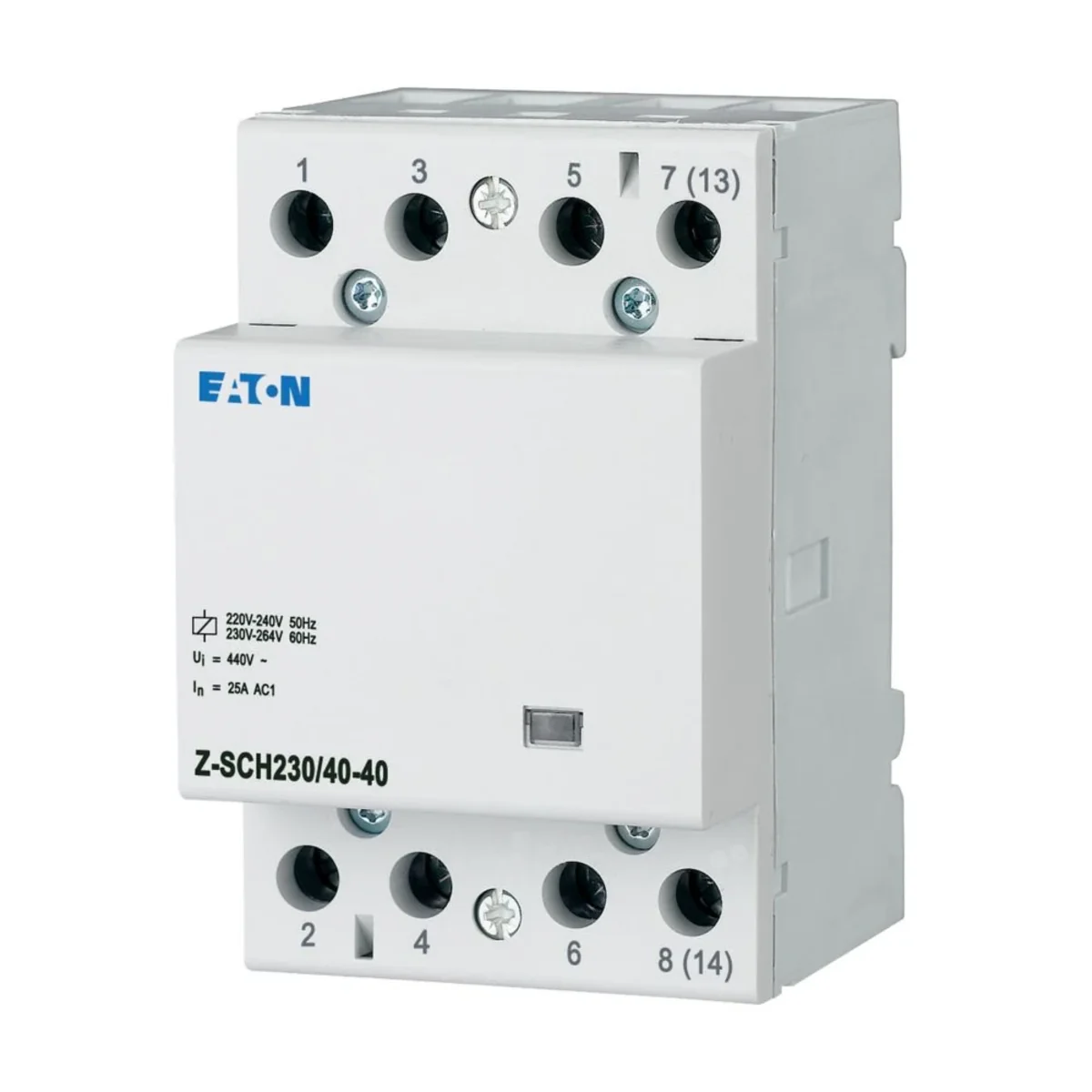

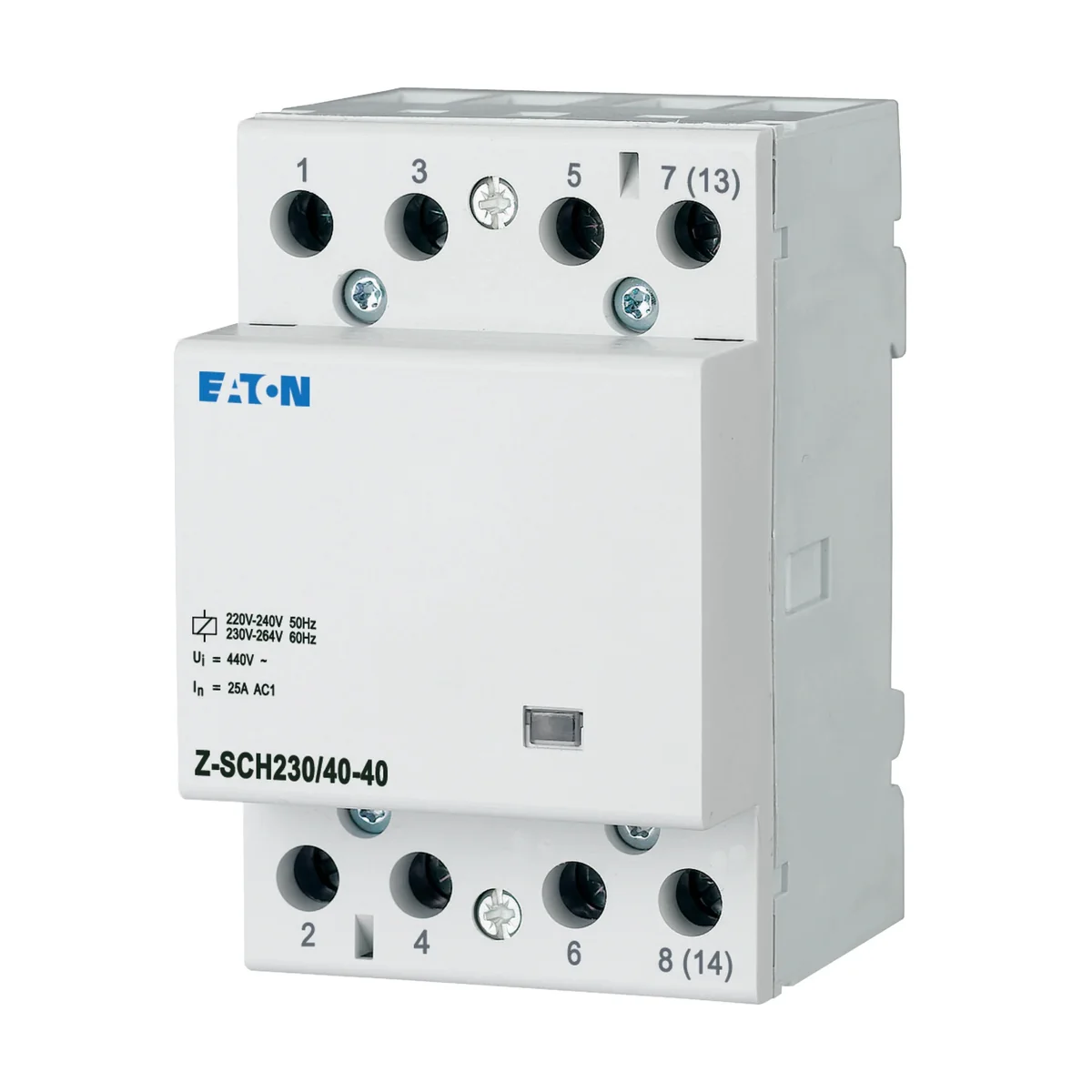

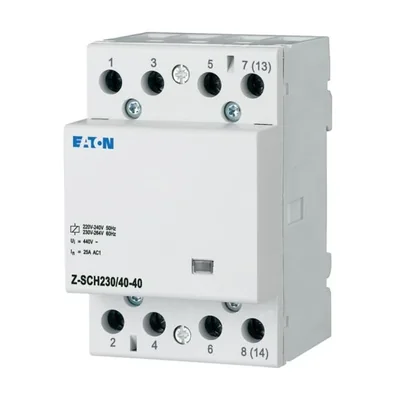

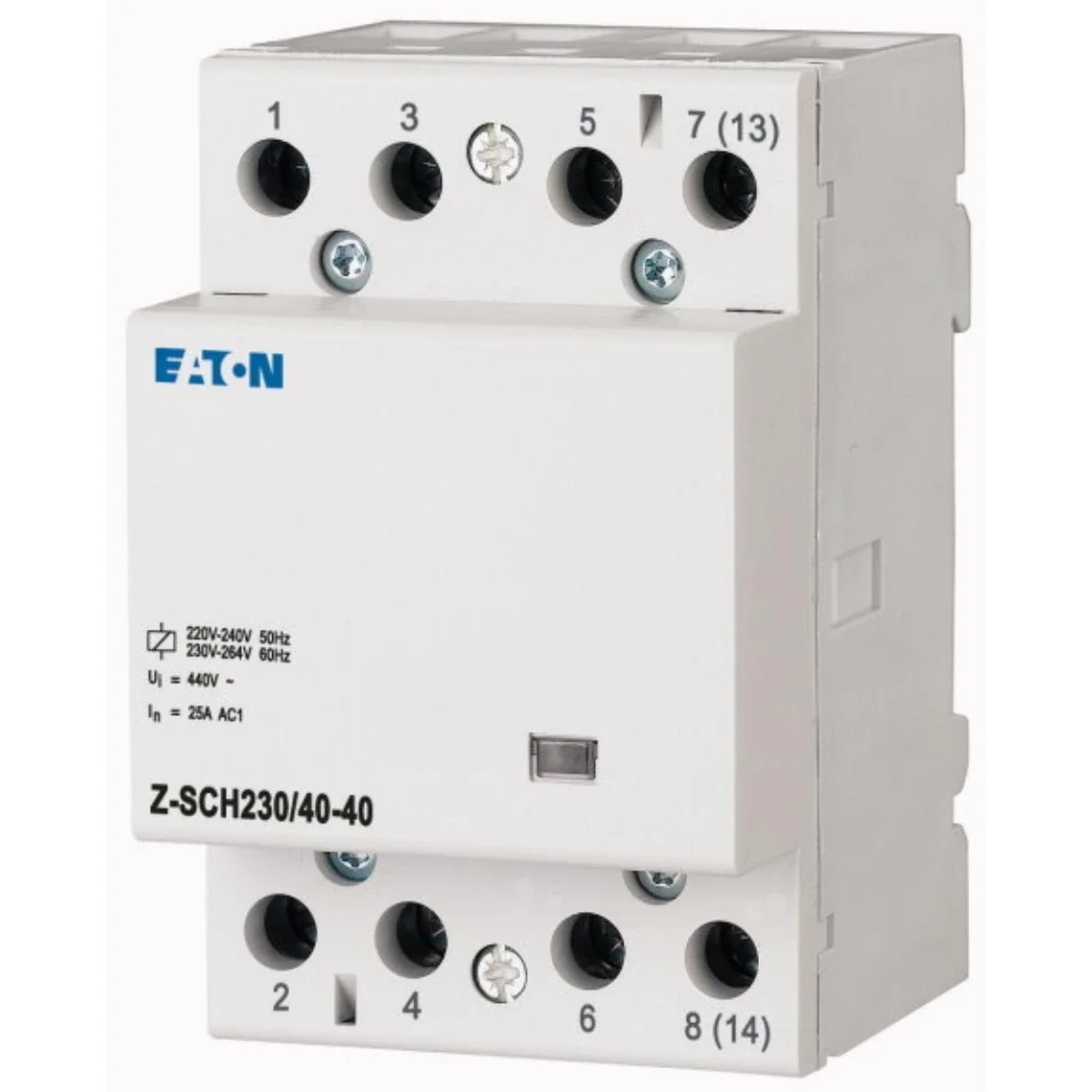

Installation contactor, Z-SCH230/40-40 248852
local index:
ATC246MOEL
Catalog No:
248852
EAN code:
4015082488529
Manufacturer:
EATON
Rated voltage [V]: 230
Price:
101,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Eaton Moeller Contactor Z-SCH230/40-40
Category AC1, rated current [A]: 40
Function: 4 make contacts
Operating voltage : 230V
Protection level [IP]: 20
Width in modules: 3
Mechanical strength [x 106]: 10
AC1 category, load:
- 230-240V [kW]: 16
- 230-240V [kW]: 27.5
AC3 category, current rated [A]: 27
Rated power 3-phase motor 50-60Hz:
- 220 [kW]: 7, 5
- 230-240V [kW]: 8
- 380-415V [kW]: 12.5
Technical data
-
Rated voltage [V]230
Other technical data
-
Rated operating voltage440 ... 440 V
-
Kategoria użytkowania1
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact4
-
Max. incandescent lamp load5520 W
-
Max. load fluorescent lamp (Duo circuit)5336 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current40 A
-
Rated excitation voltage195.5 ... 253 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp2610 VA
-
Max. load fluorescent lamp (parallel compensated)2088 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP40
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Karton | Skrzynia | |
| Quantity | 40 pcs. | 1 pcs. | 1 pcs. |
| Weight (kg) | 17,500 | 0,360 | 0,380 |
| Volume (m3) | 0,016 | 0,000 | 0,000 |
| Width (m) | 0,385 | 0,052 | 0,037 |
| Length (m) | 0,180 | 0,085 | 0,092 |
| Depth (m) | 0,230 | 0,060 | 0,075 |
