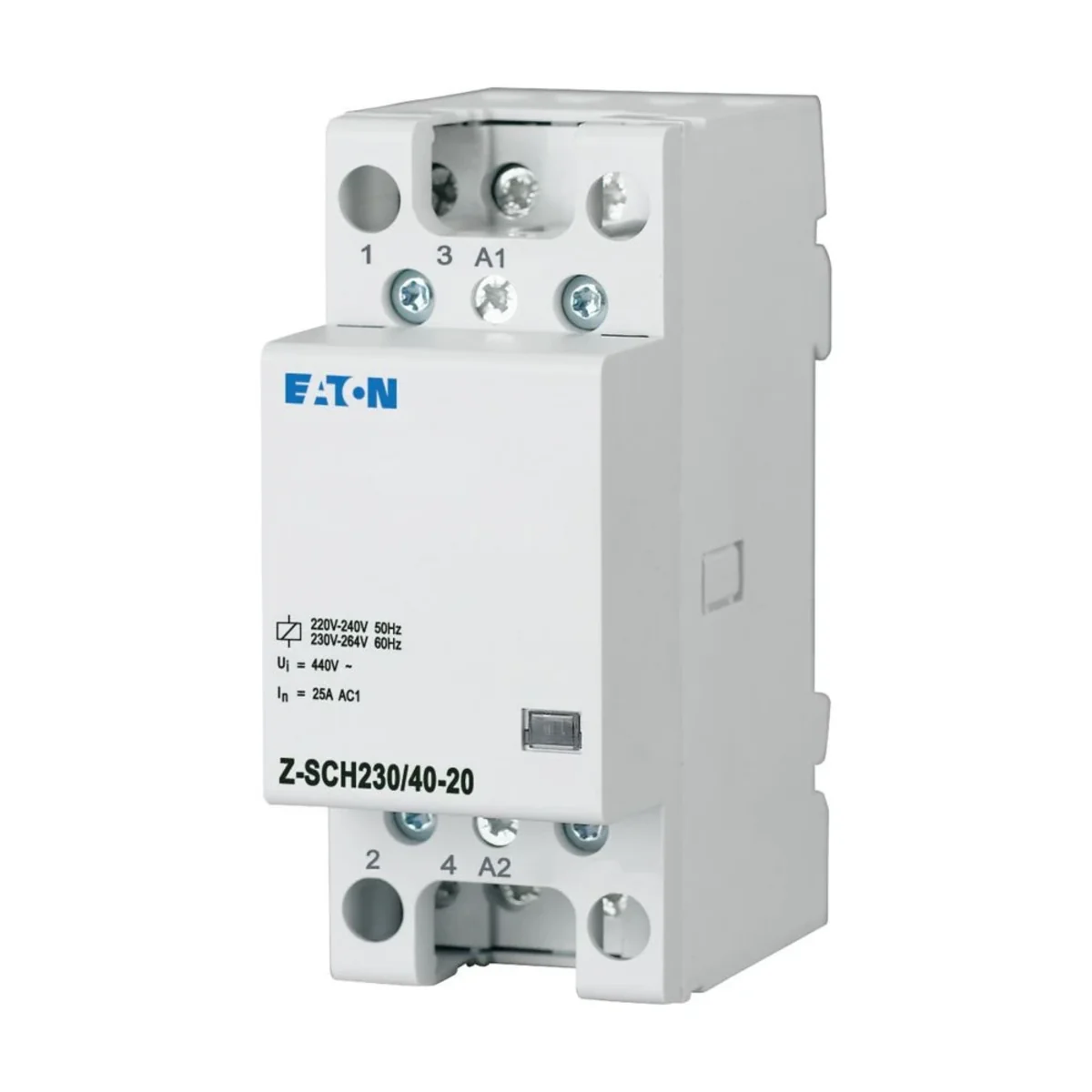

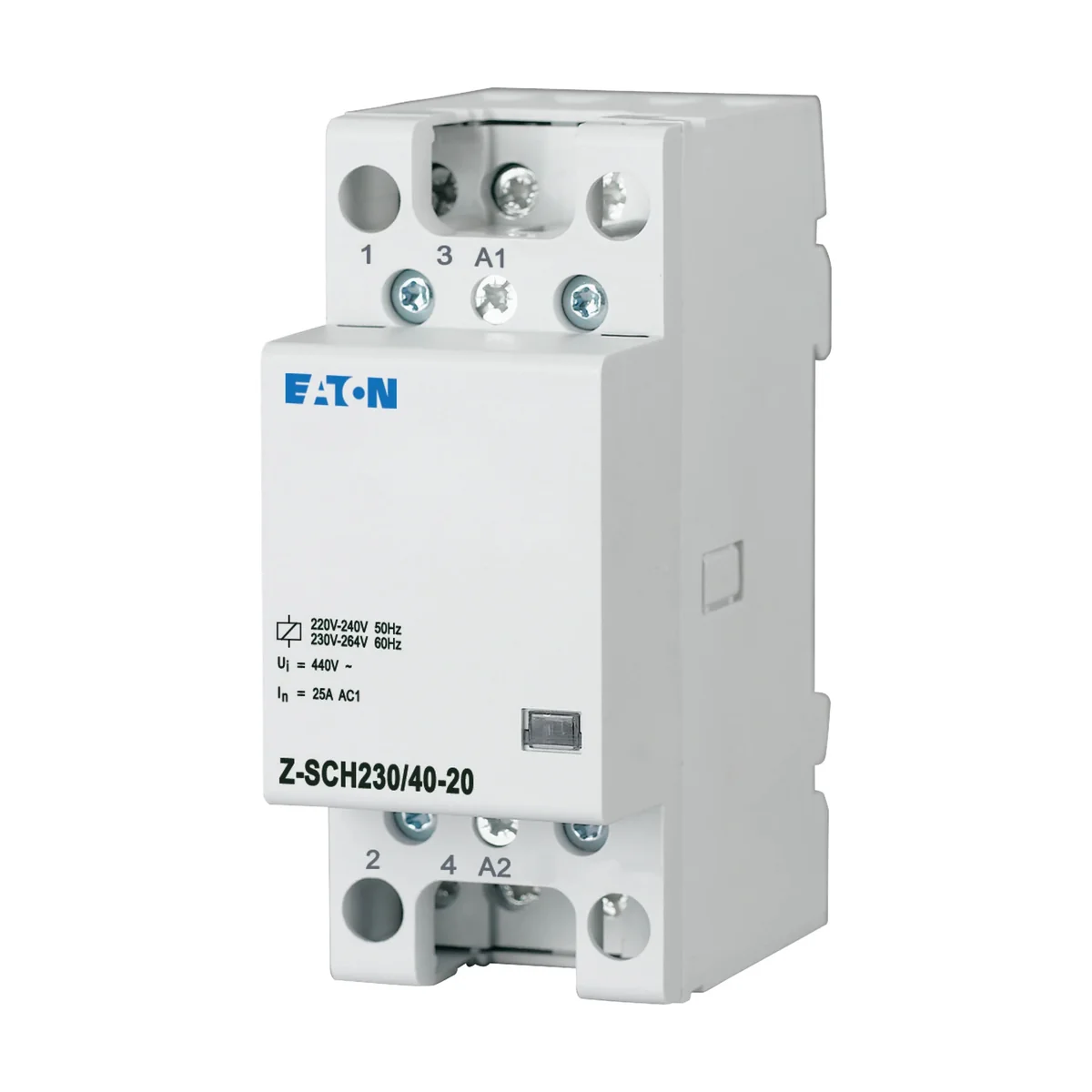

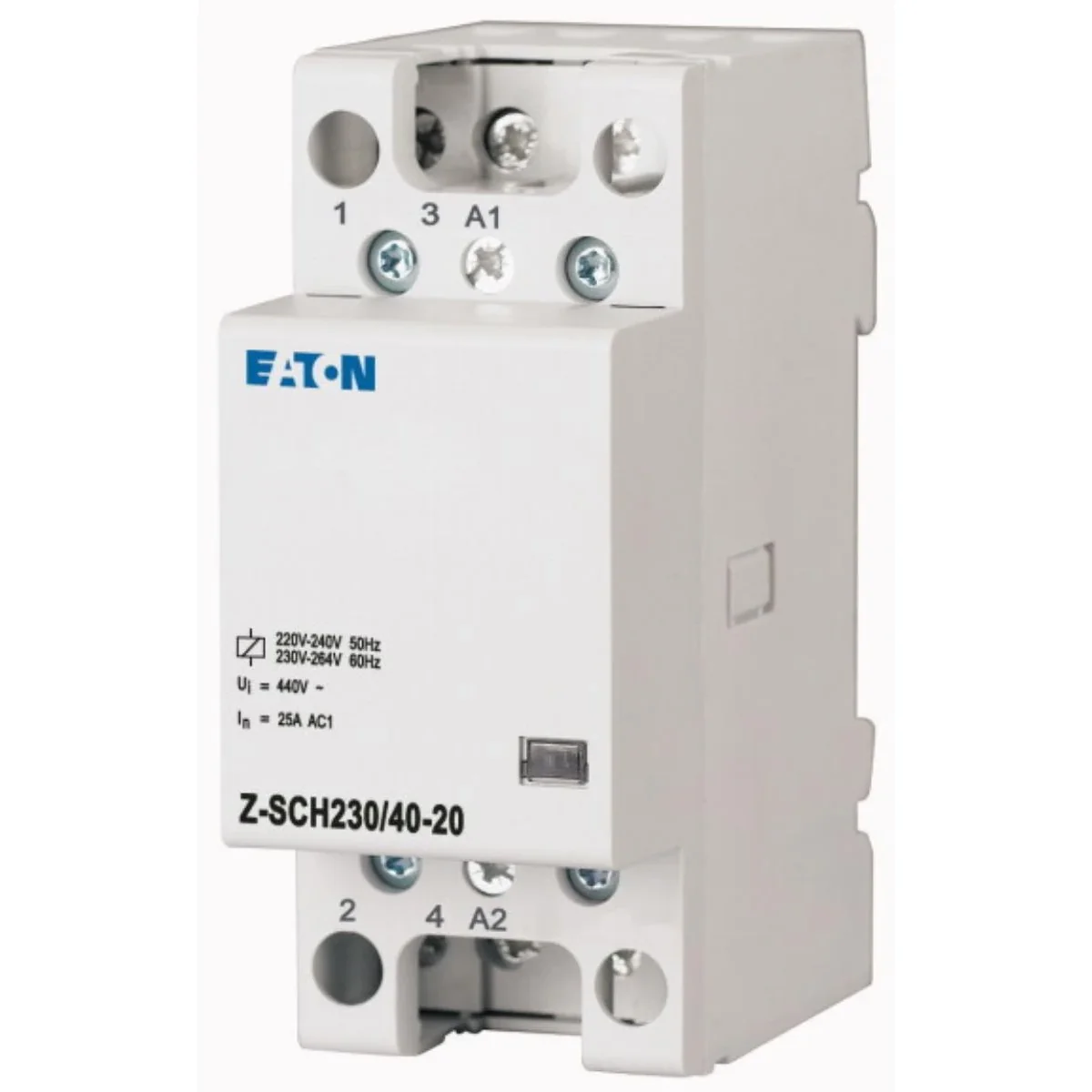

Installation contactor, Z-SCH230/40-20 248855

Name: Installation contactor, Z-SCH230/40-20
Brand: EATON
SKU: ATC245MOEL
Price: 123.30 PLN

local index:

ATC245MOEL

Catalog No:

248855

EAN code:

4015082488550

Click on the photo to enlarge

Manufacturer: EATON

Rated voltage [V]: 230

See full description

Price:

123,30 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Eaton Moeller Contactor Z-SCH230/40-20

Category AC1, rated current [A]: 40

Function: 2 make contacts

Operating voltage : 230V

Protection level [IP]: 20

Width in modules: 3

Mechanical strength [x 106]: 10

AC1 category, load:

- 230-240V [kW]: 16

- 230-240V [kW]: 27.5

AC3 category, current rated [A]: 27

Rated power 3-phase motor 50-60Hz:

- 220 [kW]: 7.5

- 230-240V [kW]: 8

- 380-415V [kW]: 12.5

Technical data

Rated voltage [V]

230

Other technical data

Rated operating voltage

440 ... 440 V
Kategoria użytkowania

1
Voltage type (operating voltage)

AC
Number of contacts as normally open contact

2
Max. incandescent lamp load

5520 W
Max. load fluorescent lamp (Duo circuit)

5336 VA
Slider for hand switch

No
Additional equipment possible

Yes

Rated operation current

40 A
Rated excitation voltage

195.5 ... 253 V
Voltage type (excitation voltage)

AC
Number of contacts as normally closed contact

0
Max. load fluorescent lamp

2610 VA
Max. load fluorescent lamp (parallel compensated)

2088 VA
Built-in depth

60 mm
Degree of protection (IP)

IP40

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	40 pcs.
Weight (kg)	0,360	0,380	15,200
Volume (m3)	0,000	0,000	0,017
Width (m)	0,052	0,037	0,195
Length (m)	0,085	0,092	0,385
Depth (m)	0,060	0,075	0,230
