Electrical apparatus
contactors
Parts for contactors
Installation contactor, Z-SCH230/25-31 248846
local index:
ATC231MOEL
Catalog No:
248846
EAN code:
4015082488468
Click on the photo to enlarge
Manufacturer:
EATON
Rated voltage [V]:
230
See full description
Price:
59,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description

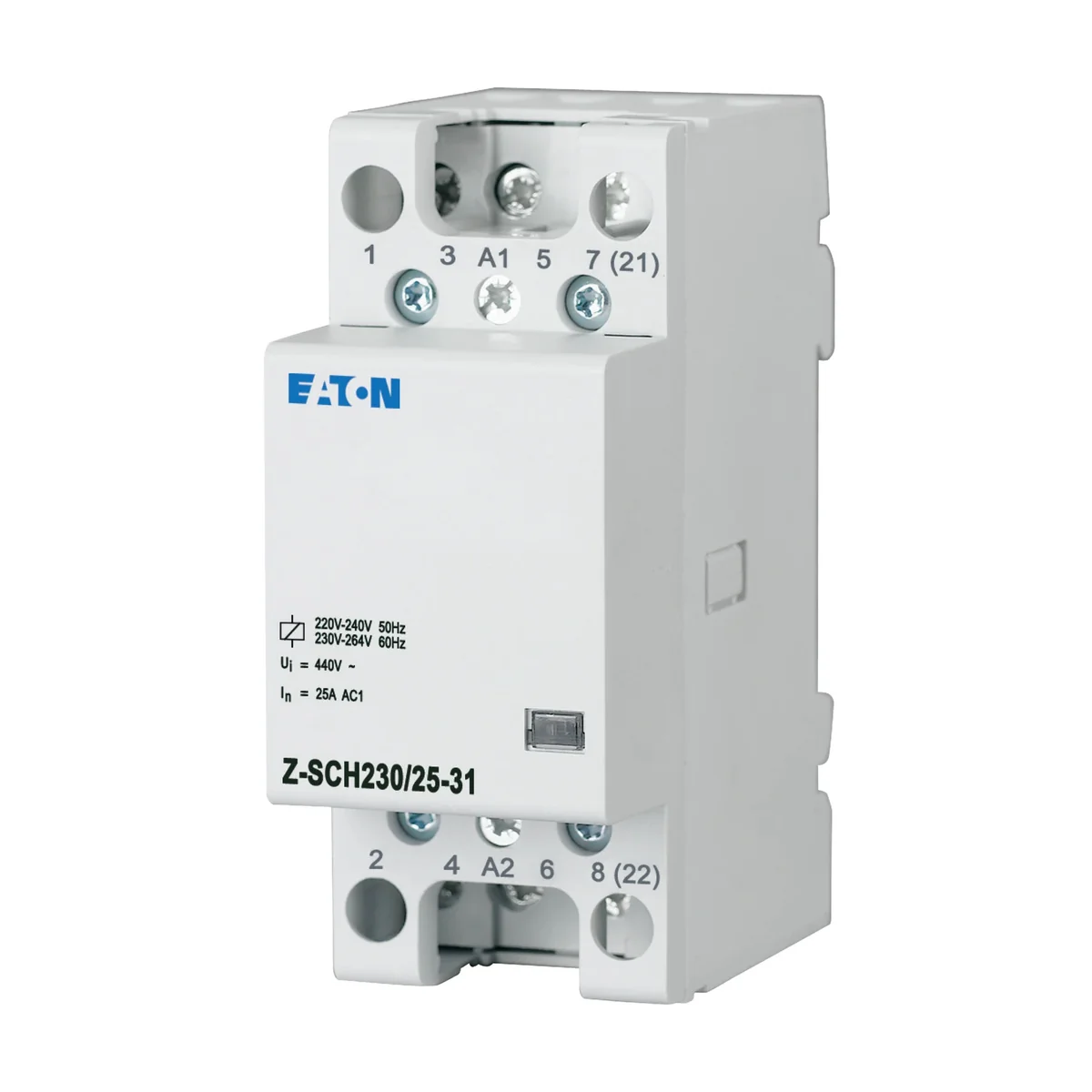

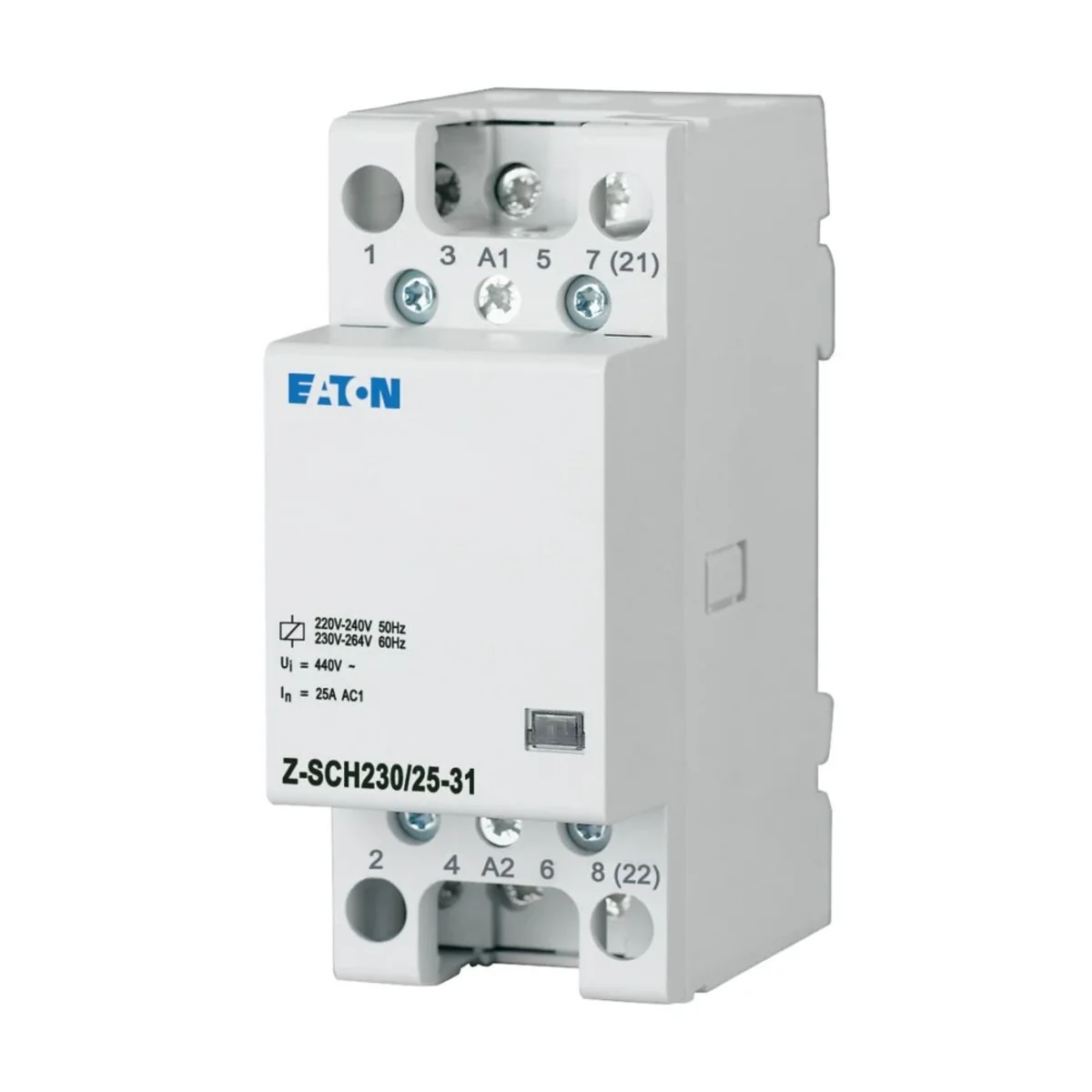

Installation contactor, Z-SCH230/25-31
Technical data
Rated voltage [V]
230
Other technical data
Rated operating voltage
440 ... 440 V
Kategoria użytkowania
1
Voltage type (operating voltage)
AC
Number of contacts as normally open contact
3
Max. incandescent lamp load
3000 W
Max. load fluorescent lamp (Duo circuit)
2552 VA
Slider for hand switch
No
Additional equipment possible
Yes
Rated operation current
25 A
Rated excitation voltage
195.5 ... 253 V
Voltage type (excitation voltage)
AC
Number of contacts as normally closed contact
1
Max. load fluorescent lamp
1160 VA
Max. load fluorescent lamp (parallel compensated)
1044 VA
Built-in depth
60 mm
Degree of protection (IP)
IP40
Bulk packaging
A kind of package
Skrzynia
Karton
Quantity
1 pcs.
60 pcs.
Weight (kg)
0,230
17,500
Volume (m3)
0,000
0,016
Width (m)
0,092
0,385
Length (m)
0,037
0,180
Depth (m)
0,075
0,230
See more >>
