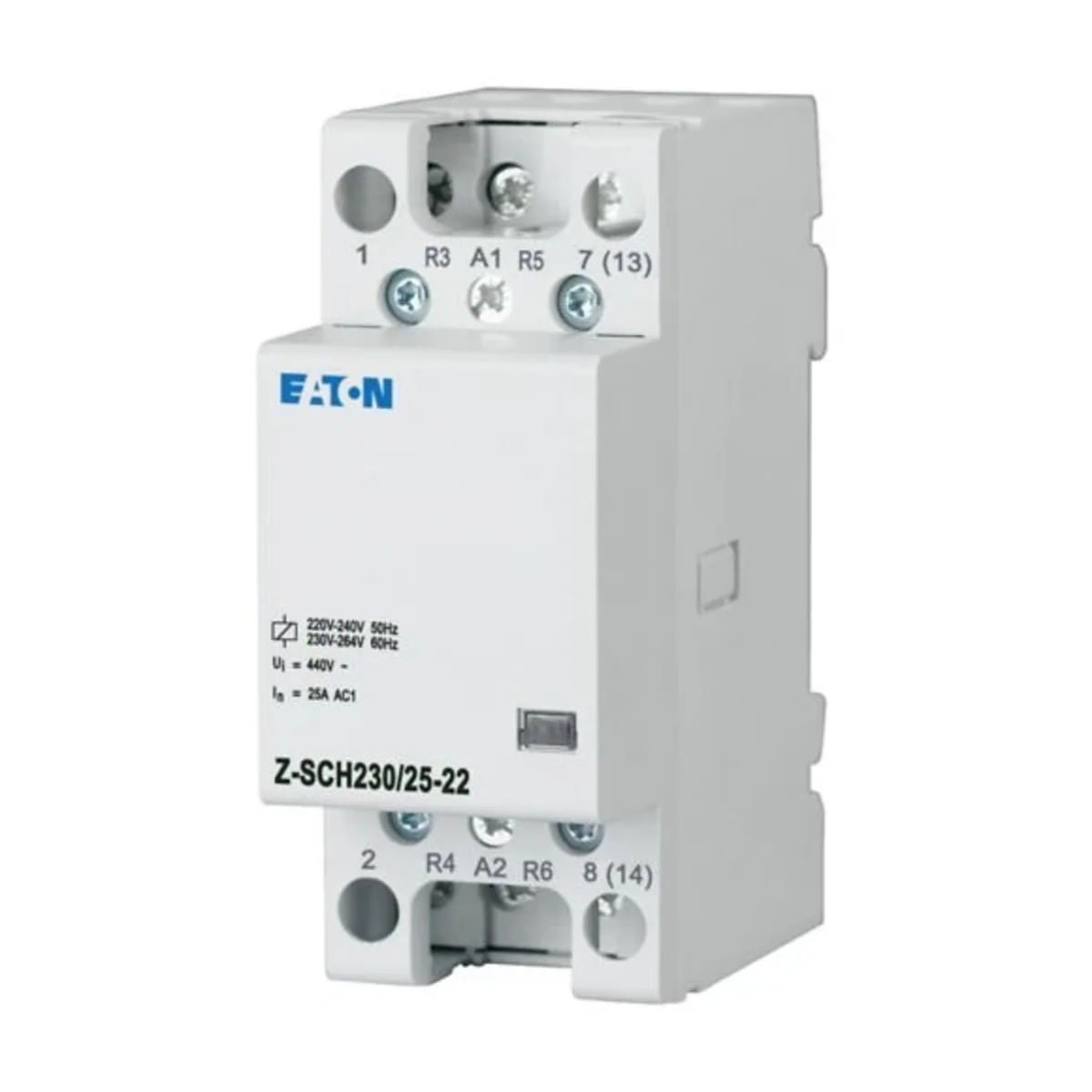

Installation contactor, Z-SCH230/25-22 248849

local index:
ATC244MOEL
Catalog No:
248849
EAN code:
4015082488499
Manufacturer: EATON
Rated voltage [V]: 230
Price:
65,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Eaton Moeller Contactor Z-SCH230/25-22

Category AC1, rated current [A]: 25

Function: 2 NO + 2 NC

Operating voltage: 230V

Ingress protection [IP]: 20

Width in modules: 2

Mechanical strength [x 106]: 10

Category AC1, load:

- 230-240V [kW]: 9, 5

- 230-240V [kW]: 17

Category AC3, rated current [A]: 9

Rated power 3-phase motor 50-60Hz:

- 220 [kW]: 2, 2

- 230-240V [kW]: 2, 5

- 380-415V [kW]: 4

Technical data

  • Rated voltage [V]
    230
  • PKWIU
    27.40.30.0

Other technical data

  • Rated operating voltage
    440 ... 440 V
  • Kategoria użytkowania
    1
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    2
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp (Duo circuit)
    2552 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    195.5 ... 253 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    2
  • Max. load fluorescent lamp
    1160 VA
  • Max. load fluorescent lamp (parallel compensated)
    1044 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP40

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 60 pcs.
Weight (kg) 0,230 13,200
Volume (m3) 0,000 0,016
Width (m) 0,092 0,385
Length (m) 0,037 0,180
Depth (m) 0,075 0,230
