Installation contactor Z-SCH230/1/25-11 25A 1NO 1NC IP20 230VAC 193886
local index:
ATC043MOEL
Catalog No:
193886
EAN code:
9010238040090
Manufacturer:
EATON
Number of contacts: 1NO 1NC
Number of NC contacts: 1
AC control voltage [V]: 230
Price:
33,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

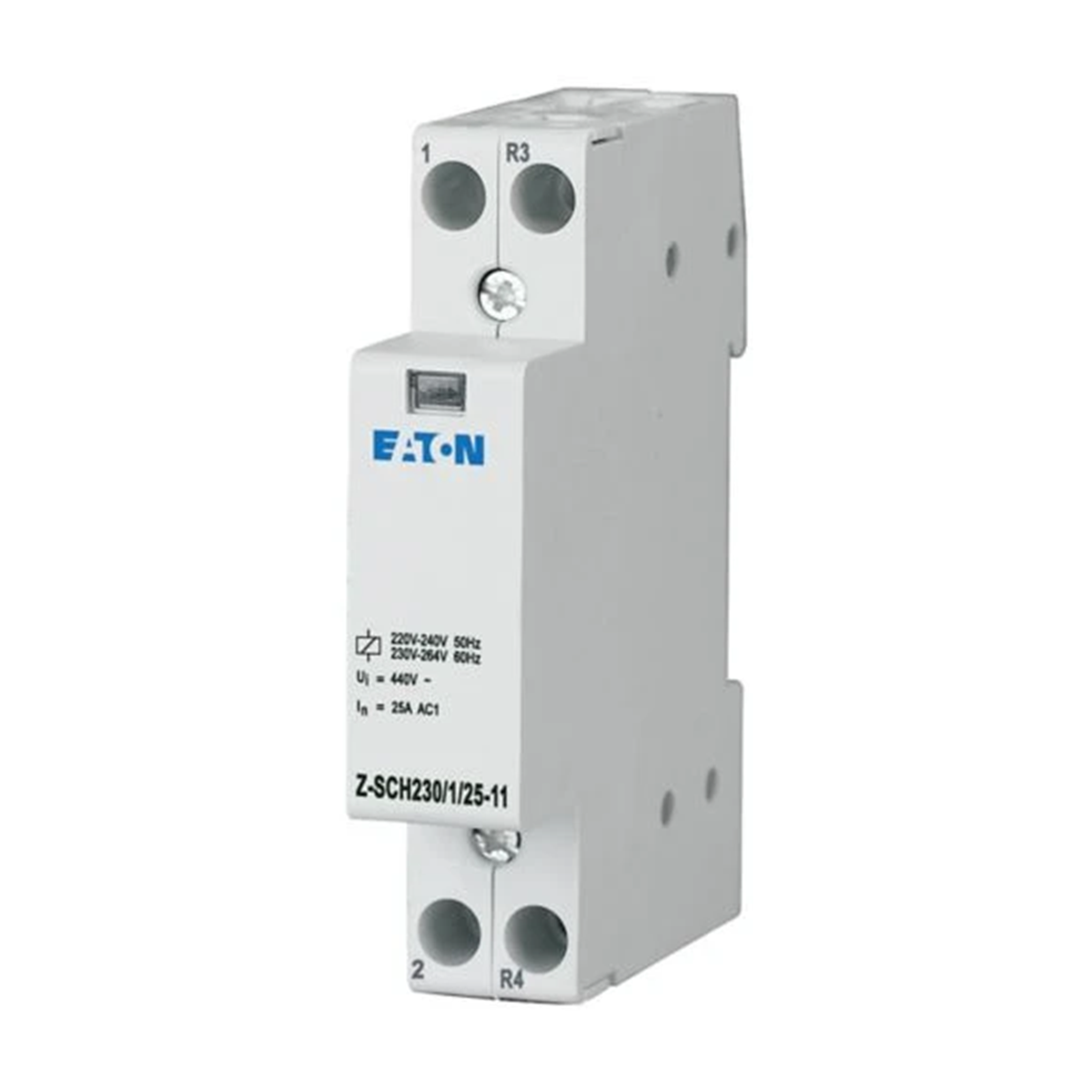

Installation contactor Z-SCH230/1/25-11 25A 1NO 1NC IP20 230VAC
Technical data
-
Number of contacts1NO 1NC
-
AC control voltage [V]230
-
Width [number of modules]1
-
Maximum switching capacity for fluorescent lamps (DUO compensation) [VA]2552
-
Maximum switching capacity for bulbs [W]3000
-
Maximum operating voltage [V]440
-
Number of NC contacts1
-
Level of securityIP20
-
Rated operational current [A]25
-
Maximum switching capacity for fluorescent lamps [VA]1160
-
Number of NO contacts1
Other technical data
-
Rated operating voltage440 ... 440 V
-
Kategoria użytkowania1
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact1
-
Max. incandescent lamp load3000 W
-
Max. load fluorescent lamp (Duo circuit)2552 VA
-
Slider for hand switchNo
-
Built-in depth60 mm
-
With day/night functionNo
-
Degree of protection (IP)IP20
-
Rated operation current25 A
-
Rated excitation voltage195.5 ... 253 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact1
-
Max. load fluorescent lamp1160 VA
-
Max. load fluorescent lamp (parallel compensated)1044 VA
-
Width in number of modular spacings1
-
Additional equipment possibleYes
-
Hum-freeNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 2 pcs. | 120 pcs. |
| Weight (kg) | 0,140 | 0,147 | 0,293 | 17,500 |
| Volume (m3) | 0,000 | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,018 | 0,020 | 0,037 | 0,385 |
| Length (m) | 0,085 | 0,087 | 0,092 | 0,190 |
| Depth (m) | 0,065 | 0,067 | 0,075 | 0,235 |
