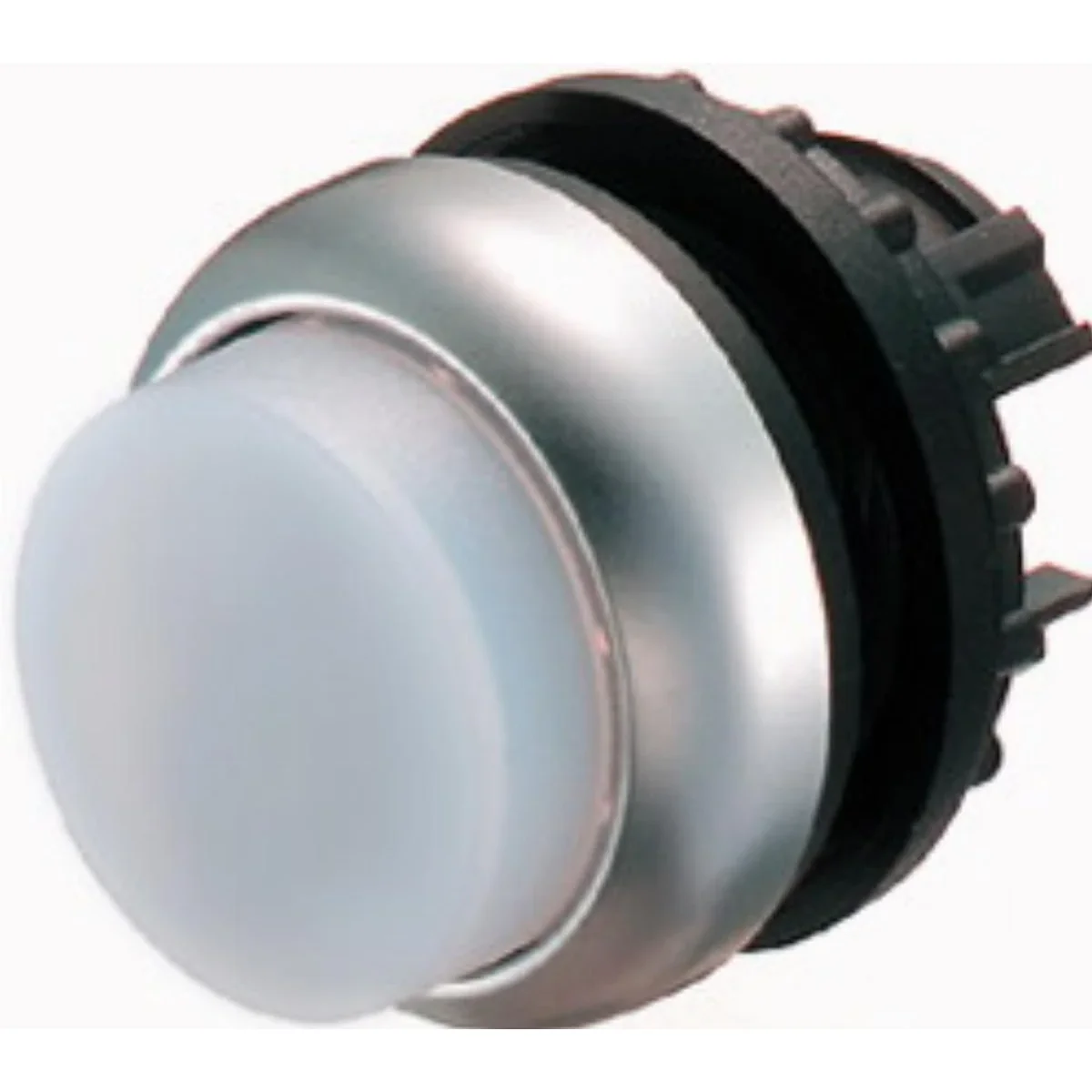

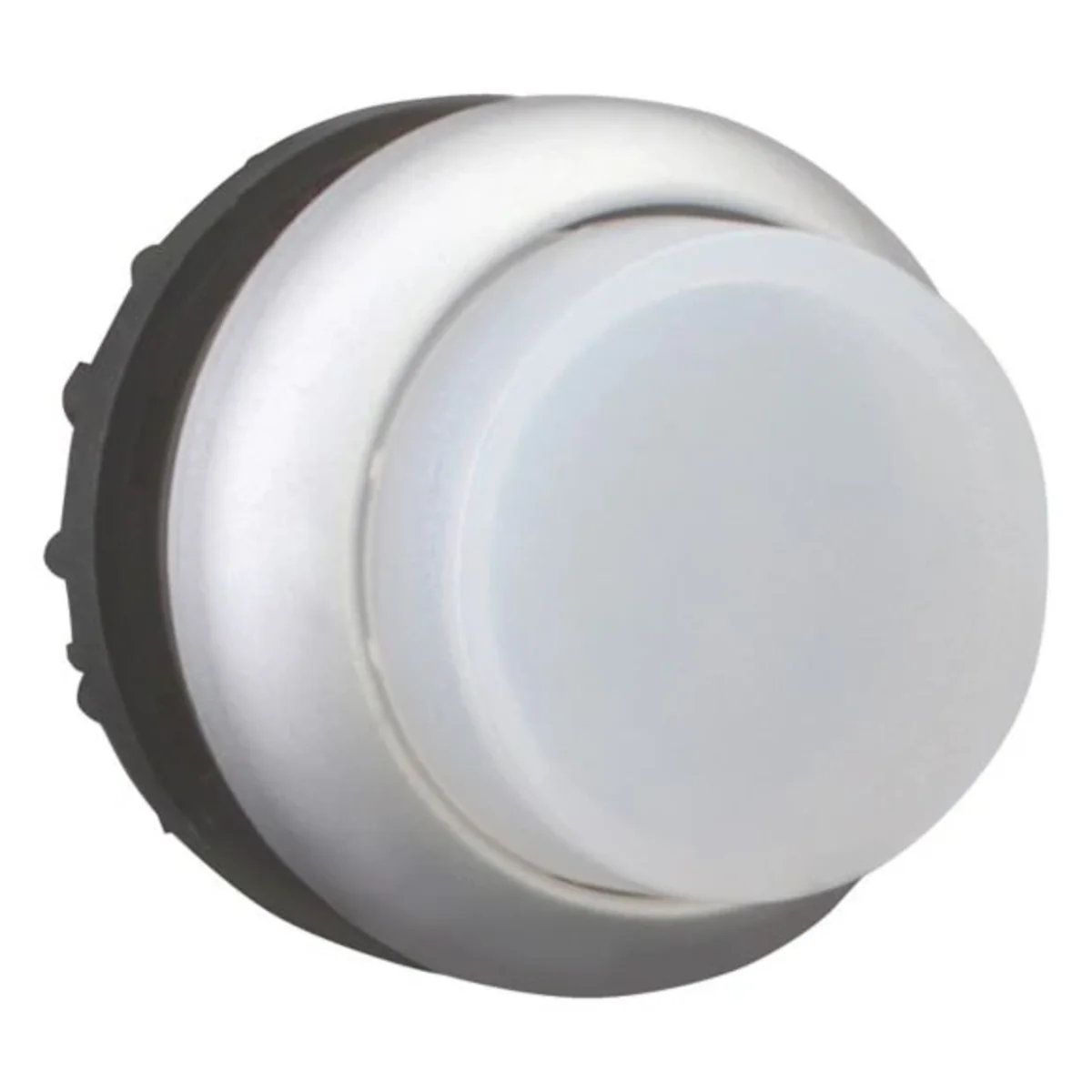

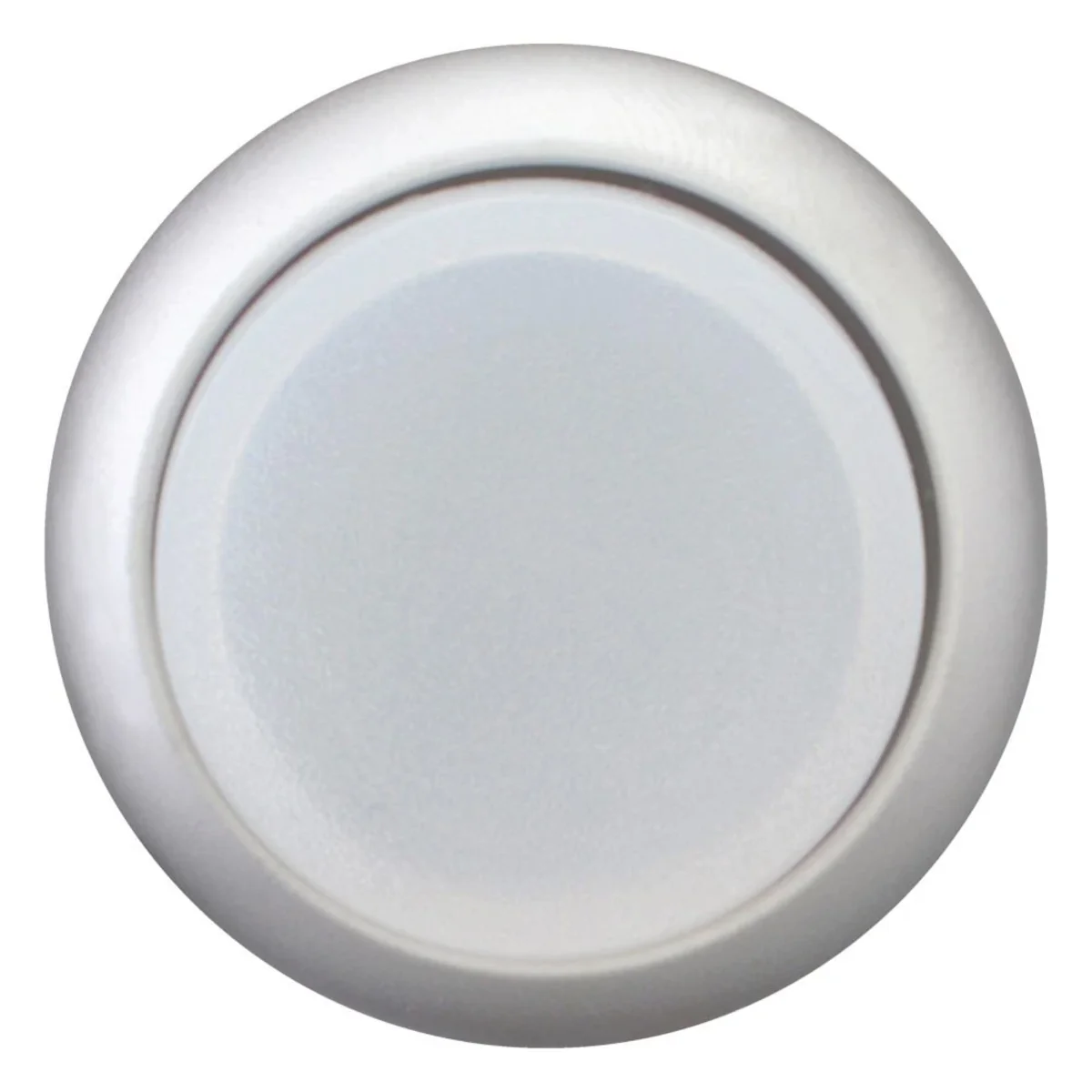

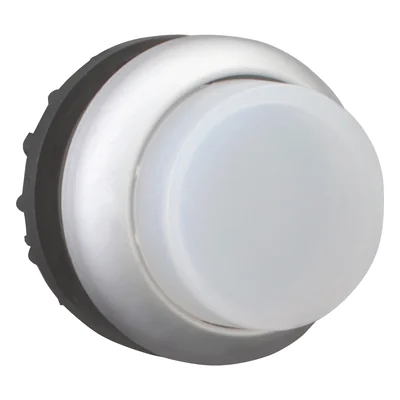

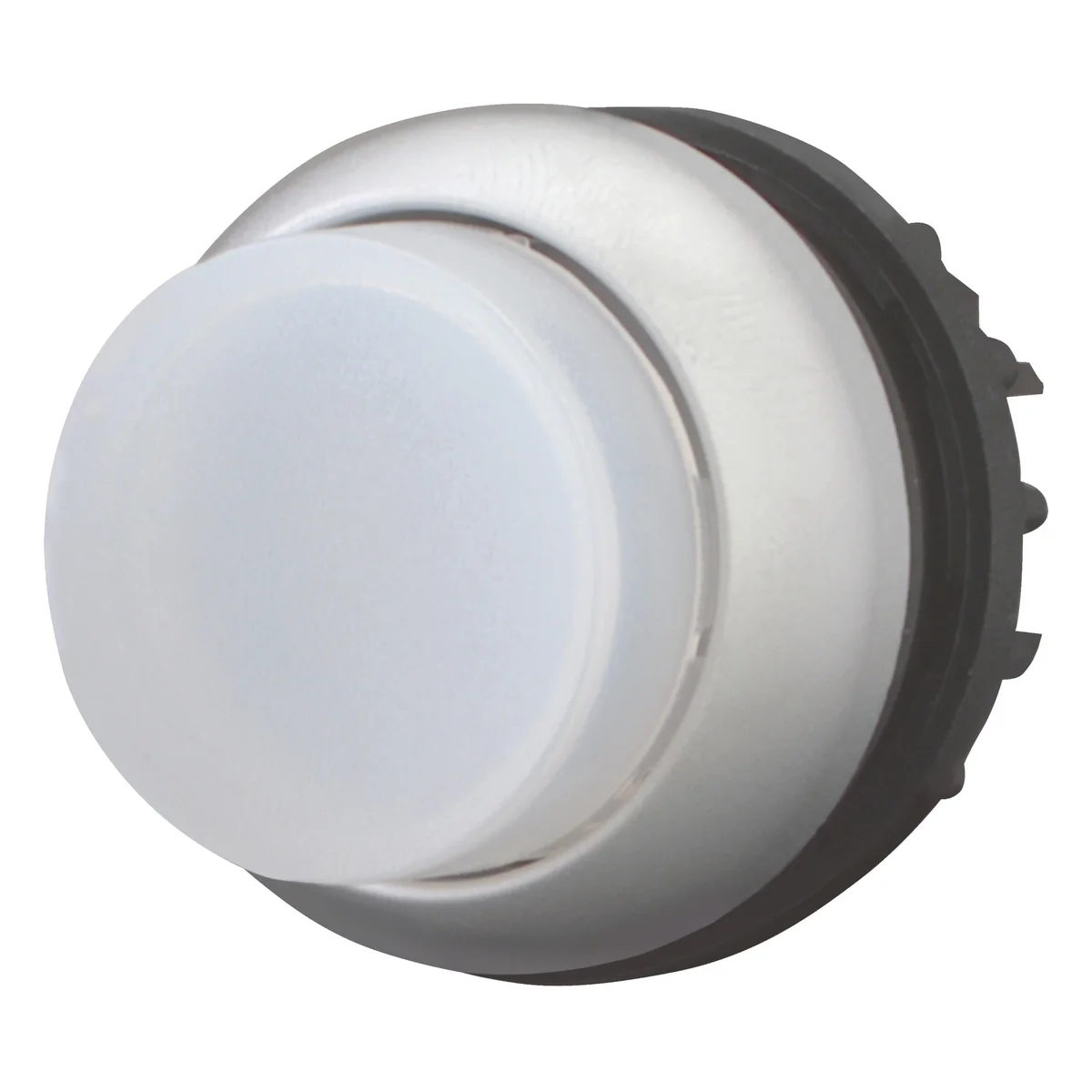

Illuminated button drive, white, M22-DLH-W 216965

local index:
AKS915MOEL
Catalog No:
216965
EAN code:
4015082169657
Manufacturer: EATON
Face ring color: Titanium
Button color: White
Execution: Back home
Price:
10,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Print

Product description

Backlight button drive self-return protruding, white

Technical data

  • Face ring color
    Titanium
  • Execution
    Back home
  • Button color
    White

Other technical data

  • Colour button
    White
  • Construction type lens
    Round
  • Width opening
    0 mm
  • Type of button
    High
  • With protective cover
    No
  • Switching function latching
    No
  • With front ring
    Yes
  • Colour front ring
    Chrome
  • Degree of protection (NEMA), front side
    4X
  • Number of command positions
    1
  • Hole diameter
    22 mm
  • Height opening
    0 mm
  • Suitable for illumination
    Yes
  • Labelled
    No
  • Spring-return
    Yes
  • Material front ring
    Plastic
  • Degree of protection (IP), front side
    IP67/IP69K

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,015 0,075
Volume (m3) 0,000 0,000
Width (m) 0,032 0,068
Length (m) 0,032 0,065
Depth (m) 0,037 0,075
