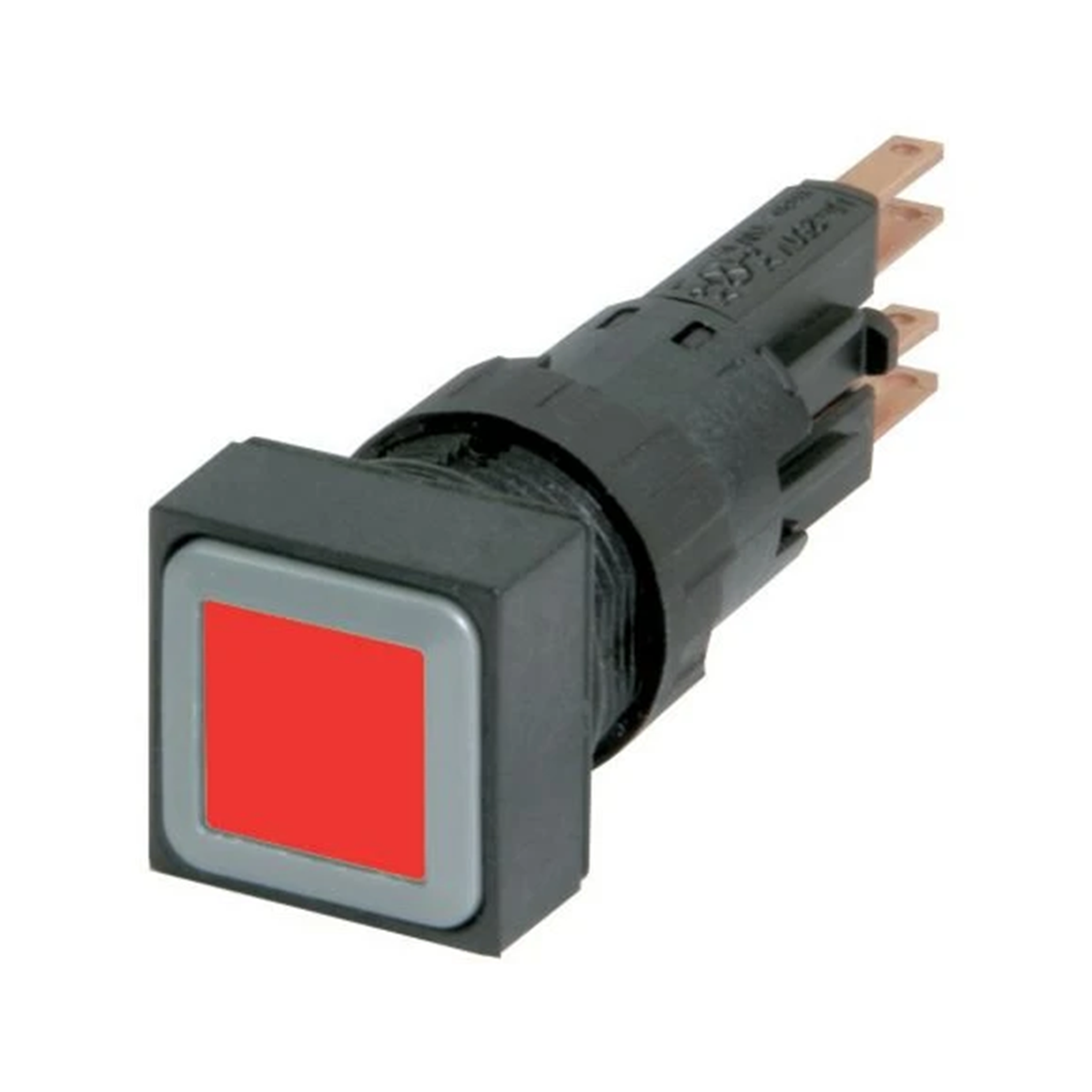

Illuminated button drive, red, Q18LT-RT/WB 088537

local index:
AKS887MOEL
Catalog No:
088537
EAN code:
4015080885375
Manufacturer: EATON
Button color: Red
front dimensions [mm]: 18x18
Price:
18,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print

Product description

Illuminated push button drive, red lens, with 24V bulb

Technical data

  • Button color
    Red
  • front dimensions [mm]
    18x18

Other technical data

  • Colour button
    Red
  • Construction type lens
    Square
  • Width opening
    0 mm
  • Type of button
    Flat
  • With protective cover
    No
  • Switching function latching
    No
  • With front ring
    Yes
  • Colour front ring
    Black
  • Degree of protection (NEMA), front side
    1
  • Number of command positions
    1
  • Hole diameter
    16 mm
  • Height opening
    0 mm
  • Suitable for illumination
    Yes
  • Labelled
    No
  • Spring-return
    Yes
  • Material front ring
    Plastic
  • Degree of protection (IP), front side
    IP65

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,010 0,105
Volume (m3) 0,000 0,000
Width (m) 0,020 0,068
Length (m) 0,061 0,075
Depth (m) 0,020 0,065
