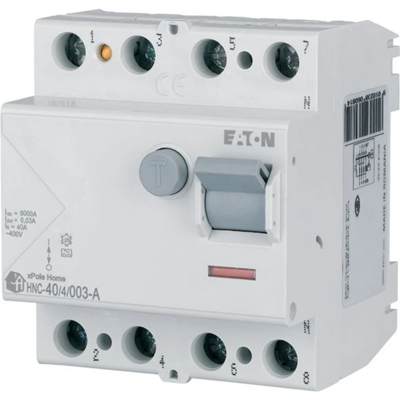

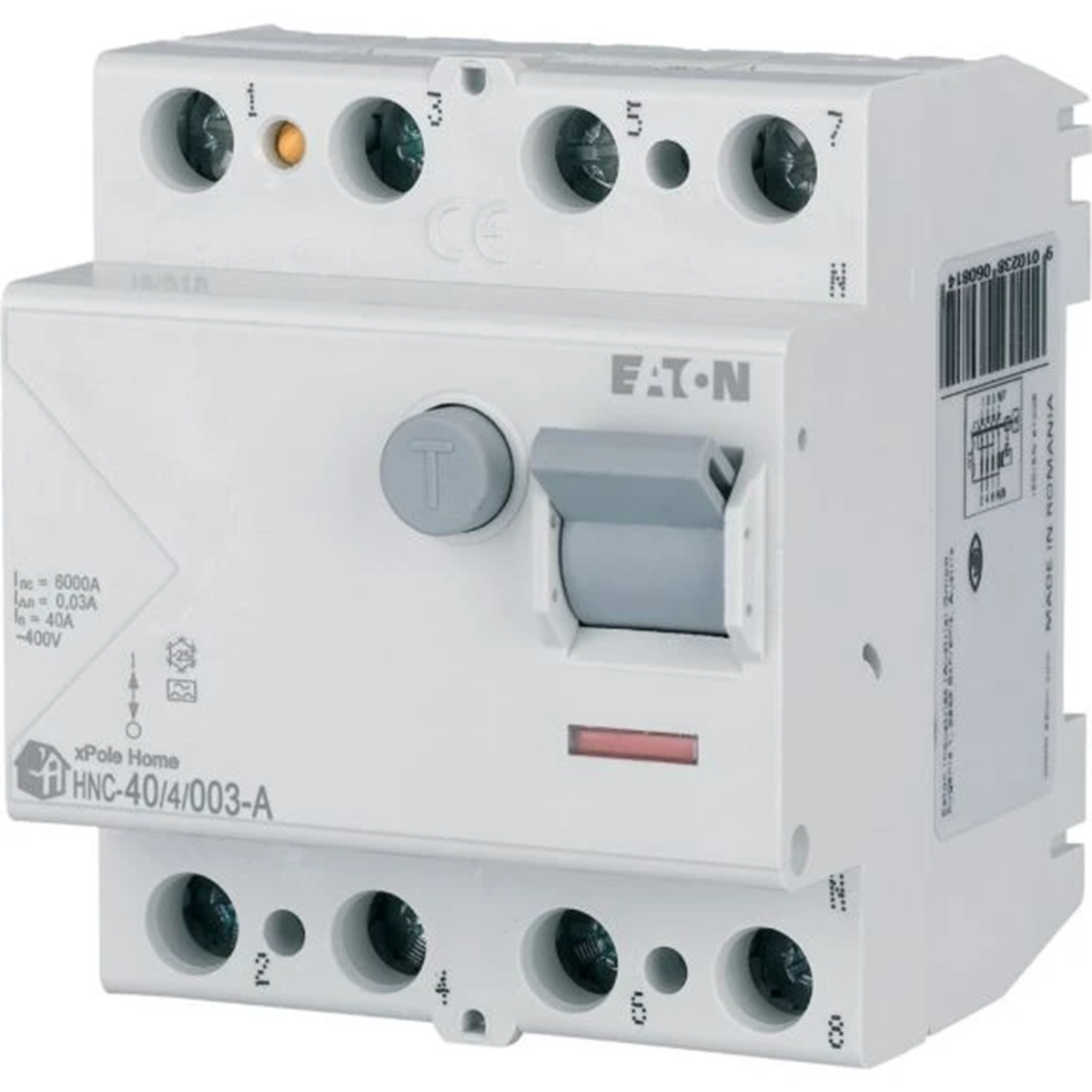

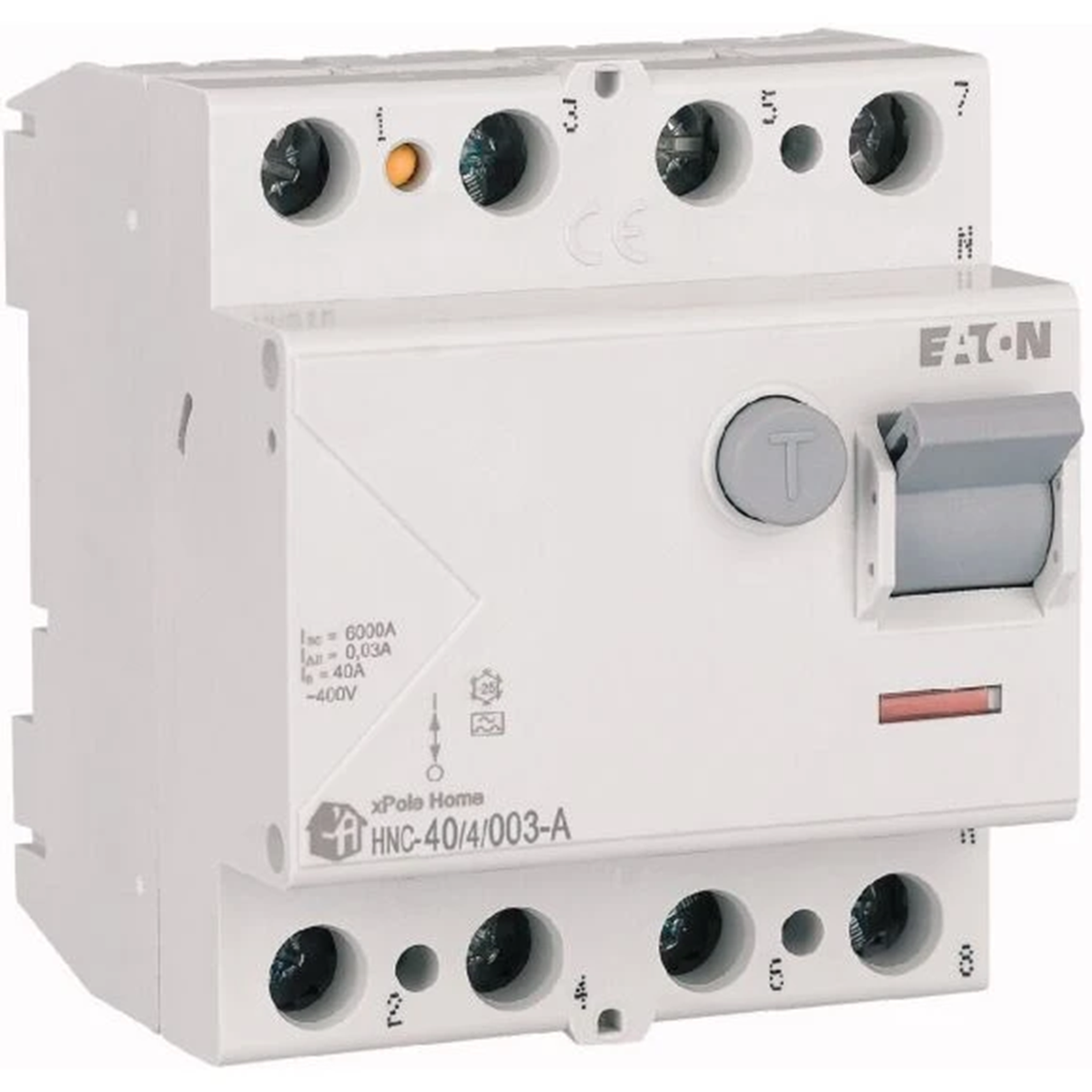

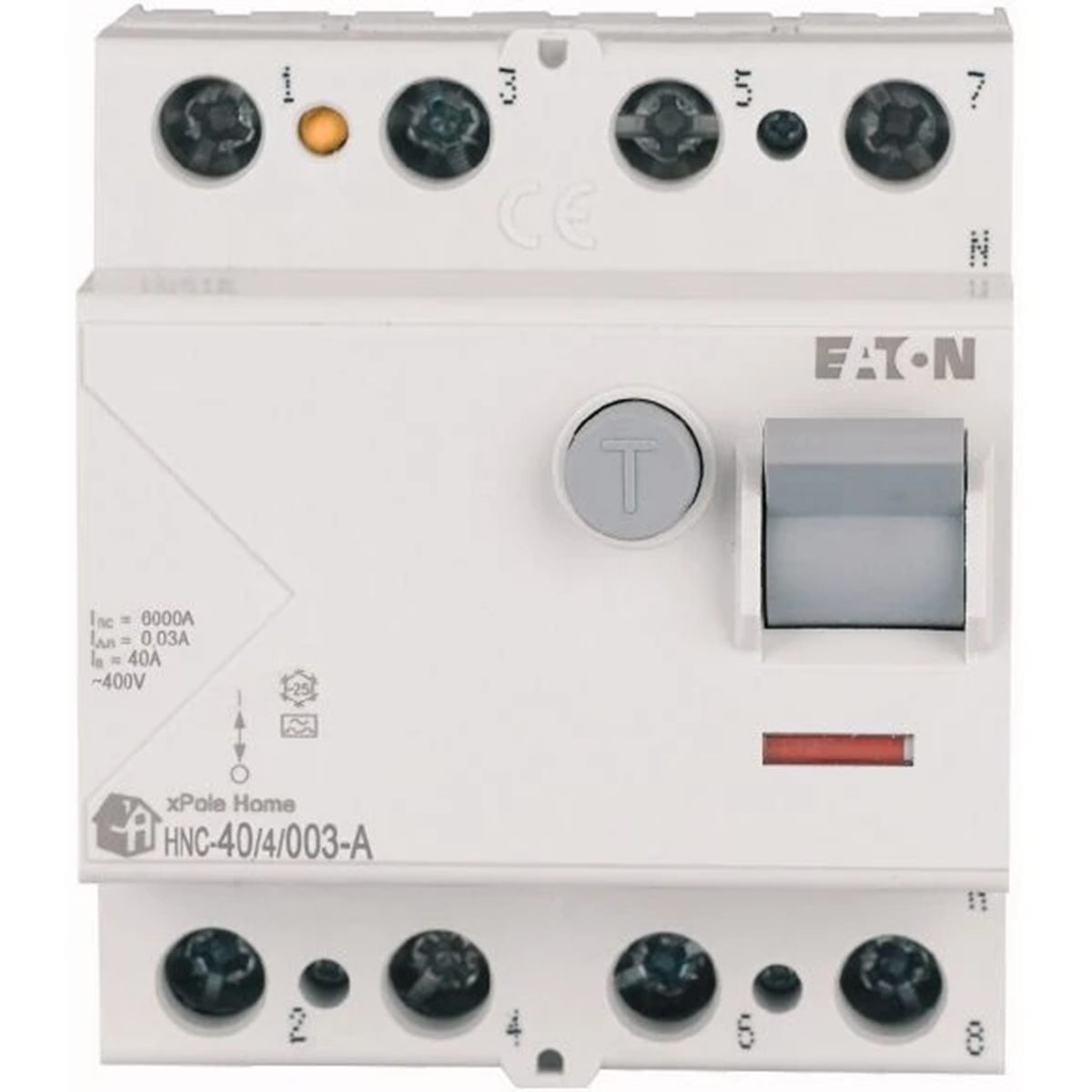

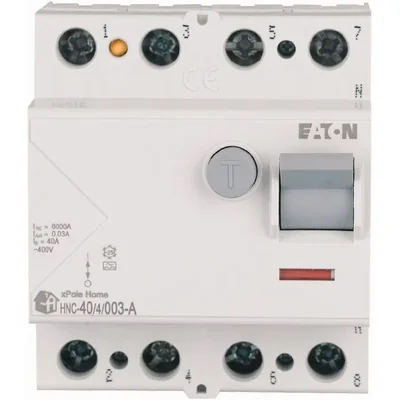

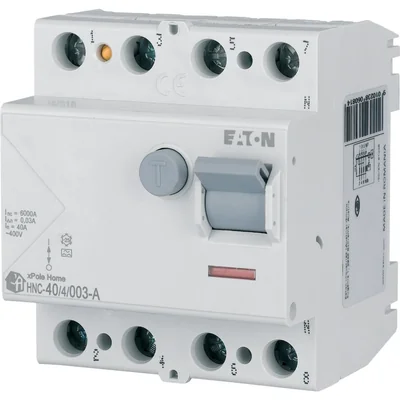

HNC-40/4/003-A residual current circuit breaker 194688
local index:
ARP115MOEL
Catalog No:
194688
EAN code:
9010238060814
Price:
98,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
4-pole residual current circuit breaker from the manufacturer EATON. The product catalog number is 194688.
-
Rated short-circuit withstand capacity [Icn]: 6 kA.
Technical data
-
Number of poles4
-
Rated current [A]40
-
Width [number of modules]4
-
Differential current [A]0.03
-
Rated voltage [V]230
-
Level of securityIP20
-
Installation depth [mm]45
Other technical data
-
Number of poles4
-
Rated current40 A
-
Rated insulation voltage Ui440 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)6 kA
-
Voltage typeAC
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth45 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1.5 ... 35 mm²
-
Rated voltage230 V
-
Rated fault current0.03 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeA
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
With interlocking deviceYes
-
Additional equipment possibleYes
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 60 °C
-
Connectable conductor cross section multi-wired1.5 ... 16 mm²
-
Explosion-proofNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 30 pcs. |
| Weight (kg) | 0,298 | 0,322 | 9,660 |
| Volume (m3) | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,070 | 0,070 | 0,180 |
| Length (m) | 0,080 | 0,080 | 0,385 |
| Depth (m) | 0,076 | 0,076 | 0,230 |
