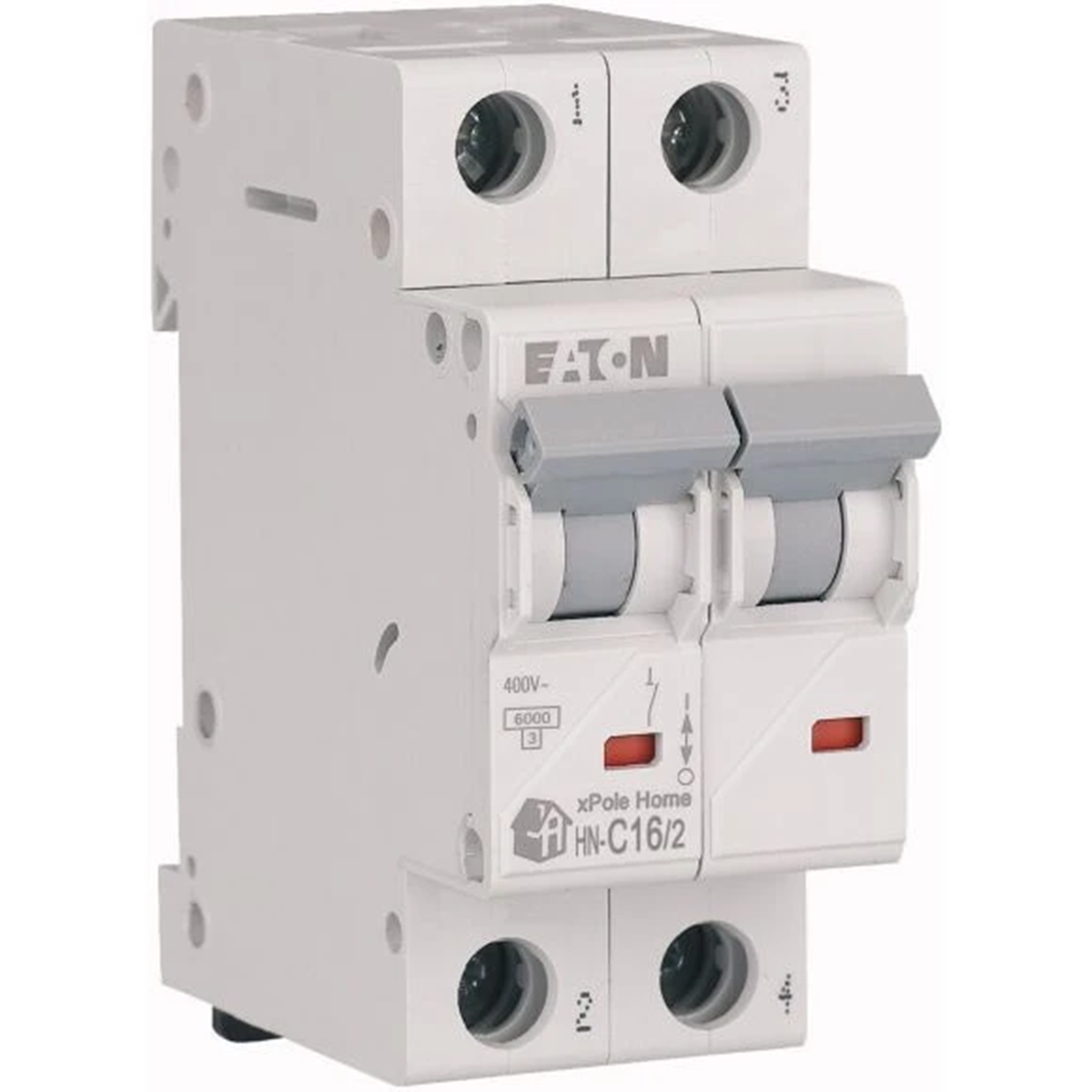

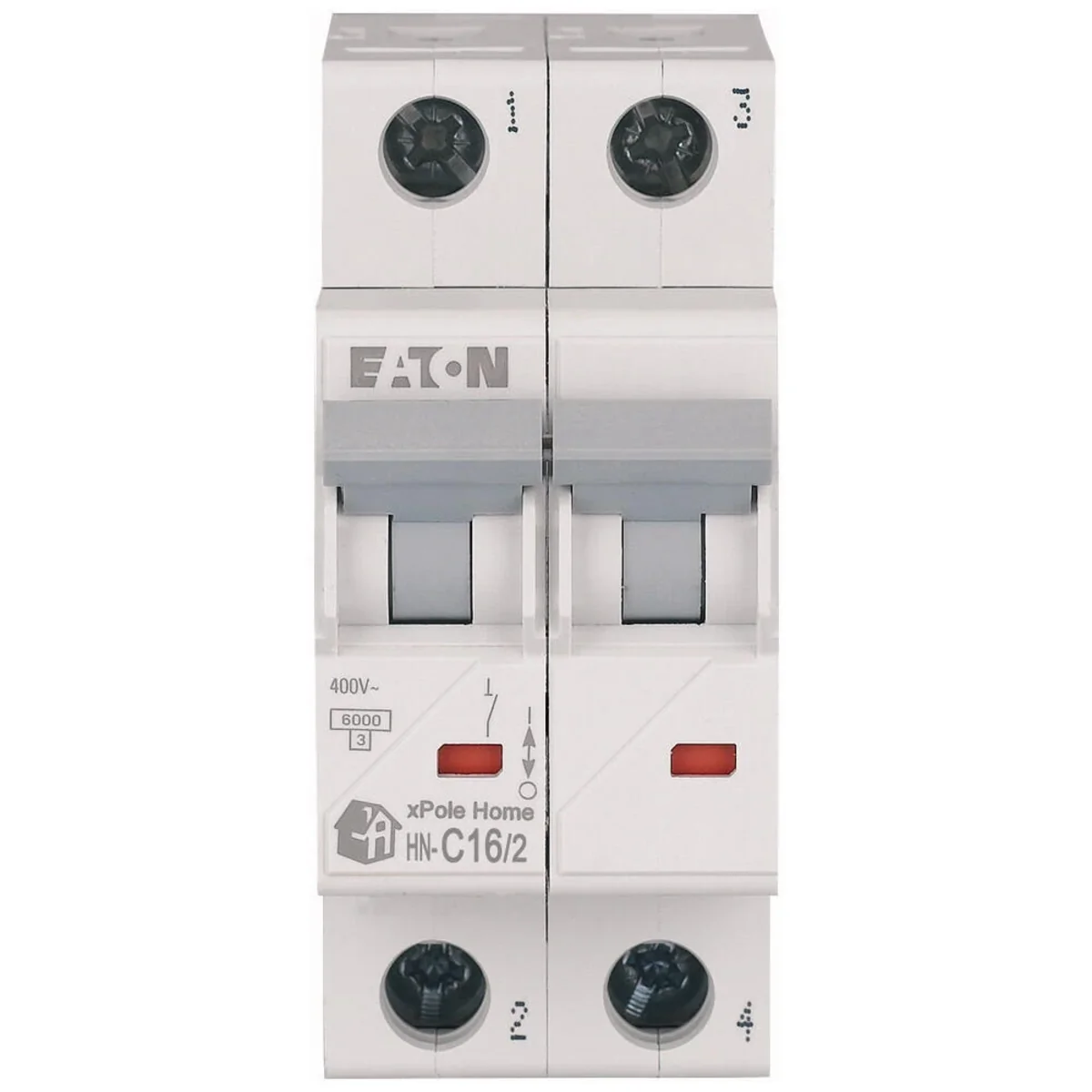

HN-C16/2 Circuit breaker 6kA, In=16A, C characteristic, 2-pole. HN series 194871

Name: HN-C16/2 Circuit breaker 6kA, In=16A, C characteristic, 2-pole. HN series
Brand: EATON
SKU: ABC208MOEL
Price: 94.44 PLN
Availability: InStock

Lokaler Index:

ABC208MOEL

Katalognummer:

194871

EAN-Code:

9010238063556

HN-C16/2 Circuit breaker 6kA, In=16A, C characteristic, 2-pole. HN series

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Characteristic: c

Frequency [Hz]: 50-60

Depth [mm]: 85

Siehe vollständige Beschreibung

Preis:

94,44 zł

gross / stk.

(inklusive MwSt 23%)

437,22 zł gross/kg.

Zugänglich 17 stk.

Menge stk.

(mehrere:

1

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

xPole Home Circuit Breaker 6kA C 2-pole 16A HN-C16/2

Technische Daten

Characteristic

c
Depth [mm]

85
Energy limitation class

3
Maximum operating temperature [°C]

75
Rated insulation voltage [V]

440
Cross-section of connected single-wire cable [mm]

1-25
Type of voltage

AC
Level of security

IP20
Width [mm]

35.4
Height [mm]

73
Breaking capacity [kA]

6
Minimum operating temperature [°C]

-25

Frequency [Hz]

50-60
Overvoltage category

III
Number of poles

2
Rated voltage [V]

230
Rated current [A]

16
Cross-section of connected multicore cable [mm]

1-25
Family

xPole Home
Degree of contamination

3
Weight [g]

216
Switching capacity [kA]

6
Rated impulse voltage [kV]

4
Installation depth [mm]

44

Weitere technische Daten

Built-in depth

44 mm
Number of poles (total)

2
Rated current

16 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

Yes
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton	Karton
Menge	1 stk.	6 stk.	60 stk.
Gewicht (kg)	0,223	1,341	13,410
Volumen (m3)	0,000	0,001	0,016
Breite (m)	0,037	0,218	0,180
Länge (m)	0,087	0,086	0,385
Tiefe (m)	0,075	0,075	0,230
