HN-C10/2 Circuit breaker 6kA, In=10A, C characteristic, 2-pole. HN series 194869

Name: HN-C10/2 Circuit breaker 6kA, In=10A, C characteristic, 2-pole. HN series
Brand: EATON
SKU: ABC193MOEL
Price: 91.01 PLN
Availability: InStock

Indice locale:

ABC193MOEL

Numero di catalogo:

194869

Codice EAN:

9010238063532

HN-C10/2 Circuit breaker 6kA, In=10A, C characteristic, 2-pole. HN series

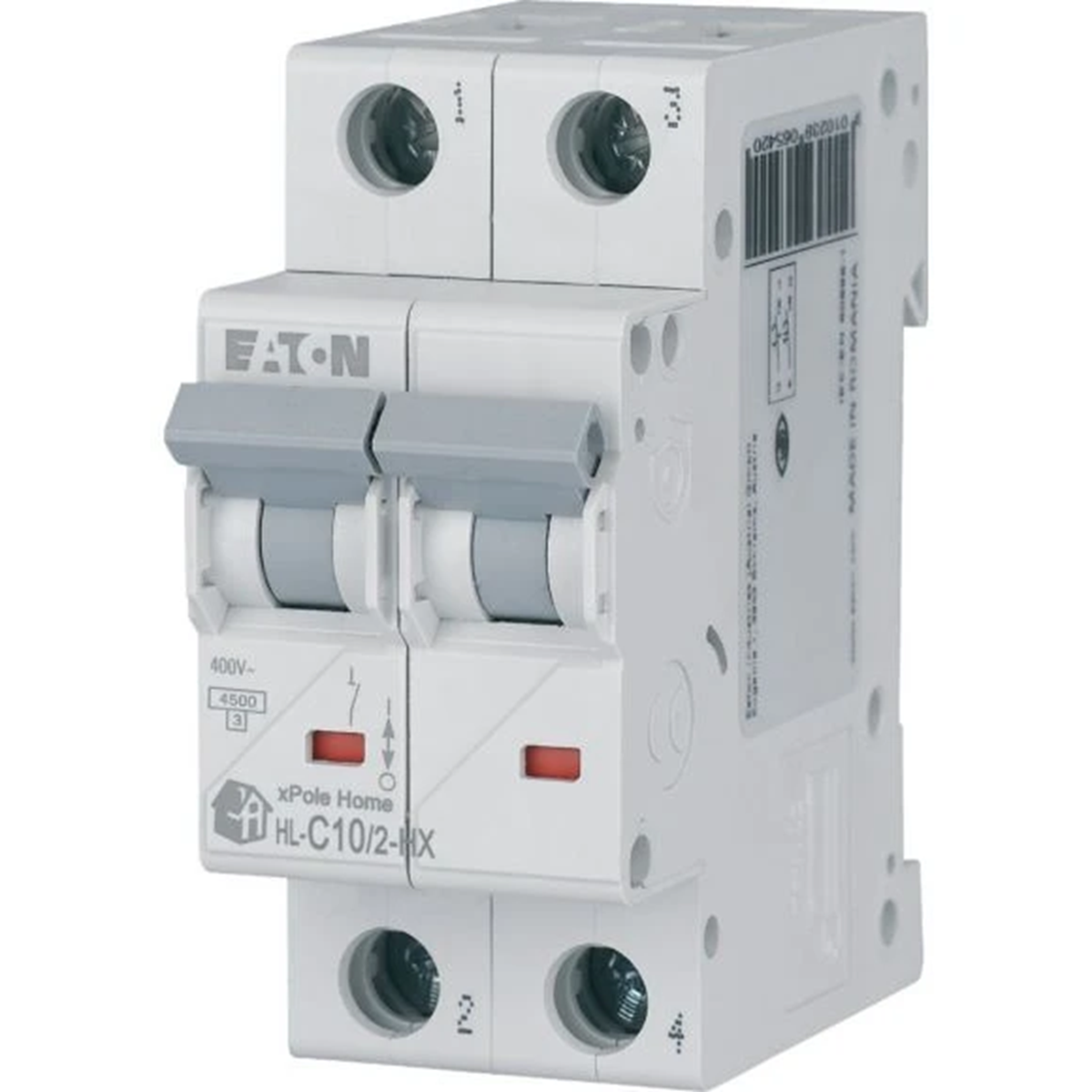

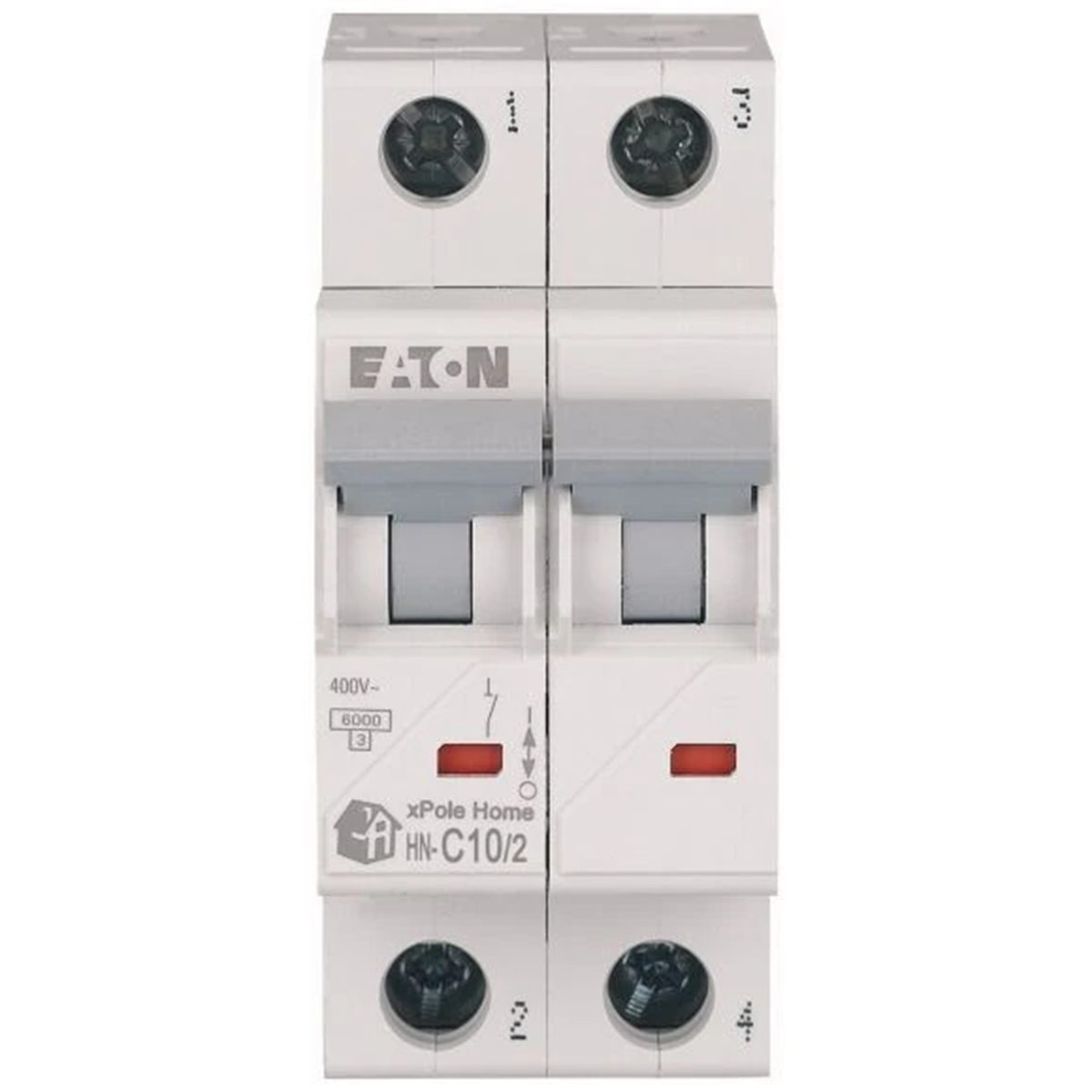

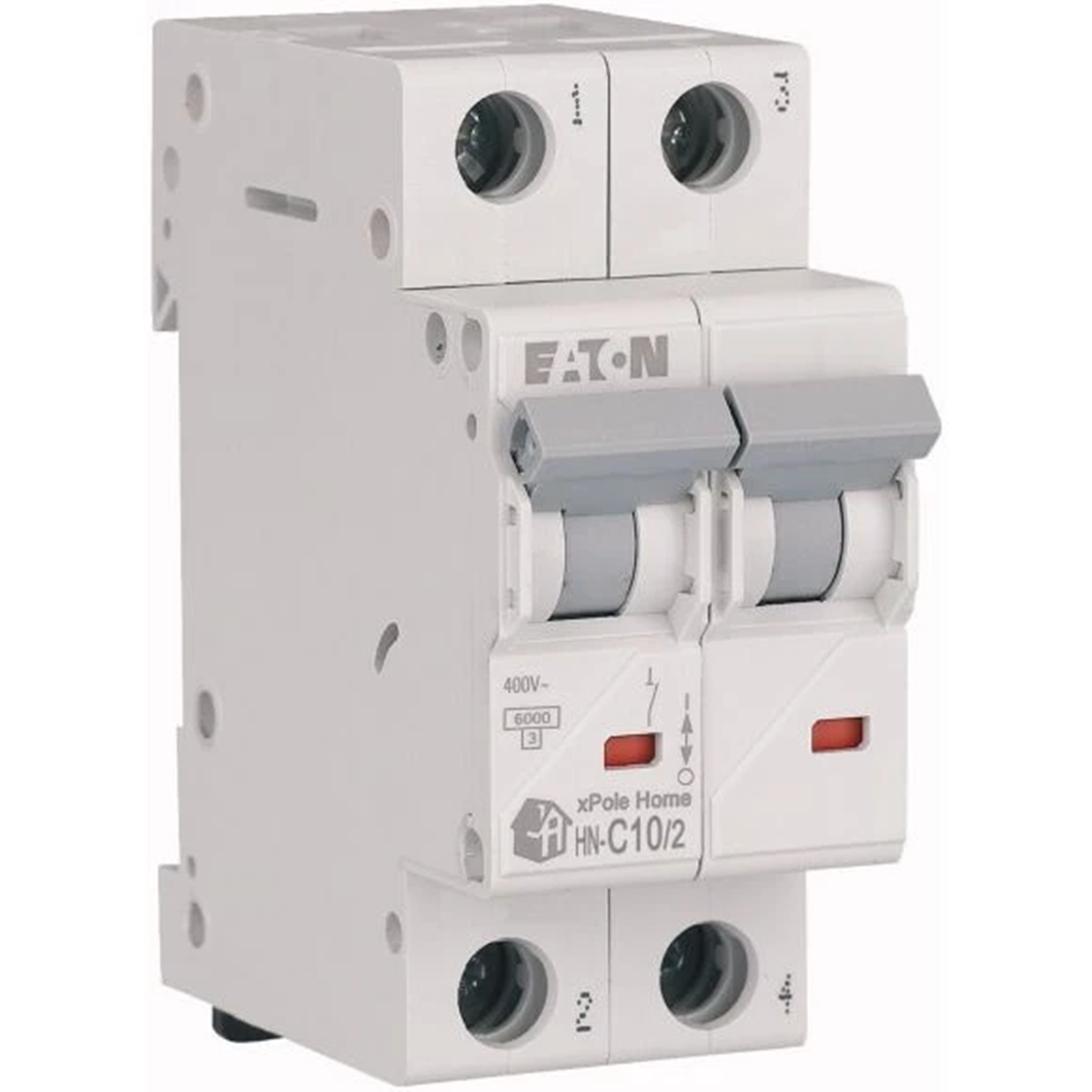

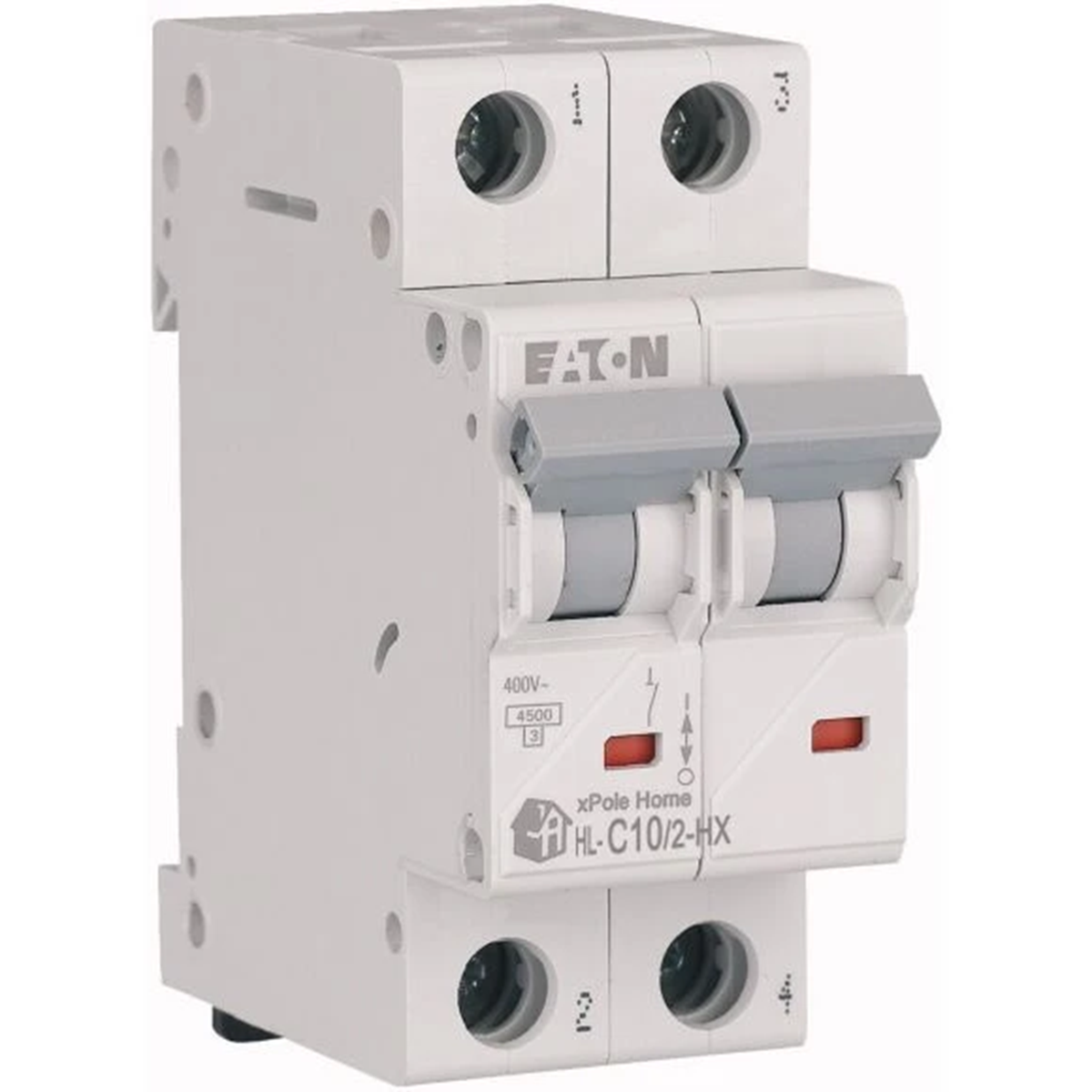

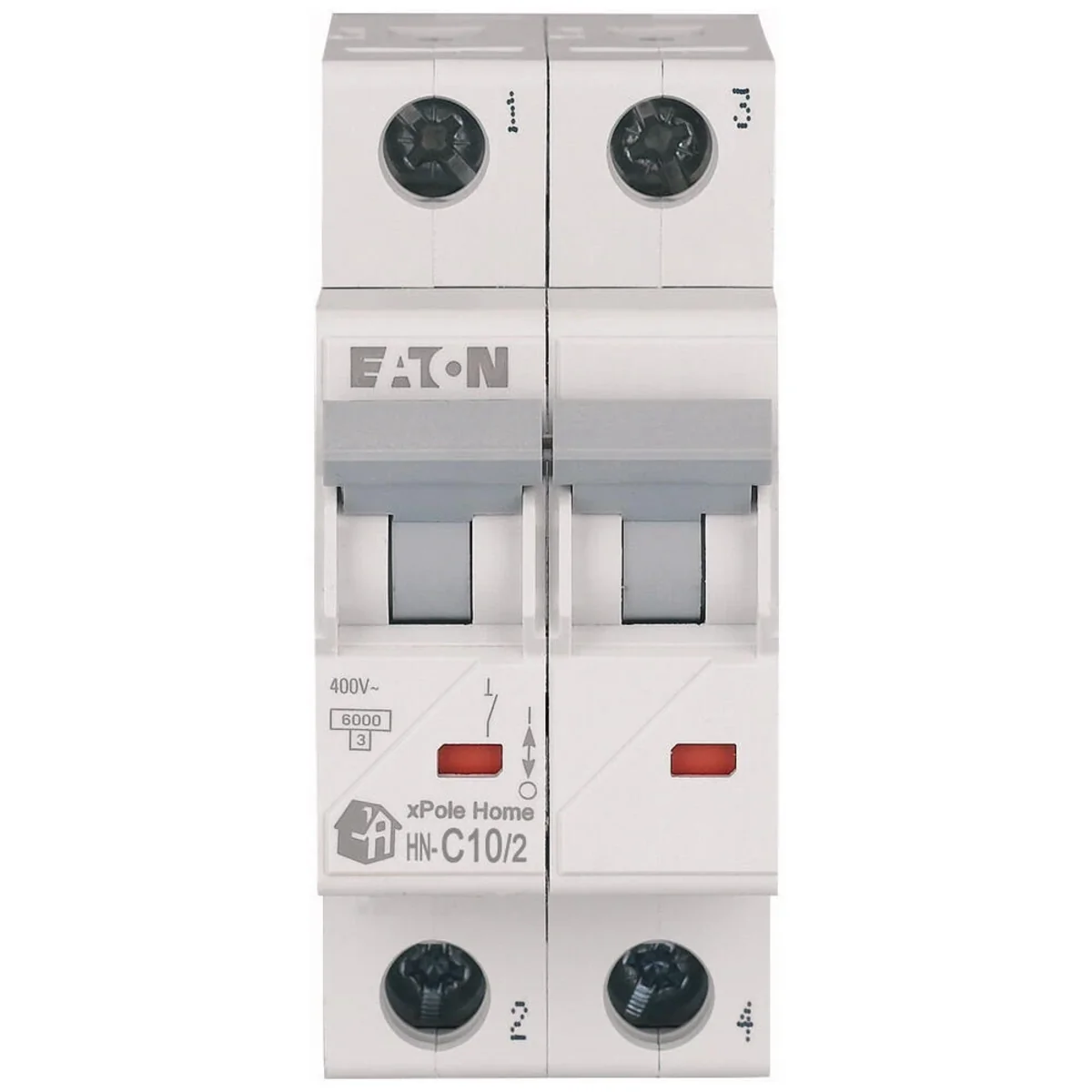

Clicca sulla foto per ingrandire

Produttore: EATON

Characteristic: c

Frequency [Hz]: 50-60

Depth [mm]: 85

Vedi la descrizione completa

Prezzo:

91,01 zł

gross / pezzi

(inclusa IVA 23%)

421,34 zł gross/kg.

Accessibile 12 pezzi

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

xPole Home Circuit Breaker 6kA C 2-pole 10A HN-C10/2

Dati tecnici

Characteristic

c
Depth [mm]

85
Energy limitation class

3
Maximum operating temperature [°C]

75
Rated insulation voltage [V]

440
Cross-section of connected single-wire cable [mm]

1-25
Type of voltage

AC
Level of security

IP20
Width [mm]

35.4
Height [mm]

73
Breaking capacity [kA]

6
Minimum operating temperature [°C]

-25

Frequency [Hz]

50-60
Overvoltage category

III
Number of poles

2
Rated voltage [V]

230
Rated current [A]

10
Cross-section of connected multicore cable [mm]

1-25
Family

xPole Home
Degree of contamination

3
Weight [g]

216
Switching capacity [kA]

6
Rated impulse voltage [kV]

4
Installation depth [mm]

44

Altri dati tecnici

Built-in depth

44 mm
Number of poles (total)

2
Rated current

10 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

Yes
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Dettagli del produttore

Produttore

Eaton Electric Sp. z o.o.
Indirizzo

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Imballaggio sfuso

Una specie di pacchetto	Skrzynia	Karton	Karton
Quantità	1 pezzi	6 pezzi	60 pezzi
Peso (kg)	0,223	1,341	13,410
Volume (m3)	0,000	0,001	0,016
Larghezza (m)	0,037	0,218	0,180
Lunghezza (m)	0,087	0,086	0,385
Profondità (m)	0,075	0,075	0,230

File da scaricare

03_HN_160318.pdf

03_HN.pdf
