Handle, PKZ0-XRH 106133

local index:
ASN014MOEL
Catalog No:
106133
EAN code:
4015081059034
Manufacturer: EATON
Color: Red
Level of security: IP65
Used to: PKZM0, PKZM4
Price:
67,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

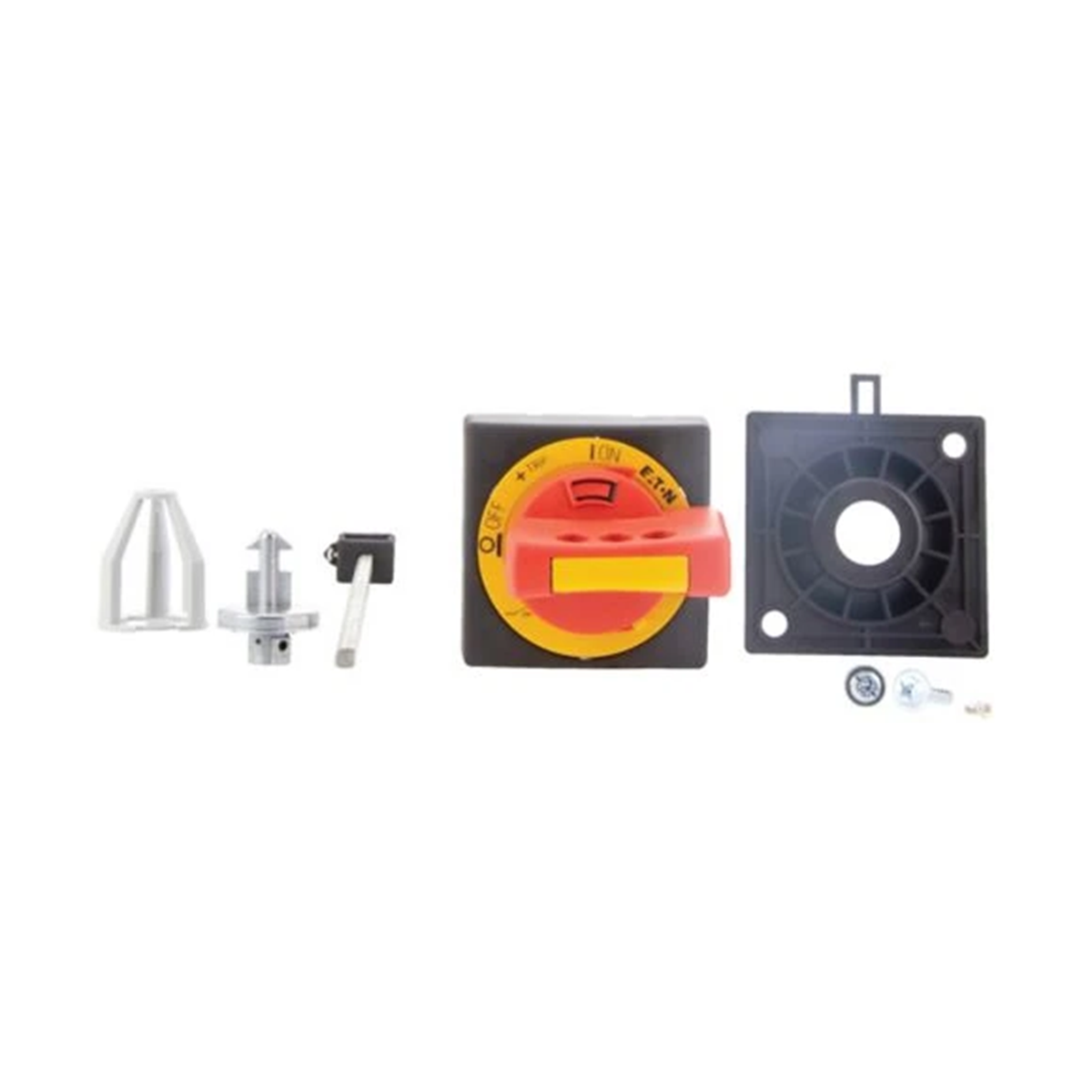

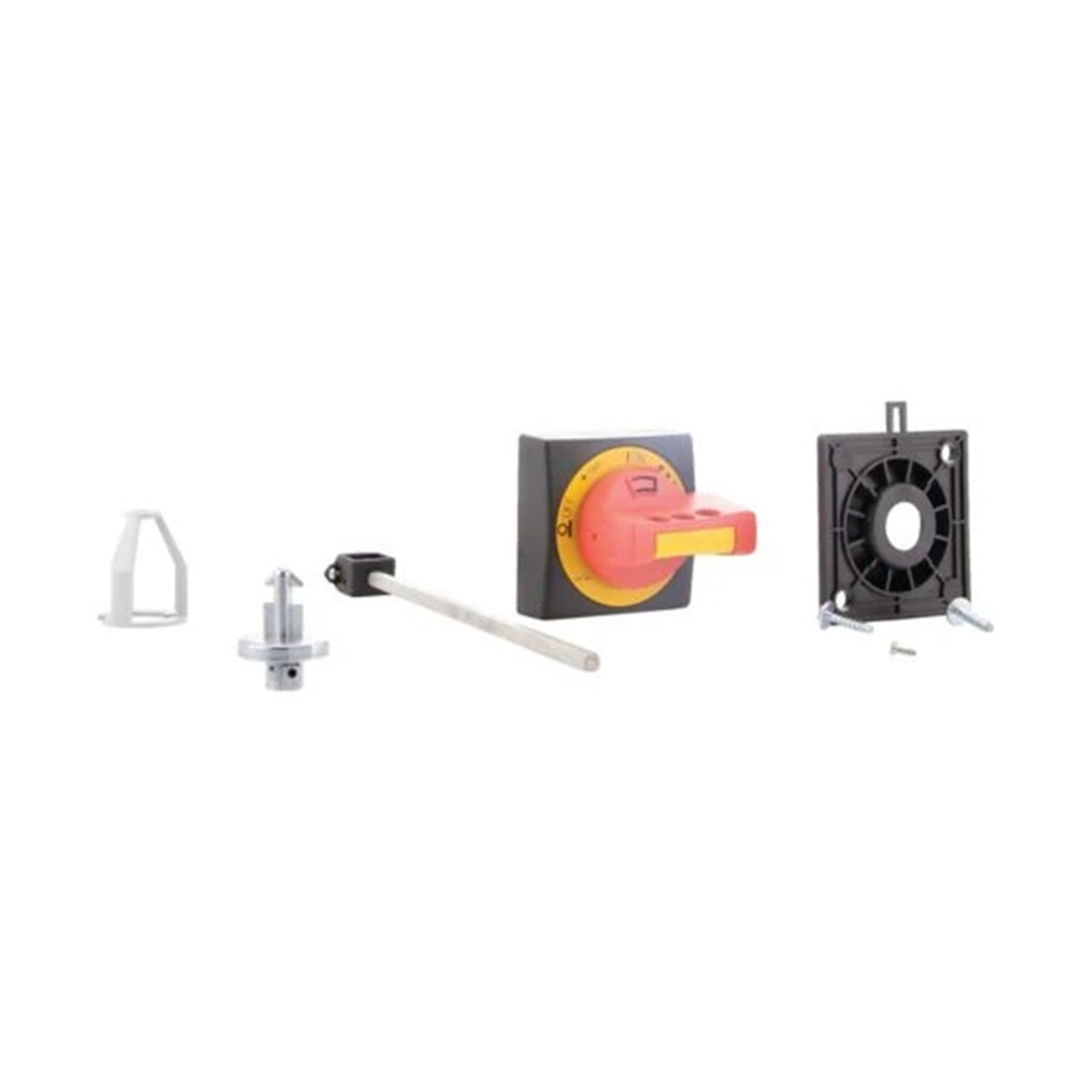

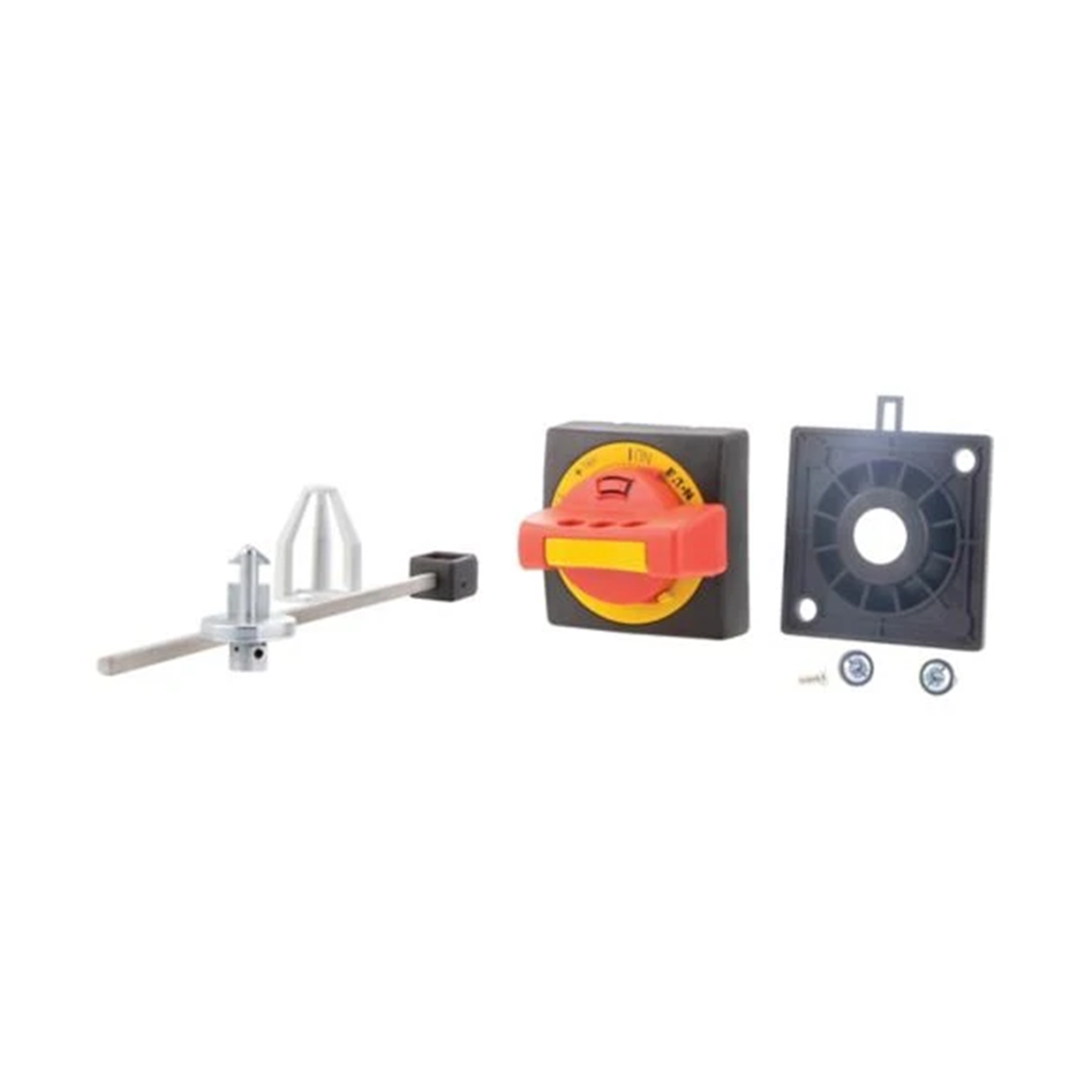

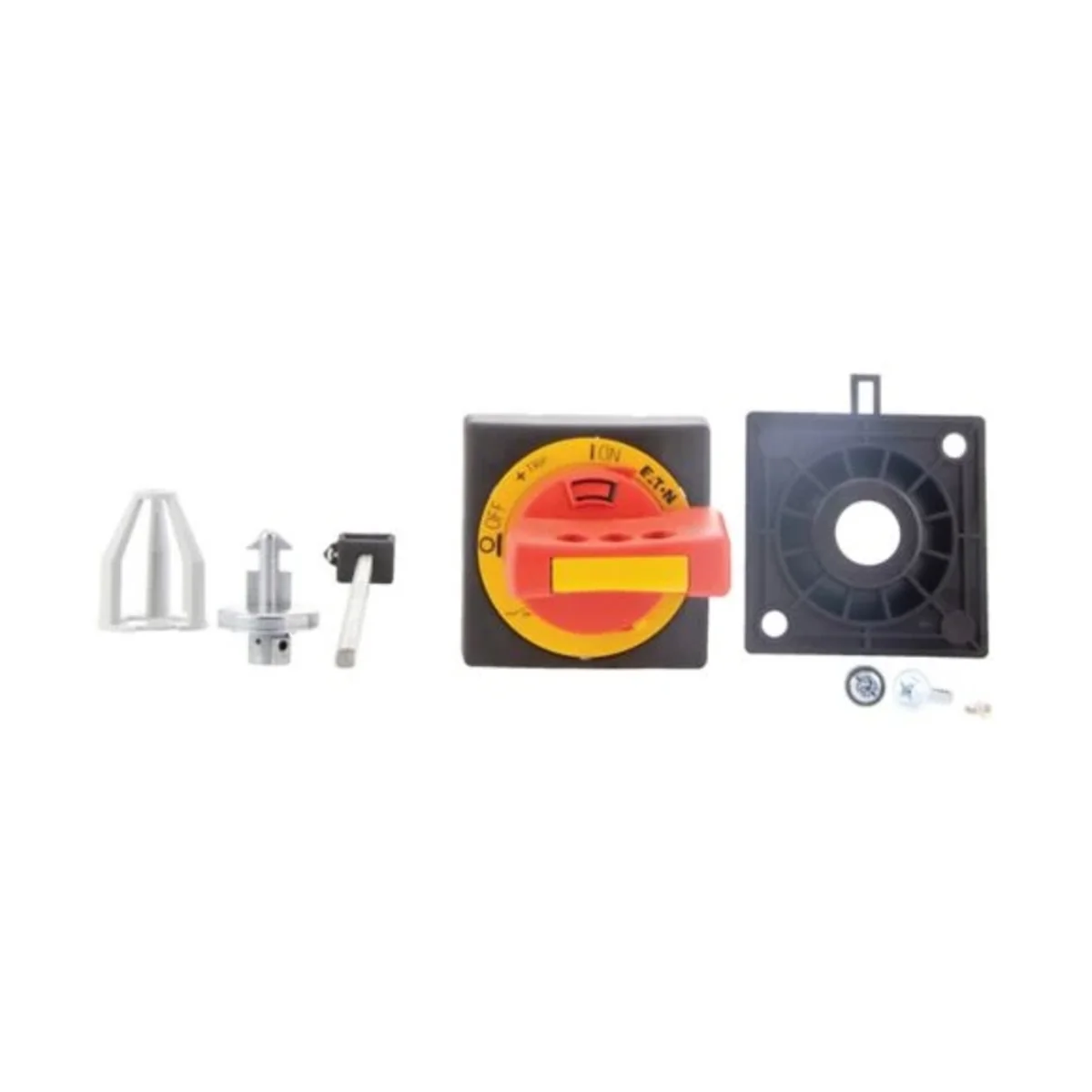

Door handles. Degree of protection IP65, UL/CS Type 4X / Type 12. For use as a main switch, with function as an emergency switch in accordance with EN 60204. Pluggable drive shaft extension PKZ0-XAH can be cut to any length to an installation depth of 100–240 mm. Cuffs with drive axle extension are included in the delivery. Switch positions ON/OFF “+” (triggered), can be blocked. With 3 padlocks with a shackle thickness of 4–8 mm. Do not use in combination with VHI20-PKZ0.

Technical data

  • Color
    Red
  • Used to
    PKZM0, PKZM4
  • Level of security
    IP65
  • Accurate color
    Red-yellow

Other technical data

  • With restart blockage
    No
  • Padlock locking
    No
  • Suitable for emergency stop
    Yes
  • Suitable for power circuit breaker
    No
  • Degree of protection (NEMA)
    4X, 12
  • With key lock
    No
  • Colour
    Red
  • With extension shaft
    Yes
  • Suitable for switch disconnector
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,200
Volume (m3) 0,001
Width (m) 0,066
Length (m) 0,171
Depth (m) 0,076
