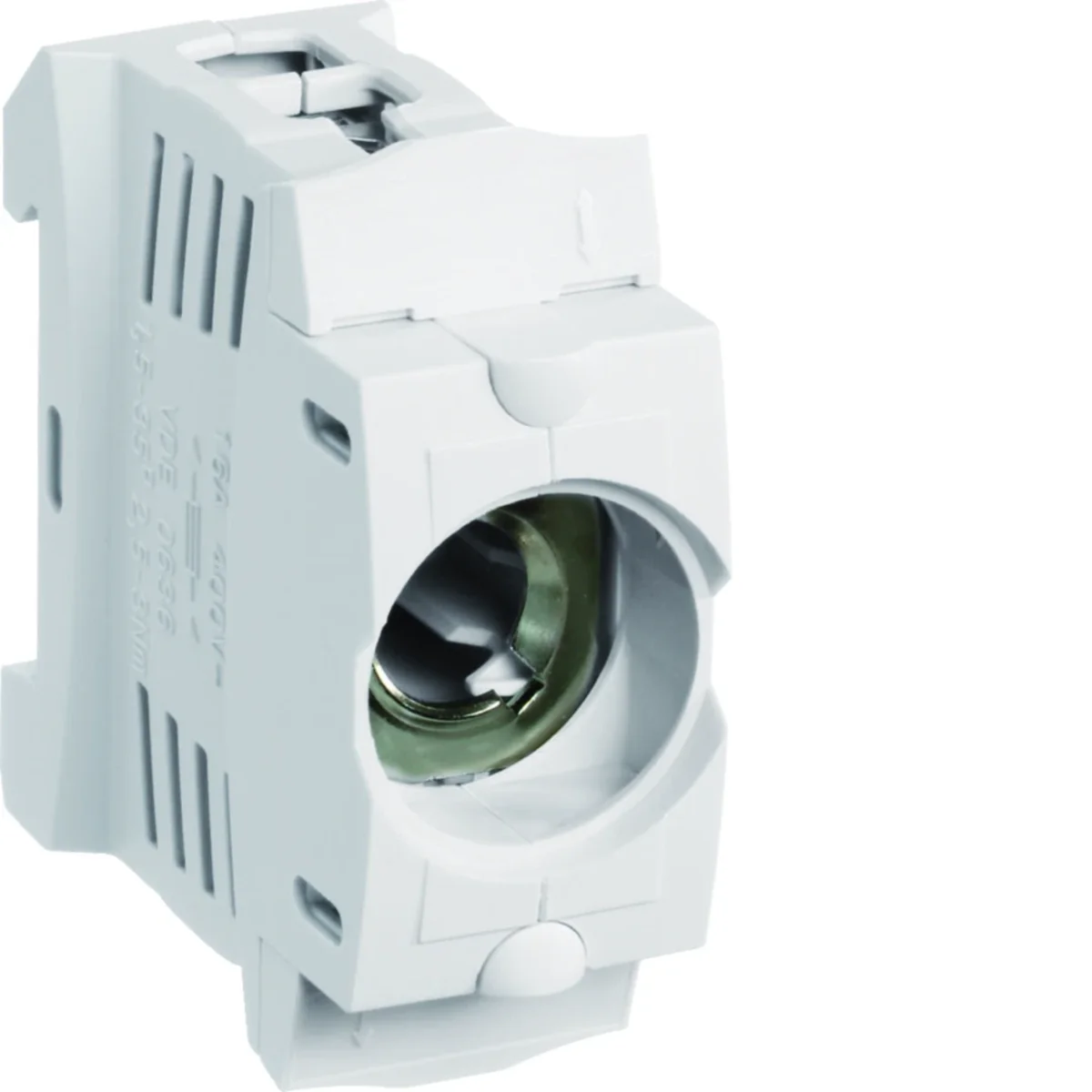

Fuse base,D01,16A LD042

local index:
ABO046HAGE
Catalog No:
LD042
EAN code:
3250614040016
Manufacturer: HAGER
Rated frequency [Hz]: 50
Length [mm]: 63
Depth [mm]: 56
Price:
9,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse base,D01,16A

Technical data

  • Rated frequency [Hz]
    50
  • Depth [mm]
    56
  • Rated insulation voltage [V]
    460
  • power loss [W]
    2.9
  • Connection type
    Screw connection
  • Height [mm]
    72
  • Rated switching voltage [V]
    400
  • Number of modules
    1.5
  • storage temperature [°C]
    from -25 to 55
  • Length [mm]
    63
  • Number of poles
    1
  • Rated current [A]
    16
  • Width [mm]
    27
  • Fuse link size
    D01
  • Operating temperature range [°C]
    from -25 to 55
  • Rated impulse voltage [kV]
    6
  • Fuse link rated current [A]
    2/4/6/10/13/16
  • PKWIU
    27.12.21.0

Other technical data

  • Number of poles
    1
  • Material
    Porcelain
  • Mounting method
    Other
  • Rated current
    16 A
  • Construction size
    D01
  • Version with cover
    Yes
  • Rated voltage
    400 V

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 9 pcs. 135 pcs. 3240 pcs.
Weight (kg) 0,077 0,709 10,820 282,680
Width (m) 0,027 0,094 0,285 0,800
Length (m) 0,068 0,070 0,295 1,050
Depth (m) 0,055 0,250 0,385 1,200
