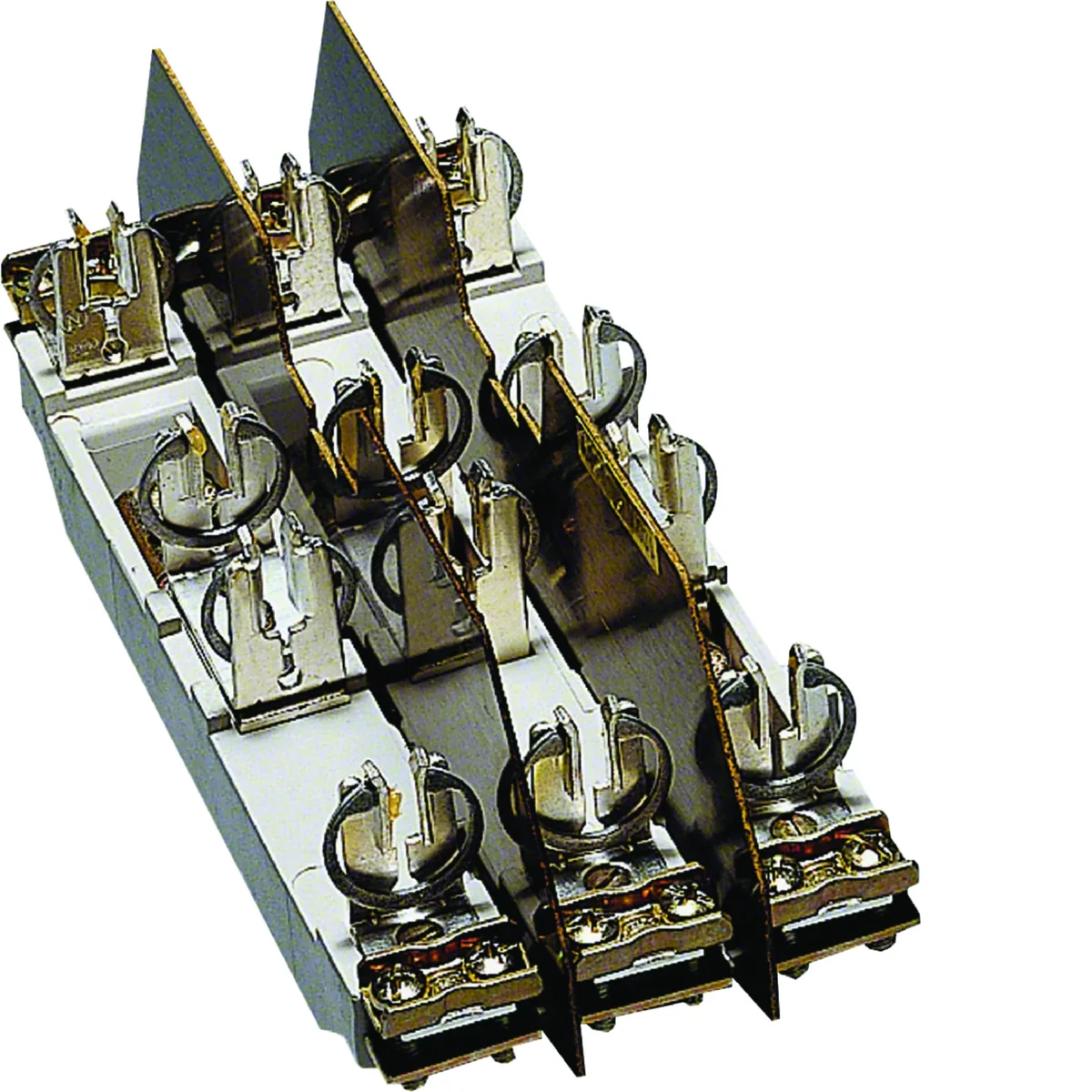

Fuse base NH00 6P 125A tandem L00V

local index:
ABO141HAGE
Catalog No:
L00V
EAN code:
4010330740107
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 6
Fixing: rail system
Price:
104,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse base:

  • tandem 2x3P
  • rated current of the fuse link: 6/10/16/20/25/32/35 /40/50/63/80/100/125A

Technical data

  • Rated frequency [Hz]
    60
  • Fixing
    rail system
  • power loss [W]
    4.26
  • Operating temperature range [°C]
    from -25 to 55
  • storage temperature [°C]
    from -25 to 70
  • Number of poles
    6
  • Rated insulation voltage [V]
    8
  • Fuse link size
    NH00
  • Rated switching voltage [V]
    690
  • PKWIU
    27.12.23.0

Other technical data

  • Construction size
    NH00
  • Rated current
    125 A
  • Swivelling mechanism
    No
  • Number of poles
    6
  • Bus-mounting type
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 250 pcs.
Weight (kg) 0,999 1,000 275,000
Width (m) 0,125 0,125 0,800
Length (m) 0,095 0,095 1,100
Depth (m) 0,245 0,240 1,200
