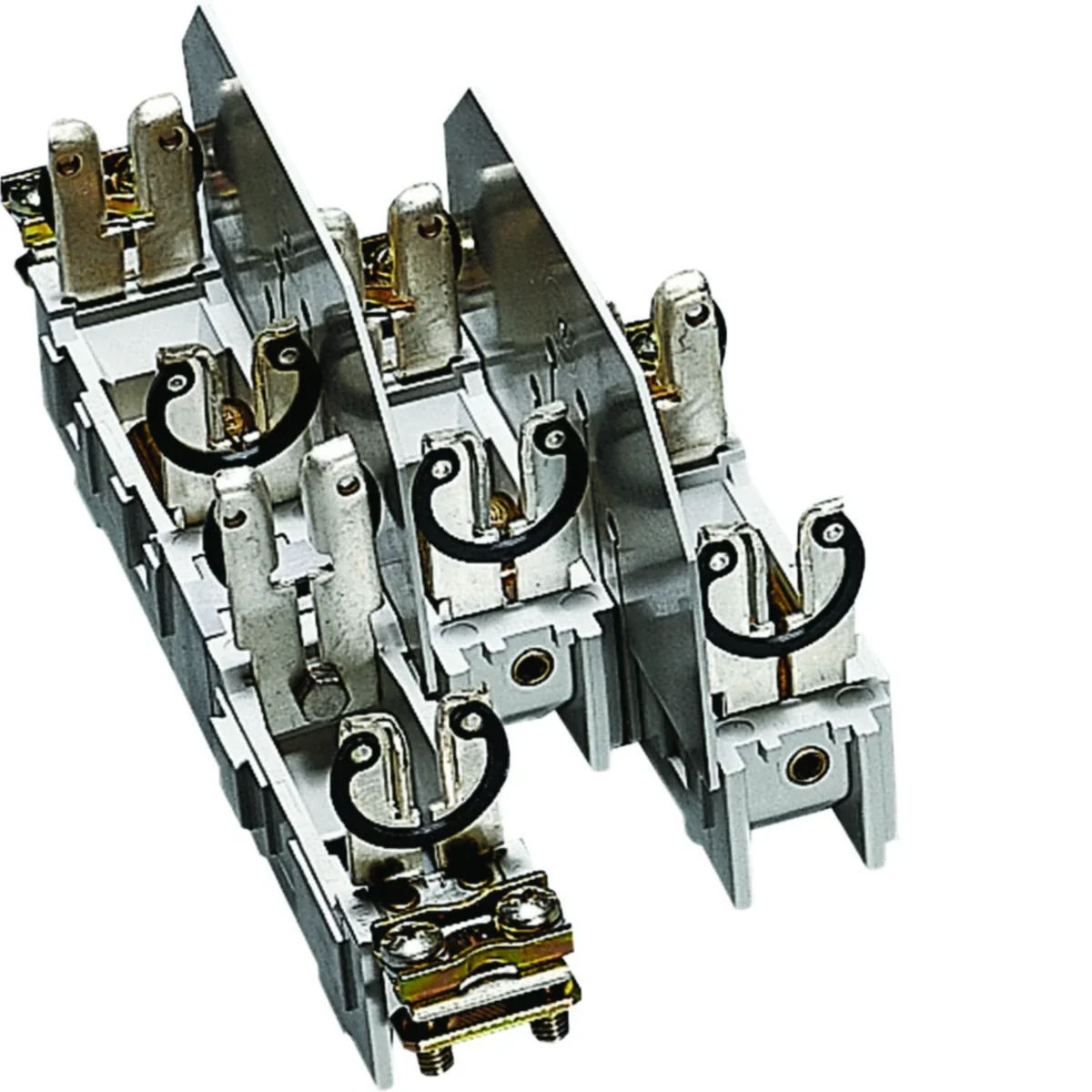

Fuse base NH00 4P 160A L00C

local index:
ABO137HAGE
Catalog No:
L00C
EAN code:
4010330740053
Manufacturer: HAGER
Rated frequency [Hz]: 60
Energy lost in cables [W]: 28.88
Number of poles: 4
Price:
66,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse base:

  • Fuse link rated current: 6/10/16/20/25/32/35/40/50/63/80/ 100/125/160A

Technical data

  • Rated frequency [Hz]
    60
  • Number of poles
    4
  • Rated insulation voltage [V]
    8
  • Fuse link size
    NH00
  • Rated switching voltage [V]
    690
  • PKWIU
    27.12.23.0
  • Energy lost in cables [W]
    28.88
  • Fixing
    rail system
  • power loss [W]
    10.6
  • Operating temperature range [°C]
    from -25 to 55
  • storage temperature [°C]
    from -25 to 70

Other technical data

  • Construction size
    NH00
  • Rated current
    160 A
  • Swivelling mechanism
    No
  • Number of poles
    4
  • Bus-mounting type
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 150 pcs.
Weight (kg) 0,659 0,674 124,100
Width (m) 0,255 0,135 0,800
Length (m) 0,135 0,110 1,050
Depth (m) 0,110 0,260 1,200
