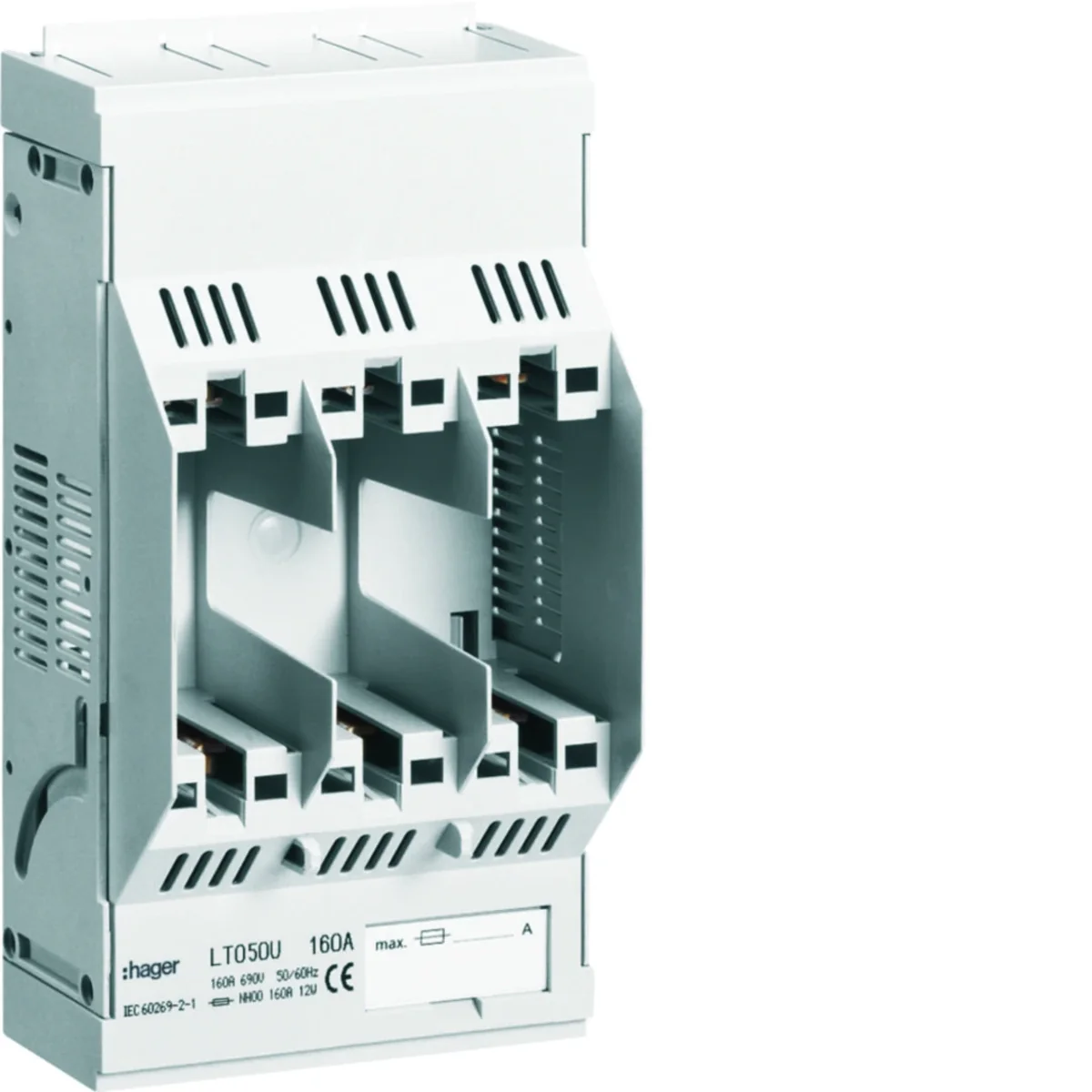

Fuse base, NH00, 3x160A, subplate mounting LT050U
local index:
ABO017HAGE
Catalog No:
LT050U
EAN code:
3250614201004
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
50/60
Energy lost in cables [W]:
46.5
Depth [mm]:
104
See full description
Price:
30,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Fuse base, subplate mounting, number of wires - stranded: 6/95mm², number of wires - solid: 6/95mm², storage temperature: -20 to 60 °C.
Technical data
Rated frequency [Hz]
50/60
Depth [mm]
104
Tightening torque [Nm]
8
Rated current [A]
160
power loss [W]
36
Working temperature [°C]
-20 to 60
Height [mm]
206
Mechanical durability (number of cycles)
1400
PKWIU
27.12.40.0
Energy lost in cables [W]
46.5
Number of poles
3
Rated insulation voltage [V]
1000
Short-circuit current [kA]
50
Width [mm]
106
Fuse link size
NH00
Electrical endurance (number of cycles)
200
Rated impulse voltage [kV]
8
Other technical data
Construction size
NH00
Rated current
160 A
Swivelling mechanism
No
Number of poles
3
Bus-mounting type
Yes
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
240 pcs.
Weight (kg)
0,588
0,680
165,000
Width (m)
0,106
0,115
0,800
Length (m)
0,206
0,100
0,870
Depth (m)
0,091
0,230
1,200
