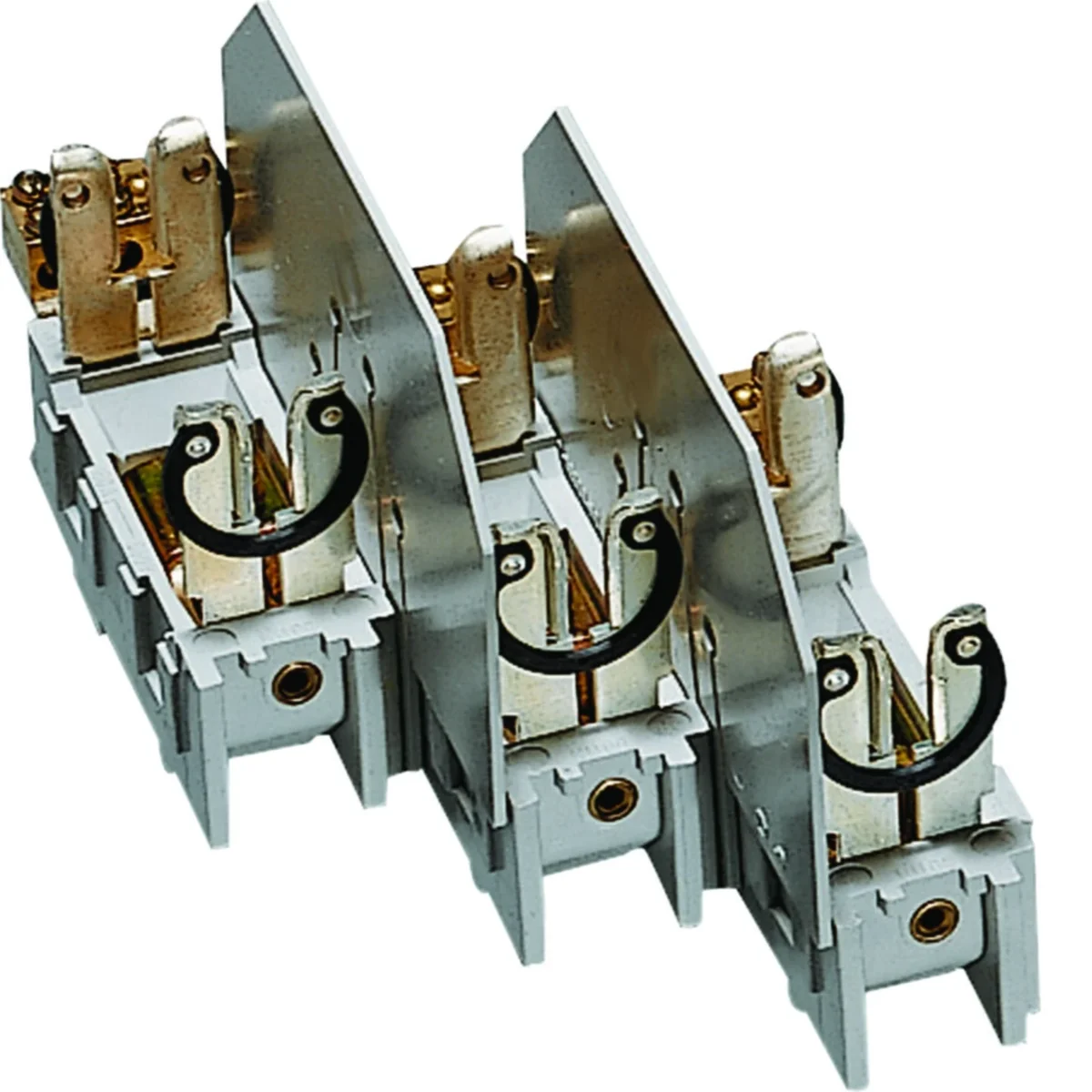

Fuse base NH00 3P 160A SaS L00R

local index:
ABO139HAGE
Catalog No:
L00R
EAN code:
4010330740084
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 3
Fixing: rail system
Price:
43,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse base:

  • SaS
  • Fuse link rated current: 6/10/16/20/25/32/35/ 40/50/63/80/100/125/160A

Technical data

  • Rated frequency [Hz]
    60
  • Fixing
    rail system
  • power loss [W]
    6.51
  • Operating temperature range [°C]
    from -25 to 55
  • storage temperature [°C]
    from -25 to 70
  • Number of poles
    3
  • Rated insulation voltage [V]
    8
  • Fuse link size
    NH00
  • Rated switching voltage [V]
    690
  • PKWIU
    27.12.23.0

Other technical data

  • Construction size
    NH00
  • Rated current
    160 A
  • Swivelling mechanism
    No
  • Number of poles
    3
  • Bus-mounting type
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 300 pcs.
Weight (kg) 0,519 0,520 181,000
Width (m) 0,120 0,122 0,800
Length (m) 0,100 0,095 1,216
Depth (m) 0,240 0,240 1,200
