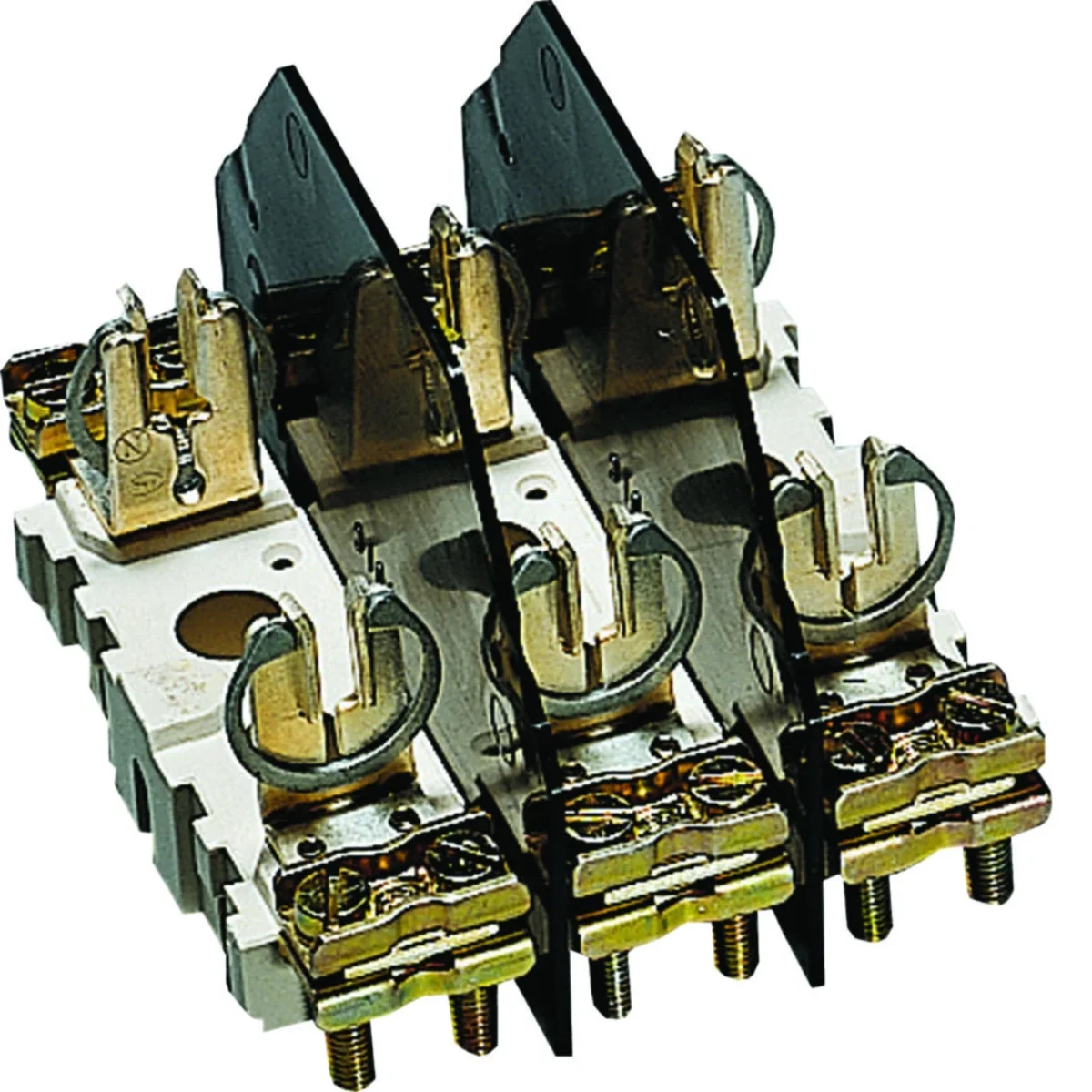

Fuse base NH00 3P 160A L00
local index:
ABO136HAGE
Catalog No:
L00
EAN code:
4010330740046
Price:
41,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Fuse base:
- Fuse link rated current: 6/10/16/20/25/32/35/40/50/63/80/ 100/125/160A
Technical data
-
Rated frequency [Hz]60
-
Number of poles3
-
Rated insulation voltage [V]8000
-
Fuse link sizeNH00
-
Rated switching voltage [V]690
-
PKWIU27.12.23.0
-
Energy lost in cables [W]18.66
-
Fixingrail system
-
power loss [W]4.95
-
Operating temperature range [°C]from -25 to 55
-
storage temperature [°C]from -25 to 70
Other technical data
-
Construction sizeNH00
-
Rated current160 A
-
Swivelling mechanismNo
-
Number of poles3
-
Bus-mounting typeYes
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta | Karton | Paleta |
| Quantity | 4 pcs. | 360 pcs. | 4 pcs. | 360 pcs. |
| Weight (kg) | 1,930 | 174,240 | 1,930 | 174,240 |
| Width (m) | 0,230 | 0,800 | 0,230 | 0,800 |
| Length (m) | 0,110 | 1,050 | 0,110 | 1,050 |
| Depth (m) | 0,260 | 1,200 | 0,260 | 1,200 |
