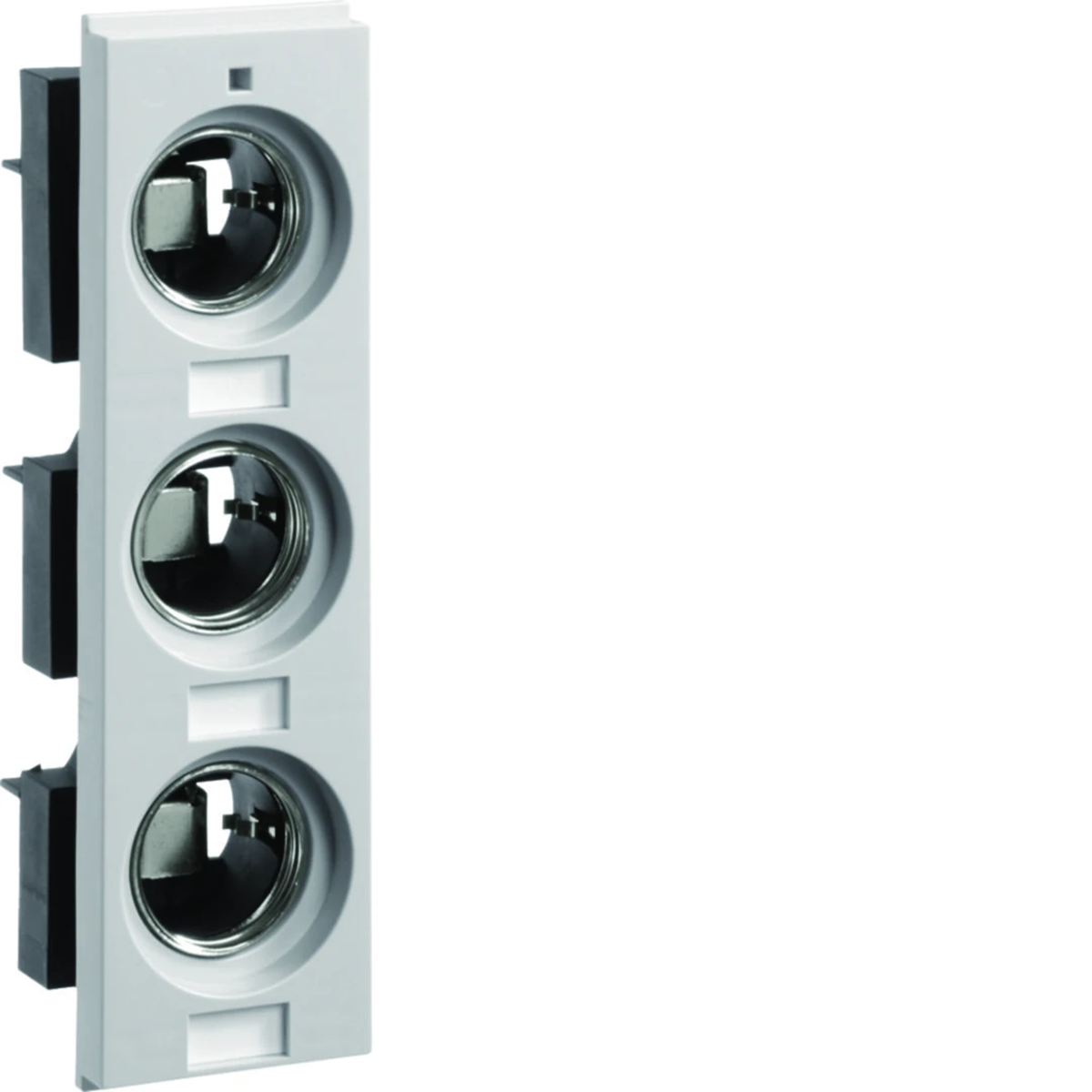

Fuse base, DIII, 3x63A L63L

local index:
ABO034HAGE
Catalog No:
L63L
EAN code:
4010330740503
Manufacturer: HAGER
Rated frequency [Hz]: 50
Number of poles: 3
Installation: rail system
Price:
53,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DIII fuse base, storage temperature: -25 to 55 °C, fuse link current: 32/35/50/63 A.

Technical data

  • Rated frequency [Hz]
    50
  • Installation
    rail system
  • power loss [W]
    4.68
  • Fuse link size
    DIII
  • Number of poles
    3
  • Rated current [A]
    63
  • Working temperature [°C]
    -25 to 55
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    3
  • Material
    Other
  • Version with cover
    Yes
  • Rated voltage
    690 V
  • Construction size
    DIII
  • Model
    Fitted screw
  • Mounting method
    Busbar system
  • Rated current
    63 A

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 600 pcs.
Weight (kg) 0,220 2,600 181,000
Width (m) 0,055 0,033 0,800
Length (m) 0,060 0,007 0,925
Depth (m) 0,200 0,066 1,200
