FRCdM-25/2/003-G/B Digital RCCB 10kA, 2-pole. FRCdM series 300638

Name: FRCdM-25/2/003-G/B Digital RCCB 10kA, 2-pole. FRCdM series
Brand: EATON
SKU: ARP026MOEL
Price: 1941.73 PLN
Availability: BackOrder

local index:

ARP026MOEL

Catalog number:

300638

EAN code:

9010238122802

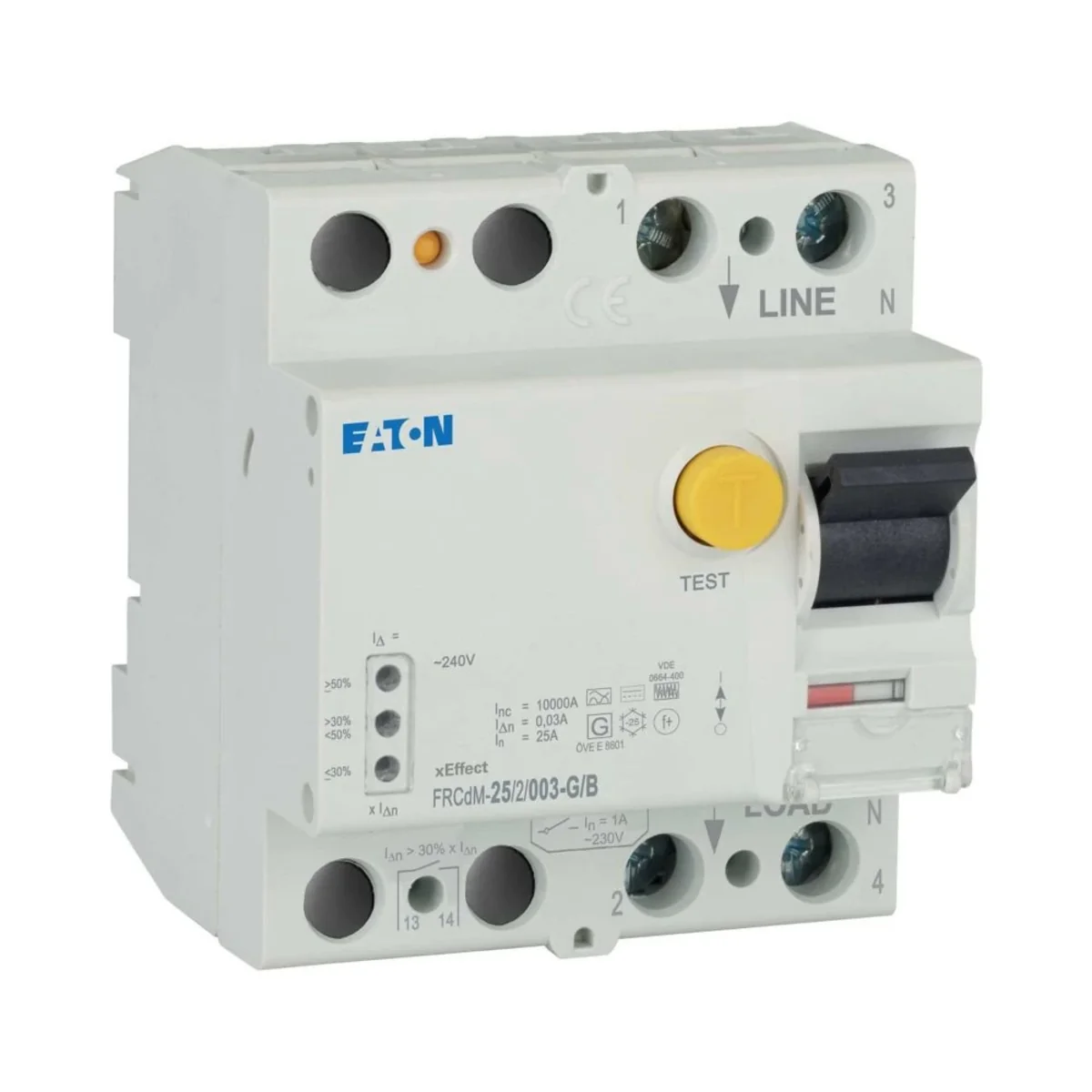

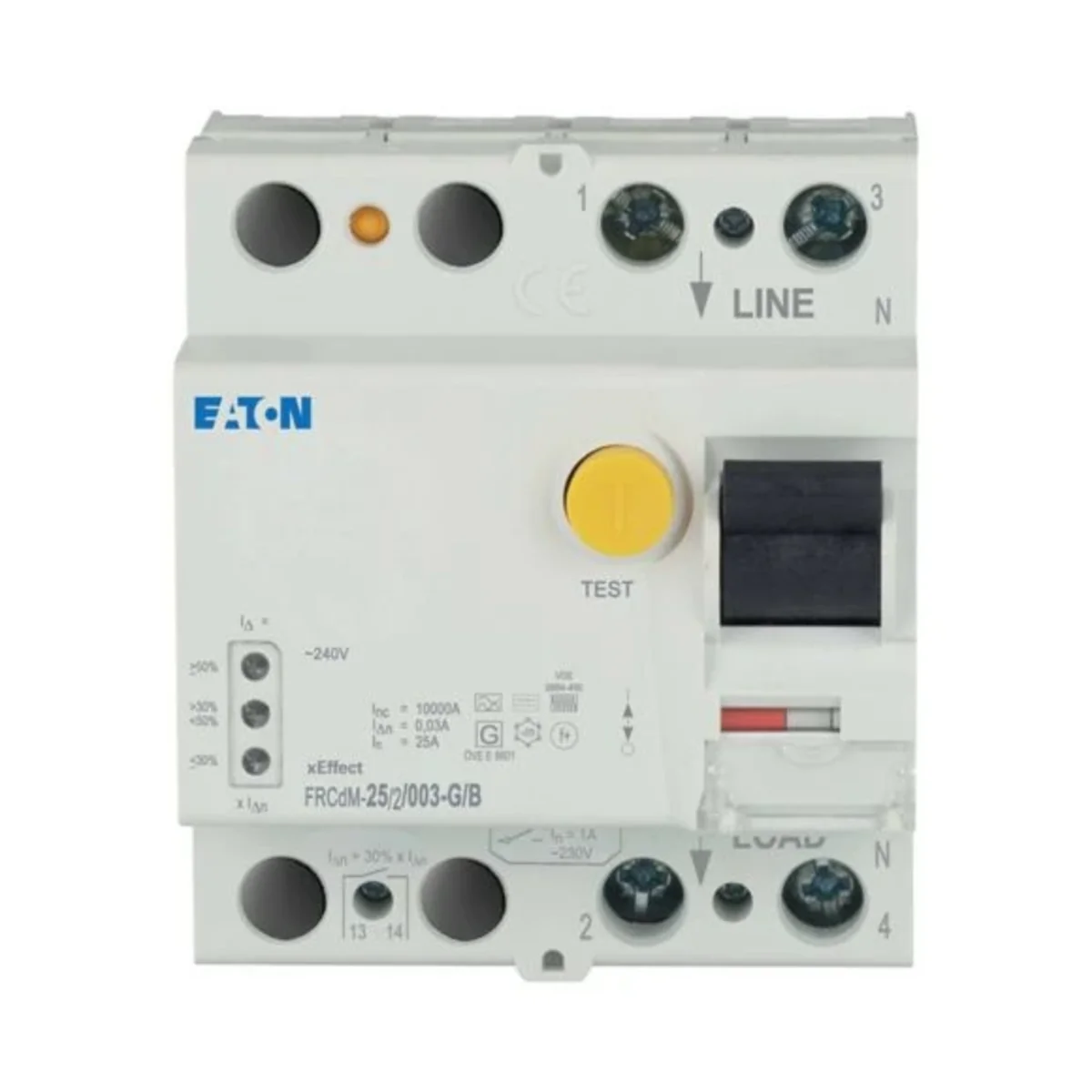

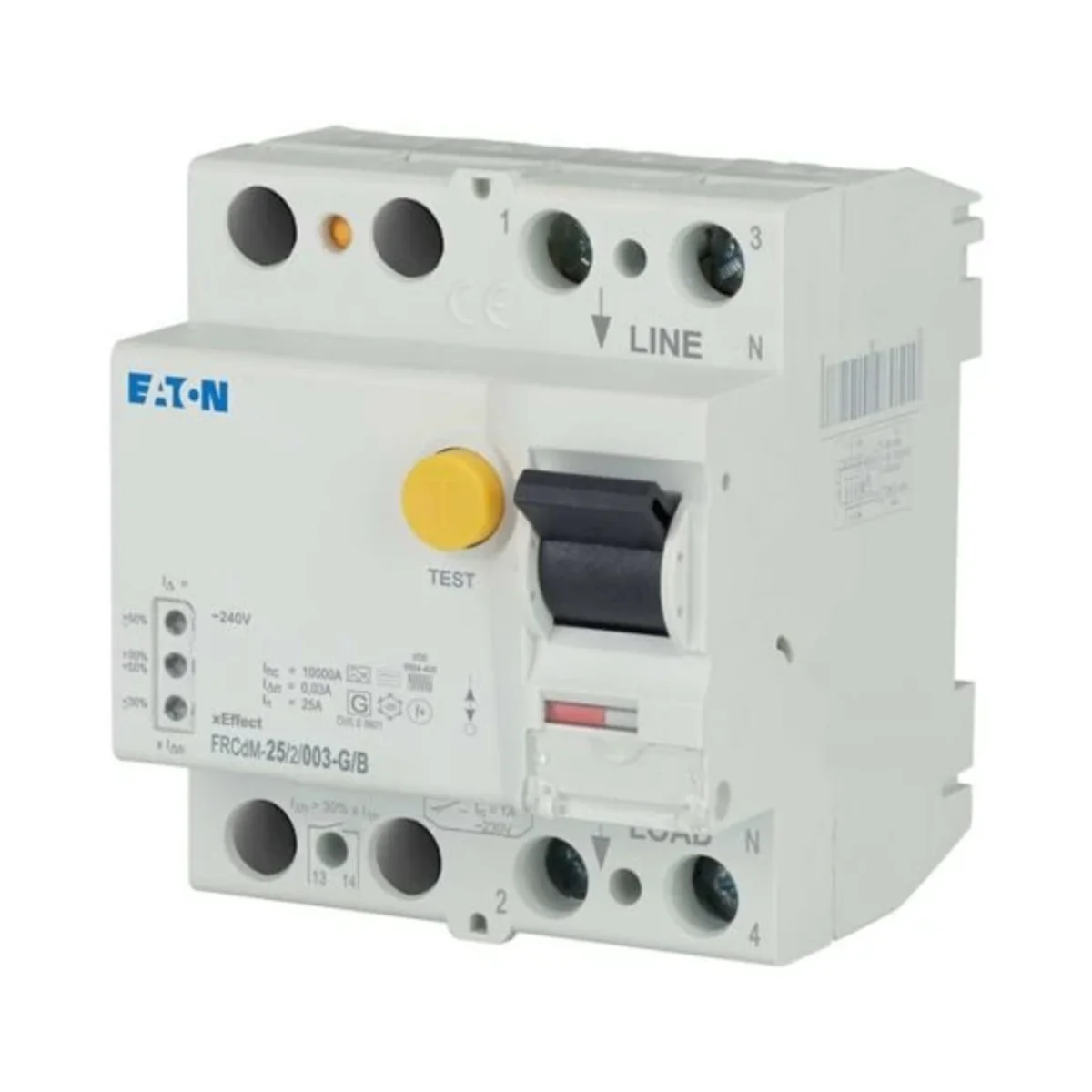

FRCdM-25/2/003-G/B Digital RCCB 10kA, 2-pole. FRCdM series

Click on the photo to enlarge

Manufacturer: EATON

Price:

1 941,73 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Number of poles

2
Rated current

25 A
Rated insulation voltage Ui

440 V
Mounting method

DIN rail
Selective protection

Yes
Short-circuit breaking capacity (Icw)

10 kA
Voltage type

AC
Frequency

50 Hz
Degree of protection (IP)

IP20
Built-in depth

70.5 mm
Pollution degree

2
Connectable conductor cross section solid-core

1.5 ... 35 mm²
Explosion-proof

No

Rated voltage

240 V
Rated fault current

0.03 A
Rated impulse withstand voltage Uimp

4 kV
Leakage current type

B
Short-time delayed tripping

Yes
Surge current capacity

3 kA
With interlocking device

Yes
Additional equipment possible

Yes
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 60 °C
Connectable conductor cross section multi-wired

1.5 ... 16 mm²
RAL-number (similar)

7035

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton	Karton	Skrzynia	Karton	Karton
Quantity	1 pcs.	1 pcs.	30 pcs.	1 pcs.	1 pcs.	30 pcs.
Weight (kg)	0,320	0,353	10,495	0,320	0,353	10,495
Volume (m3)	0,000	0,000	0,016	0,000	0,000	0,016
Width (m)	0,072	0,073	0,180	0,072	0,073	0,180
Length (m)	0,078	0,086	0,385	0,078	0,086	0,385
Depth (m)	0,082	0,075	0,230	0,082	0,075	0,230
