FRBMM-C16/1N/01 Combined circuit breaker 10kA FRBmM series 170677

Name: FRBMM-C16/1N/01 Combined circuit breaker 10kA FRBmM series
Brand: EATON
SKU: ARB146MOEL
Price: 418.63 PLN
Availability: BackOrder

Índice local:

ARB146MOEL

Número de catálogo:

170677

Código EAN:

4015081672530

FRBMM-C16/1N/01 Combined circuit breaker 10kA FRBmM series

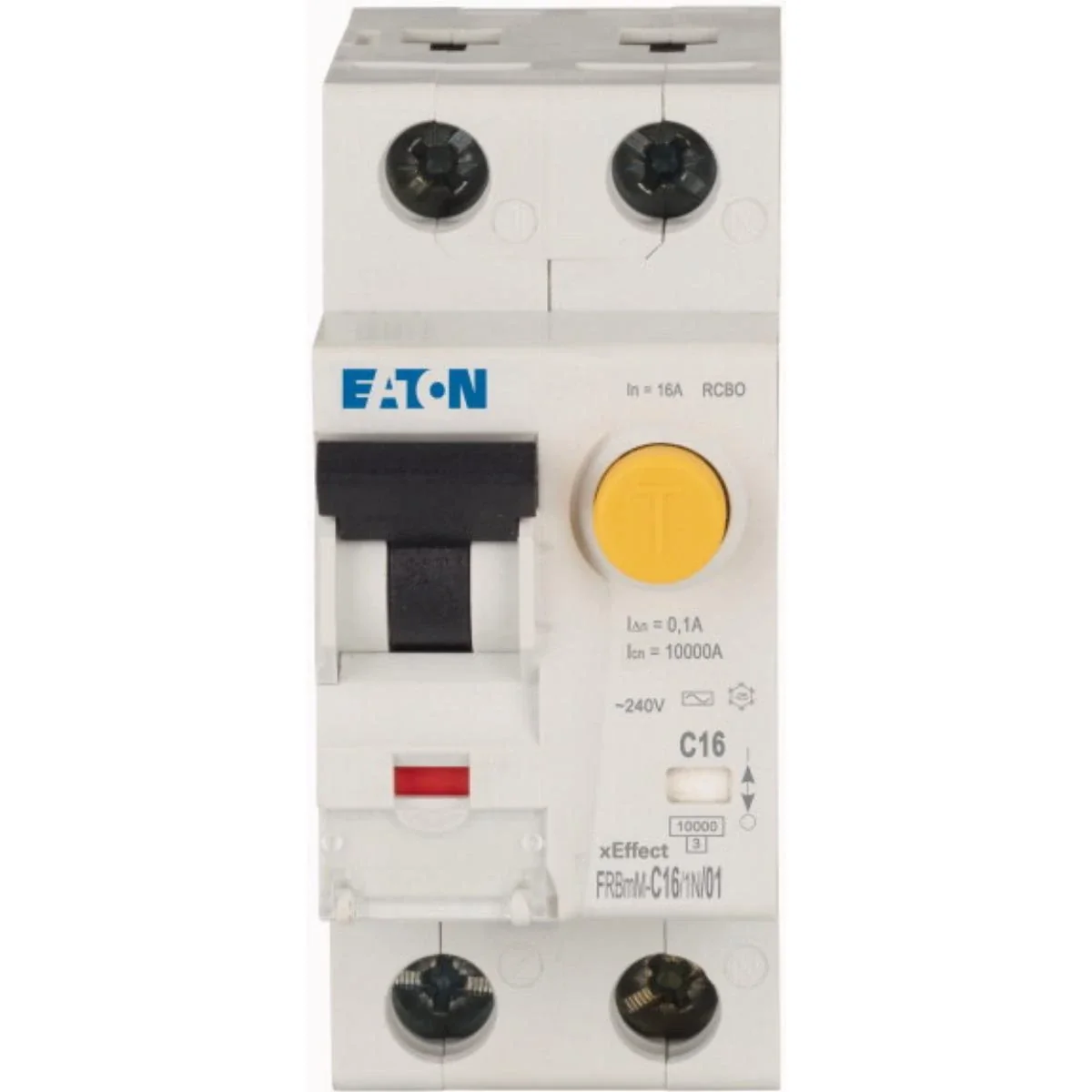

Haga clic en la foto para ampliar

Fabricante: EATON

Precio:

418,63 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

Otros datos técnicos

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.1 A
Current limiting class

3
Rated short-circuit breaking capacity according to IEC 60947-2

15 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

No
Pollution degree

2
Width in number of modular spacings

2
Flush-mounted installation

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

16 A
Leakage current type

AC
Rated short-circuit breaking capacity according to EN 61009

10 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1

10 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

75.5 mm
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia	Karton	Karton
Cantidad	1 uds.	1 uds.	60 uds.
Peso (kg)	0,187	0,201	12,235
Volumen (m3)	0,000	0,000	0,016
Ancho (m)	0,037	0,037	0,180
Longitud (m)	0,082	0,086	0,385
Profundidad (m)	0,077	0,075	0,230
