FRBM6-C16/1N/01 Combined circuit breaker 6kA FRBm6 series 177710

Name: FRBM6-C16/1N/01 Combined circuit breaker 6kA FRBm6 series
Brand: EATON
SKU: ARB148MOEL
Price: 272.45 PLN
Availability: BackOrder

Lokaler Index:

ARB148MOEL

Katalognummer:

177710

EAN-Code:

4015081722839

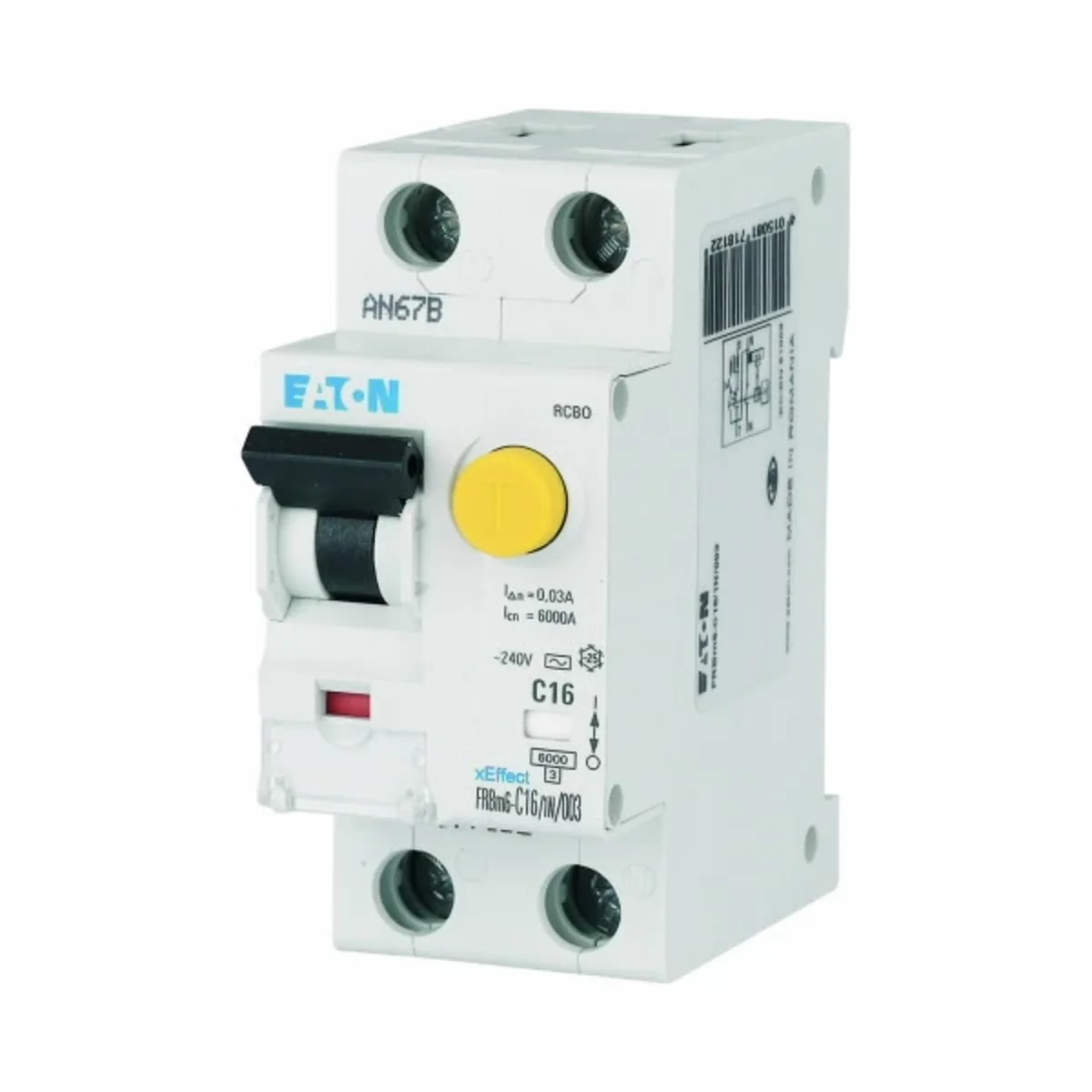

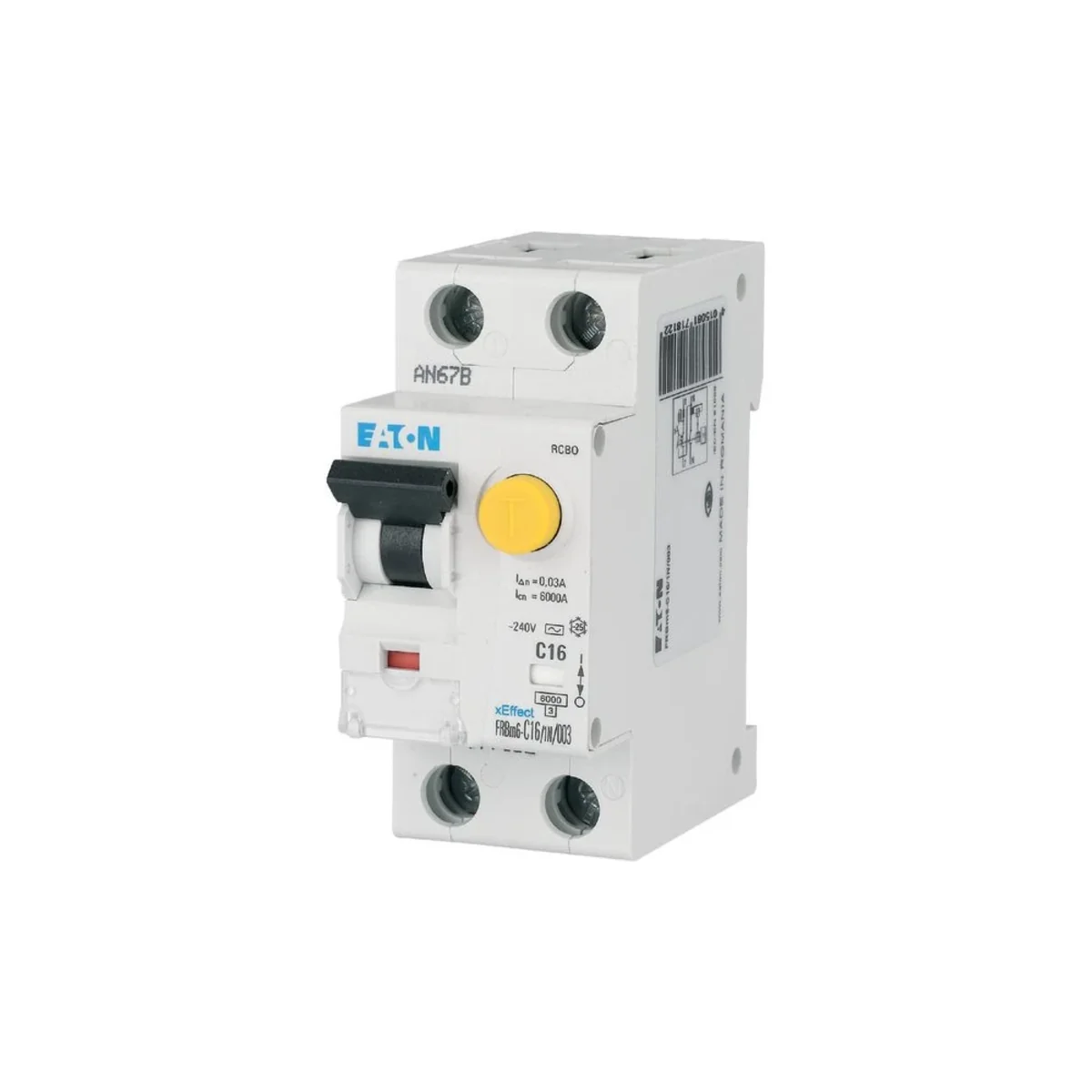

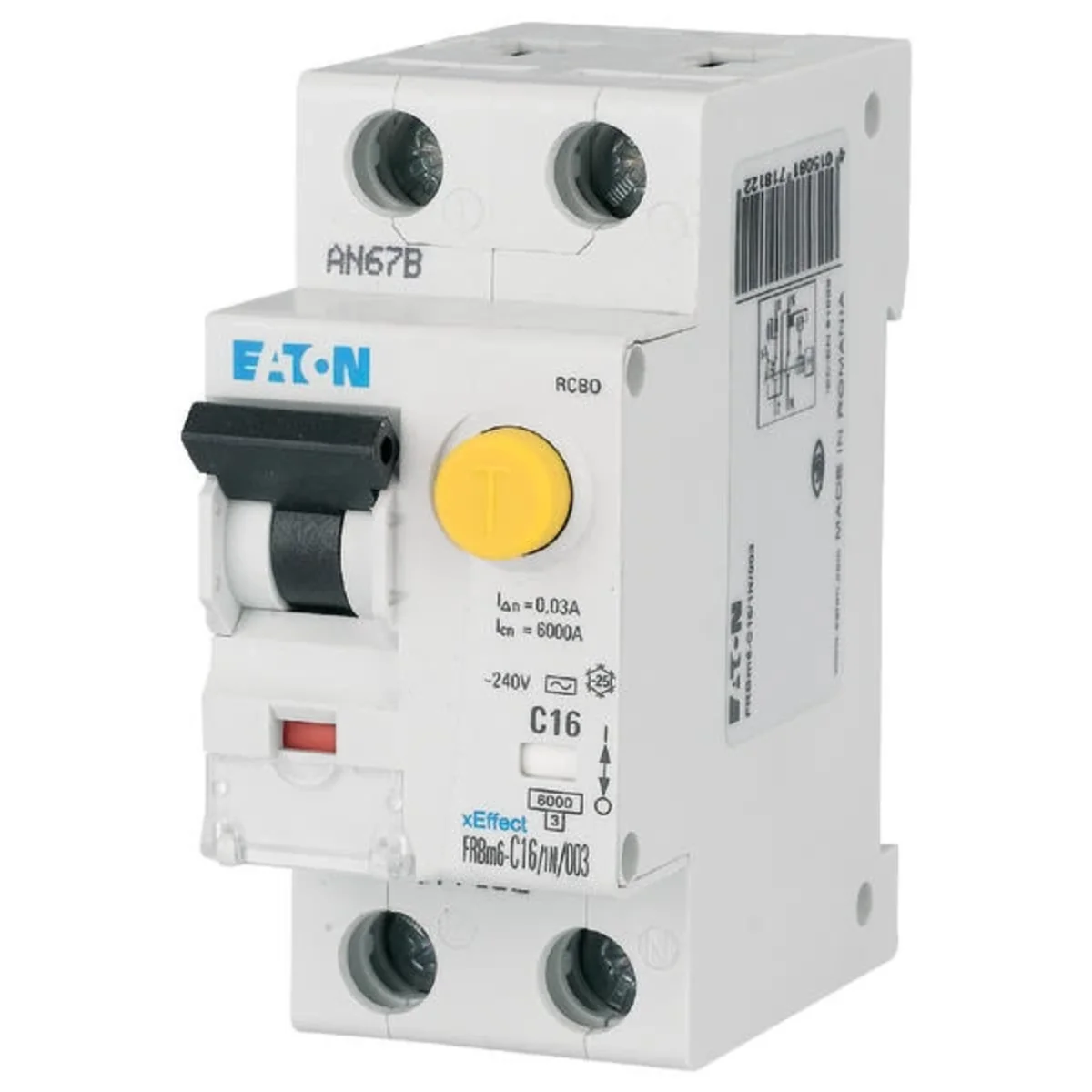

FRBM6-C16/1N/01 Combined circuit breaker 6kA FRBm6 series

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Preis:

272,45 zł

gross / stk.

(inklusive MwSt 23%)

2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Technische Daten Hersteller-Details Großpackungen

Technische Daten

Weitere technische Daten

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.1 A
Current limiting class

3
Rated short-circuit breaking capacity according to IEC 60947-2

0 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

No
Pollution degree

2
Width in number of modular spacings

2
Flush-mounted installation

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

16 A
Leakage current type

AC
Rated short-circuit breaking capacity according to EN 61009

6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

75.5 mm
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton	Karton	Skrzynia	Karton	Karton
Menge	1 stk.	1 stk.	60 stk.	1 stk.	1 stk.	60 stk.
Gewicht (kg)	0,216	0,230	13,975	0,216	0,230	13,975
Volumen (m3)	0,000	0,000	0,016	0,000	0,000	0,016
Breite (m)	0,037	0,037	0,180	0,037	0,037	0,180
Länge (m)	0,082	0,086	0,385	0,082	0,086	0,385
Tiefe (m)	0,077	0,075	0,230	0,077	0,075	0,230
