FRBM6-B16/3N/003 Combined circuit breaker 6kA FRBm6 series 170986

Name: FRBM6-B16/3N/003 Combined circuit breaker 6kA FRBm6 series
Brand: EATON
SKU: ARP011MOEL
Price: 880.89 PLN
Availability: BackOrder

Lokaler Index:

ARP011MOEL

Katalognummer:

170986

EAN-Code:

4015081671090

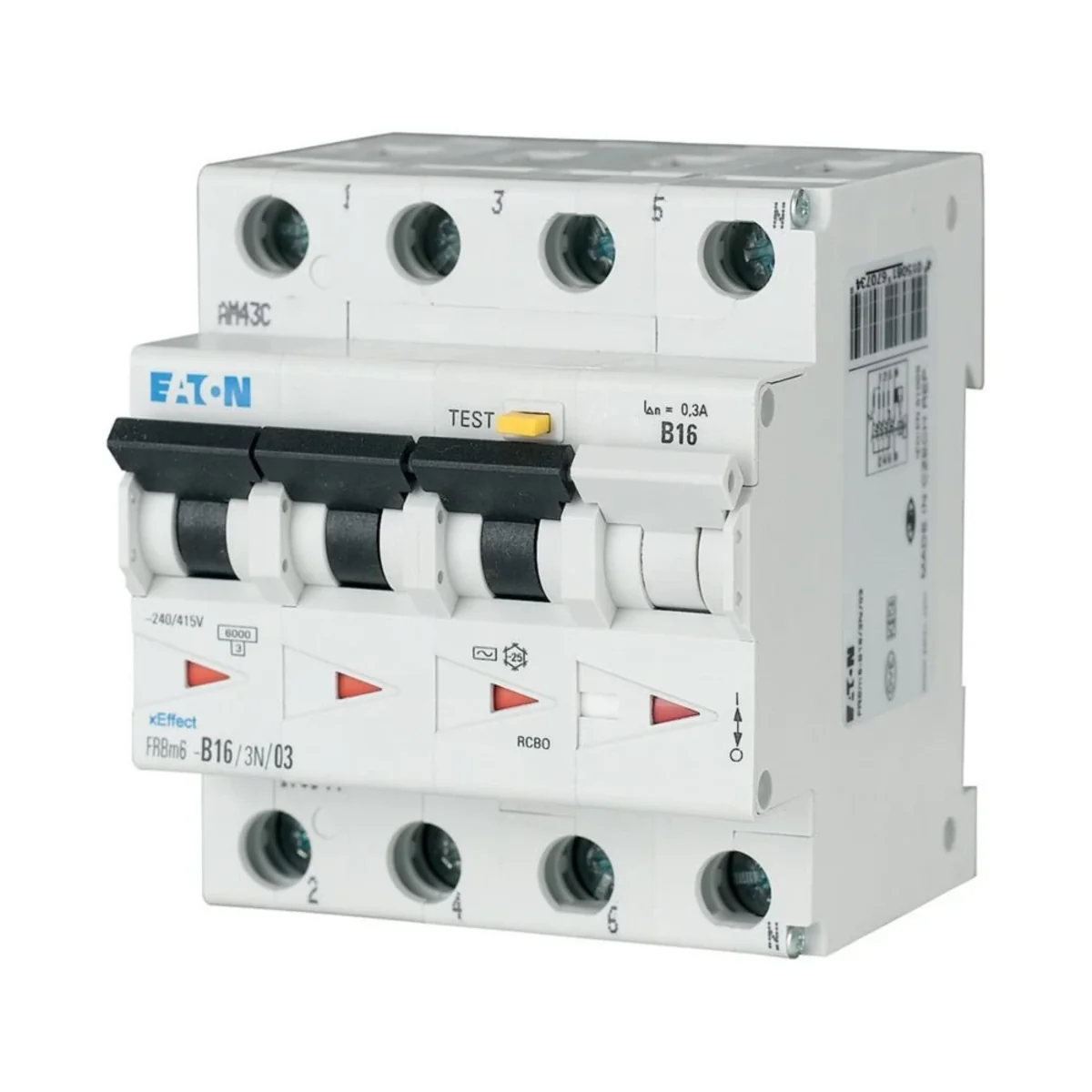

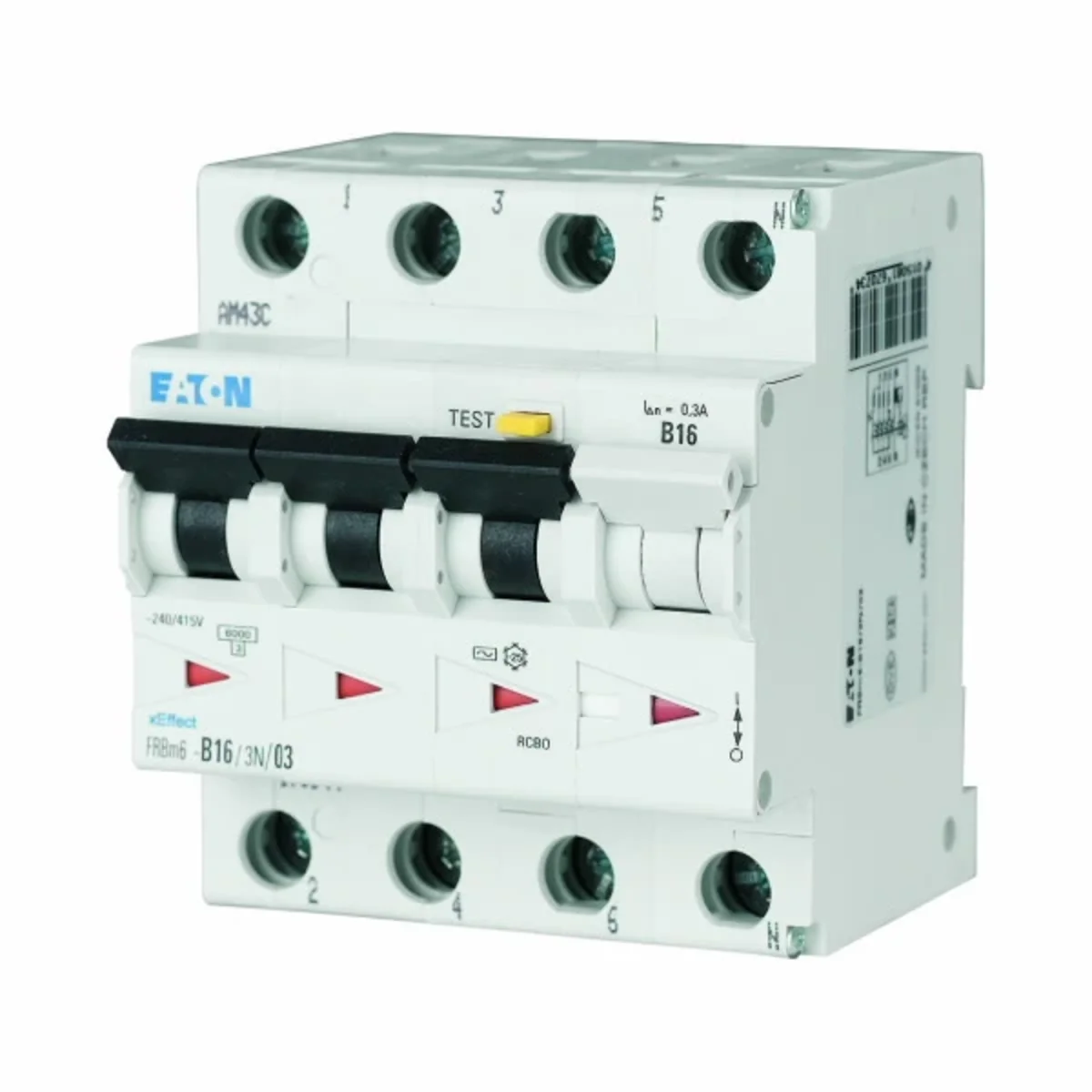

FRBM6-B16/3N/003 Combined circuit breaker 6kA FRBm6 series

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Preis:

880,89 zł

gross / stk.

(inklusive MwSt 23%)

2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Technische Daten

Weitere technische Daten

Number of poles (total)

4
Rated voltage

415 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity according to IEC 60947-2

0 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

B
With interlocking device

No
Pollution degree

2
Width in number of modular spacings

4
Flush-mounted installation

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of protected poles

4
Rated insulation voltage Ui

500 V
Rated current

16 A
Leakage current type

AC
Rated short-circuit breaking capacity according to EN 61009

6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

75.5 mm
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton	Karton
Menge	1 stk.	1 stk.	30 stk.
Gewicht (kg)	0,445	0,469	14,245
Volumen (m3)	0,000	0,000	0,016
Breite (m)	0,072	0,073	0,180
Länge (m)	0,082	0,086	0,385
Tiefe (m)	0,078	0,075	0,230
