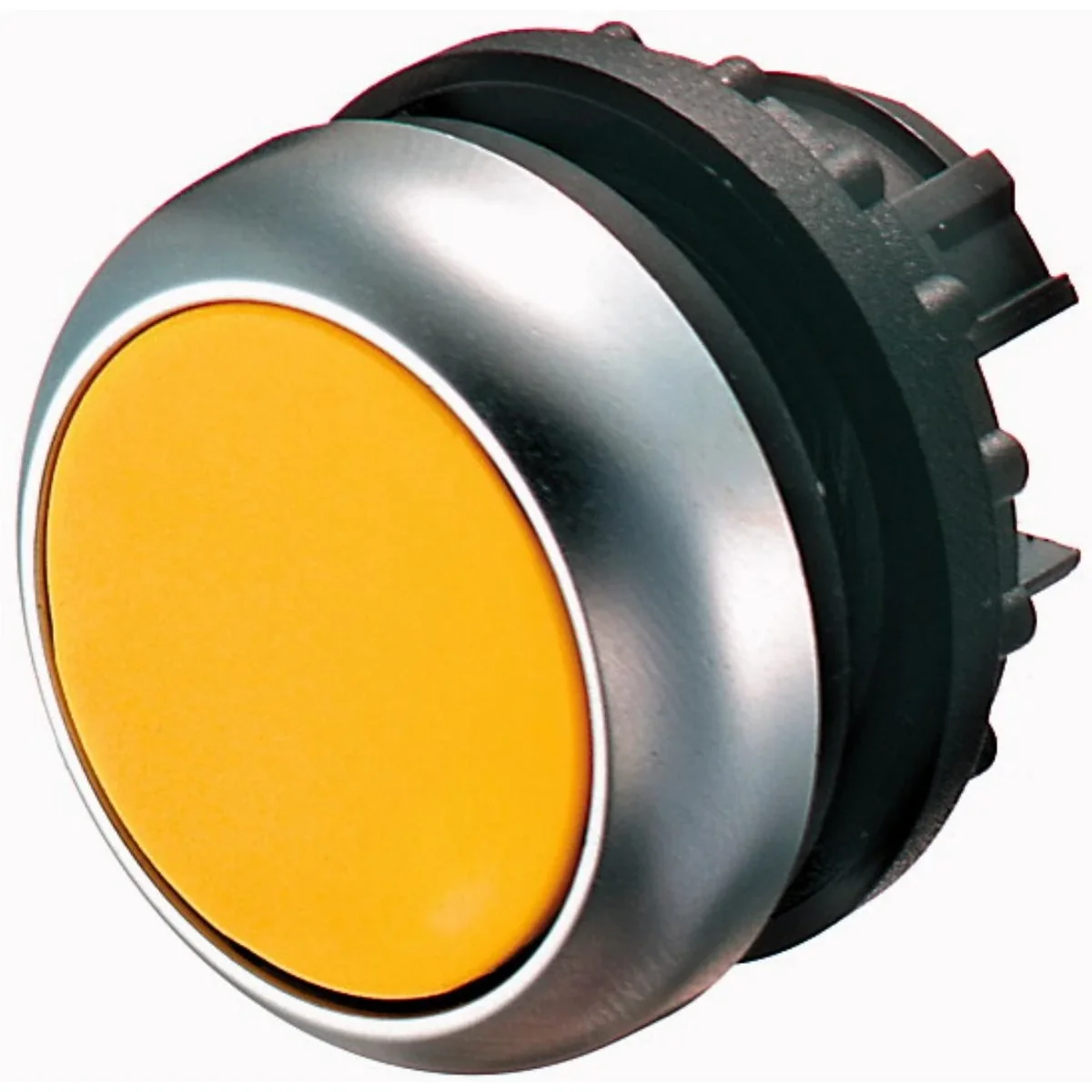

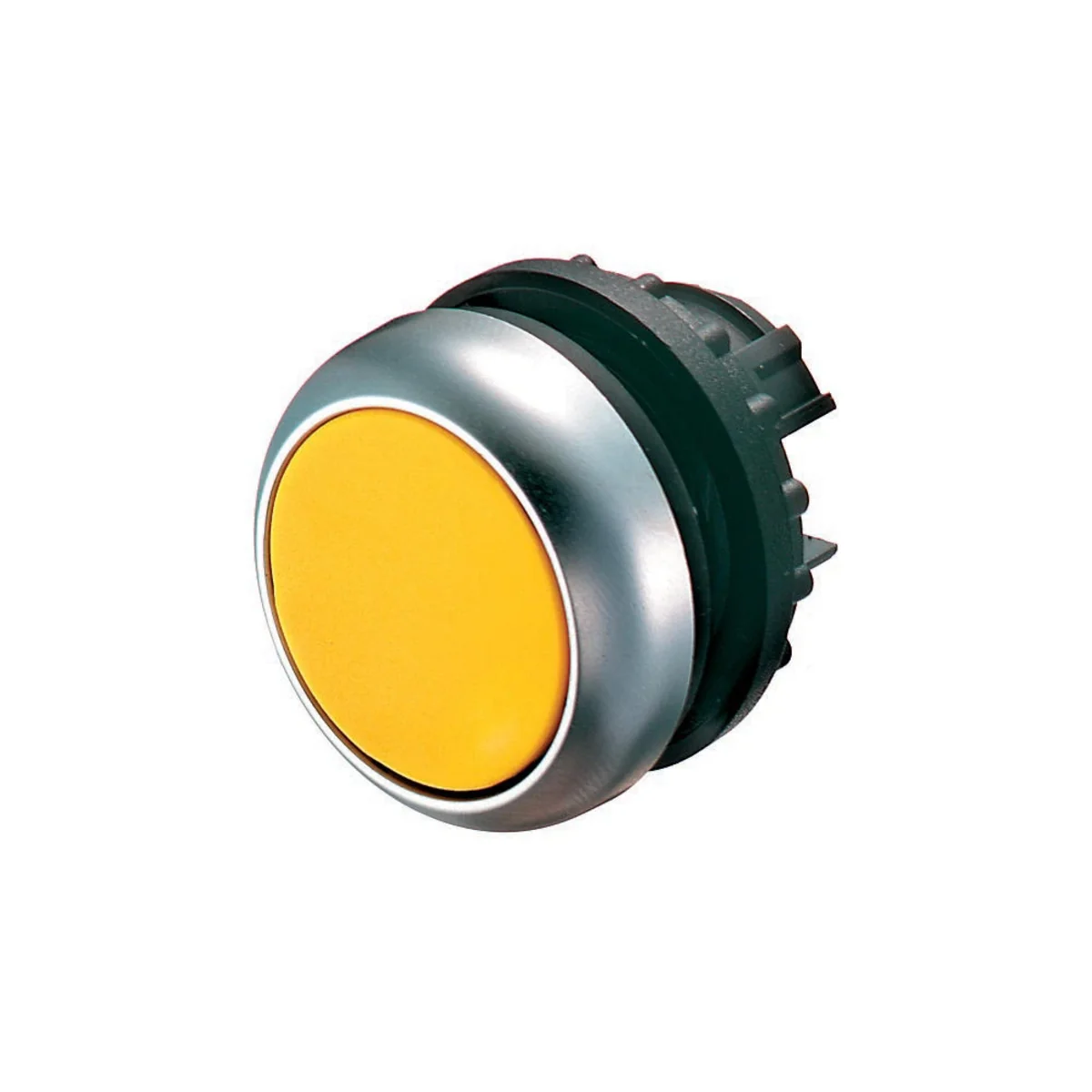

Flat push-button with spring return, yellow, M22-D-Y 216598

local index:
AKS808MOEL
Catalog No:
216598
EAN code:
4015082165987
Manufacturer: EATON
Color: Yellow
Face ring color: Titanium
Button color: Yellow
Price:
6,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 46 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flat button with spring return yellow

Technical data

  • Color
    Yellow
  • Button color
    Yellow
  • Face ring color
    Titanium
  • Execution
    Back home

Other technical data

  • Colour button
    Yellow
  • Construction type lens
    Round
  • Width opening
    0 mm
  • Type of button
    Flat
  • With protective cover
    No
  • Switching function latching
    No
  • With front ring
    Yes
  • Degree of protection (IP), front side
    IP67/IP69K
  • Number of command positions
    1
  • Hole diameter
    22 mm
  • Height opening
    0 mm
  • Suitable for illumination
    No
  • Labelled
    No
  • Spring-return
    Yes
  • Material front ring
    Plastic
  • Degree of protection (NEMA), front side
    4X

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,011 0,108
Volume (m3) 0,000 0,000
Width (m) 0,032 0,060
Length (m) 0,032 0,091
Depth (m) 0,032 0,075
