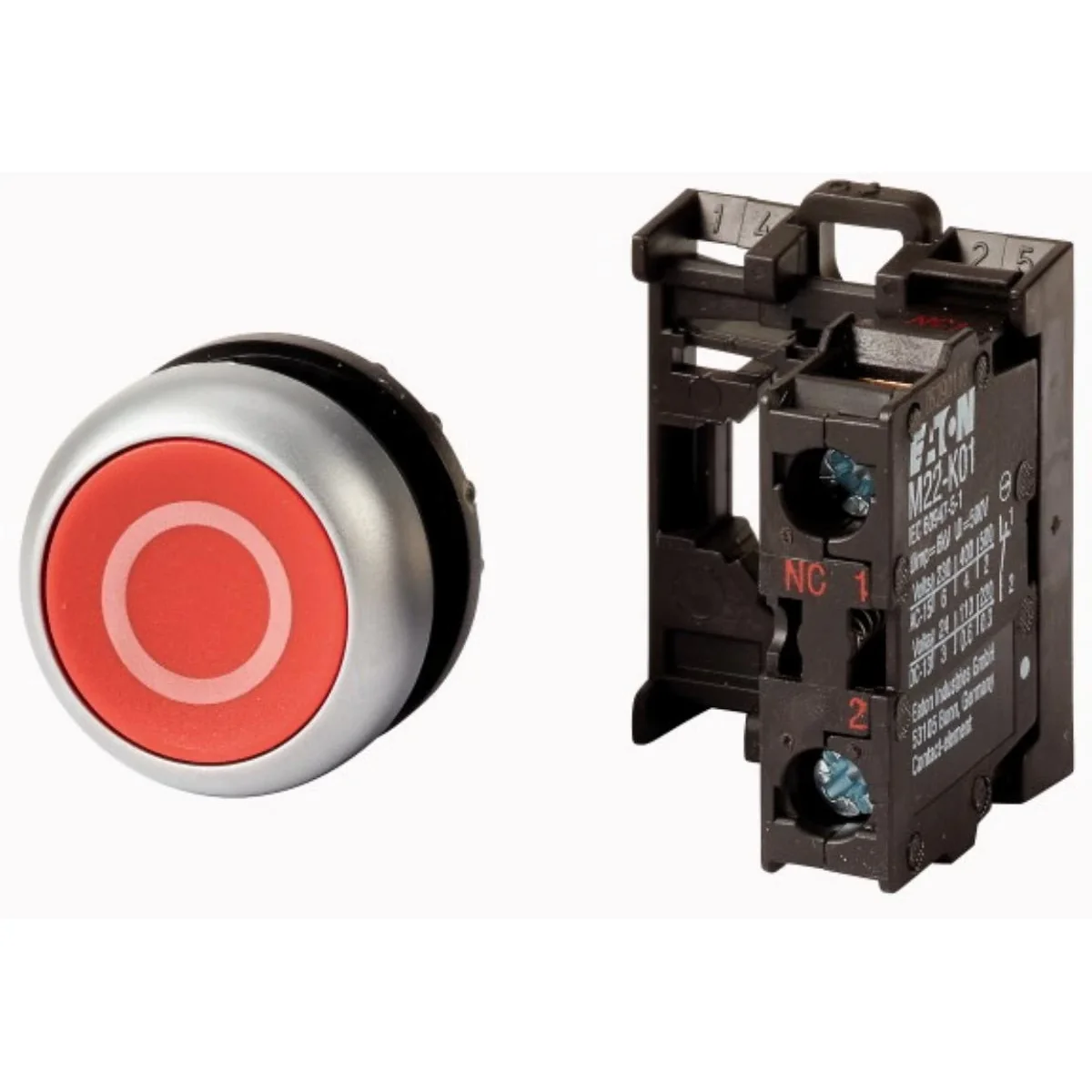

Flat button set, M22-D-R-X0/K01 216510

local index:
AKS997MOEL
Catalog No:
216510
EAN code:
4015082165109
Manufacturer: EATON

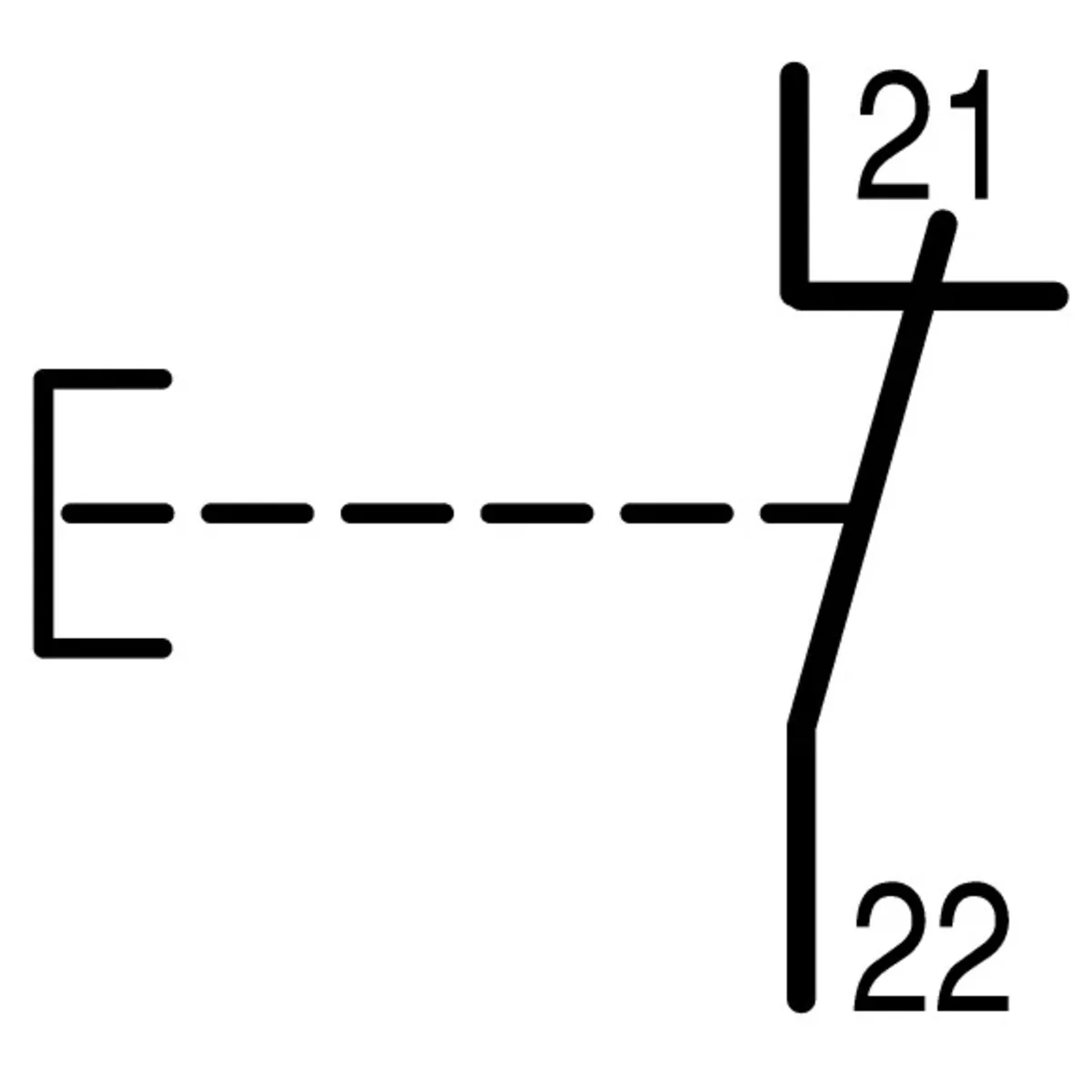

Number of NC contacts: 1
Price:
12,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print

Product description

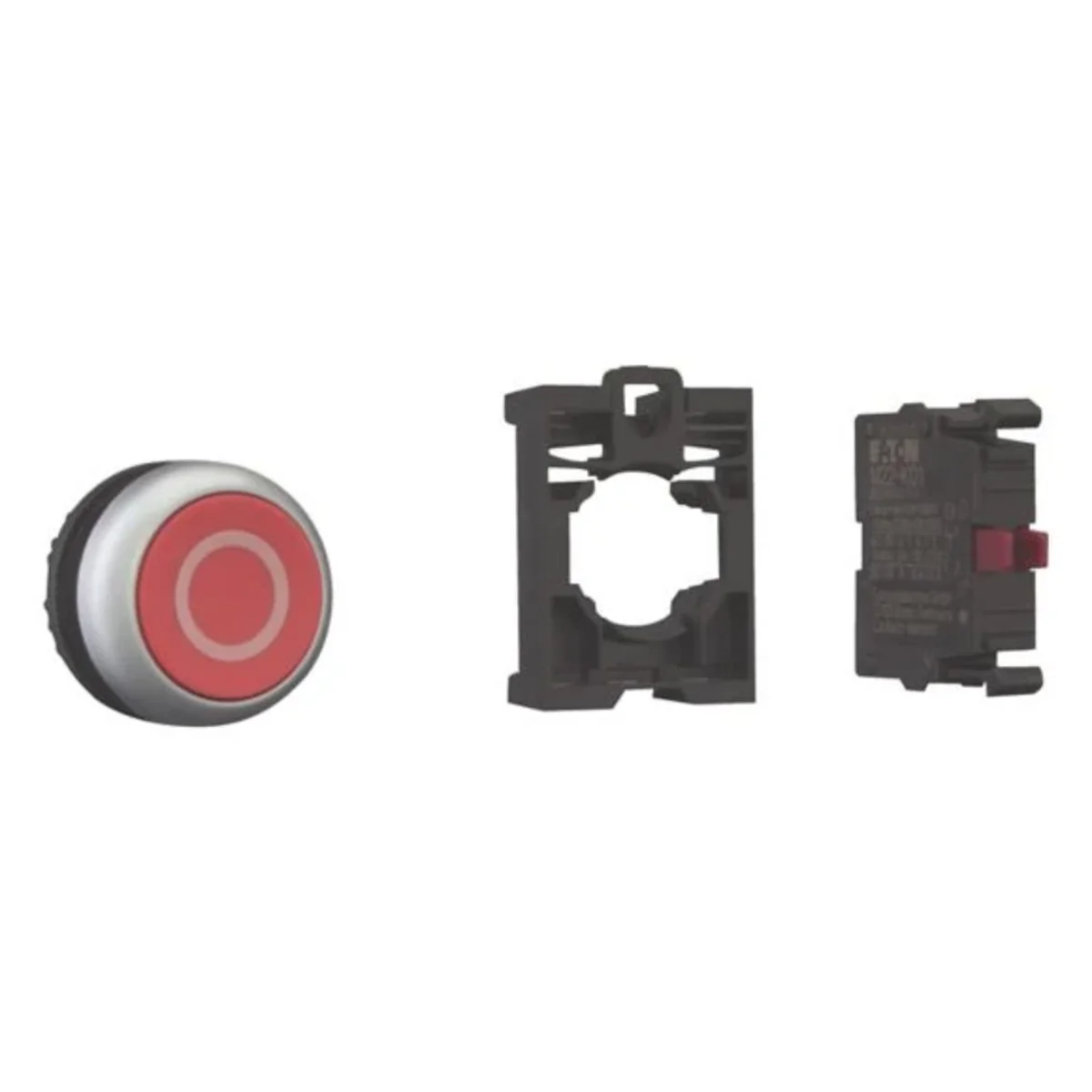

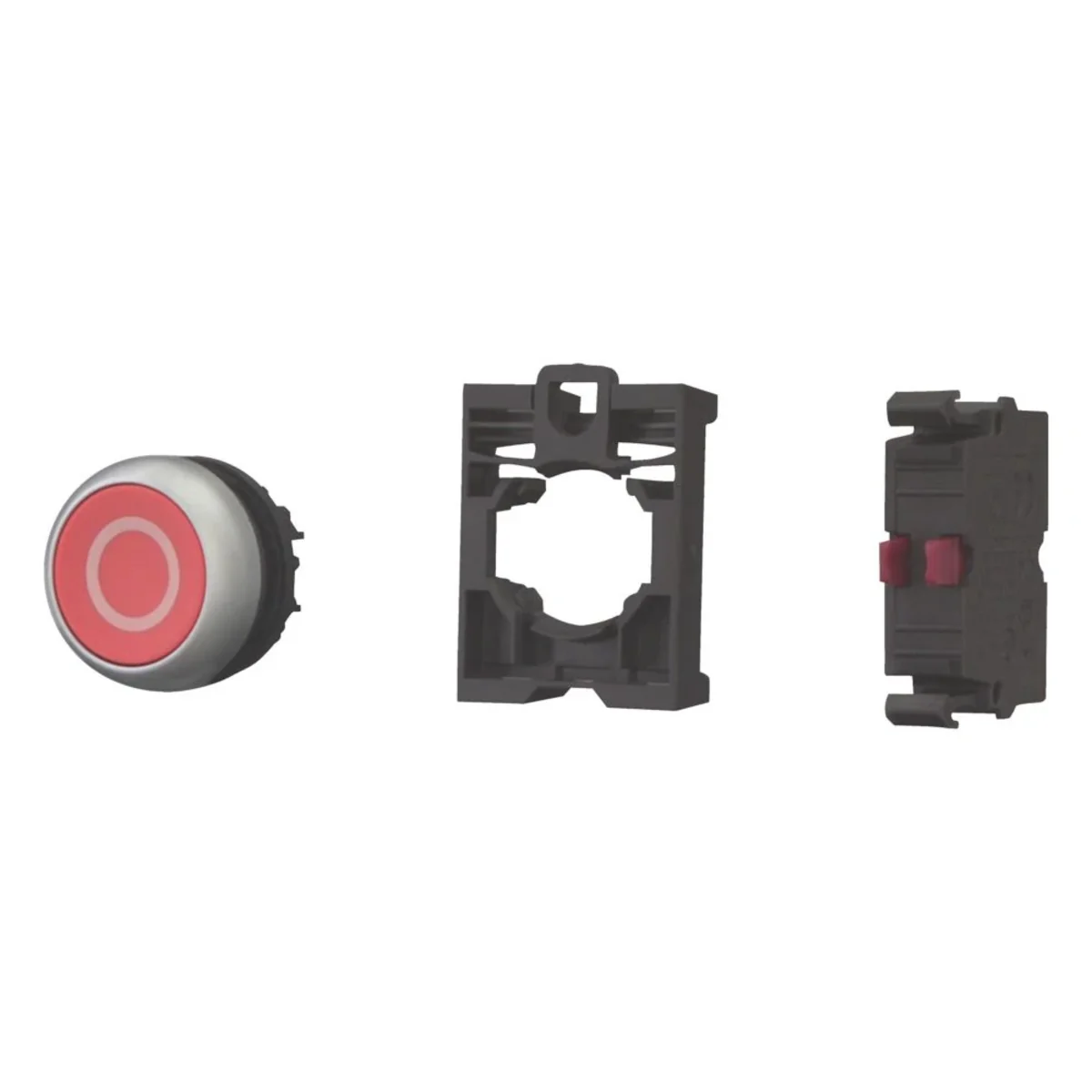

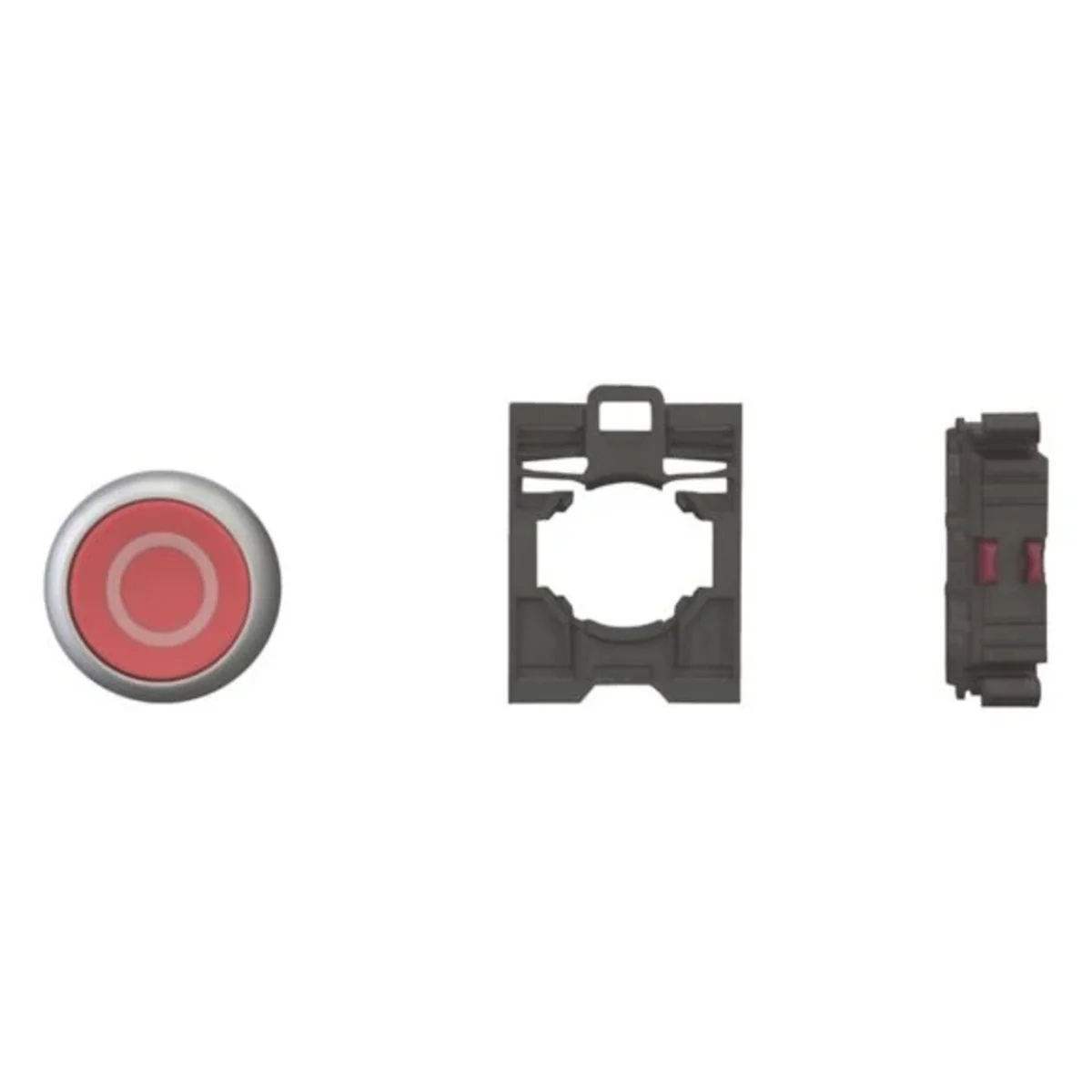

Flat button set

Technical data

  • Number of NC contacts
    1

Other technical data

  • Number of command positions
    1
  • Colour button
    Red
  • Hole diameter
    22 mm
  • Height opening
    0 mm
  • Switching function latching
    No
  • Supply voltage lamp
    0 V
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP67/IP69K
  • Type of button
    Flat
  • Construction type lens
    Round
  • Width opening
    0 mm
  • Suitable for illumination
    No
  • Spring-return
    Yes
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Chrome

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,031 0,154
Volume (m3) 0,000 0,001
Width (m) 0,032 0,064
Length (m) 0,072 0,115
Depth (m) 0,032 0,073
