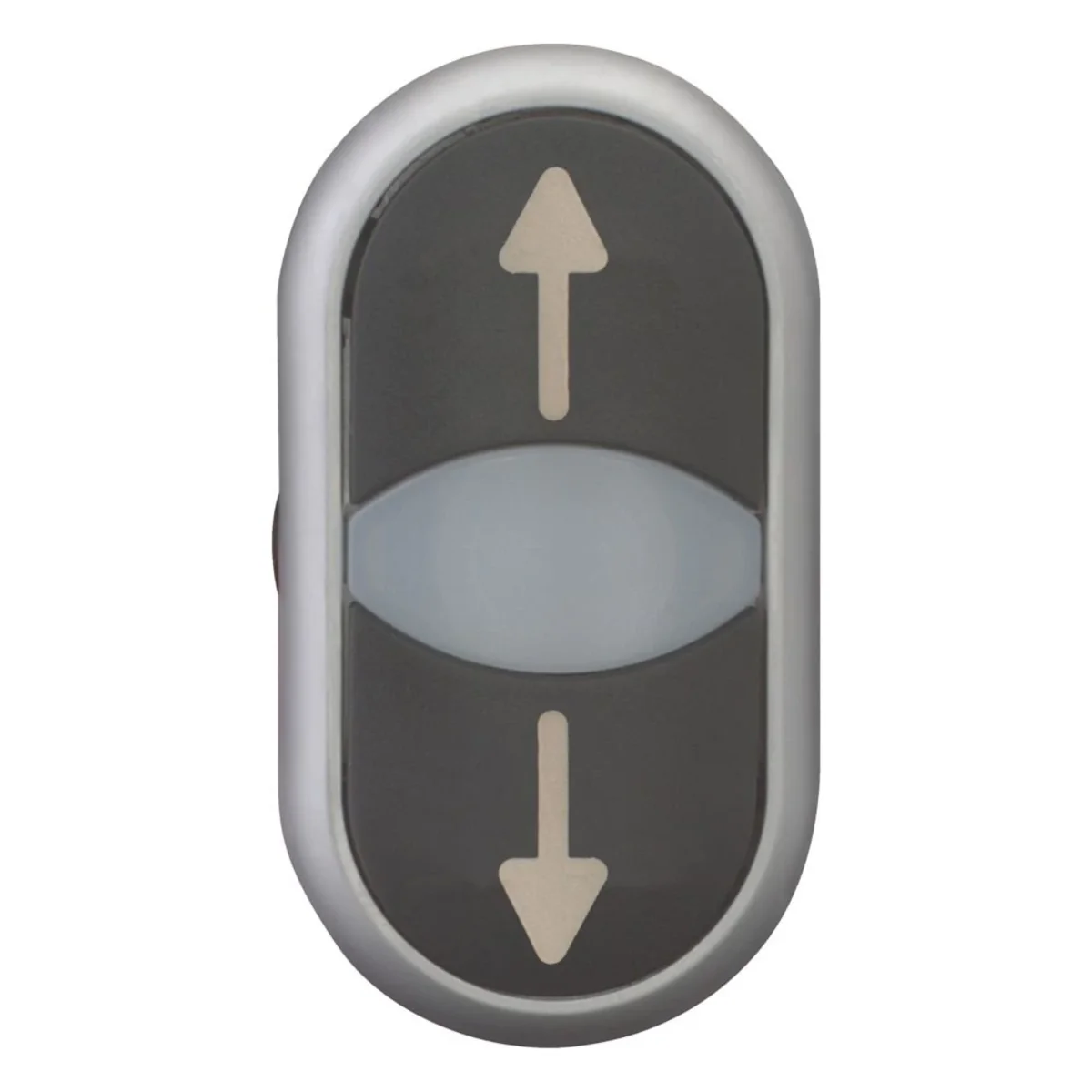

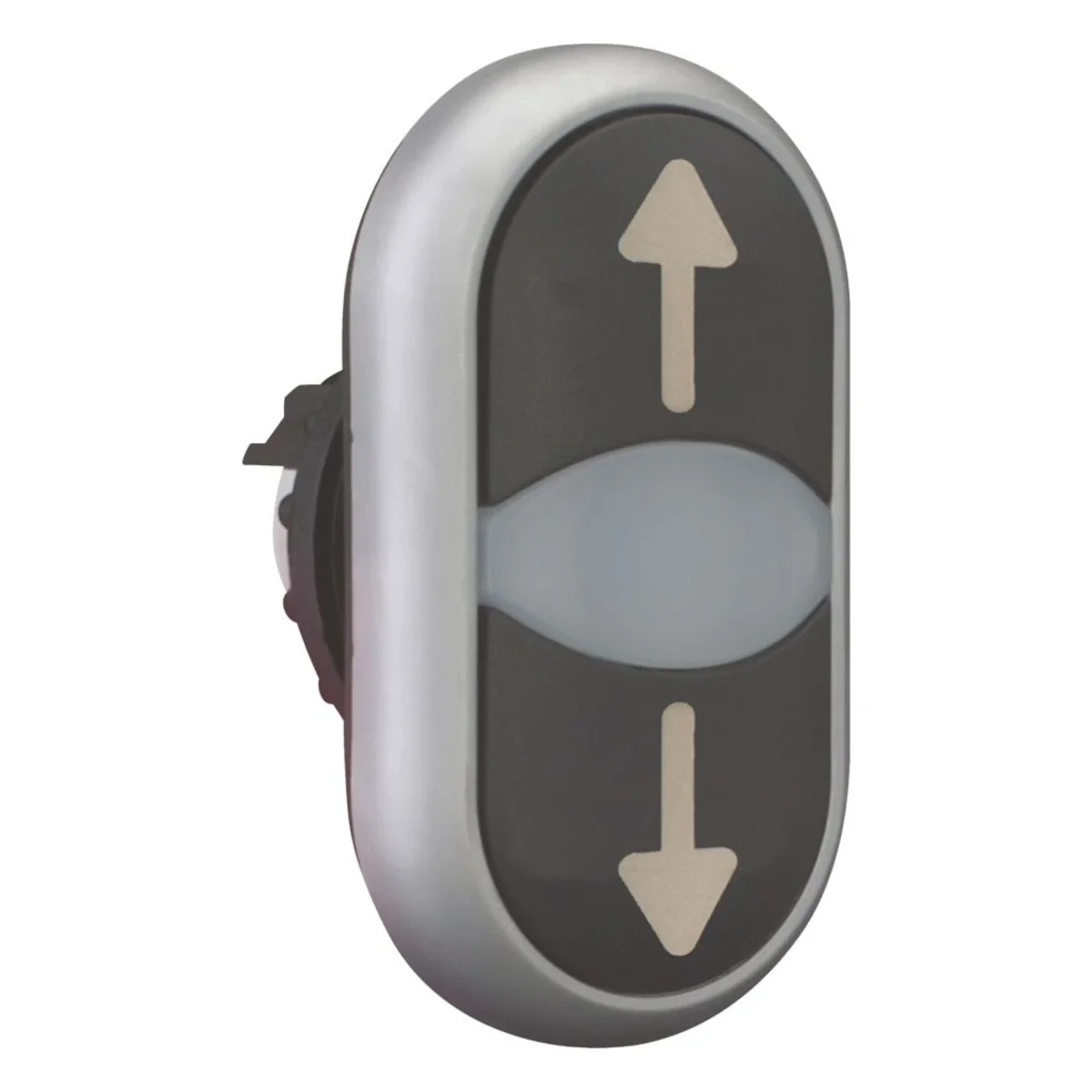

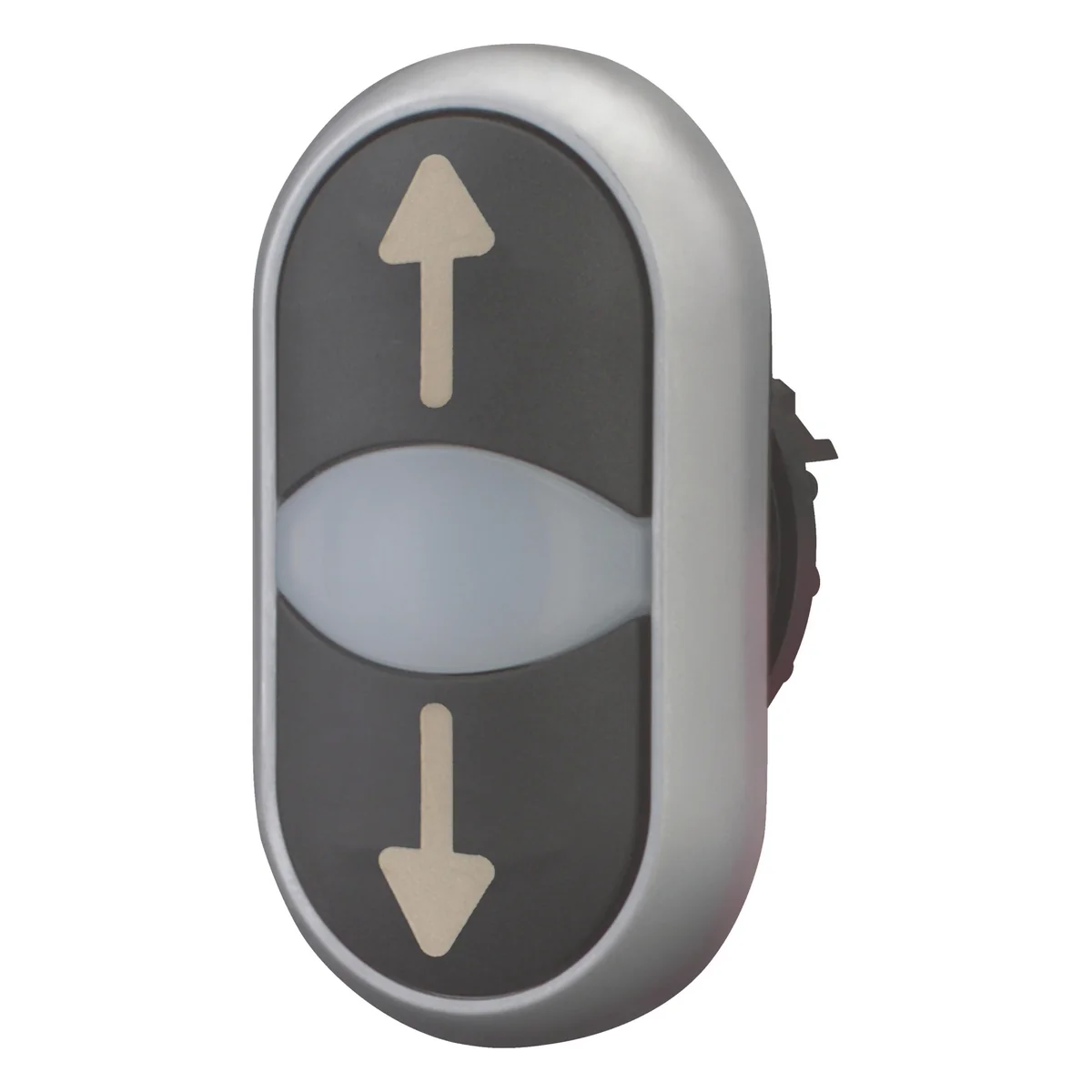

Double pushbutton drive with spring return, black - arrows up, down, M22-DDL-S-X7/X7 216710

Name: Double pushbutton drive with spring return, black - arrows up, down, M22-DDL-S-X7/X7
Brand: EATON
SKU: AKS066MOEL
Price: 17.66 PLN

local index:

AKS066MOEL

Catalog No:

216710

EAN code:

4015082167103

Double pushbutton drive with spring return, black - arrows up, down, M22-DDL-S-X7/X7

Click on the photo to enlarge

Manufacturer: EATON

Color: Black

Face ring color: Titanium

Button color: Black - arrows up, down

See full description

Price:

17,66 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Double pushbutton drive with spring return, black - up and down arrows

Technical data

Color

Black
Button color

Black - arrows up, down

Face ring color

Titanium
Execution

Convex lights and buttons

Other technical data

Colour button

Black
Construction type lens

Oval
Width opening

0 mm
Type of button

Flat
With protective cover

No
Switching function latching

No
With front ring

Yes
Degree of protection (IP), front side

IP66

Number of command positions

2
Hole diameter

22 mm
Height opening

0 mm
Suitable for illumination

Yes
Labelled

Yes
Spring-return

Yes
Material front ring

Plastic
Degree of protection (NEMA), front side

4X

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	5 pcs.
Weight (kg)	0,019	0,093
Volume (m3)	0,000	0,000
Width (m)	0,032	0,075
Length (m)	0,032	0,060
Depth (m)	0,057	0,090
