Electrical apparatus
Motor circuit breakers
Motor circuit breakers for rail mounting

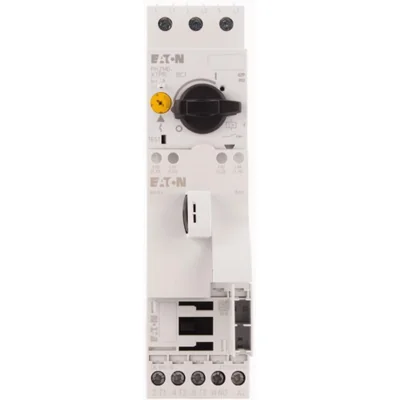

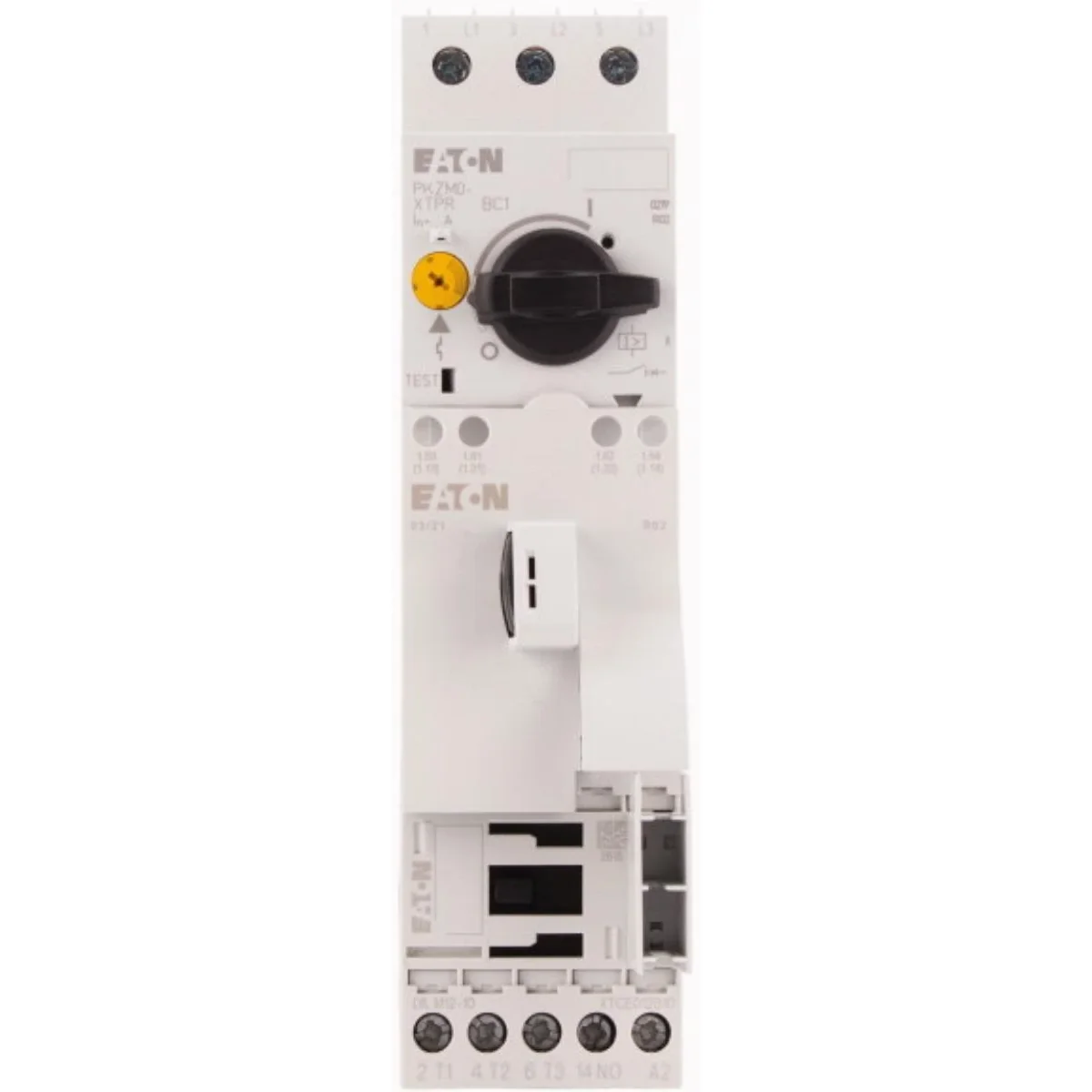

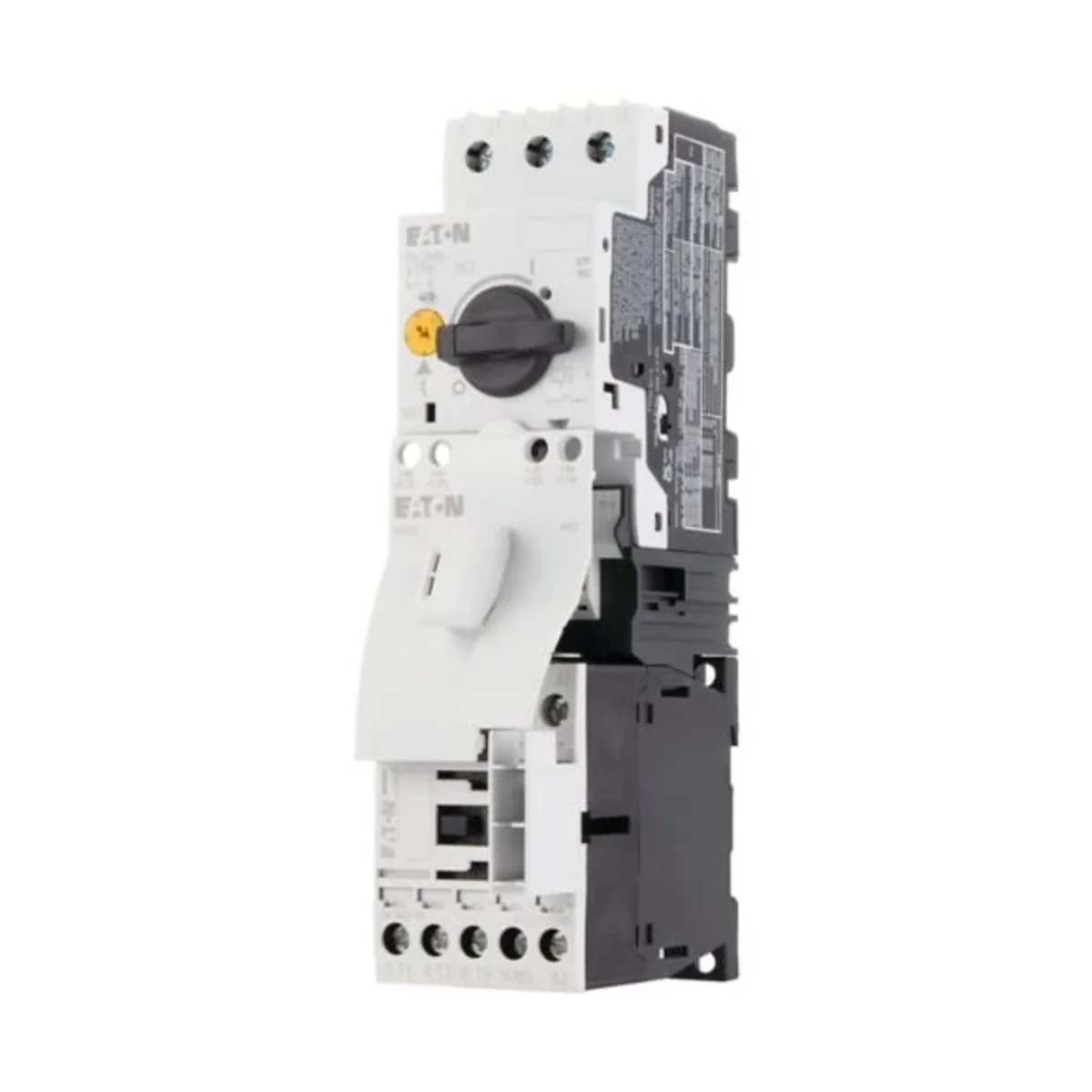

DOL Starter, 11, 3A, MSC-D-12-M12(230V50HZ) 283148
local index:
ASN239MOEL
Catalog No:
283148
EAN code:
4015082831486
Click on the photo to enlarge
Manufacturer:
EATON
Rated current [A]:
11.3
See full description
Price:
170,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Direct starter - sets of apparatus MSC-D.
Technical data
Rated current [A]
11.3
Other technical data
Type of motor starter
Direct online starter (DOL)
Rated control supply voltage AC 50 Hz
230 ... 230 V
Rated control supply voltage DC
0 ... 0 V
Rated operation power at AC-3, 230 V, 3-phase
3 kW
Rated power, 460 V, 60 Hz, 3-phase
0 kW
Rated operation current Ie
11.3 A
Overload release current setting
8 ... 12 A
Rated conditional short-circuit current, type 1, 600 Y/347 V
0 A
Rated conditional short-circuit current, type 2, 400 V
50 A
Number of auxiliary contacts as normally closed contact
0
Temperature compensated overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Rail mounting possible
Yes
Number of command positions
0
Coordination class according to IEC 60947-4-3
Class 1
External reset possible
No
Degree of protection (IP)
IP20
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for ASI
No
Supporting protocol for Data-Highway
No
Supporting protocol for SUCONET
No
Supporting protocol for PROFINET IO
No
Supporting protocol for SERCOS
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for other bus systems
No
Height
180 mm
With short-circuit release
Yes
Rated control supply voltage AC 60 Hz
0 ... 0 V
Voltage type for actuating
AC
Rated operation power at AC-3, 400 V
5.5 kW
Rated power, 575 V, 60 Hz, 3-phase
0 kW
Rated operation current at AC-3, 400 V
12 A
Rated conditional short-circuit current, type 1, 480 Y/277 V
0 A
Rated conditional short-circuit current, type 2, 230 V
0 A
Number of auxiliary contacts as normally open contact
1
Ambient temperature, upper operating limit
55 °C
Release class
CLASS 10 A
Type of electrical connection for auxiliary- and control current circuit
Screw connection
With transformer
No
Suitable for emergency stop
No
Number of indicator lights
0
With fuse
No
Degree of protection (NEMA)
Other
Supporting protocol for PROFIBUS
No
Supporting protocol for INTERBUS
No
Supporting protocol for Modbus
No
Supporting protocol for DeviceNet
No
Supporting protocol for LON
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for SafetyBUS p
No
Width
45 mm
Depth
95 mm
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,637
Volume (m3)
0,001
Width (m)
0,047
Length (m)
0,111
Depth (m)
0,192
