Direct starter, MSC-D-16-M15(24VDC), + busbar adapter 102975

Name: Direct starter, MSC-D-16-M15(24VDC), + busbar adapter
Brand: EATON
SKU: ATR049MOEL
Price: 1416.69 PLN
Availability: BackOrder

local index:

ATR049MOEL

Catalog number:

102975

EAN code:

4015081028146

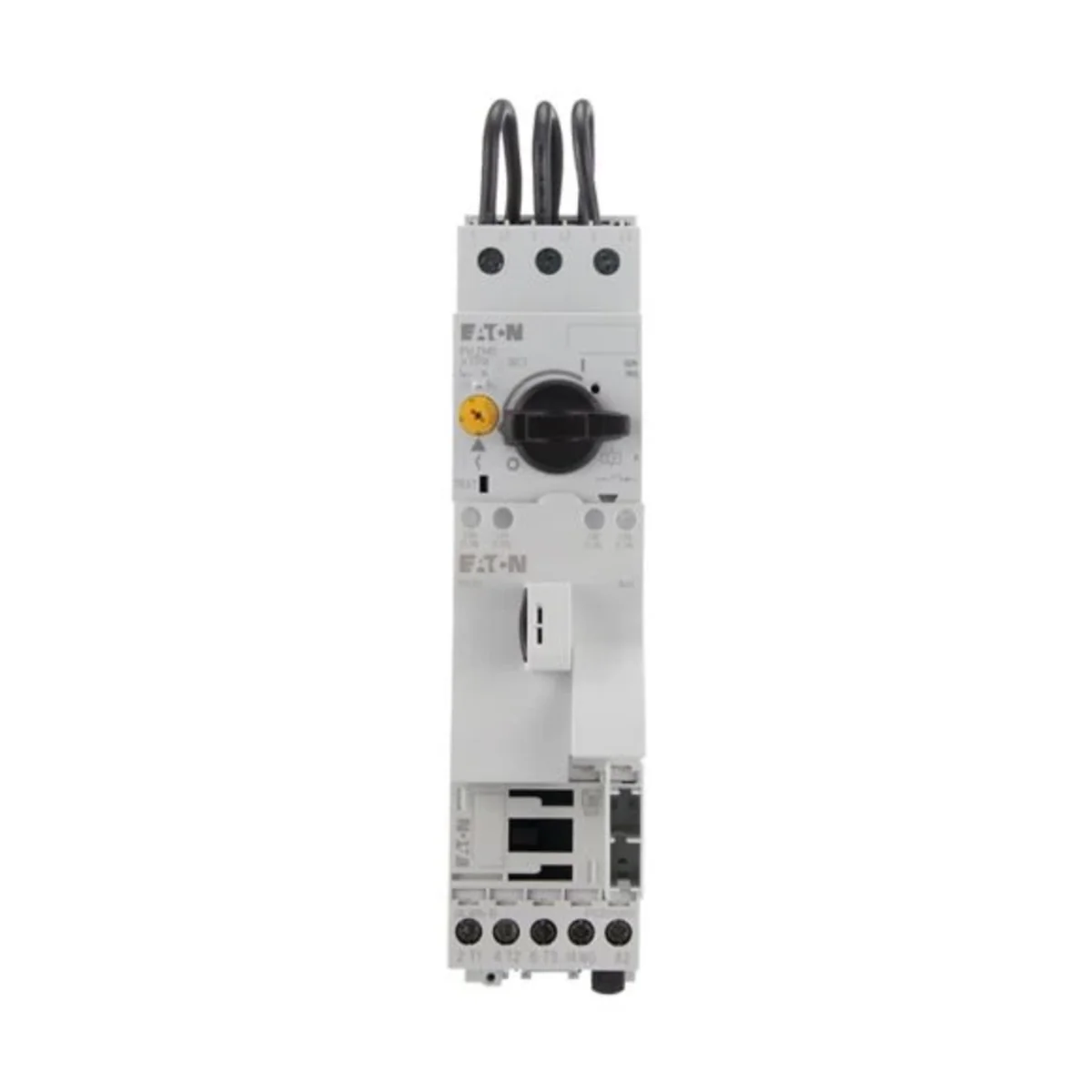

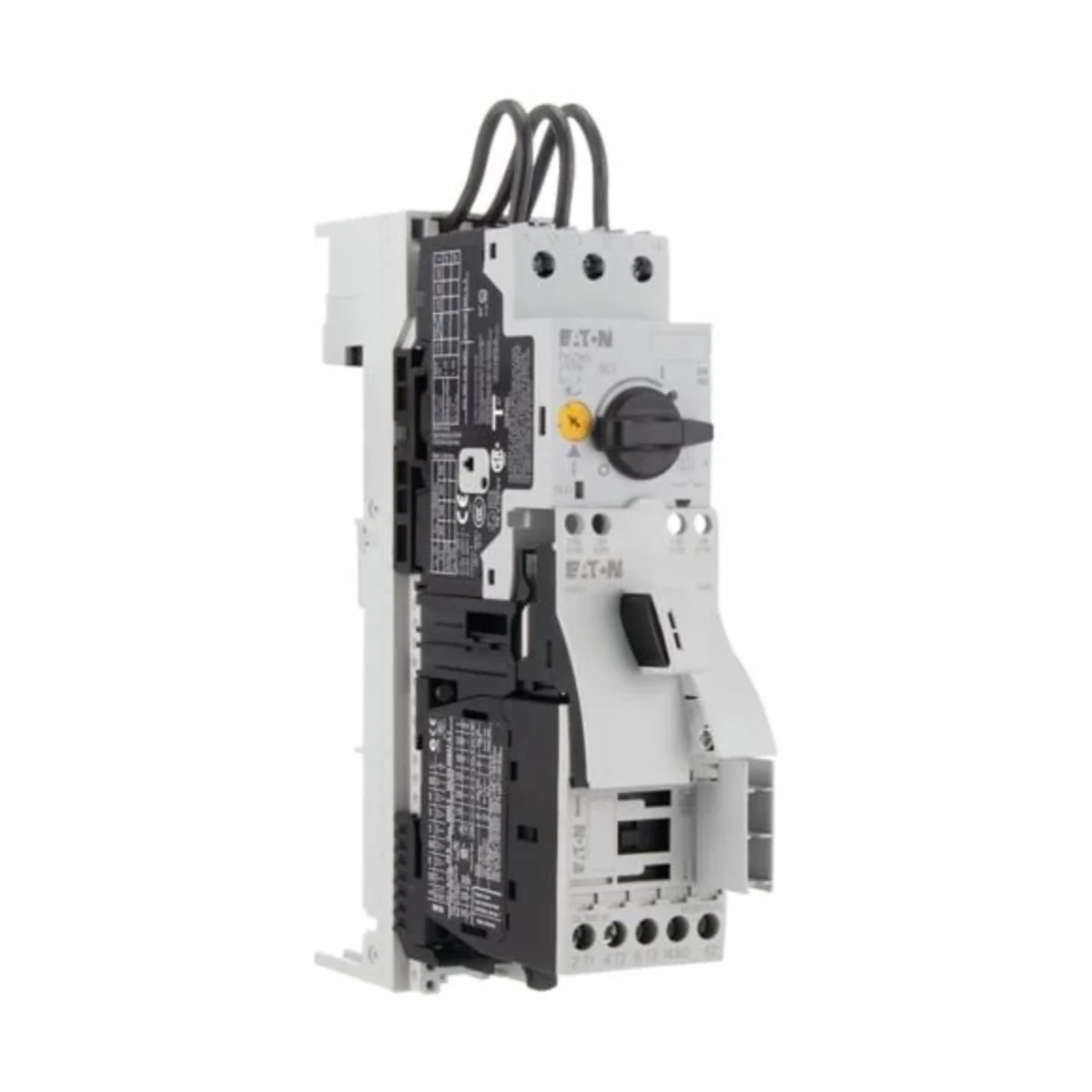

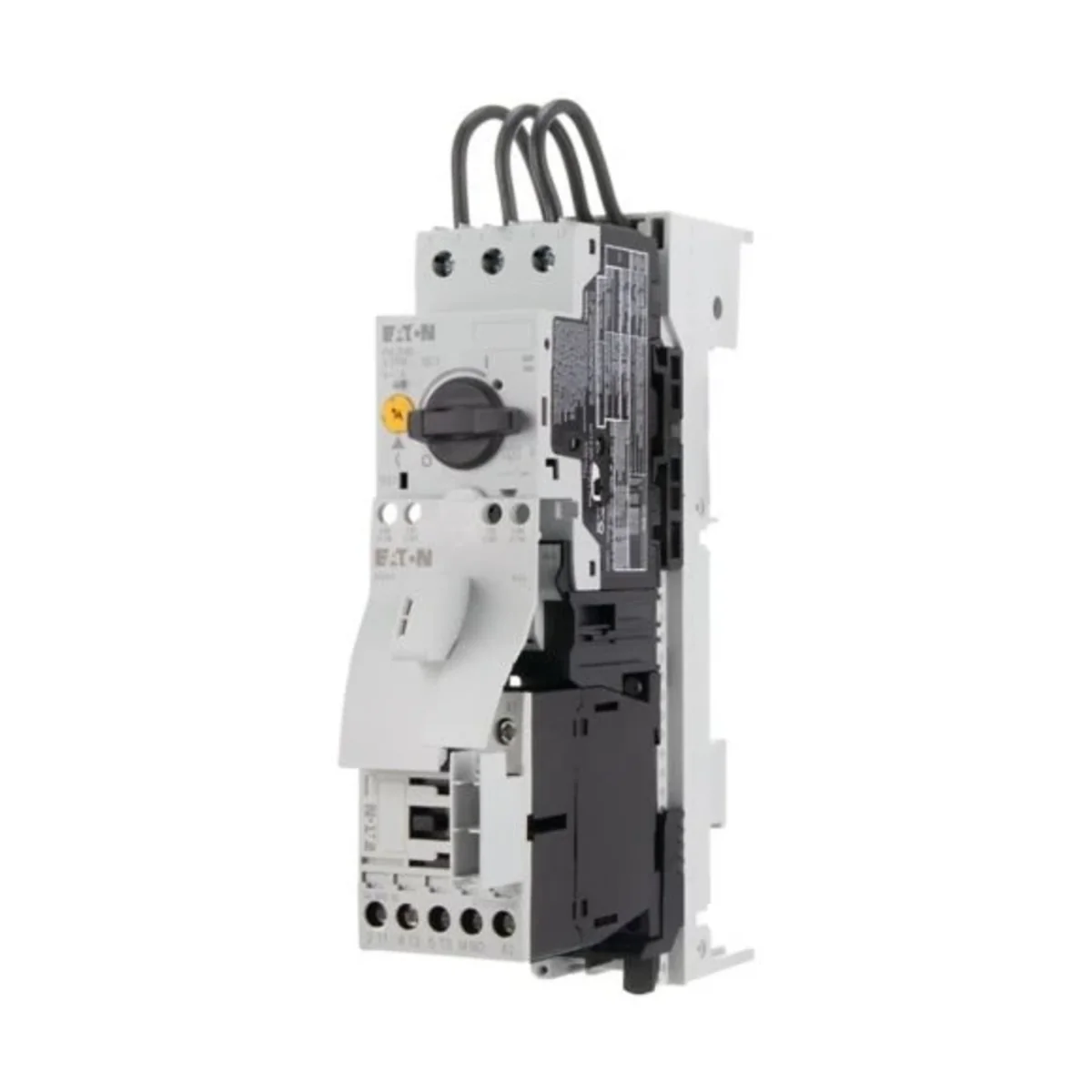

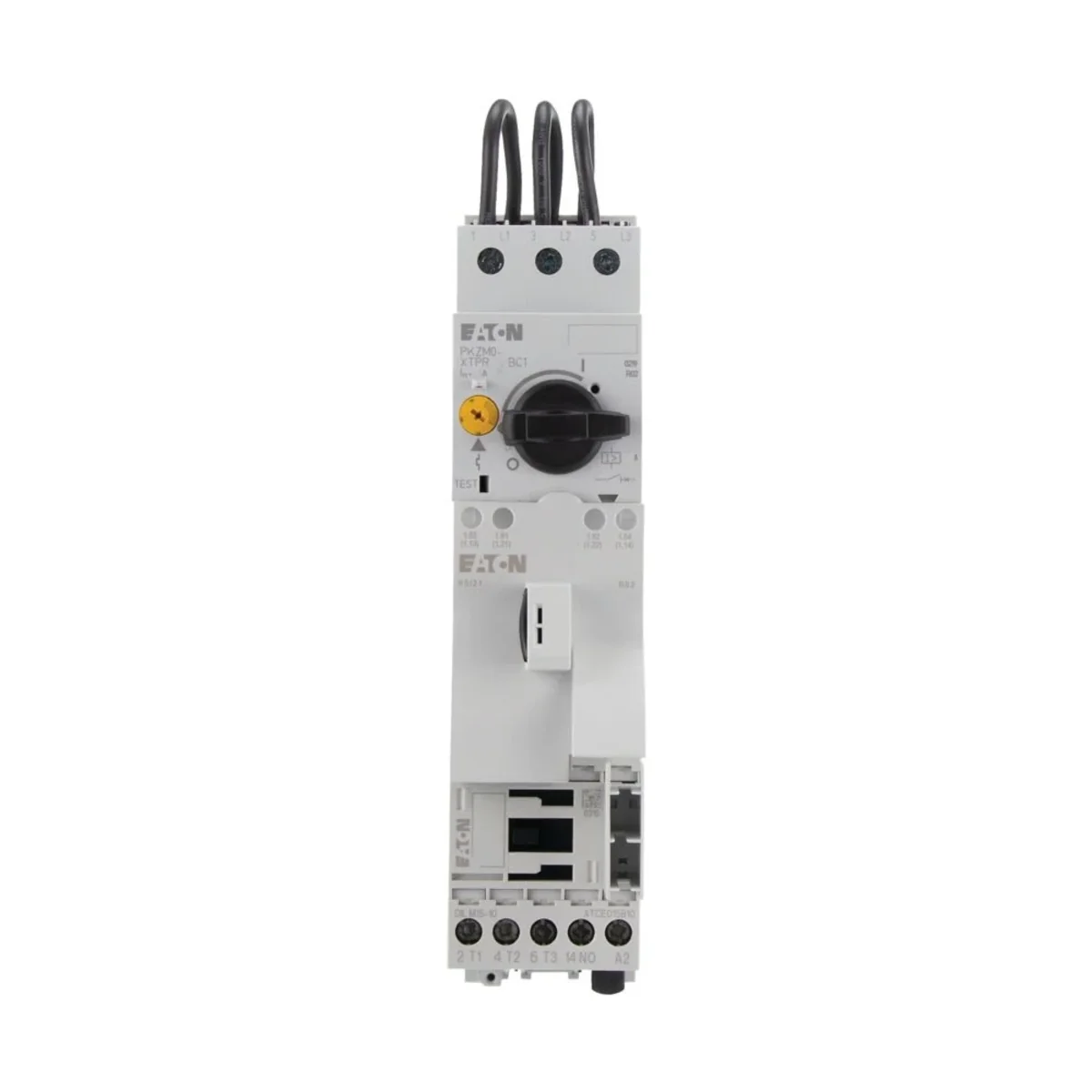

Direct starter, MSC-D-16-M15(24VDC), + busbar adapter

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Rated power for 400V [kW]: 7.5

Short-circuit current [kA]: 50

See full description

Price:

1 416,69 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Direct-on-line starter, Basic device: MSC, Note: Not suitable for motors of energy efficiency class IE3., Motor data Rated power AC-3 380 V 400 V 415 V: P= 7.5 kW, Setting range of the overload release: Ir= 10 - 16 A, Type of assignment "1", Start voltage: 24 V DC, Direct voltage,

Technical data

Number of poles

3
Short-circuit current [kA]

50

Rated power for 400V [kW]

7.5
Rated operational current [A]

15.2

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,930	0,978
Volume (m3)	0,001	0,001
Width (m)	0,047	0,047
Length (m)	0,156	0,111
Depth (m)	0,202	0,192
