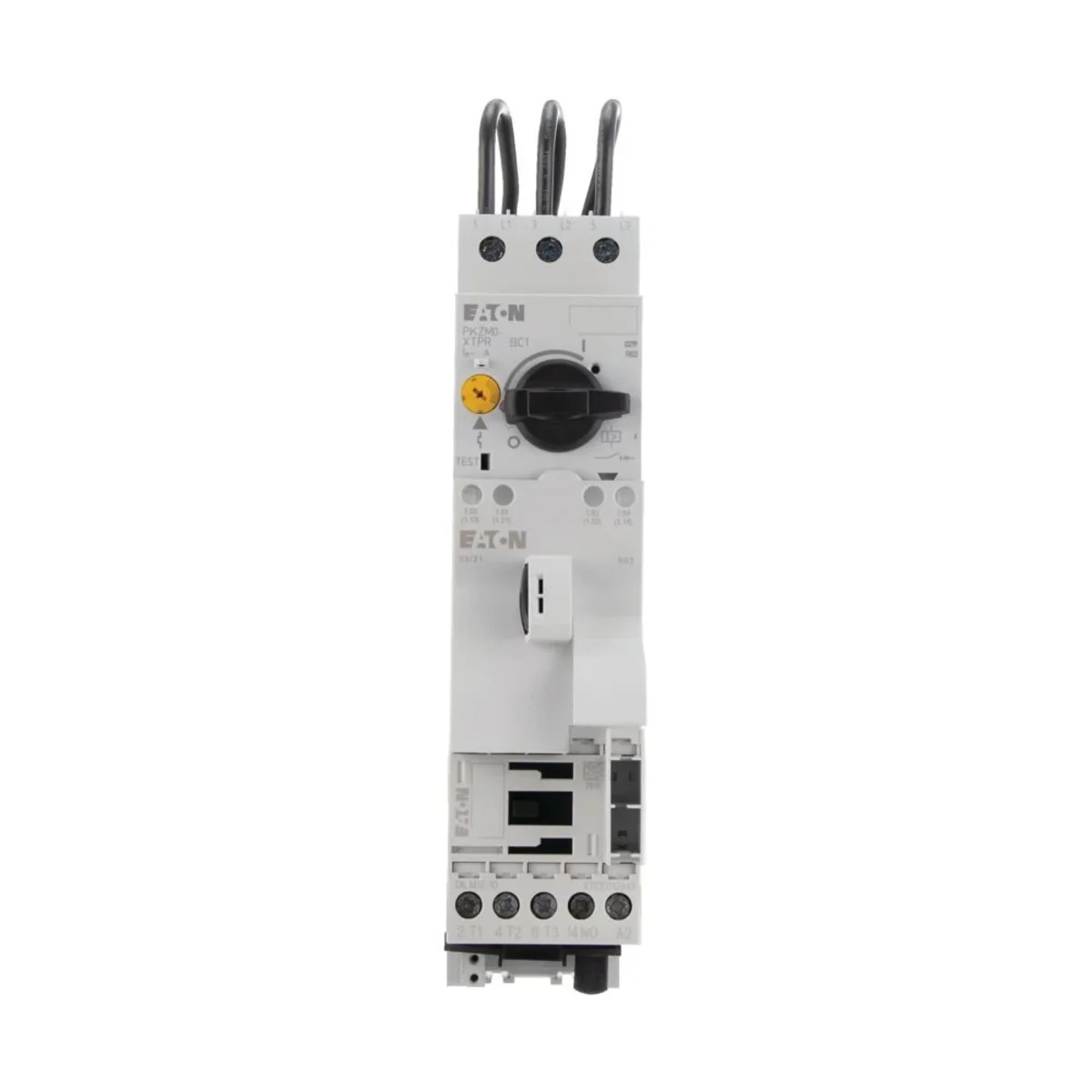

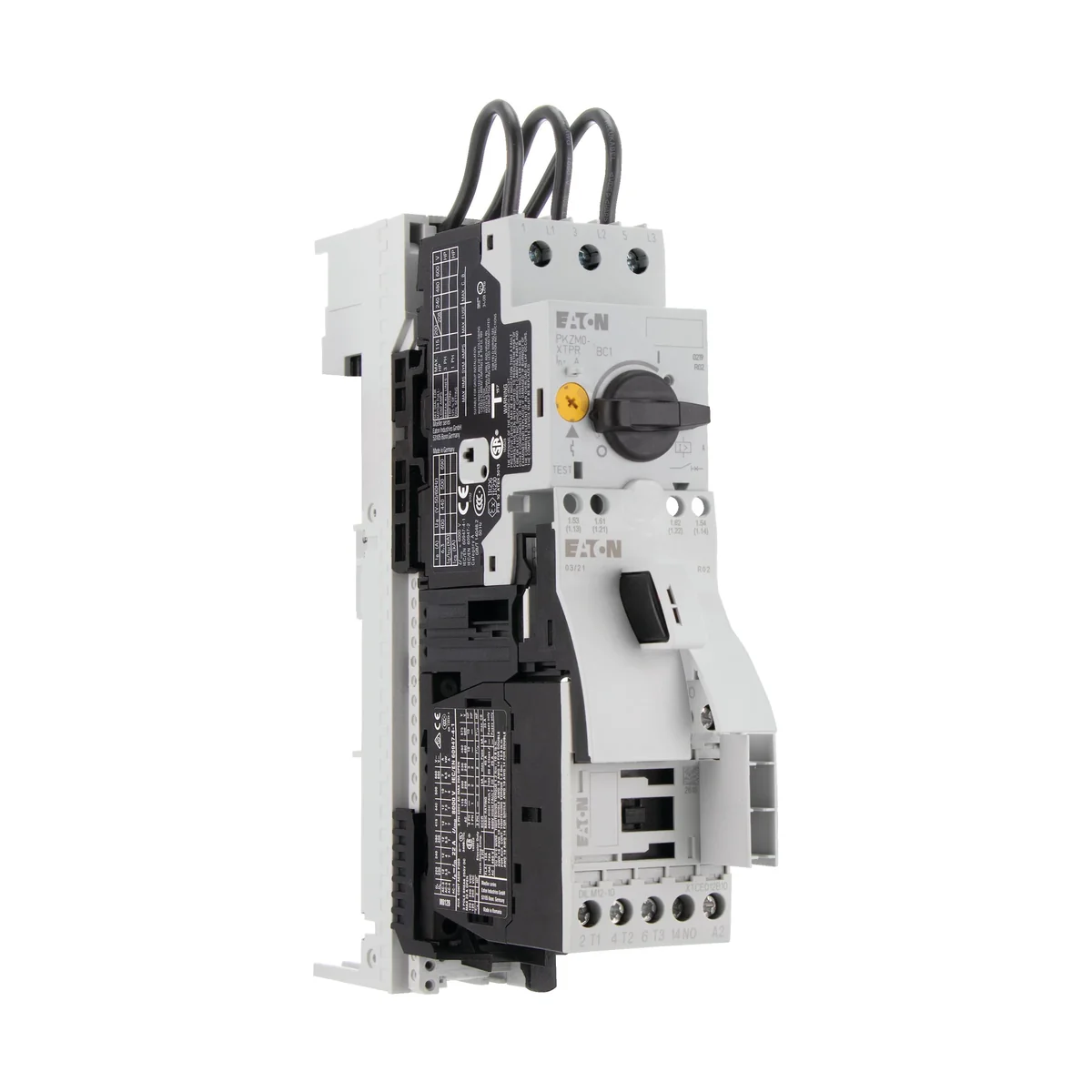

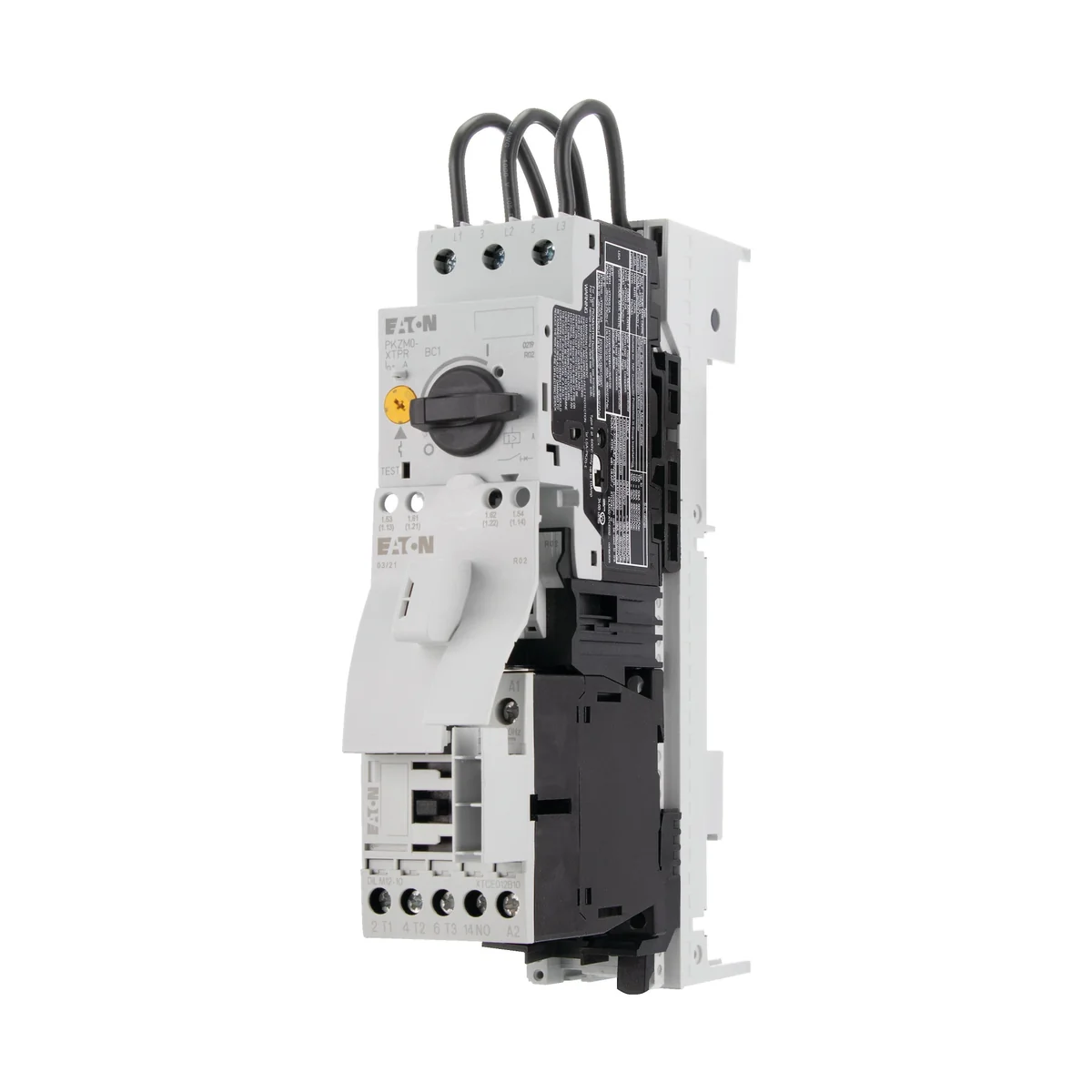

Direct starter, MSC-D-12-M12(230V50HZ), 100kA, + busbar adapter 102957
Místní index:
ATR031MOEL
Katalogové číslo.:
102957
EAN kód:
4015081027965
Cena:
1 136,30 zł
gross / kusů.
(včetně DPH 23%)
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Popis produktu
Direct-on-line starter, Basic unit: MSC, Note: Also suitable for motors of energy efficiency class IE3., IE3 compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 5.5 kW, Setting range of the overload release: Ir= 8 - 12 A, Type of assignment "1", Starting voltage: 230 V 50 Hz, 240 V 60 Hz, AC voltage,
Technické údaje
-
Number of poles3
-
Short-circuit current [kA]100
-
Rated power for 400V [kW]5.5
-
Rated operational current [A]11.5
Další technické údaje
-
Type of motor starterDirect online starter (DOL)
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation power at AC-3, 230 V, 3-phase3 kW
-
Rated power, 460 V, 60 Hz, 3-phase0 kW
-
Rated operation current Ie11.3 A
-
Overload release current setting8 ... 12 A
-
Rated conditional short-circuit current, type 1, 600 Y/347 V0 A
-
Rated conditional short-circuit current, type 2, 400 V100 A
-
Number of auxiliary contacts as normally closed contact0
-
Temperature compensated overload protectionYes
-
Type of electrical connection of main circuitScrew connection
-
Rail mounting possibleYes
-
Number of command positions0
-
Coordination class according to IEC 60947-4-3Class 1
-
External reset possibleNo
-
Degree of protection (IP)IP20
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsNo
-
Height200 mm
-
With short-circuit releaseYes
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingAC
-
Rated operation power at AC-3, 400 V5.5 kW
-
Rated power, 575 V, 60 Hz, 3-phase0 kW
-
Rated operation current at AC-3, 400 V12 A
-
Rated conditional short-circuit current, type 1, 480 Y/277 V0 A
-
Rated conditional short-circuit current, type 2, 230 V0 A
-
Number of auxiliary contacts as normally open contact1
-
Ambient temperature, upper operating limit55 °C
-
Release classCLASS 10 A
-
Type of electrical connection for auxiliary- and control current circuitScrew connection
-
With transformerNo
-
Suitable for emergency stopNo
-
Number of indicator lights0
-
With fuseNo
-
Degree of protection (NEMA)Other
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Width45 mm
-
Depth154 mm
Podrobnosti o výrobci
-
VýrobceEaton Electric Sp. z o.o.
-
Adresa80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Velkoobjemová balení
| Typ obalu | Skrzynia | Karton |
| Množství | 1 kusů. | 1 kusů. |
| Hmotnost (kg) | 0,875 | 0,967 |
| Objem (m3) | 0,001 | 0,005 |
| Šířka (m) | 0,047 | 0,100 |
| Délka (m) | 0,156 | 0,170 |
| Hloubka (m) | 0,202 | 0,290 |
