el12 Electrical apparatus contactors Contactor starter kits

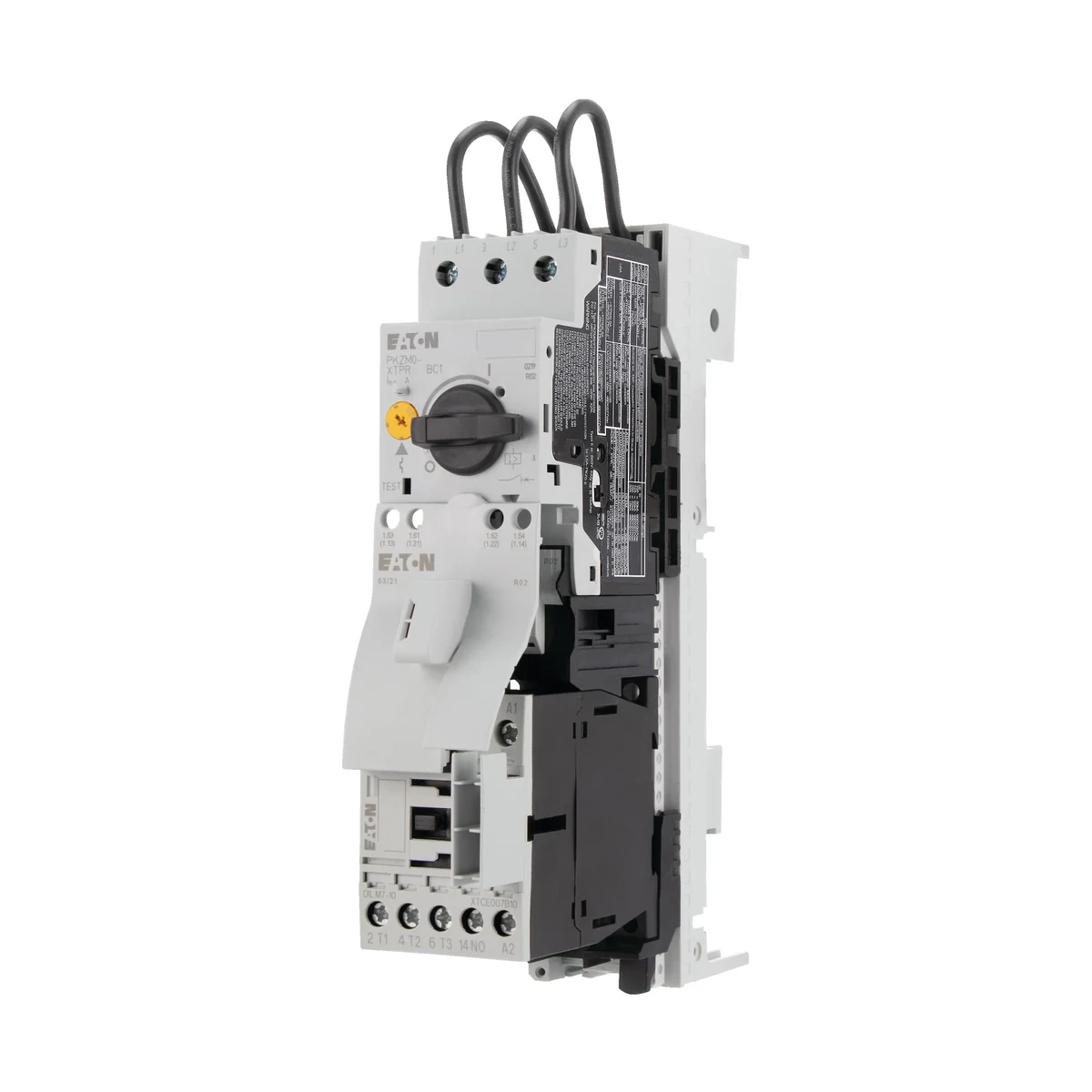

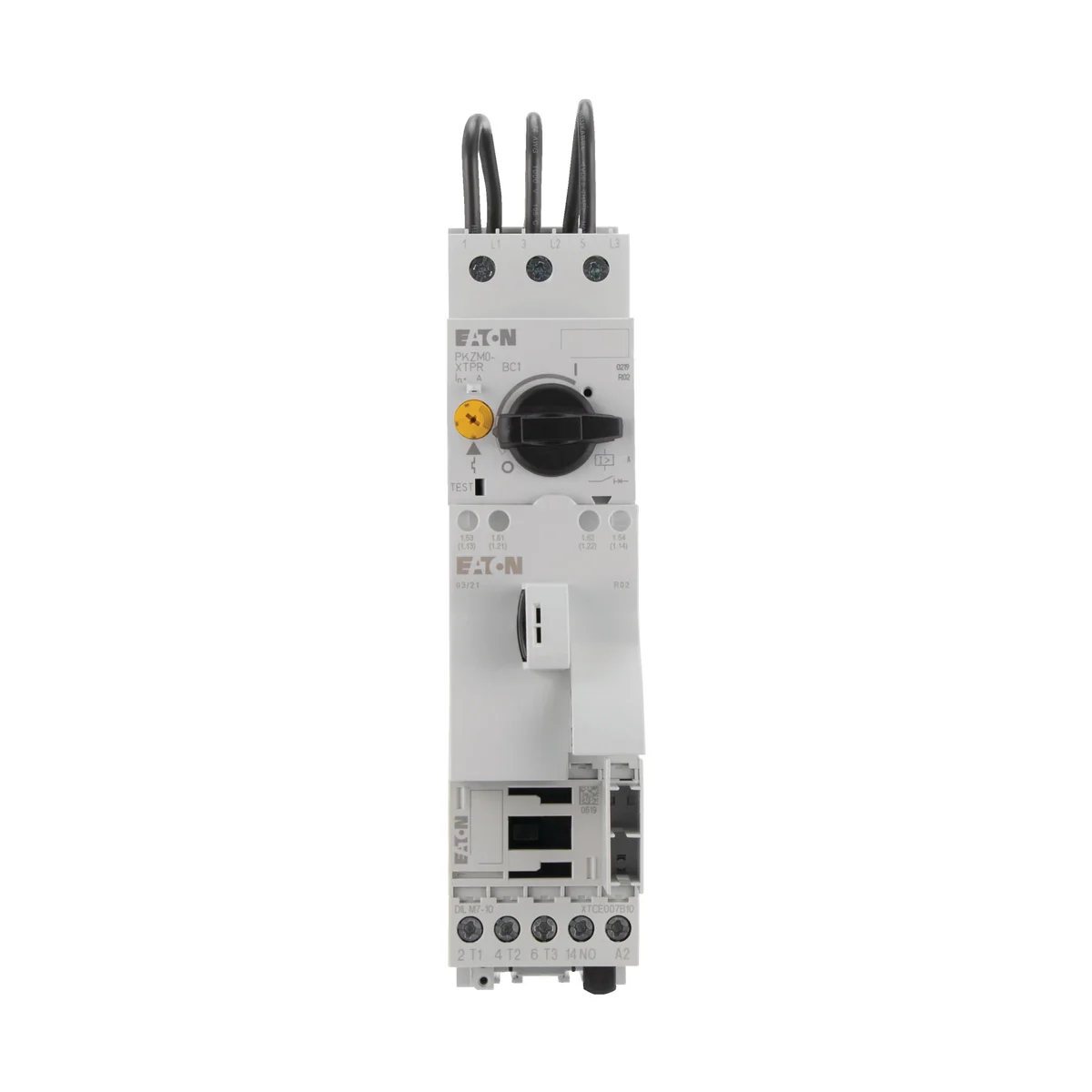

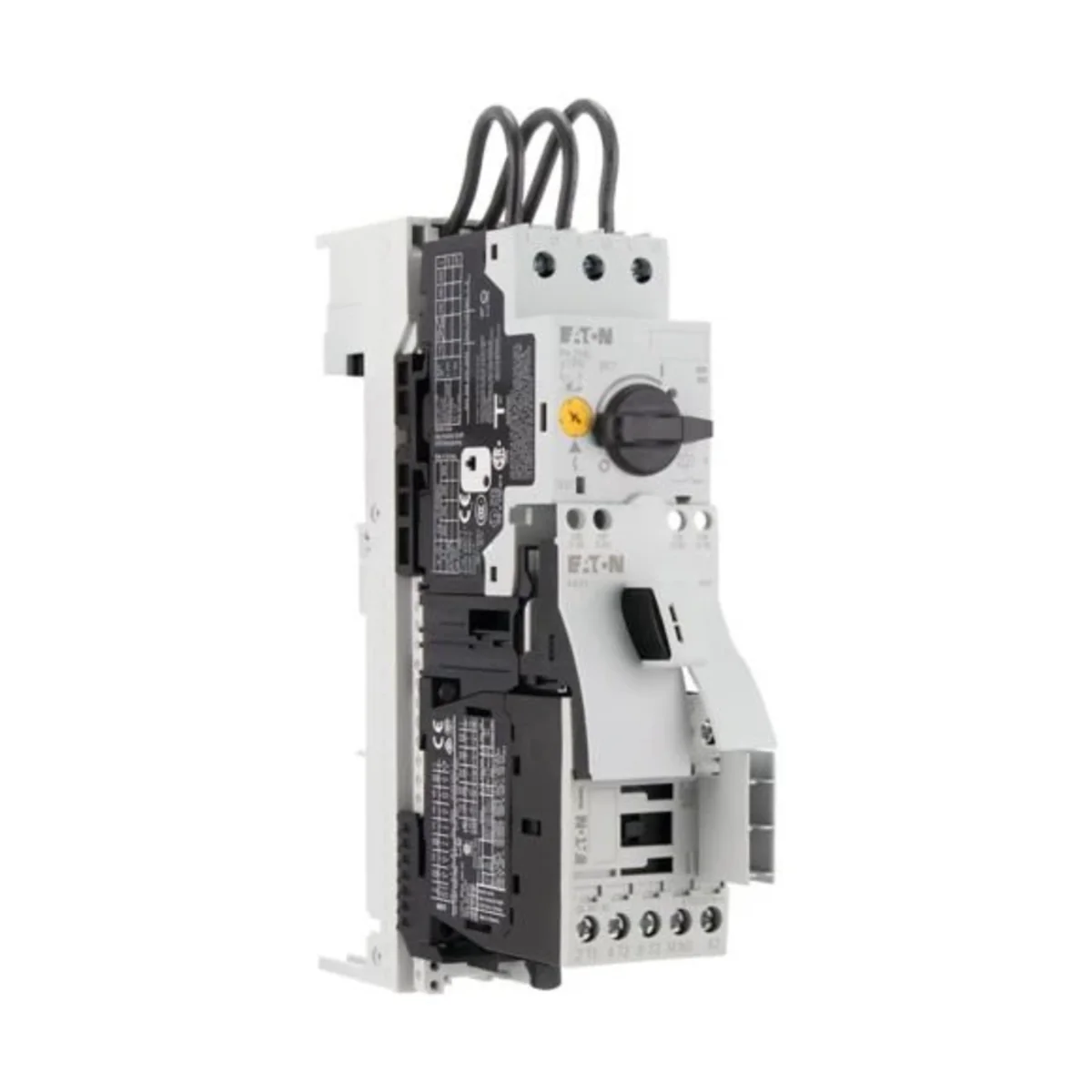

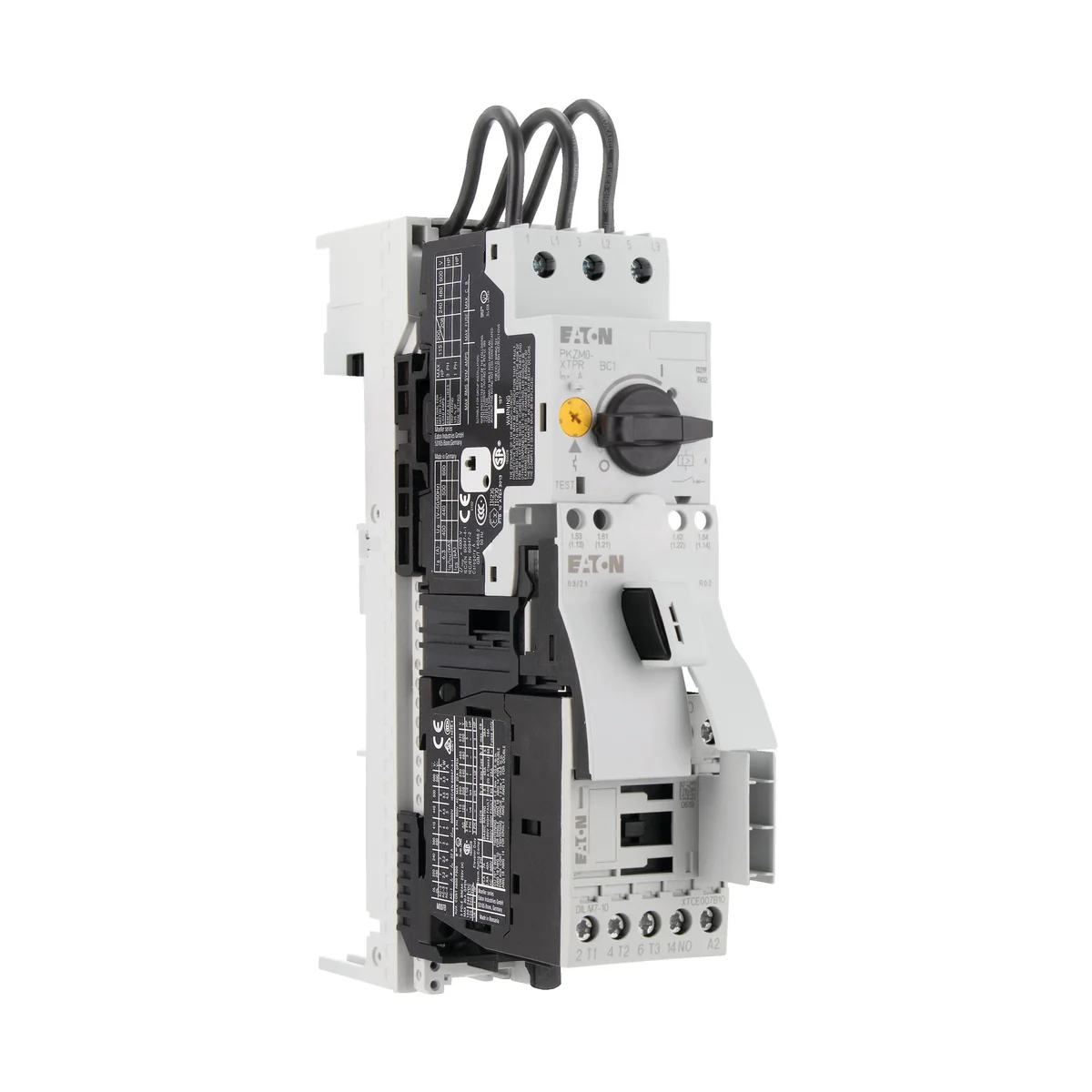

Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter 102955

local index:
ATR029MOEL
Catalog No:
102955
EAN code:
4015081027941
Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter
Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter
Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter
Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter
Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter
Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter
Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter
Direct starter, MSC-D-10-M7(230V50HZ), 100kA, + busbar adapter

Click on the photo to enlarge

Manufacturer: EATON
Number of poles: 3
Rated power for 400V [kW]: 3.0
Short-circuit current [kA]: 100
See full description
Price:
230,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

Direct-on-line starter, Basic unit: MSC, Note: Also suitable for motors of energy efficiency class IE3., IE3-compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 3 kW, Setting range of the overload release: Ir= 6.3 - 10 A, Type of assignment "1", Start voltage: 230 V 50 Hz, 240 V 60 Hz, AC voltage,

Technical data

  • Number of poles
    3
  • Short-circuit current [kA]
    100
  • Rated power for 400V [kW]
    3.0
  • Rated operational current [A]
    6.6

Other technical data

  • Type of motor starter
    Direct online starter (DOL)
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation power at AC-3, 230 V, 3-phase
    1.5 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    6.6 A
  • Overload release current setting
    6.3 ... 10 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    100 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    Yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    Yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 1
  • External reset possible
    No
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Height
    200 mm
  • With short-circuit release
    Yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    AC
  • Rated operation power at AC-3, 400 V
    3 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    7 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    0 A
  • Number of auxiliary contacts as normally open contact
    1
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    CLASS 10 A
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • Number of indicator lights
    0
  • With fuse
    No
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    45 mm
  • Depth
    154 mm

Manufacturer details

  • Manufacturer
    EATON ELECTRIC SP. Z O.O.
  • Address
    80-299 UL. GALAKTYCZNA 30
  • E-mail
    pl-zamowienia@eaton.com
  • Tax identification number
    5841022327

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,875 0,923
Volume (m3) 0,001 0,001
Width (m) 0,045 0,047
Length (m) 0,154 0,111
Depth (m) 0,200 0,192
