el12 Electrical apparatus contactors Contactor starter kits

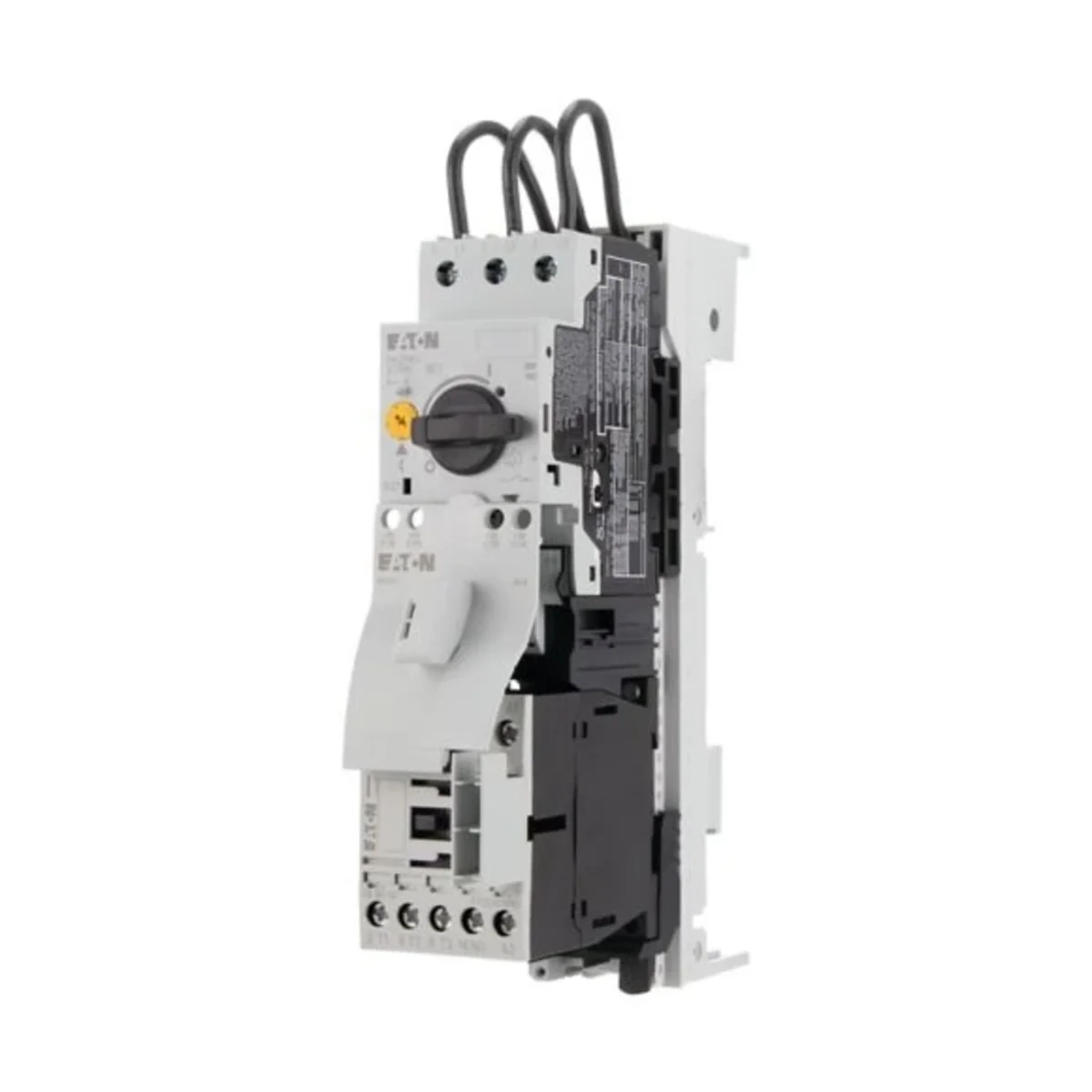

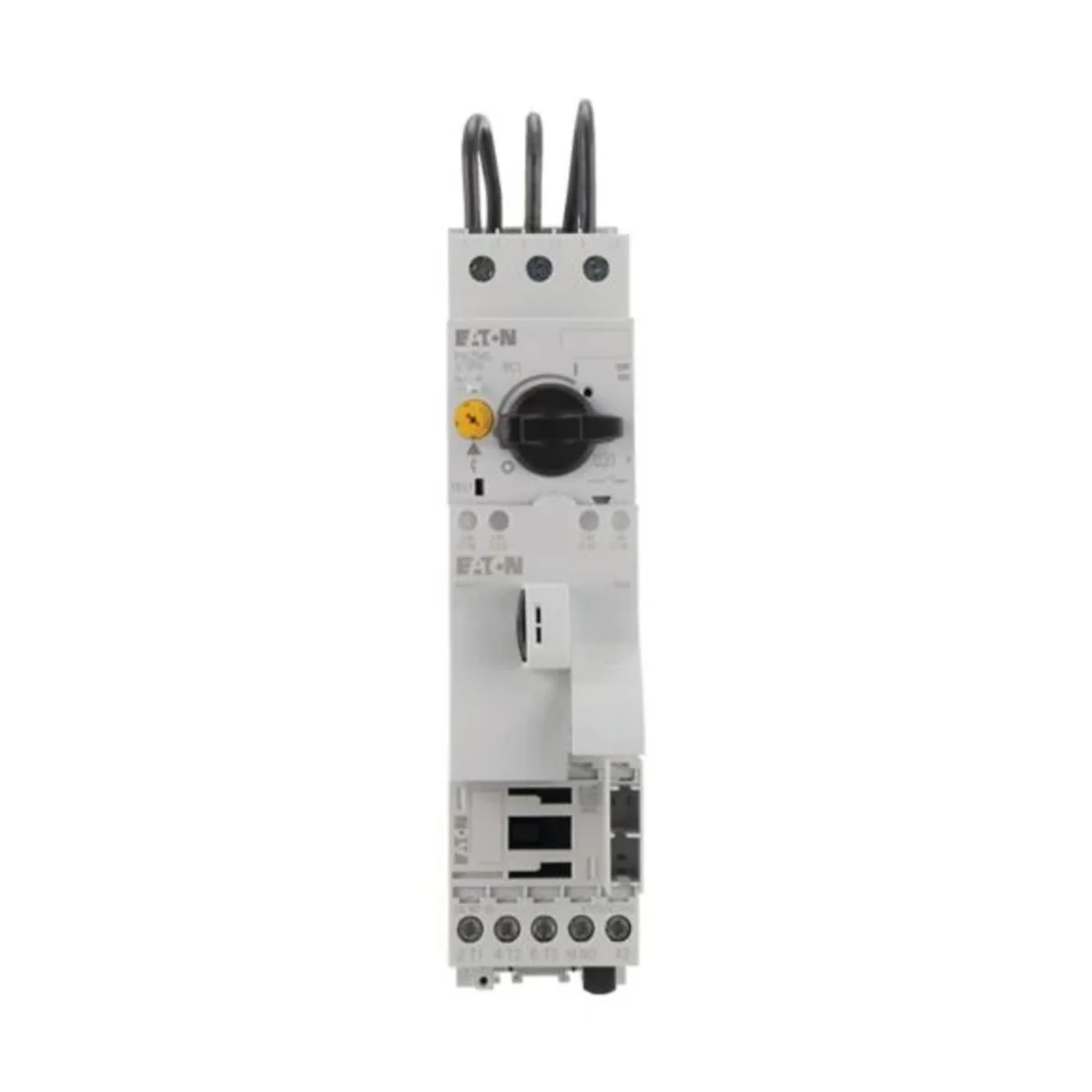

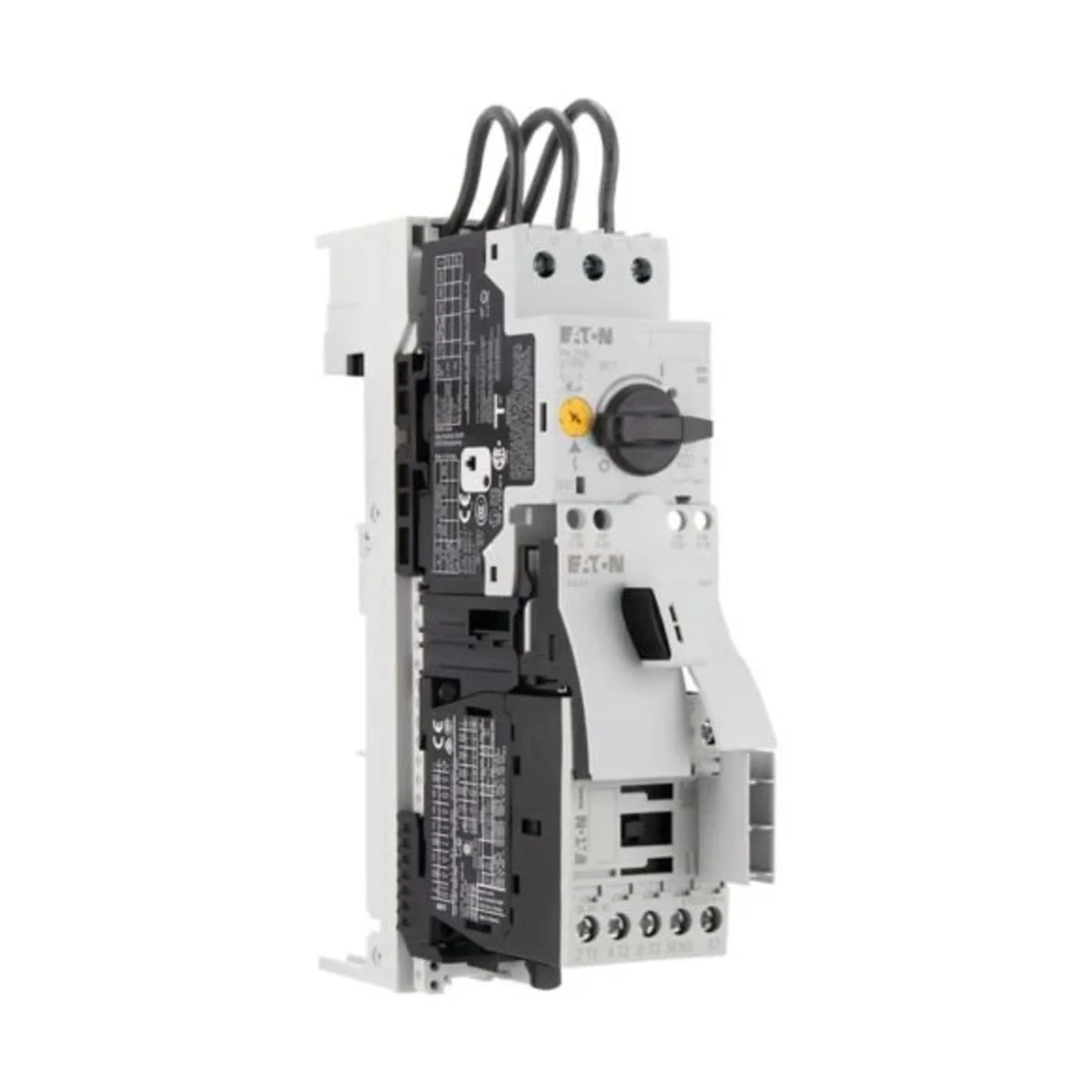

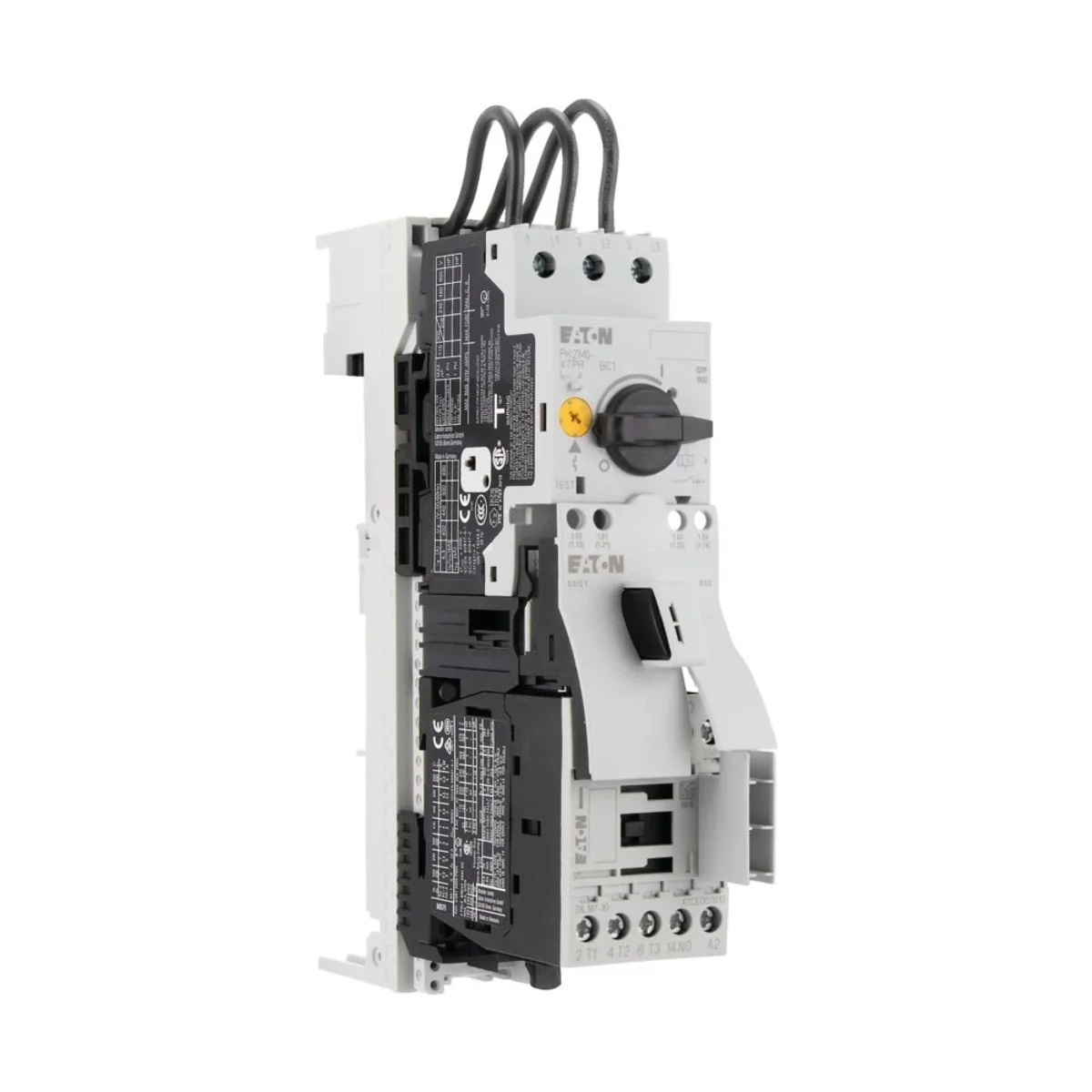

Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage 102964

Index local:
ATR038MOEL
Numéro de catalogue:
102964
Code EAN:
4015081028030
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage
Direct starter, MSC-D-0,25-M7(24VDC), 100kA, + busbar adapter DC voltage

Cliquer sur la photo pour l'agrandir

Producteur: EATON
Number of poles: 3
Rated power for 400V [kW]: 0.06
Short-circuit current [kA]: 100
Voir la description complète
Prix:
1 075,51 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Direct-on-line starter, Basic unit: MSC, Note: Also suitable for motors of energy efficiency class IE3., IE3-compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 0.06 kW, Setting range of the overload release: Ir= 0.16 - 0.25 A, Assignment type "1", Assignment type "2", Actuation voltage: 24 V DC, Direct voltage,

Données techniques

  • Number of poles
    3
  • Short-circuit current [kA]
    100
  • Rated power for 400V [kW]
    0.06
  • Rated operational current [A]
    0.21

Autres données techniques

  • Type of motor starter
    Direct online starter (DOL)
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation power at AC-3, 230 V, 3-phase
    0.04 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    0.21 A
  • Overload release current setting
    0.16 ... 0.25 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    50000 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    Yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    Yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 2
  • External reset possible
    No
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Height
    200 mm
  • With short-circuit release
    Yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation power at AC-3, 400 V
    0.06 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    0.25 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    50000 A
  • Number of auxiliary contacts as normally open contact
    1
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    CLASS 10 A
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • Number of indicator lights
    0
  • With fuse
    No
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    45 mm
  • Depth
    154 mm

Détails du fabricant

  • Producteur
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska
  • E-mail
    wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet Skrzynia Karton
Quantité 1 pcs. 1 pcs.
poids (kg) 0,885 0,977
Volume (m3) 0,001 0,005
Largeur (m) 0,047 0,100
Longueur (m) 0,156 0,170
Profondeur (m) 0,202 0,290
