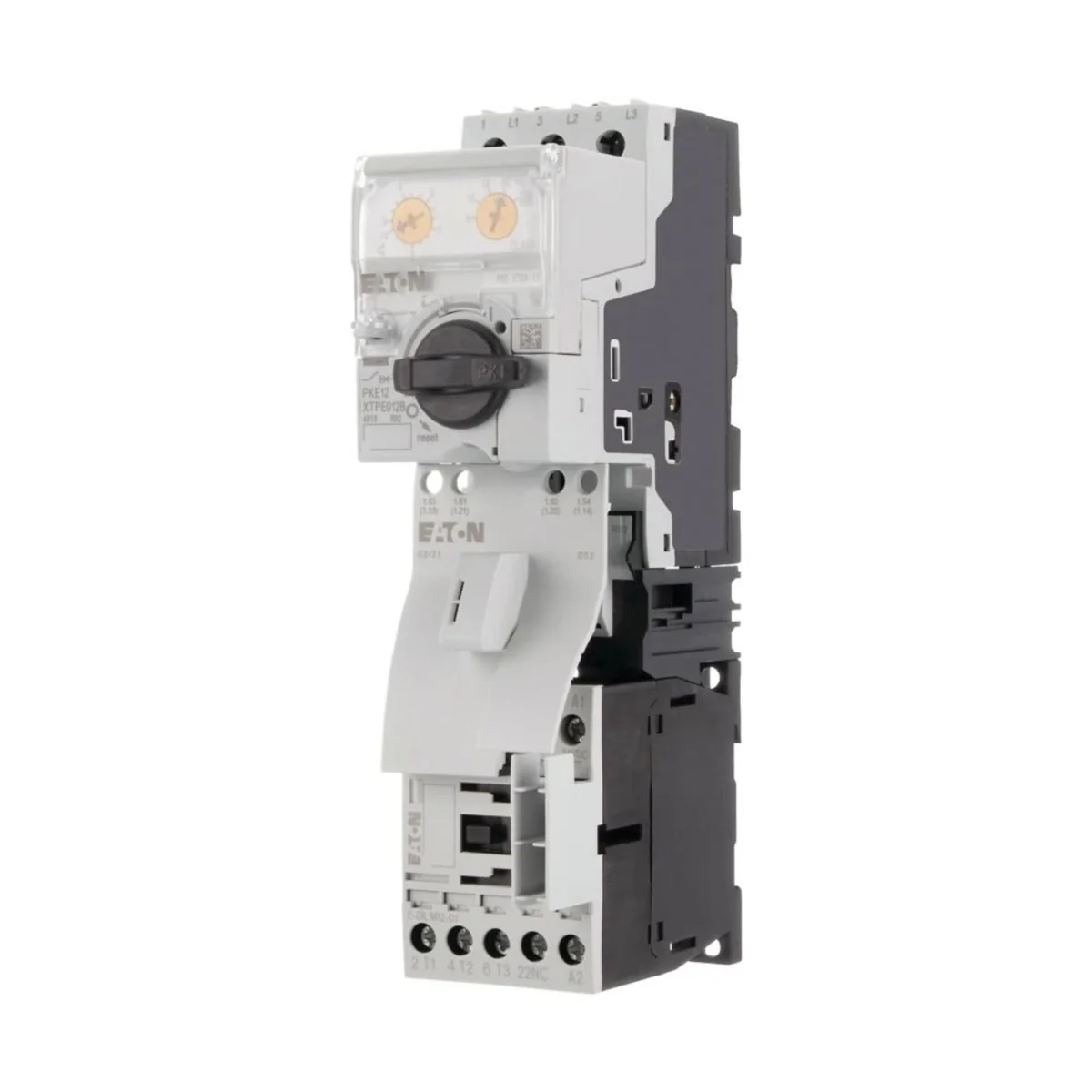

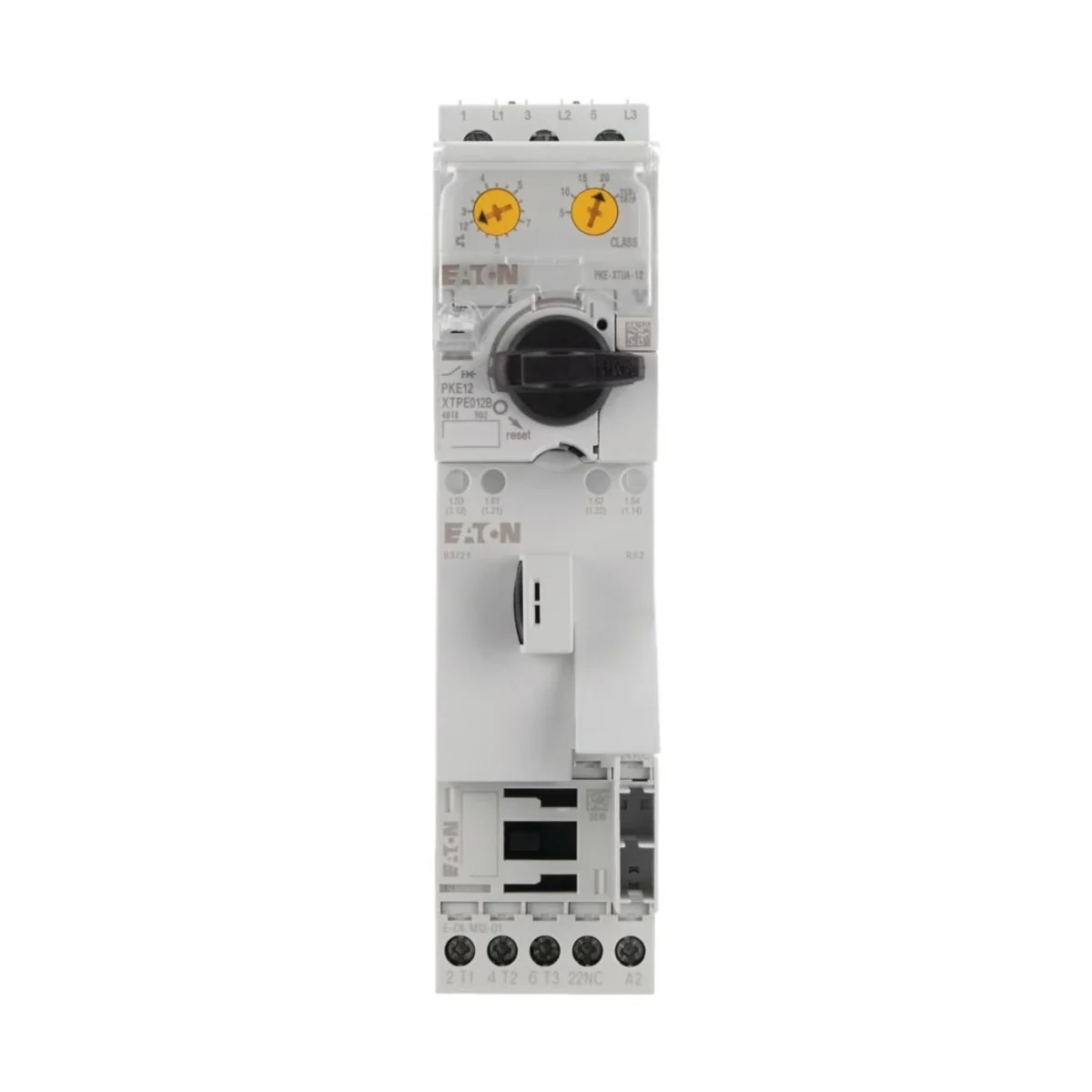

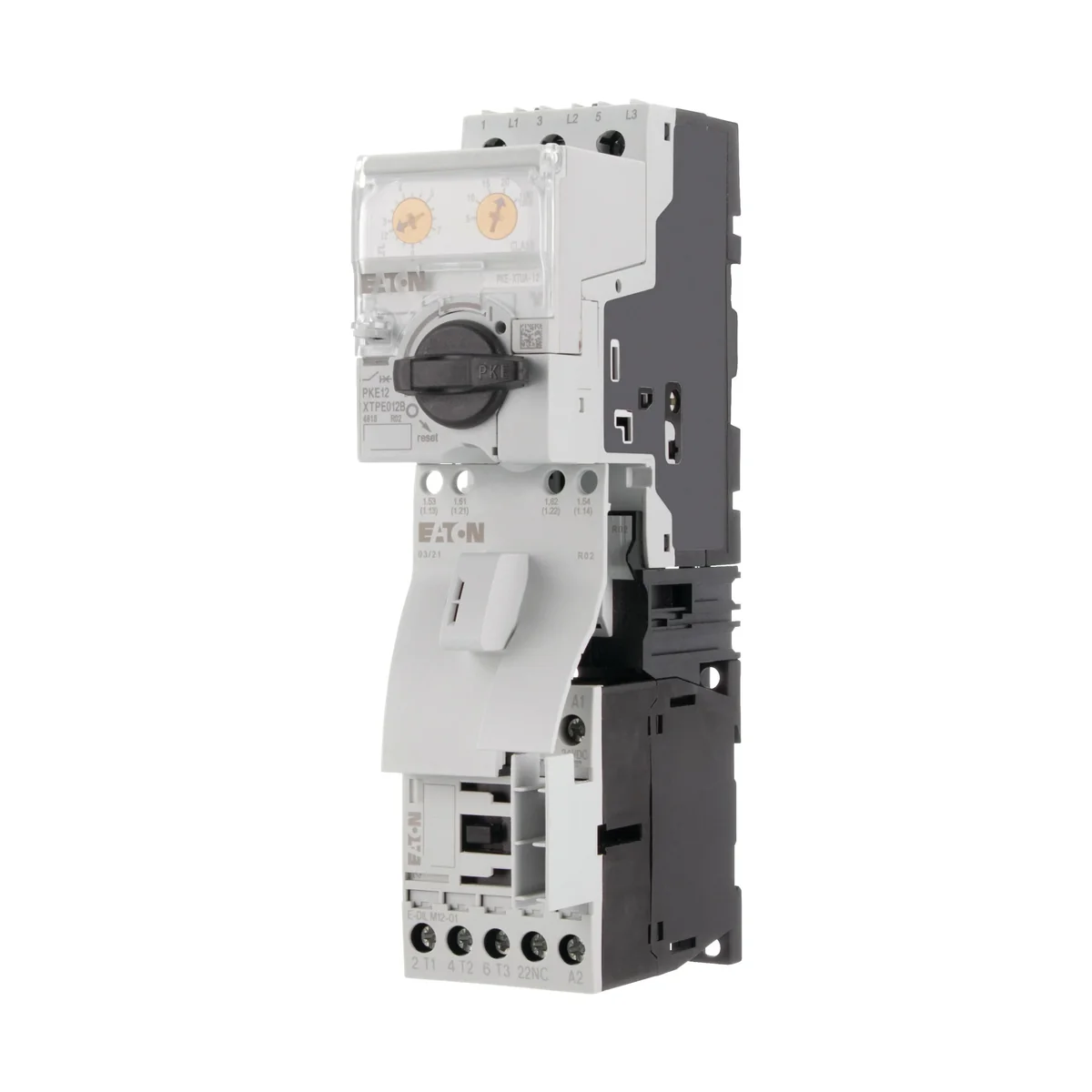

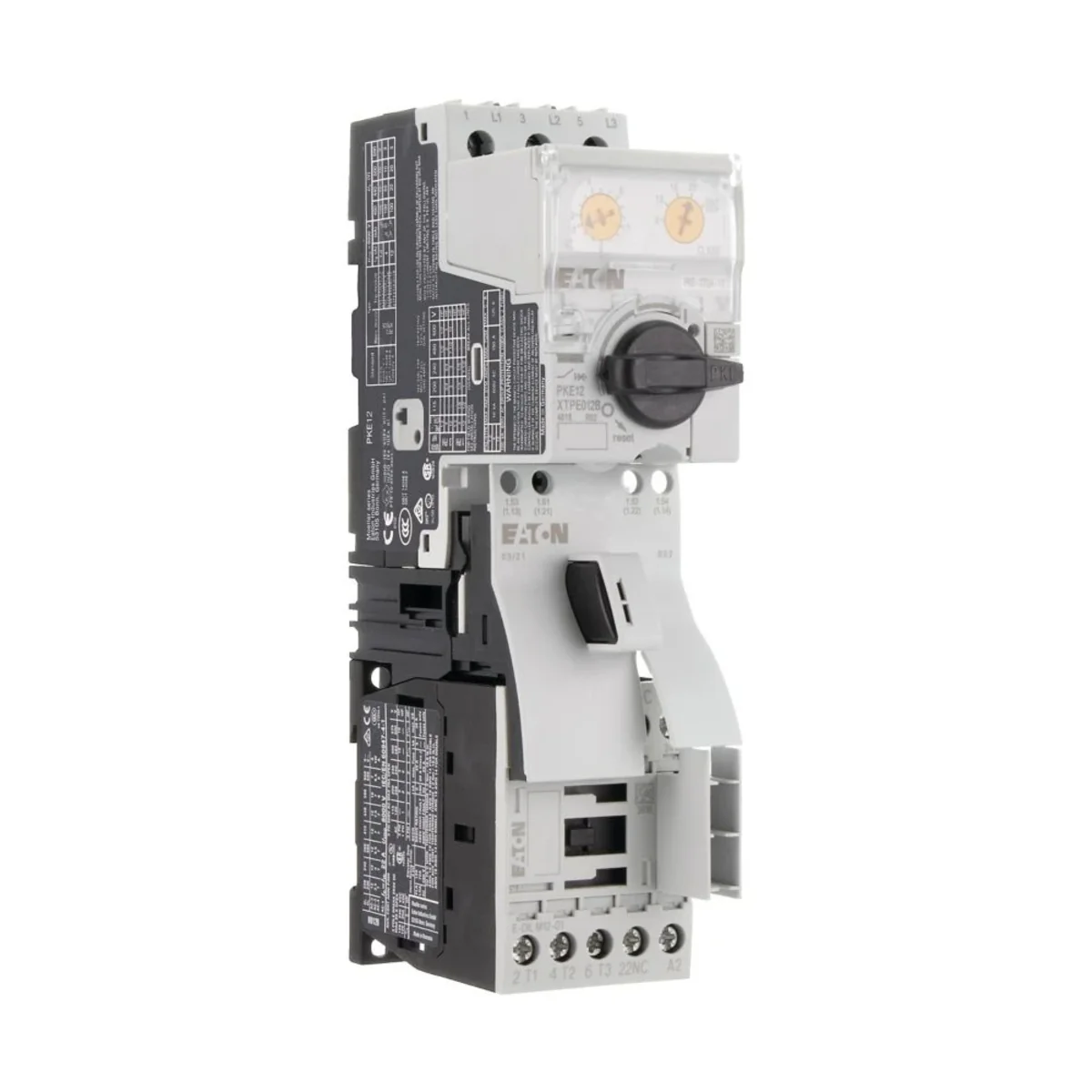

Direct starter, 3b, 5.5kW/400V/AC3, 100kA, electronic protection, SWD 121757
local index:
ASN064MOEL
Catalog No:
121757
EAN code:
4015081195671
Manufacturer:
EATON
Number of poles: 3
Rated power for 400V [kW]: 5.5
Short-circuit current [kA]: 100
Price:
441,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Direct starter, Basic unit: MSC, Note: Also suitable for motors of the energy efficiency class IE3., IE3 compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 5.5 kW, Setting range of the overload release: Ir= 3 - 12 A, Type of assignment "1", Starting voltage: 24 V DC, Direct voltage, Standards and regulations: IEC/EN 60947-4-1, VDE 0660
Technical data
-
Number of poles3
-
Short-circuit current [kA]100
-
Rated power for 400V [kW]5.5
-
Rated operational current [A]11.3
Other technical data
-
Type of motor starterDirect online starter (DOL)
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Rated operation power at AC-3, 230 V, 3-phase3 kW
-
Rated power, 460 V, 60 Hz, 3-phase0 kW
-
Rated operation current Ie11.3 A
-
Overload release current setting3 ... 12 A
-
Rated conditional short-circuit current, type 1, 600 Y/347 V0 A
-
Rated conditional short-circuit current, type 2, 400 V100 A
-
Number of auxiliary contacts as normally closed contact1
-
Temperature compensated overload protectionYes
-
Type of electrical connection of main circuitScrew connection
-
Rail mounting possibleYes
-
Number of command positions0
-
Coordination class according to IEC 60947-4-3Class 1
-
External reset possibleNo
-
Degree of protection (IP)IP20
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsYes
-
Height198 mm
-
With short-circuit releaseYes
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Rated operation power at AC-3, 400 V5.5 kW
-
Rated power, 575 V, 60 Hz, 3-phase0 kW
-
Rated operation current at AC-3, 400 V12 A
-
Rated conditional short-circuit current, type 1, 480 Y/277 V0 A
-
Rated conditional short-circuit current, type 2, 230 V0 A
-
Number of auxiliary contacts as normally open contact0
-
Ambient temperature, upper operating limit55 °C
-
Release classAdjustable
-
Type of electrical connection for auxiliary- and control current circuitScrew connection
-
With transformerNo
-
Suitable for emergency stopNo
-
Number of indicator lights0
-
With fuseNo
-
Degree of protection (NEMA)Other
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Width45 mm
-
Depth102 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,780 | 0,828 |
| Volume (m3) | 0,001 | 0,001 |
| Width (m) | 0,045 | 0,047 |
| Length (m) | 0,102 | 0,111 |
| Depth (m) | 0,198 | 0,192 |
