el12 Electrical apparatus Motor circuit breakers Motor circuit breakers for rail mounting

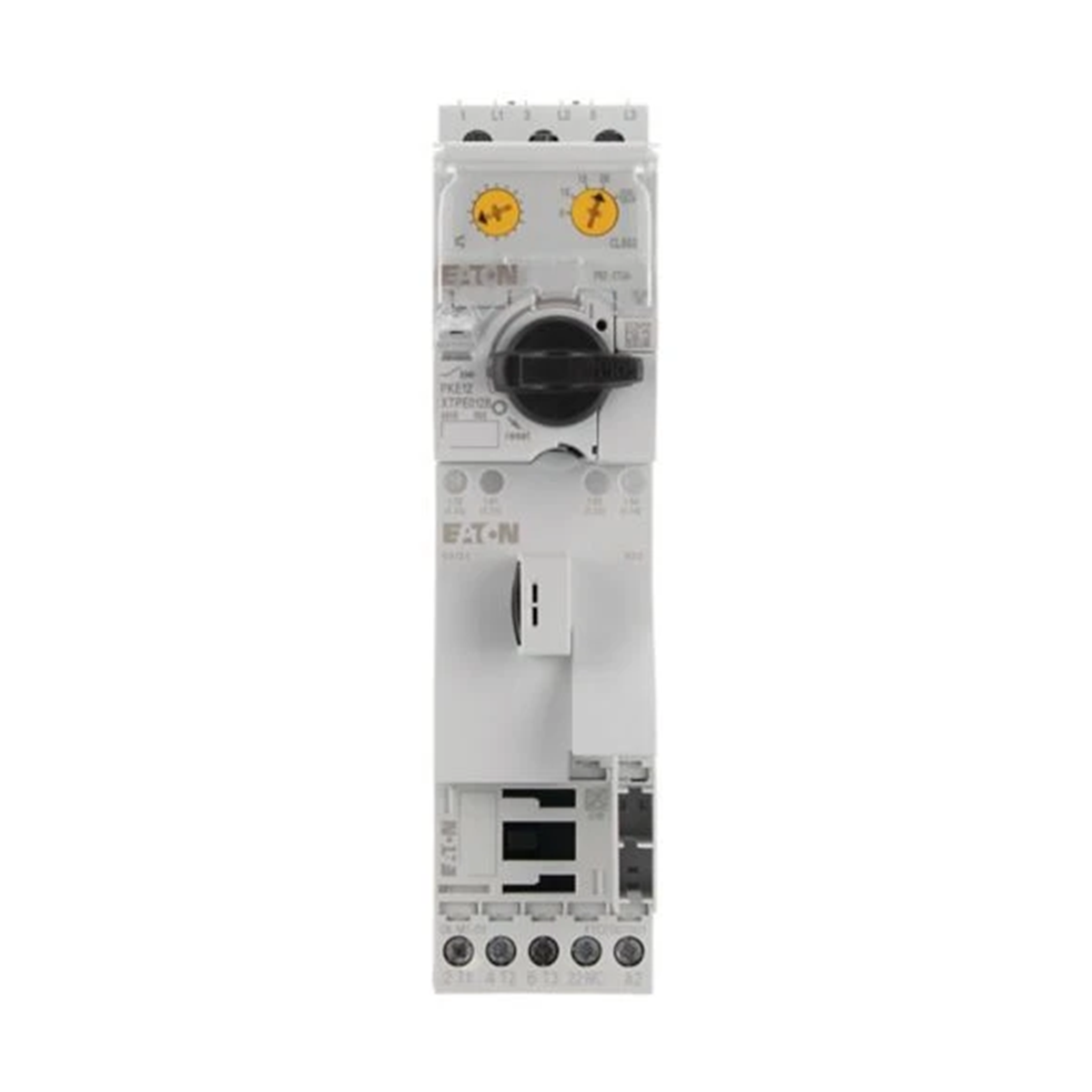

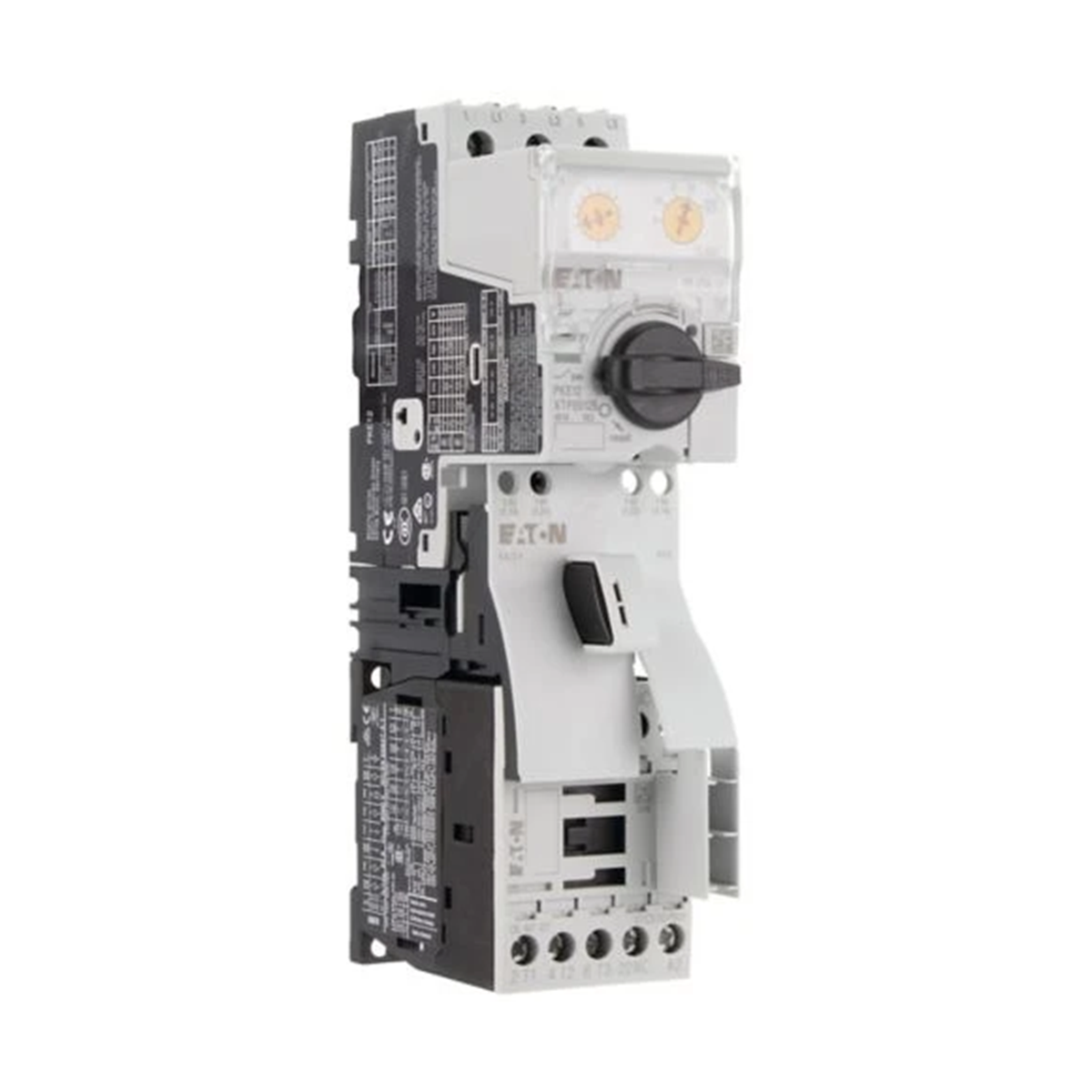

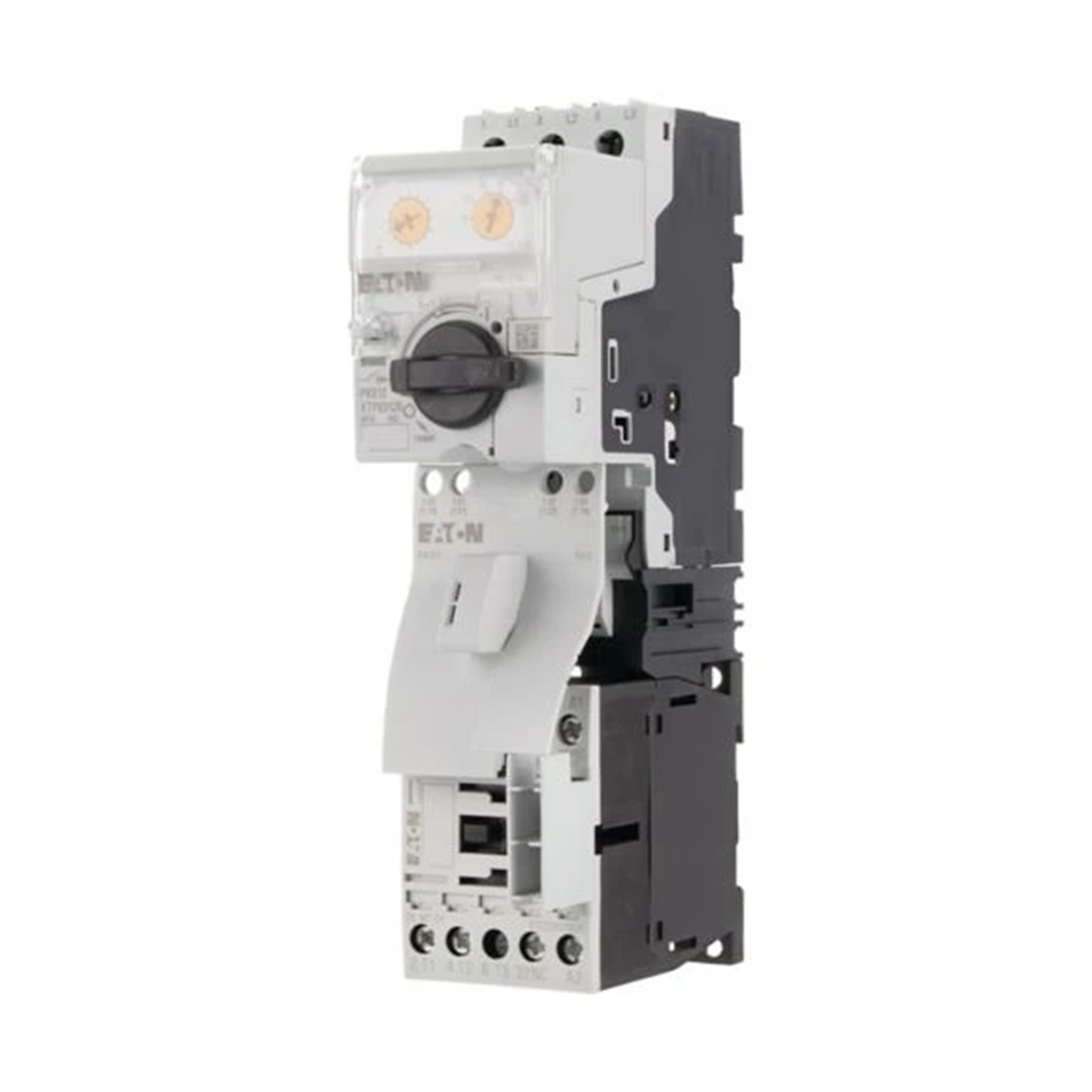

Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD 121753

Índice local:
ASN060MOEL
Número de catálogo:
121753
Código EAN:
4015081195633
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD
Direct starter, 3b, 0.06-0.37kW/400V/AC3, 100kA, electronic protection, SWD

Haga clic en la foto para ampliar

Fabricante: EATON
Number of poles: 3
Rated power for 400V [kW]: 0.37
Short-circuit current [kA]: 100
Ver descripción completa
Precio:
1 959,83 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Direct-on-line starter, Basic unit: MSC, Note: Also suitable for motors of energy efficiency class IE3., IE3 compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 0.37 kW, Setting range of the overload release: Ir= 0.3 - 1.2 A, Type of assignment "1", Starting voltage: 24 V DC, Direct voltage, Standards and regulations: IEC/EN 60947-4-1, VDE 0660

Datos técnicos

  • Number of poles
    3
  • Short-circuit current [kA]
    100
  • Rated power for 400V [kW]
    0.37
  • Rated operational current [A]
    1.1

Otros datos técnicos

  • Type of motor starter
    Direct online starter (DOL)
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation power at AC-3, 230 V, 3-phase
    0.18 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    1.1 A
  • Overload release current setting
    0.3 ... 1.2 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    100 A
  • Number of auxiliary contacts as normally closed contact
    1
  • Temperature compensated overload protection
    Yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    Yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 1
  • External reset possible
    No
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Height
    198 mm
  • With short-circuit release
    Yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation power at AC-3, 400 V
    0.37 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    1.2 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    0 A
  • Number of auxiliary contacts as normally open contact
    0
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    Adjustable
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • Number of indicator lights
    0
  • With fuse
    No
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    45 mm
  • Depth
    102 mm

Detalles del fabricante

  • Fabricante
    Eaton Electric Sp. z o.o.
  • Dirección
    80-299 Gdańsk Galaktyczna 30 Polska
  • Email
    wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete Skrzynia Karton
Cantidad 1 uds. 1 uds.
Peso (kg) 0,780 0,828
Volumen (m3) 0,001 0,001
Ancho (m) 0,047 0,047
Longitud (m) 0,104 0,111
Profundidad (m) 0,200 0,192
