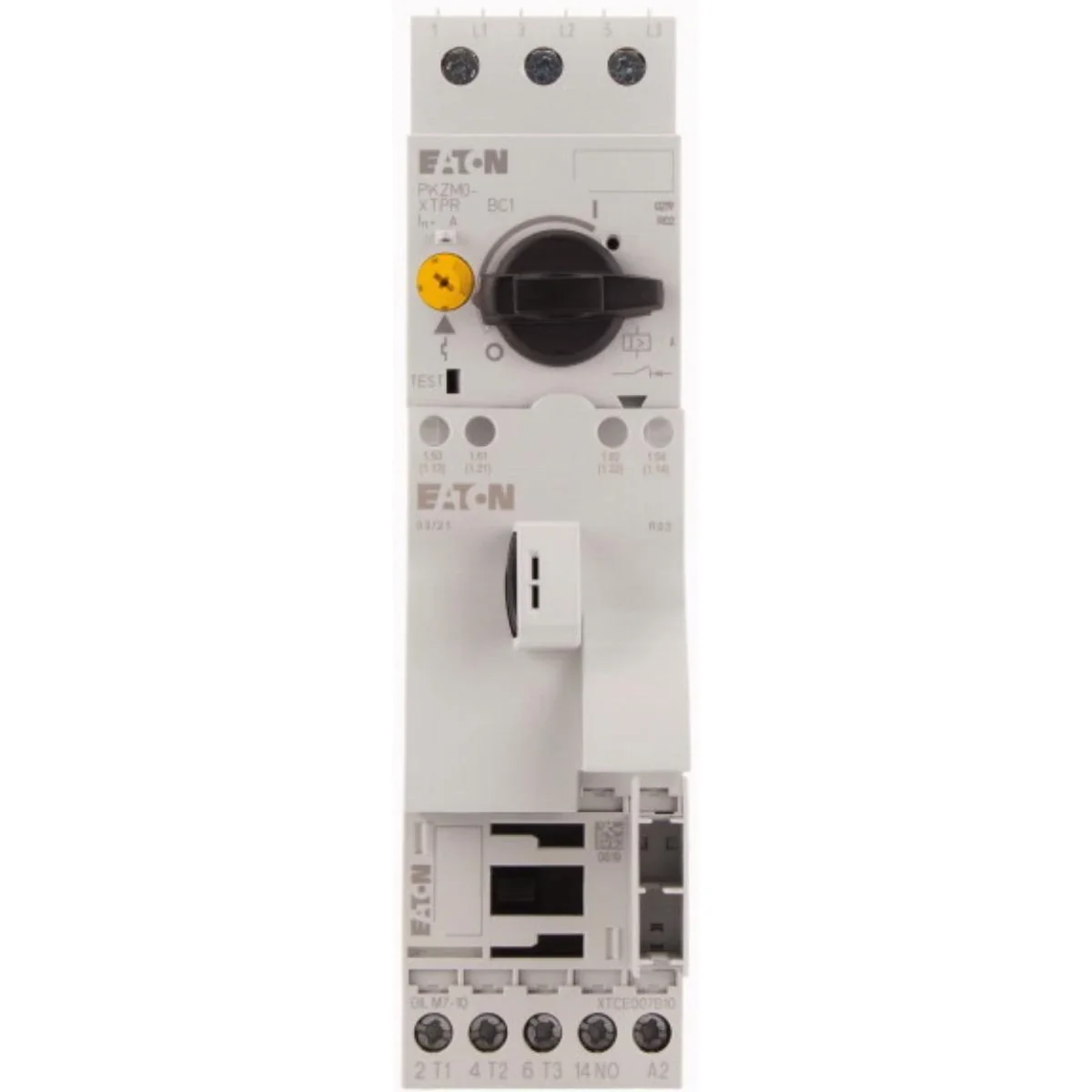

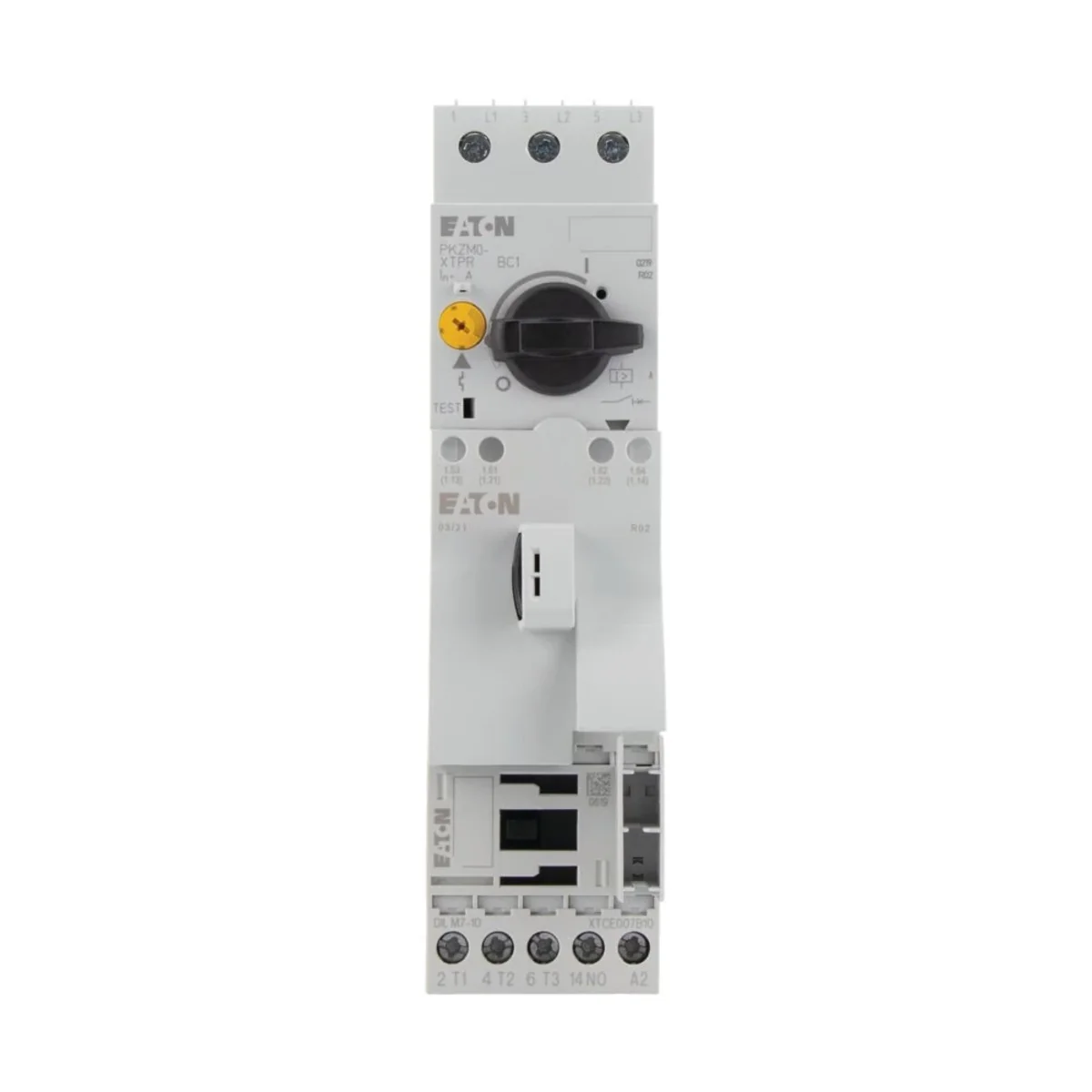

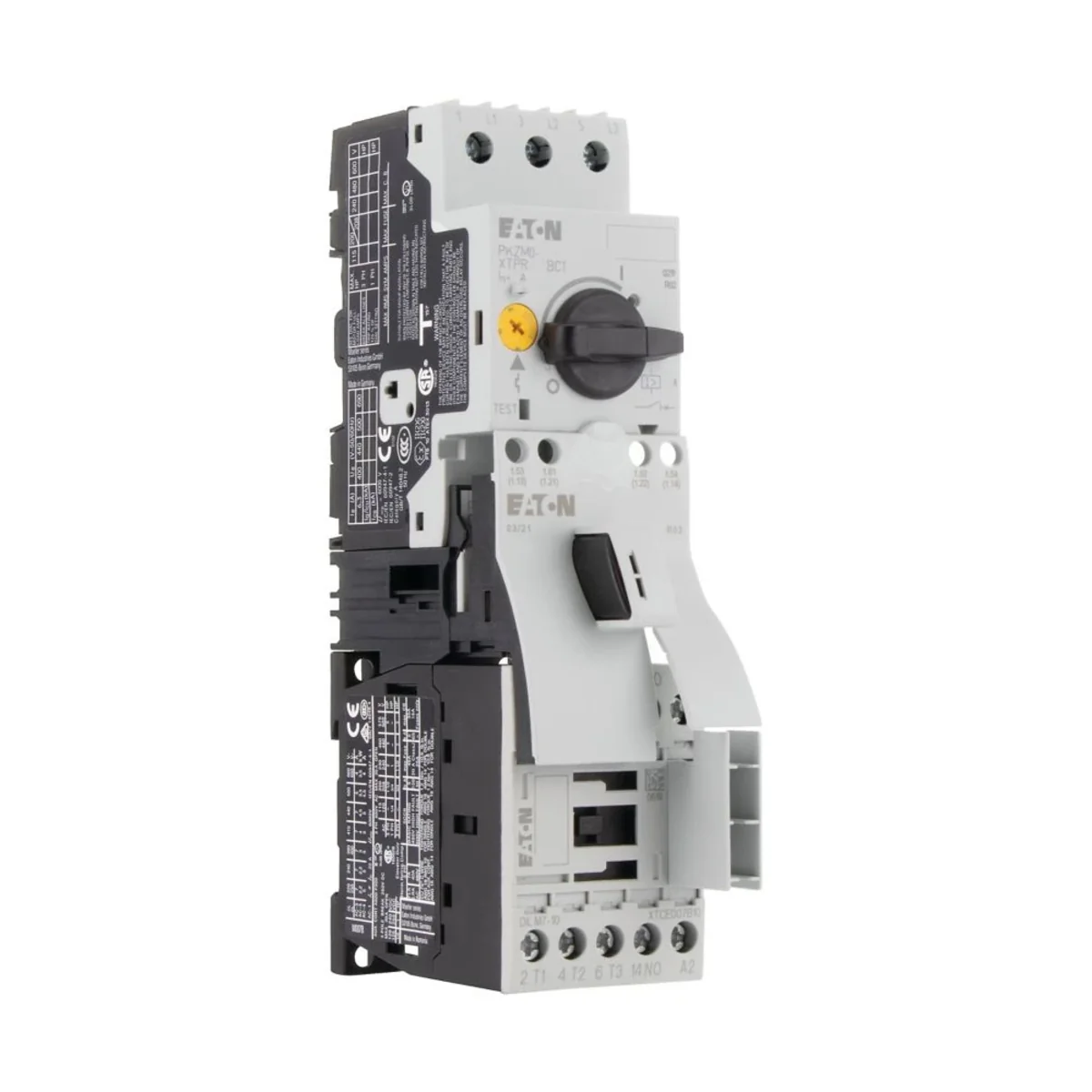

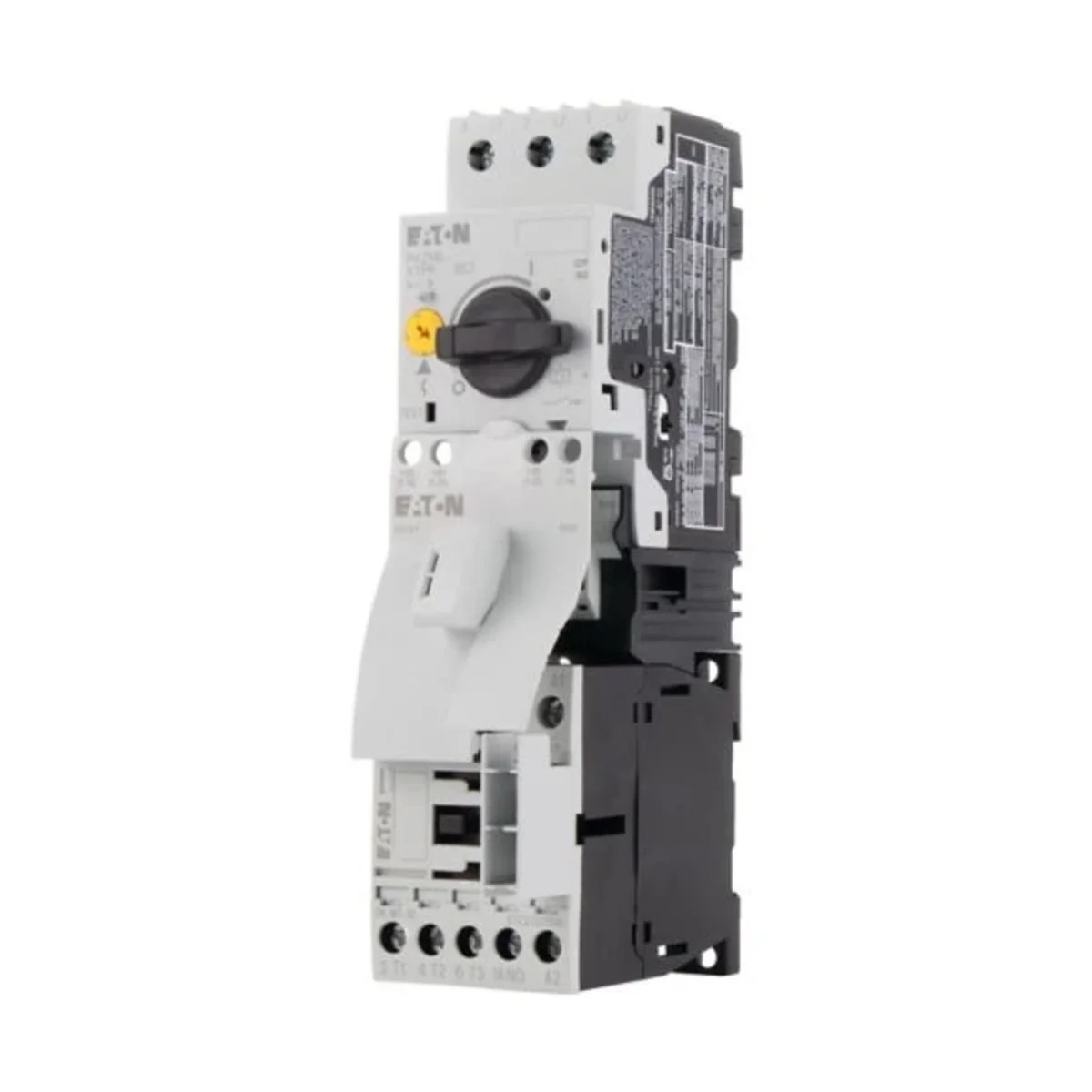

Direct Start, MSC-D-10-M7(230V50HZ) 283146
Index local:
ATR212MOEL
Numéro de catalogue:
283146
Code EAN:
4015082831462
Prix:
150,86 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Start system, direct
Données techniques
-
Power [kW]3
-
Control voltage [V]230
Autres données techniques
-
Type of motor starterDirect online starter (DOL)
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation power at AC-3, 230 V, 3-phase1.5 kW
-
Rated power, 460 V, 60 Hz, 3-phase0 kW
-
Rated operation current Ie6.6 A
-
Overload release current setting6.3 ... 10 A
-
Rated conditional short-circuit current, type 1, 600 Y/347 V0 A
-
Rated conditional short-circuit current, type 2, 400 V150 A
-
Number of auxiliary contacts as normally closed contact0
-
Temperature compensated overload protectionYes
-
Type of electrical connection of main circuitScrew connection
-
Rail mounting possibleYes
-
Number of command positions0
-
Coordination class according to IEC 60947-4-3Class 1
-
External reset possibleNo
-
Degree of protection (IP)IP20
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsNo
-
Height180 mm
-
With short-circuit releaseYes
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingAC
-
Rated operation power at AC-3, 400 V3 kW
-
Rated power, 575 V, 60 Hz, 3-phase0 kW
-
Rated operation current at AC-3, 400 V7 A
-
Rated conditional short-circuit current, type 1, 480 Y/277 V0 A
-
Rated conditional short-circuit current, type 2, 230 V0 A
-
Number of auxiliary contacts as normally open contact1
-
Ambient temperature, upper operating limit55 °C
-
Release classCLASS 10 A
-
Type of electrical connection for auxiliary- and control current circuitScrew connection
-
With transformerNo
-
Suitable for emergency stopNo
-
Number of indicator lights0
-
With fuseNo
-
Degree of protection (NEMA)Other
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Width45 mm
-
Depth95 mm
Détails du fabricant
-
ProducteurEATON ELECTRIC SP. Z O.O.
-
Adresse80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Numéro identifiant TVA5841022327
Emballage en vrac
| Une sorte de paquet | Skrzynia | Skrzynia |
| Quantité | 1 pcs. | 1 pcs. |
| poids (kg) | 0,628 | 0,628 |
| Volume (m3) | 0,001 | 0,001 |
| Largeur (m) | 0,047 | 0,047 |
| Longueur (m) | 0,111 | 0,111 |
| Profondeur (m) | 0,192 | 0,192 |
