DILM150-EA(RDC24) Contactor, 75kW/400V, 24VDC control 189928

Name: DILM150-EA(RDC24) Contactor, 75kW/400V, 24VDC control
Brand: EATON
SKU: ATD030MOEL
Price: 2970.15 PLN
Availability: BackOrder

local index:

ATD030MOEL

Catalog number:

189928

EAN code:

4015081879243

DILM150-EA(RDC24) Contactor, 75kW/400V, 24VDC control

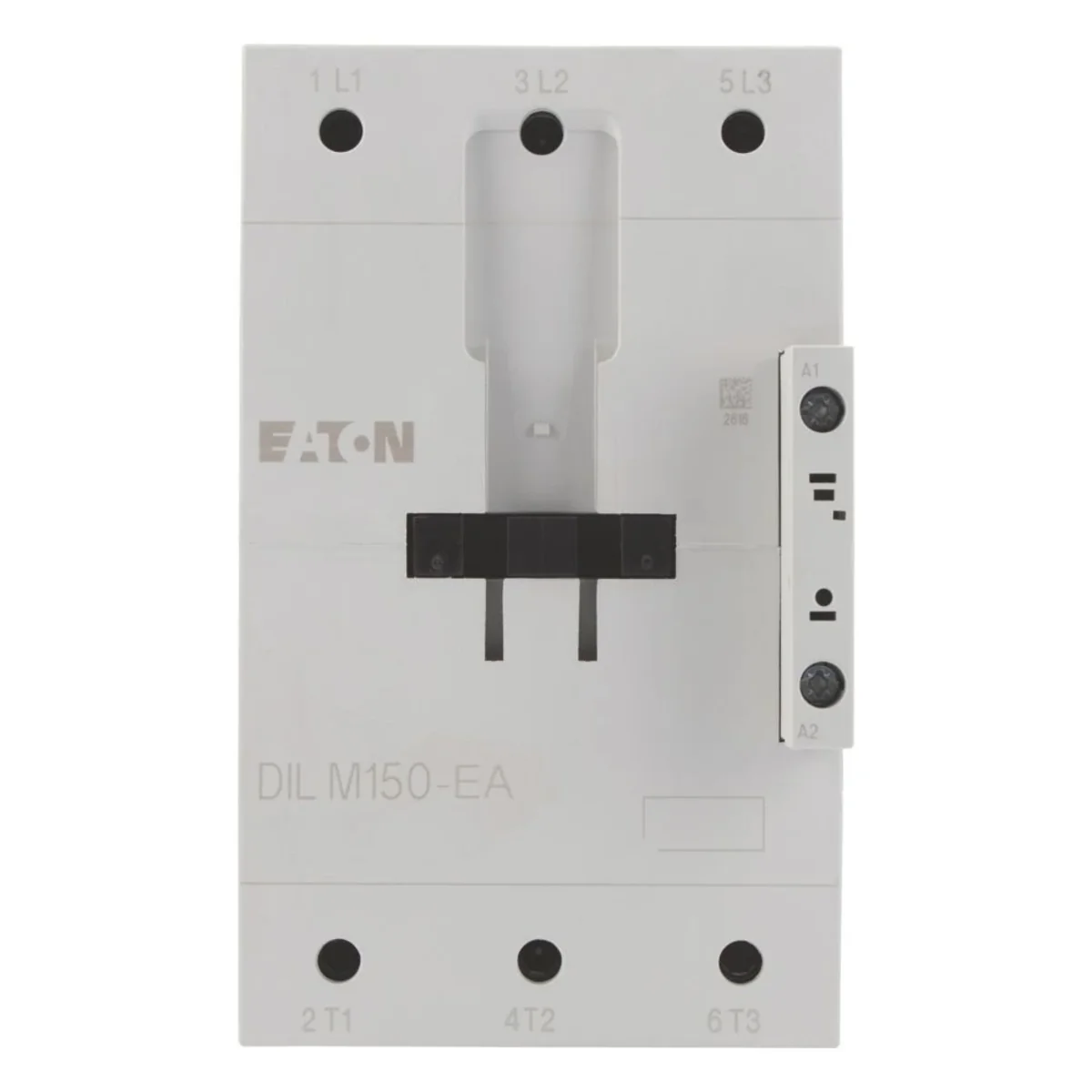

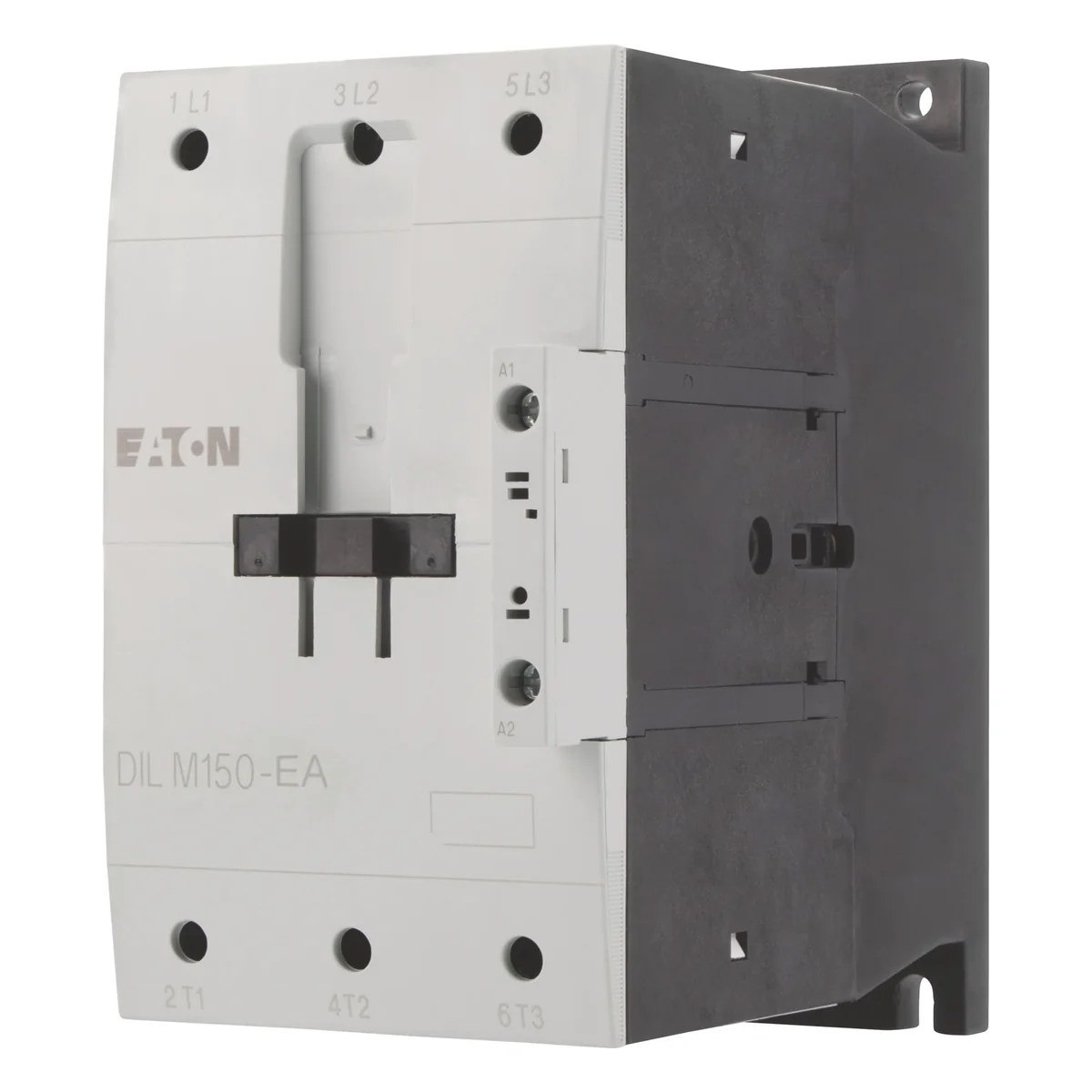

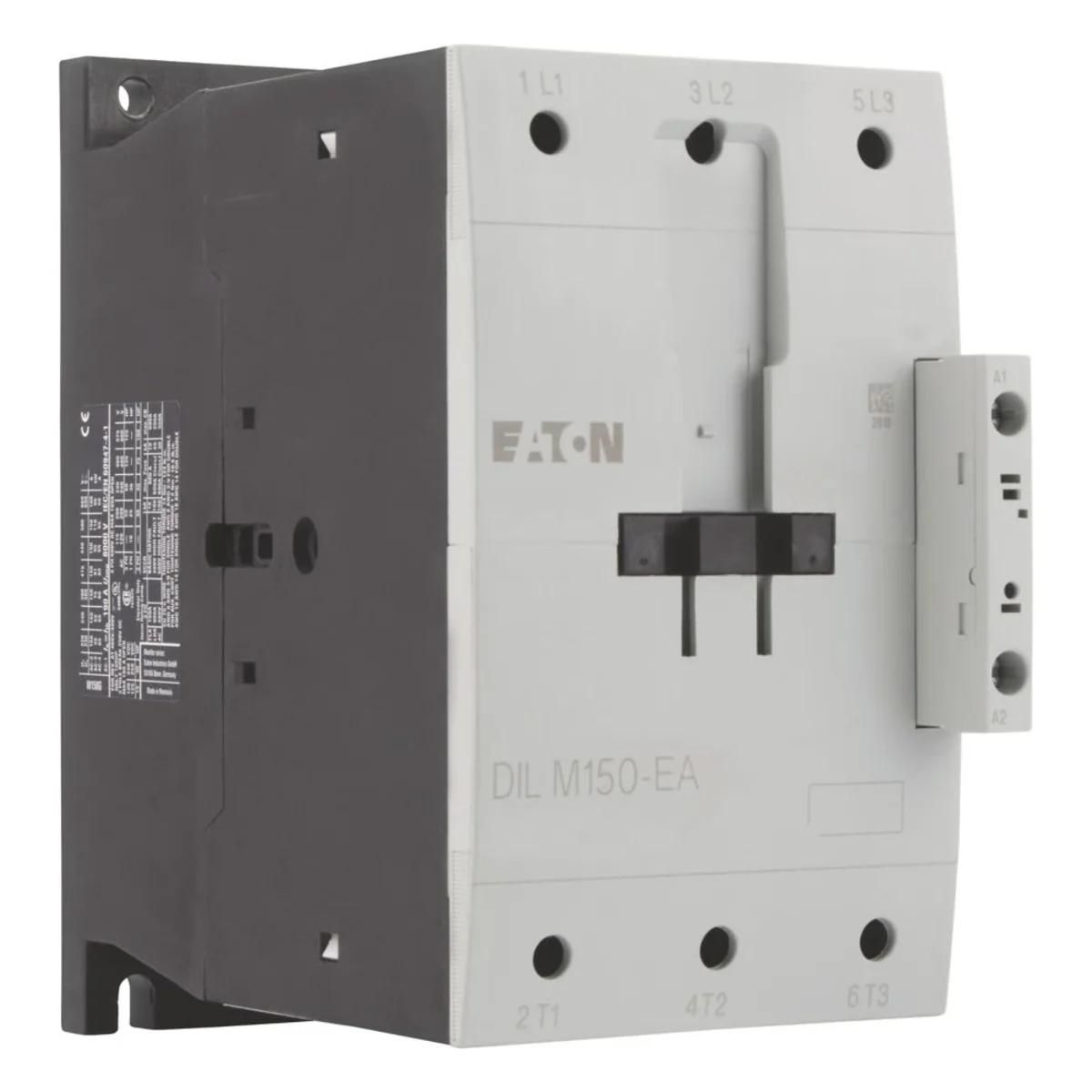

Click on the photo to enlarge

Manufacturer: EATON

Price:

2 970,15 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

24 ... 27 V
Rated operation current Ie at AC-1, 400 V

190 A
Rated operation power at AC-3, 400 V

75 kW
Rated operation power at AC-4, 400 V

33 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

0 ... 0 V
Voltage type for actuating

DC
Rated operation current Ie at AC-3, 400 V

150 A
Rated operation current Ie at AC-4, 400 V

75 A
Rated operation power NEMA

93 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton	Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	1 pcs.	1 pcs.
Weight (kg)	2,250	2,348	2,250	2,348
Volume (m3)	0,002	0,003	0,002	0,003
Width (m)	0,092	0,091	0,092	0,091
Length (m)	0,162	0,171	0,162	0,171
Depth (m)	0,172	0,175	0,172	0,175
