Contactor, Z-SCH230/40-22 248853
local index:
ATC250MOEL
Catalog number:
248853
EAN code:
4015082488536
Manufacturer:
EATON
Rated voltage [V]: 230
Price:
580,44 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

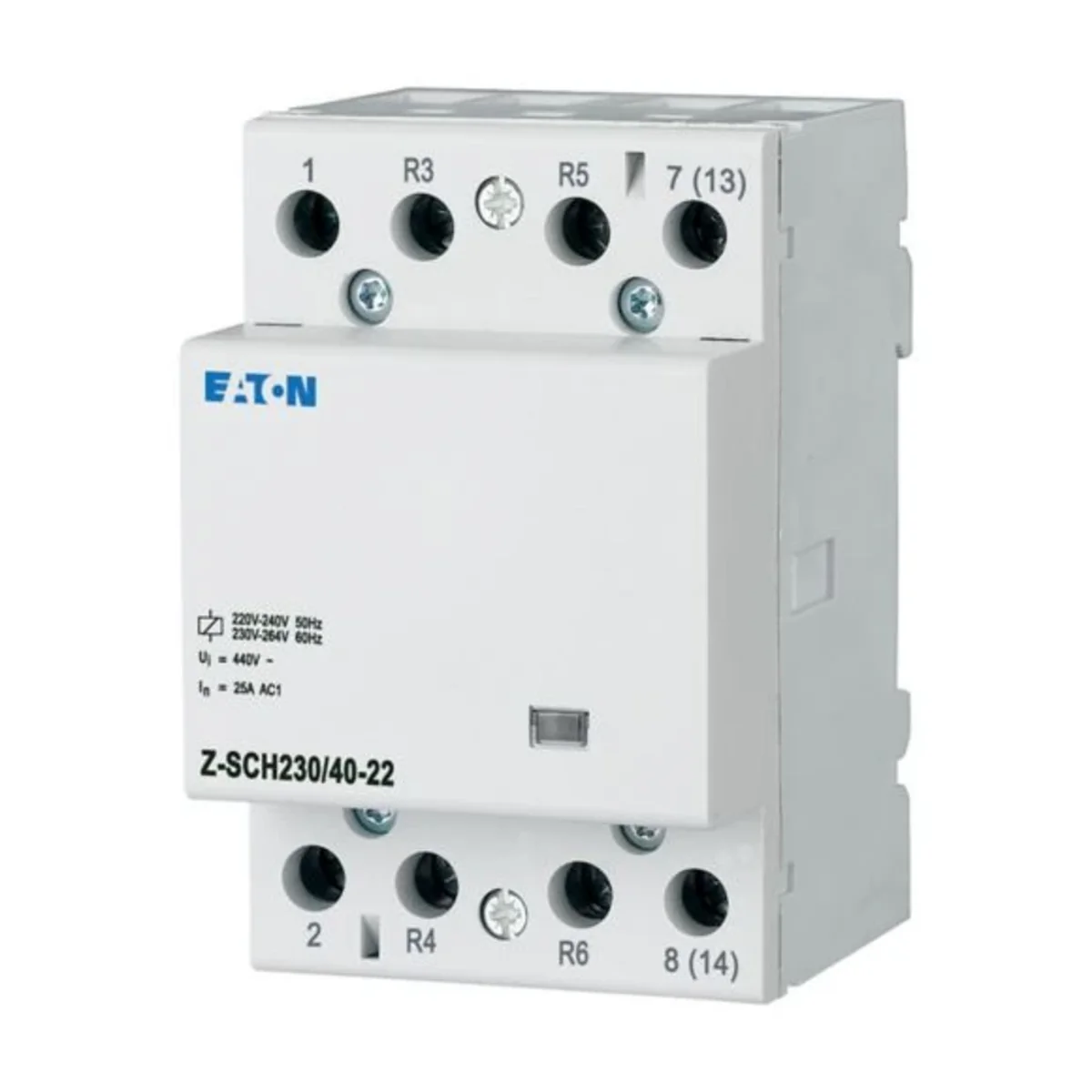

Contactor, Z-SCH230/40-22
Technical data
-
Rated voltage [V]230
Other technical data
-
Rated operating voltage440 ... 440 V
-
Kategoria użytkowania1
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Max. incandescent lamp load5520 W
-
Max. load fluorescent lamp (Duo circuit)5336 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current40 A
-
Rated excitation voltage195.5 ... 253 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact2
-
Max. load fluorescent lamp2610 VA
-
Max. load fluorescent lamp (parallel compensated)2088 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP40
Manufacturer details
-
ManufacturerEaton Electric Sp. z o.o.
-
Address80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton | Skrzynia | Karton |
| Quantity | 1 pcs. | 40 pcs. | 1 pcs. | 40 pcs. |
| Weight (kg) | 0,370 | 14,400 | 0,370 | 14,400 |
| Volume (m3) | 0,000 | 0,017 | 0,000 | 0,017 |
| Width (m) | 0,055 | 0,195 | 0,055 | 0,195 |
| Length (m) | 0,095 | 0,385 | 0,095 | 0,385 |
| Depth (m) | 0,080 | 0,230 | 0,080 | 0,230 |
