Contactor, Z-SCH230/25-04 248848
local index:
ATC251MOEL
Catalog No:
248848
EAN code:
4015082488482
Manufacturer:
EATON
Rated voltage [V]: 230
Price:
54,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

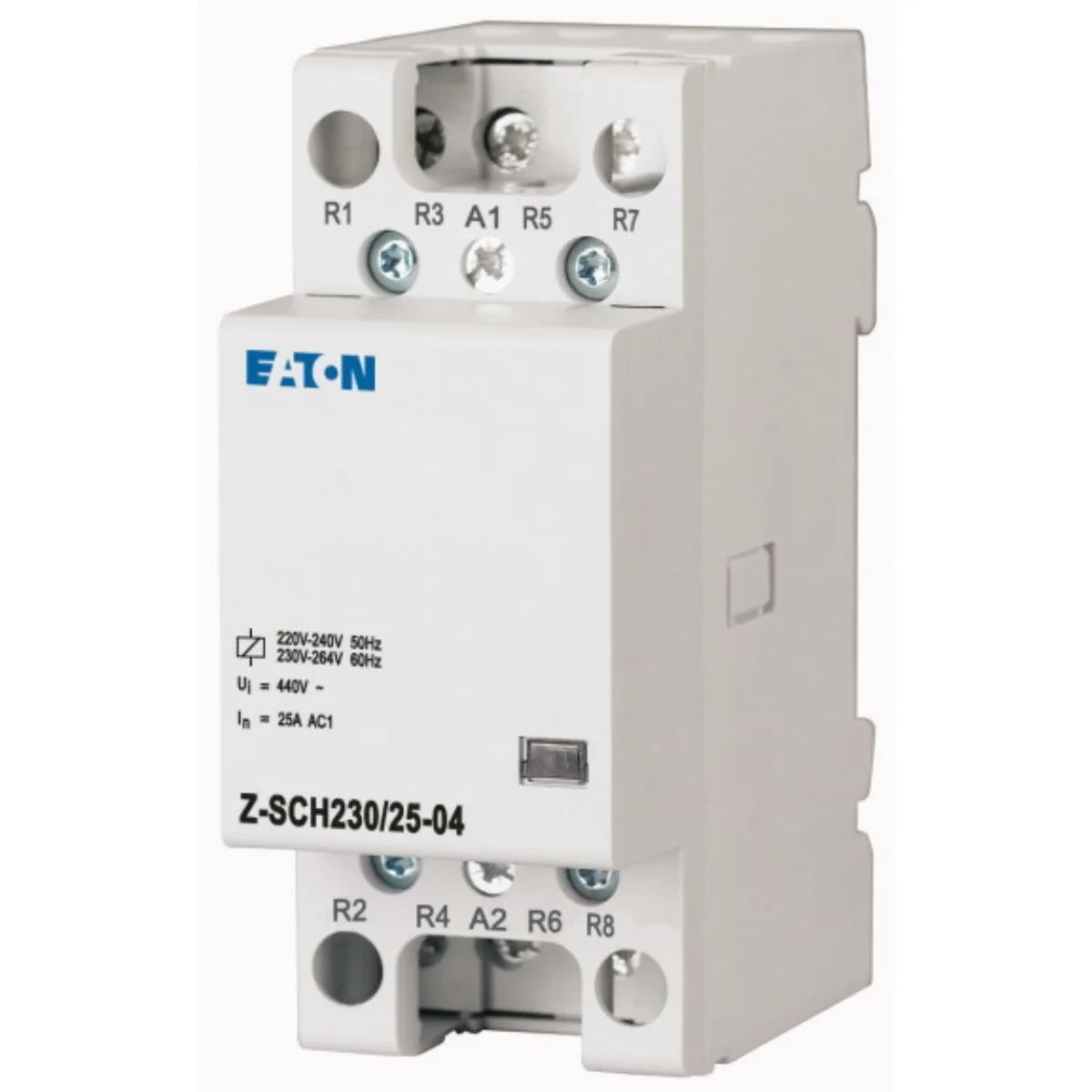

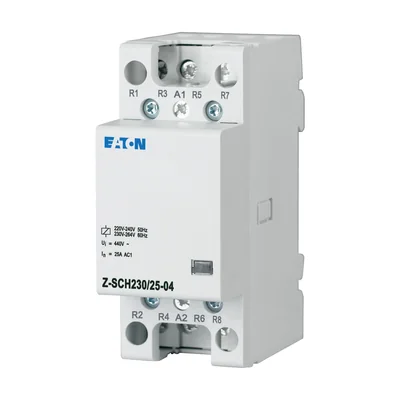

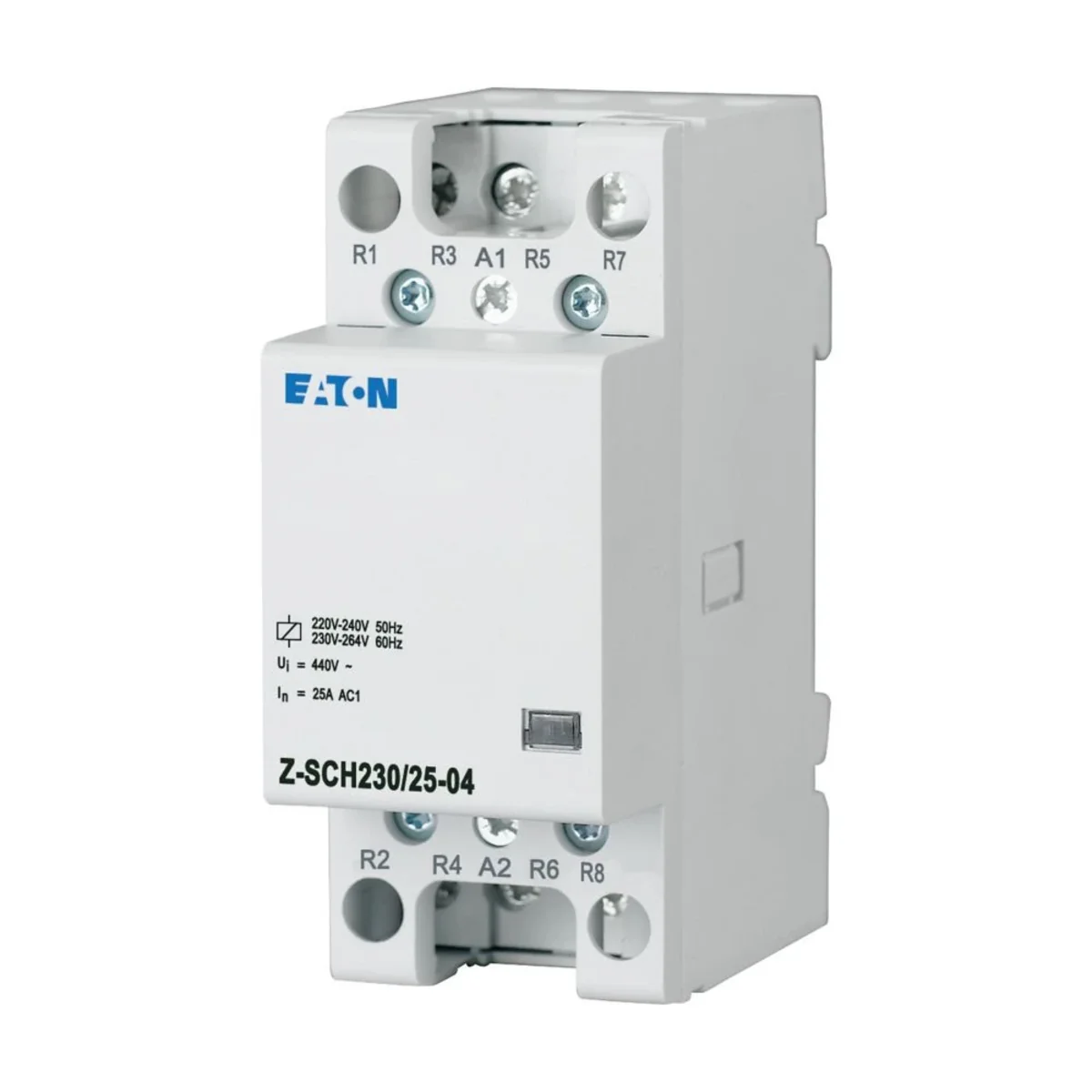

Contactor, Z-SCH230/25-04
Technical data
-
Rated voltage [V]230
Other technical data
-
Rated operating voltage440 ... 440 V
-
Kategoria użytkowania1
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact0
-
Max. incandescent lamp load3000 W
-
Max. load fluorescent lamp (Duo circuit)2552 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current25 A
-
Rated excitation voltage195.5 ... 253 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact4
-
Max. load fluorescent lamp1160 VA
-
Max. load fluorescent lamp (parallel compensated)1044 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP40
Manufacturer details
-
ManufacturerEaton Electric Sp. z o.o.
-
Address80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton | Skrzynia | Karton |
| Quantity | 1 pcs. | 70 pcs. | 1 pcs. | 70 pcs. |
| Weight (kg) | 0,230 | 15,400 | 0,230 | 15,400 |
| Volume (m3) | 0,000 | 0,016 | 0,000 | 0,016 |
| Width (m) | 0,092 | 0,385 | 0,092 | 0,385 |
| Length (m) | 0,037 | 0,180 | 0,037 | 0,180 |
| Depth (m) | 0,075 | 0,230 | 0,075 | 0,230 |
