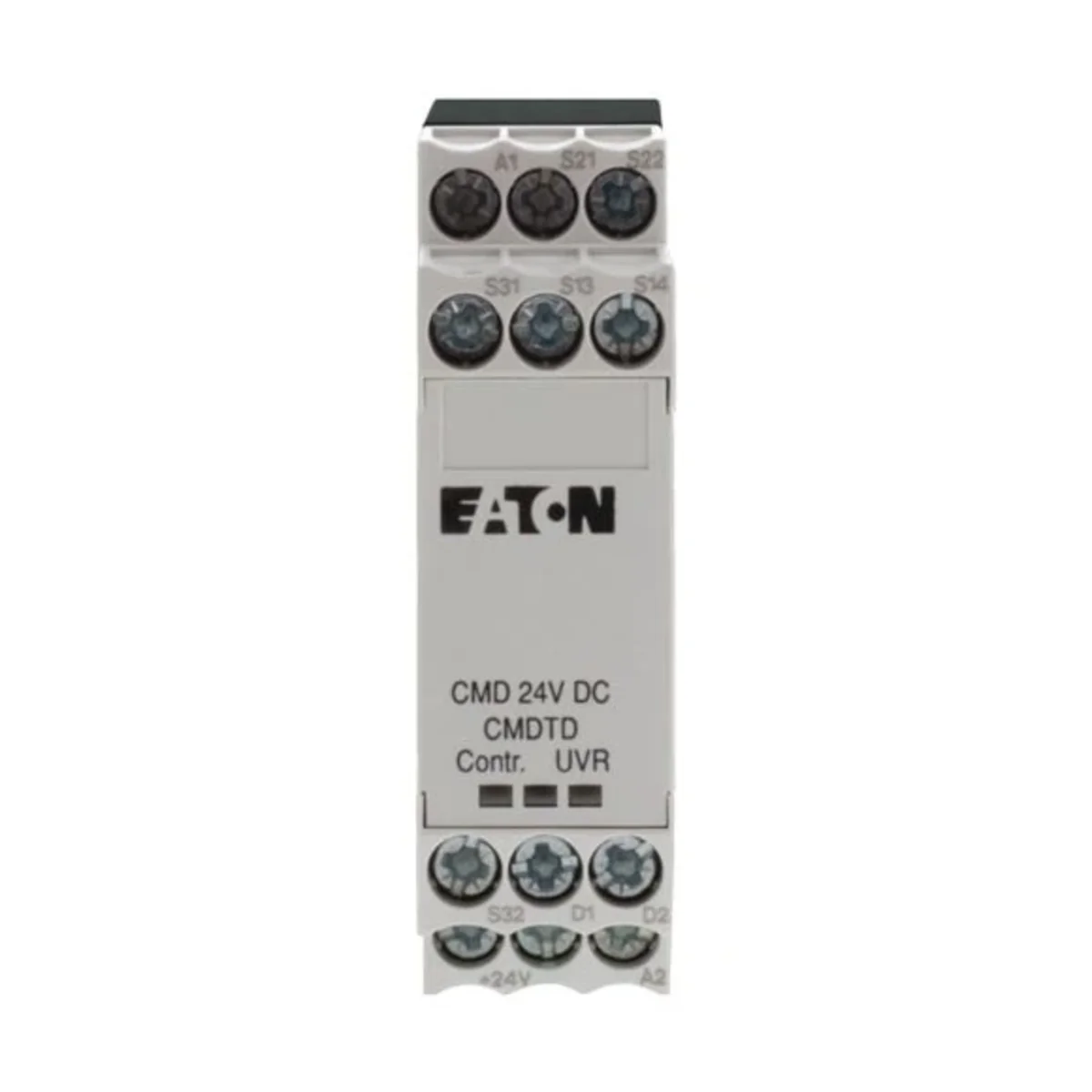

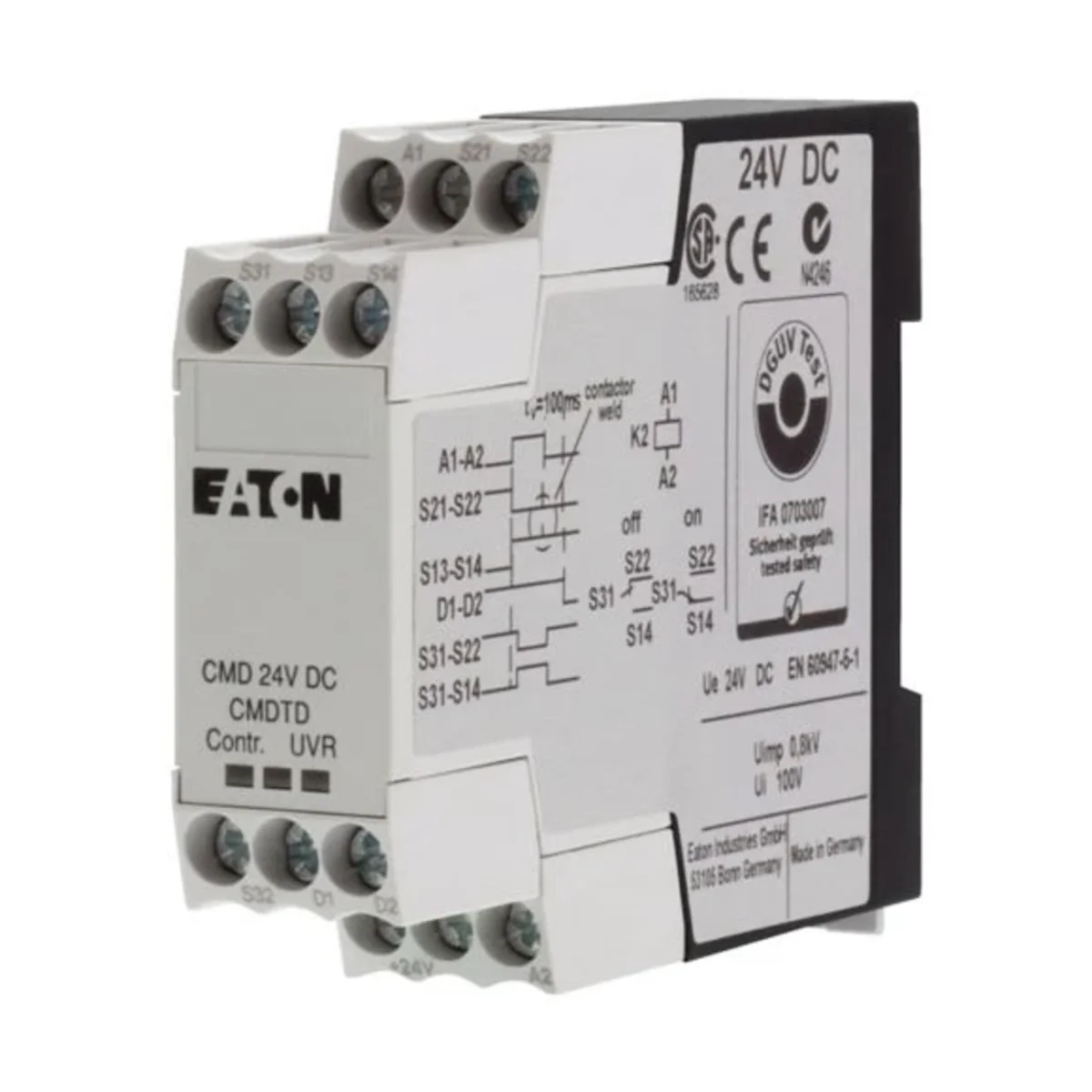

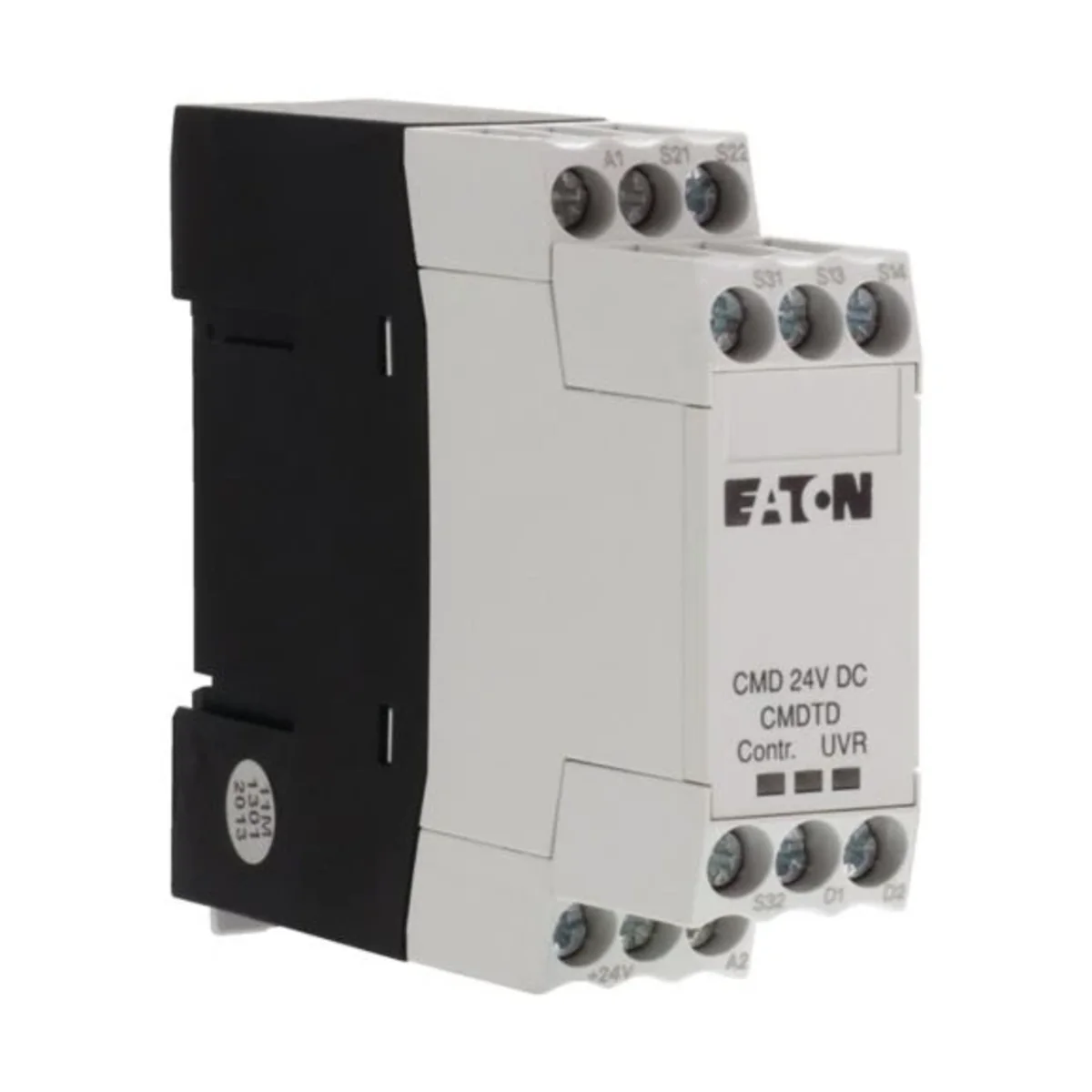

Contactor supervision relay, 24VDC 106170

local index:
ATM007MOEL
Catalog No:
106170
EAN code:
4015081059409
Manufacturer: EATON
DC control voltage [V]: 24
Price:
271,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Contactor monitoring relay for reliable emergency stop applications up to Performance Level e. Monitors reliable switching of the power contactor. Reduces the need for main power wiring, no need for redundant protective assembly.

Technical data

  • DC control voltage [V]
    24
  • PKWIU
    27.12.40.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation current Ie, 400 V
    0 A
  • Mounting method
    DIN rail
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally closed contact, delayed switching
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for manual operation
    No
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Connection type auxiliary circuit
    Screw connection
  • Interface
    No
  • Number of auxiliary contacts as normally open contact
    1
  • Number of auxiliary contacts as normally open contact, leading
    0
  • With LED indication
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,149
Volume (m3) 0,000
Width (m) 0,026
Length (m) 0,108
Depth (m) 0,084
