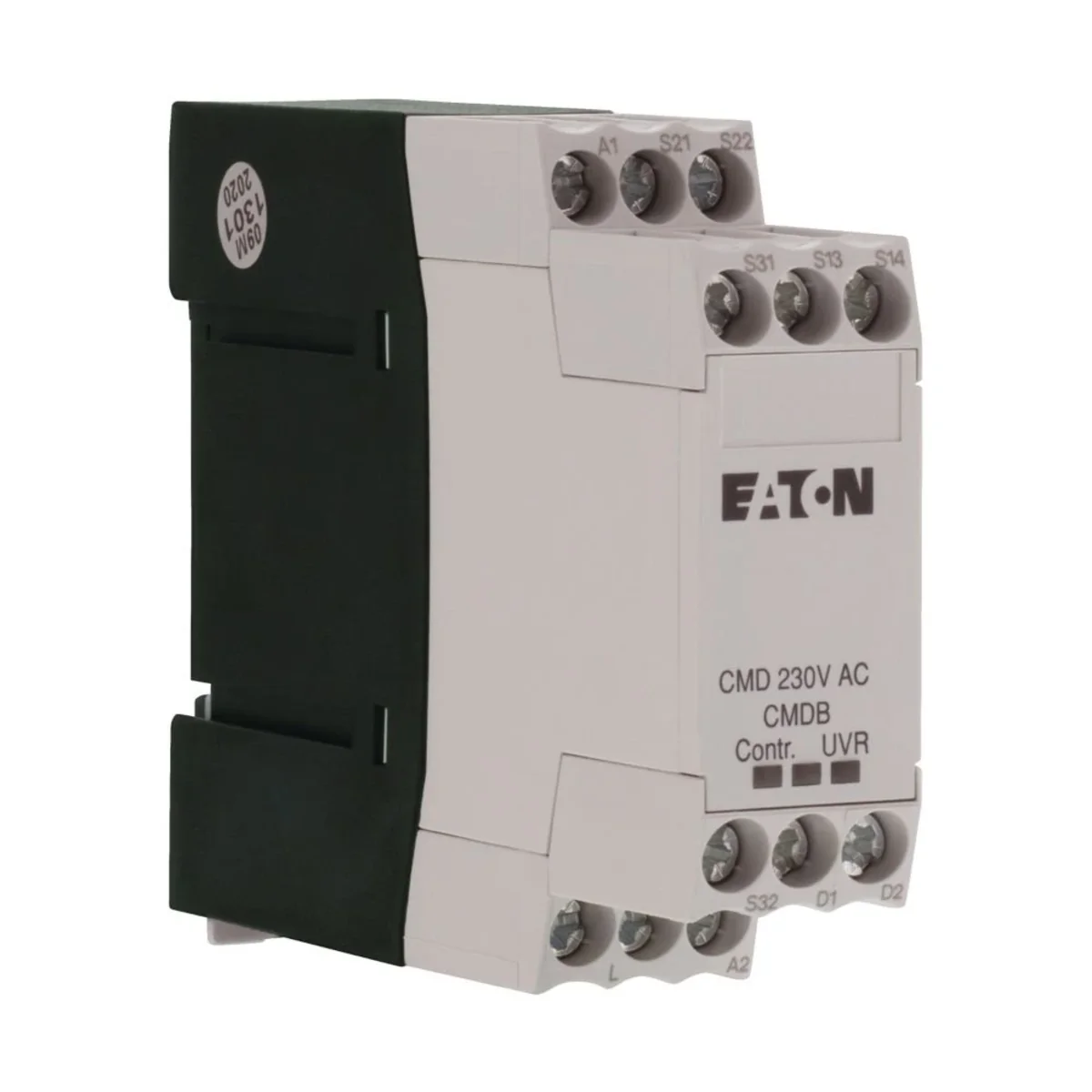

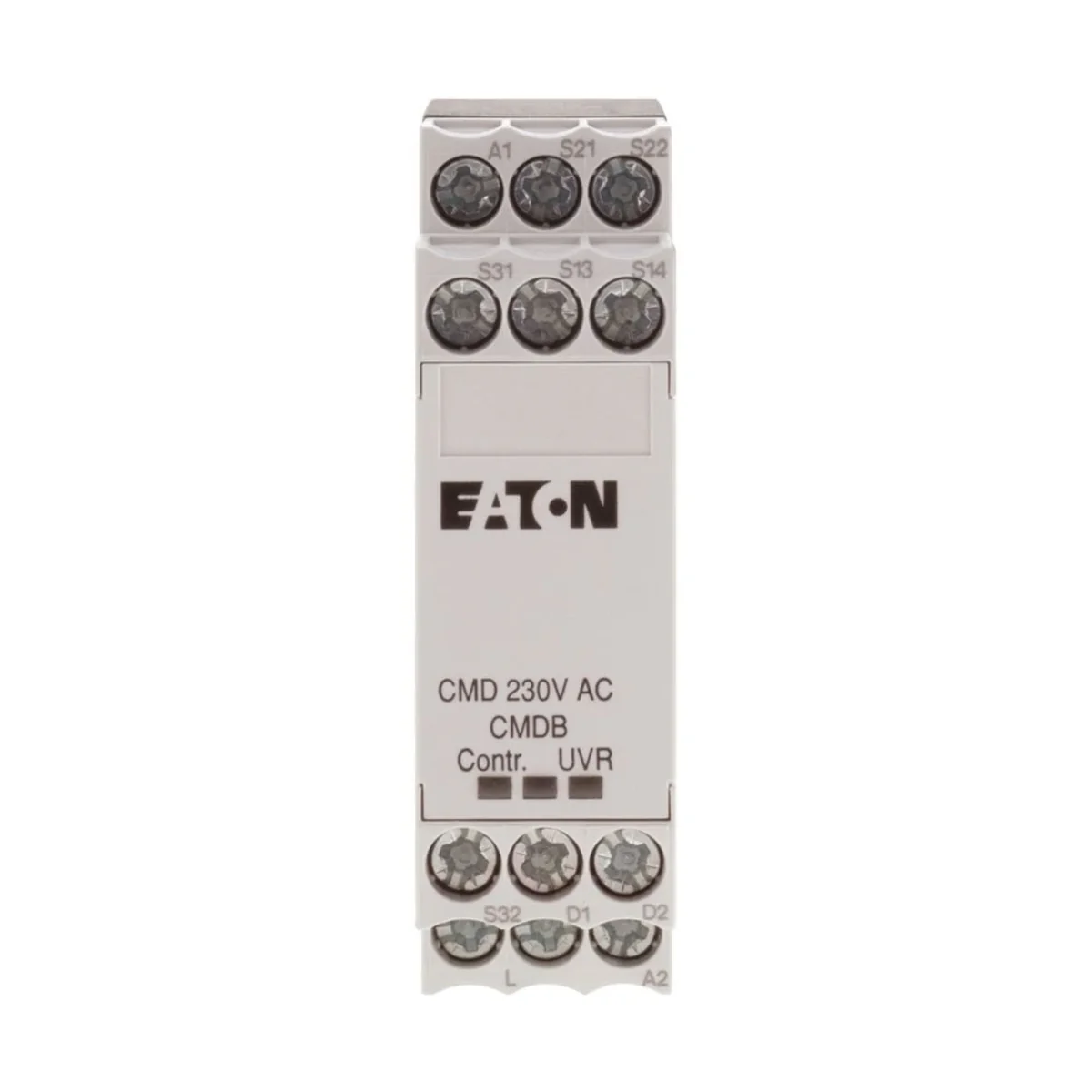

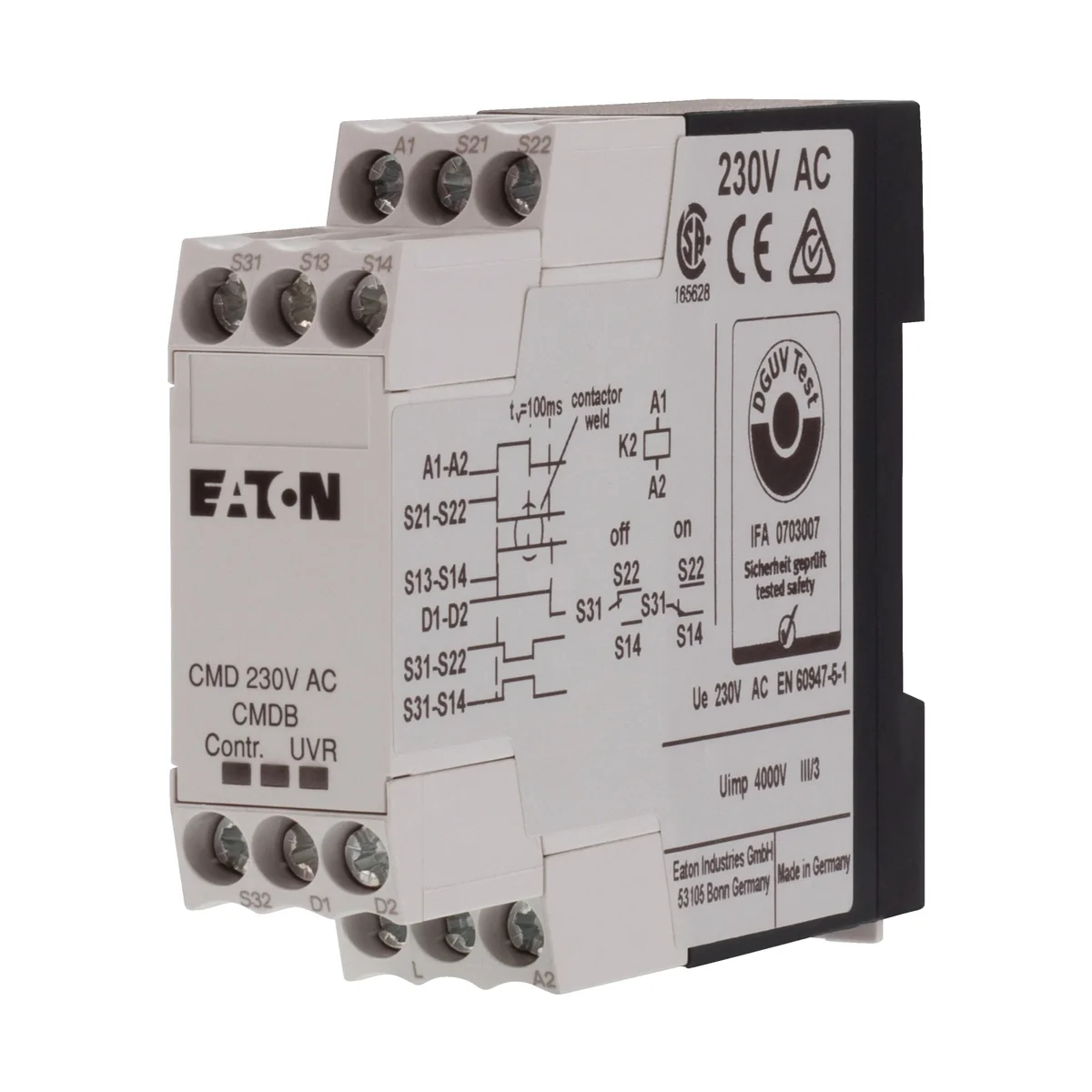

Contactor supervision relay, 220-240VAC 106172

local index:
ATM011MOEL
Catalog No:
106172
EAN code:
4015081059423
Manufacturer: EATON
AC control voltage [V]: 220-240
Price:
389,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Contactor monitoring relay for safe emergency stop with maximum efficiency e. Reliable monitoring of the power contactor. Reduces the need for main power wiring, no need for redundant protective assembly.

Technical data

  • AC control voltage [V]
    220-240

Other technical data

  • Rated control supply voltage AC 50 Hz
    220 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie, 400 V
    0 A
  • Mounting method
    DIN rail
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally closed contact, delayed switching
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for manual operation
    No
  • Rated control supply voltage AC 60 Hz
    220 ... 240 V
  • Voltage type for actuating
    AC
  • Connection type auxiliary circuit
    Screw connection
  • Interface
    No
  • Number of auxiliary contacts as normally open contact
    1
  • Number of auxiliary contacts as normally open contact, leading
    0
  • With LED indication
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,157
Volume (m3) 0,000
Width (m) 0,026
Length (m) 0,108
Depth (m) 0,084
