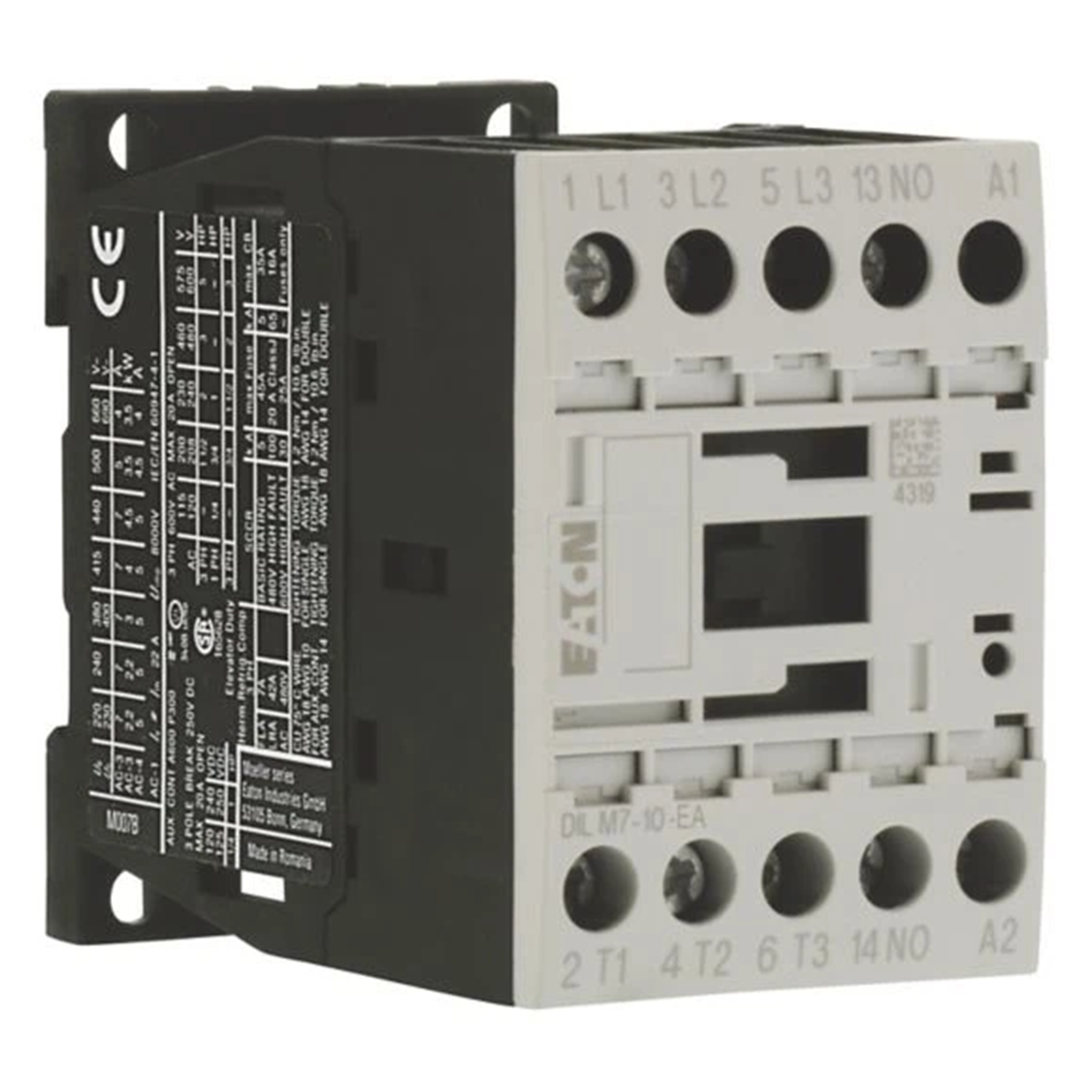

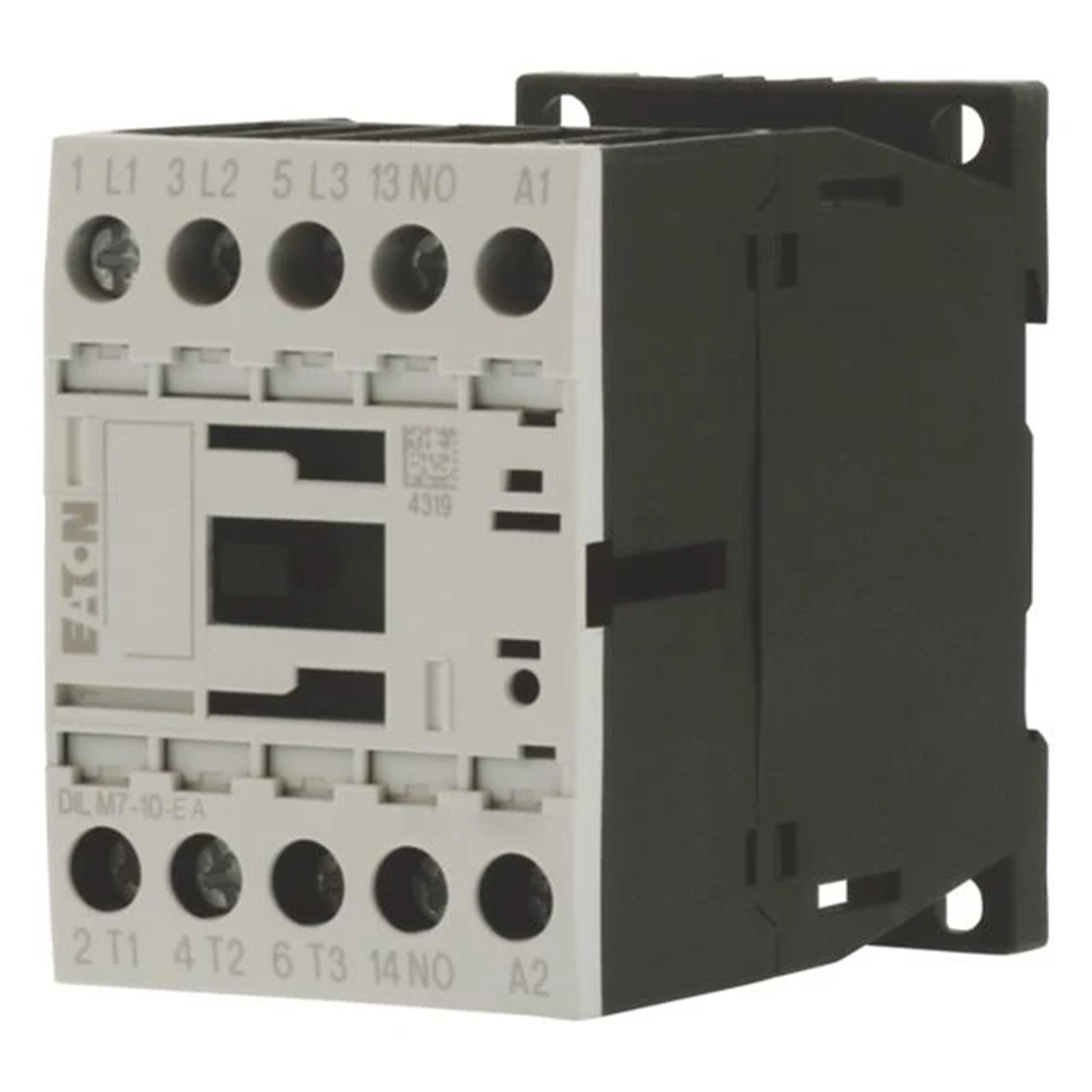

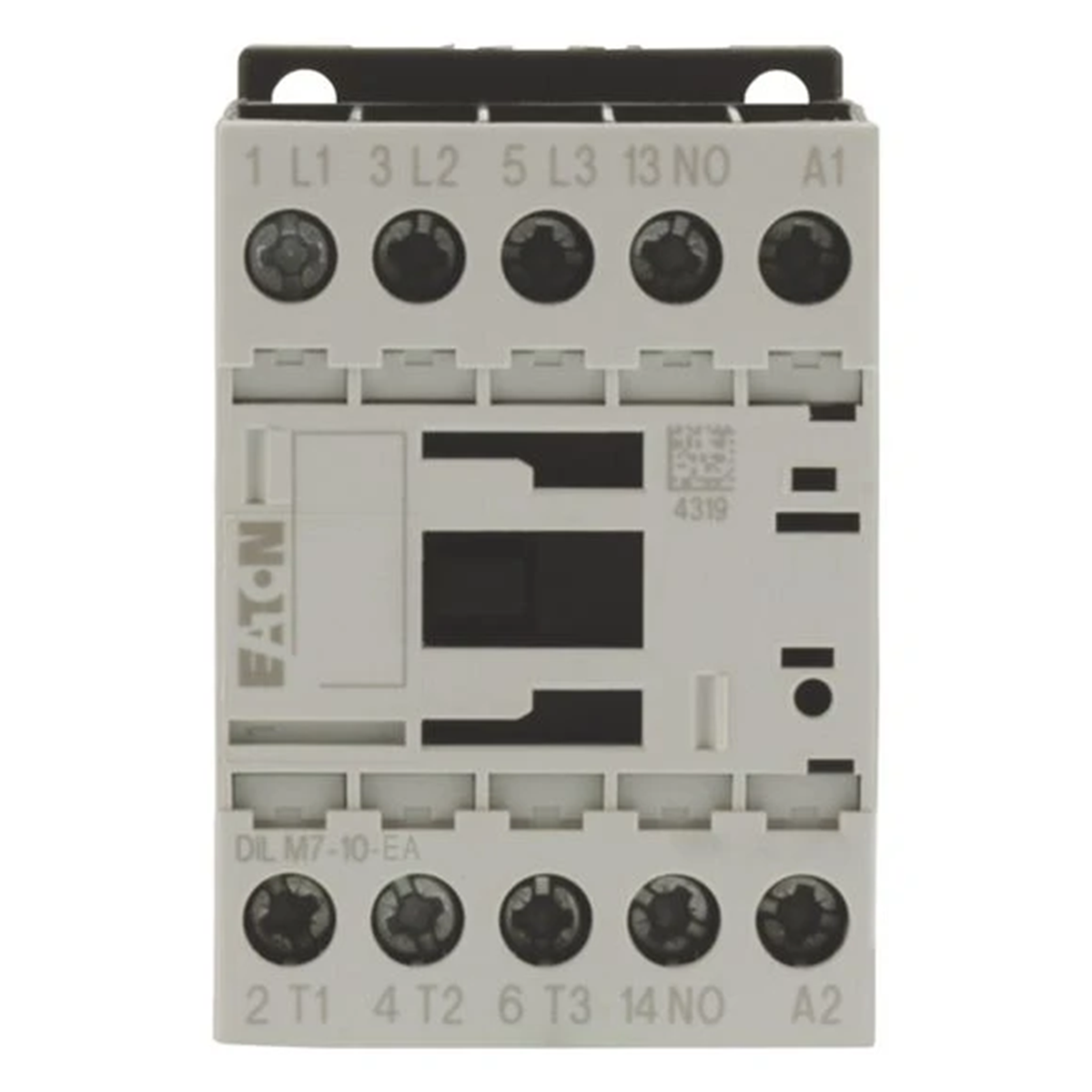

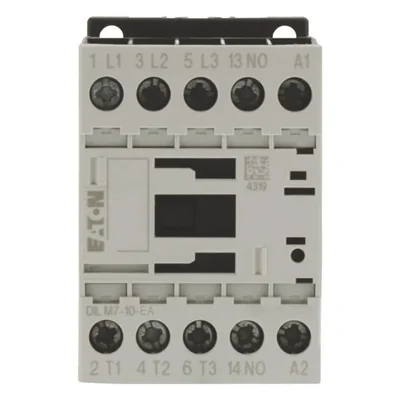

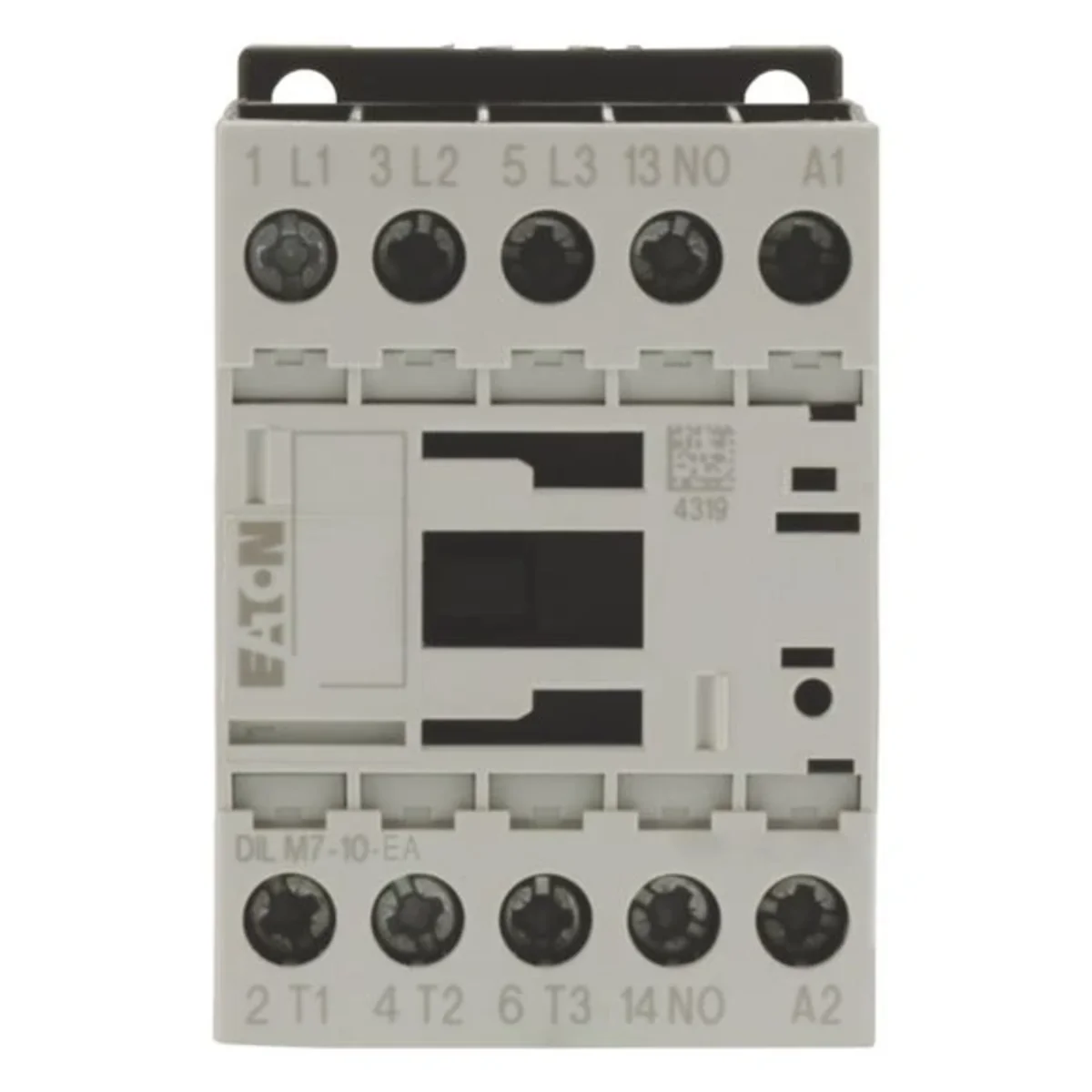

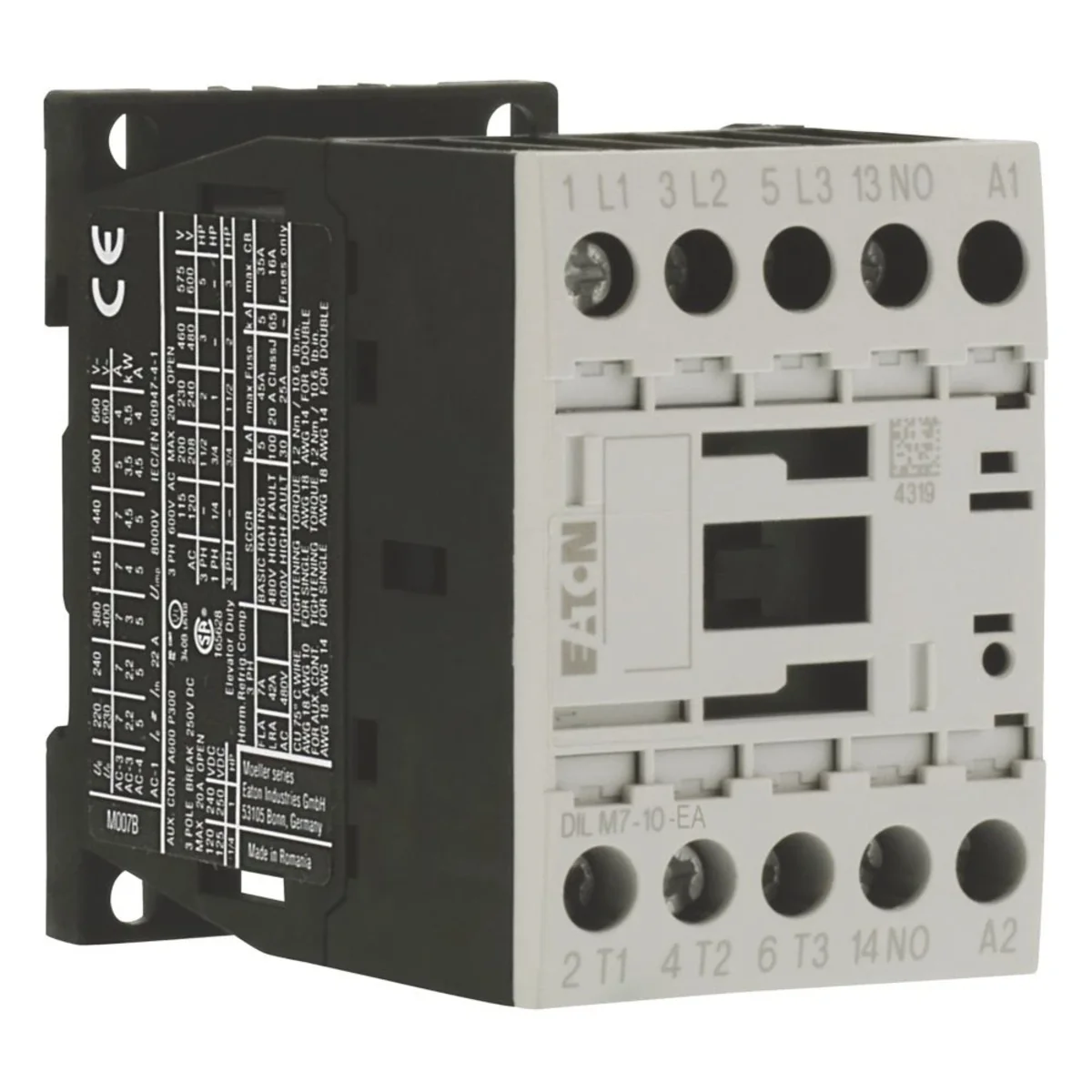

Contactor DILM7-10-EA 3P 3kW/400V IP00 24VDC 190026
local index:
ATA257MOEL
Catalog No:
190026
EAN code:
4015081880225
Manufacturer:
EATON
Number of main contacts NO: 3
Number of auxiliary contacts NO: 1
Overvoltage category: III
Bestsellers
Price:
114,72 zł
gross / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction:
101,65 zł gross
Price history for this product
1. 114,72 zł gross / pcs.
2. The lowest price from 30 days before the reduction:
101,65 zł
3. Manufacturer's price:
230,01 zł
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. Manufacturer's price
Manufacturer's price:
230,01 zł gross
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.
Technical data
-
Number of main contacts NO3
-
Overvoltage categoryIII
-
InstallationOn the TH-35 rail
-
Rated insulation voltage [V]690
-
Degree of contamination3
-
Maximum operating voltage [V]690
-
Rated operating power at AC-3 400V [kW]3
-
Rated operational current Ie for AC-3 400V [A]7
-
Rated operating power at AC-4 400V [kW]2.2
-
Number of auxiliary contacts NO1
-
Number of poles3
-
DC control voltage [V]24
-
Level of securityIP20
-
Mechanical durability [Number of connections]10000000
-
Rated surge voltage [V]8000
-
Rated operational current Ie for AC-1 400V [A]22
-
Rated operational current Ie for AC-4 400V [A]5
Other technical data
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V22 A
-
Rated operation power at AC-3, 400 V3 kW
-
Rated operation power at AC-4, 400 V2.2 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V7 A
-
Rated operation current Ie at AC-4, 400 V5 A
-
Rated operation power NEMA2.2 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerEaton Electric Sp. z o.o.
-
Address80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,312 |
| Volume (m3) | 0,000 |
| Width (m) | 0,046 |
| Length (m) | 0,079 |
| Depth (m) | 0,070 |
