Contactor DILM7-10-EA 3P 3kW/400V IP00 230VAC 190025

Name: Contactor DILM7-10-EA 3P 3kW/400V IP00 230VAC
Brand: EATON
SKU: ATA088MOEL
Price: 18.66 PLN
Availability: InStock

Index local:

ATA088MOEL

Numéro de catalogue:

190025

Code EAN:

4015081880218

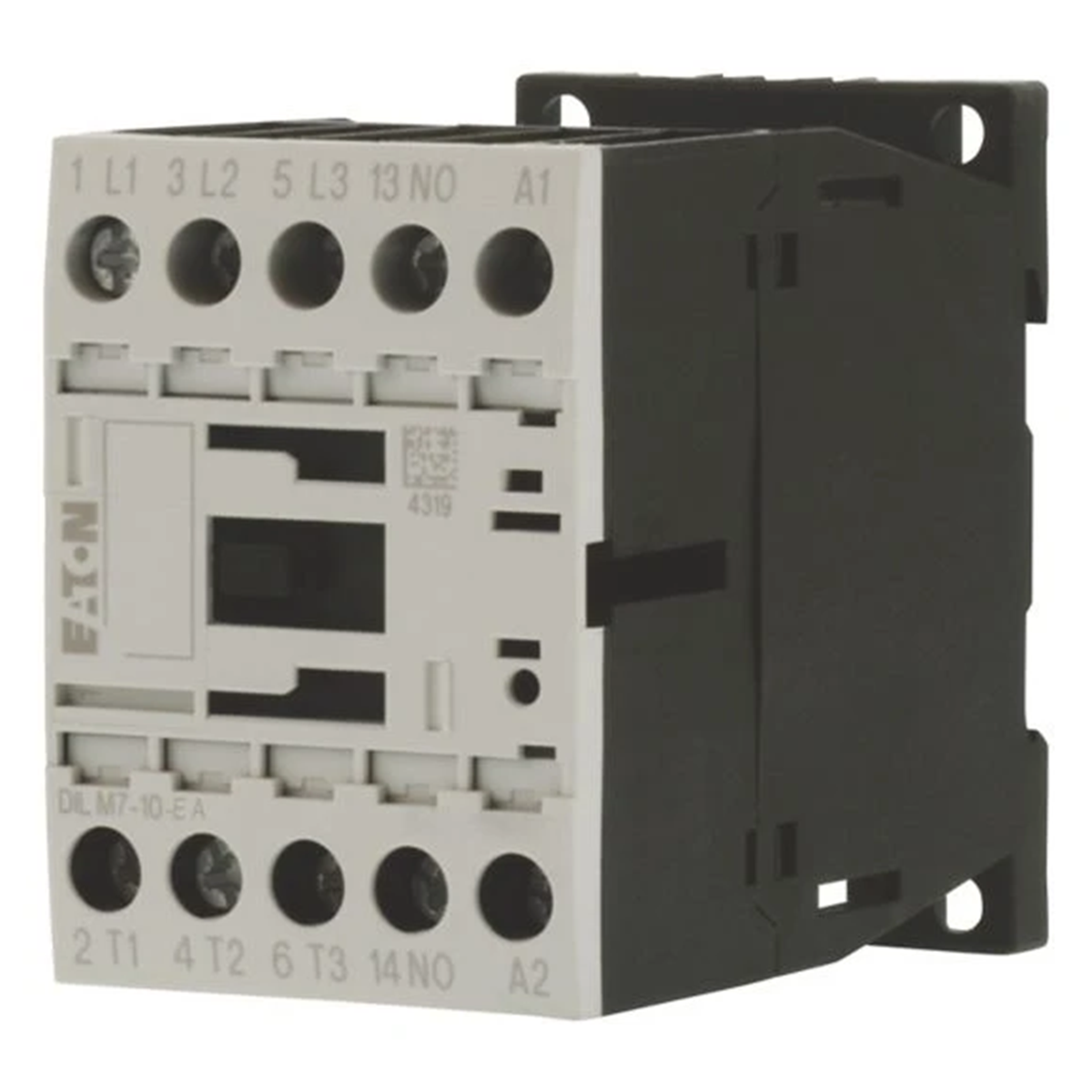

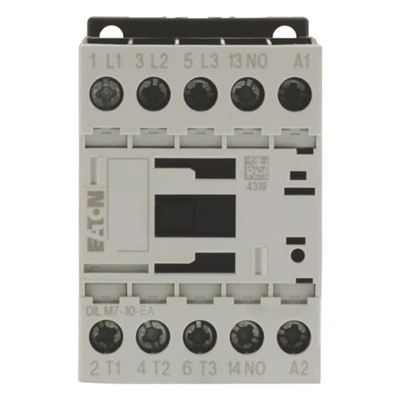

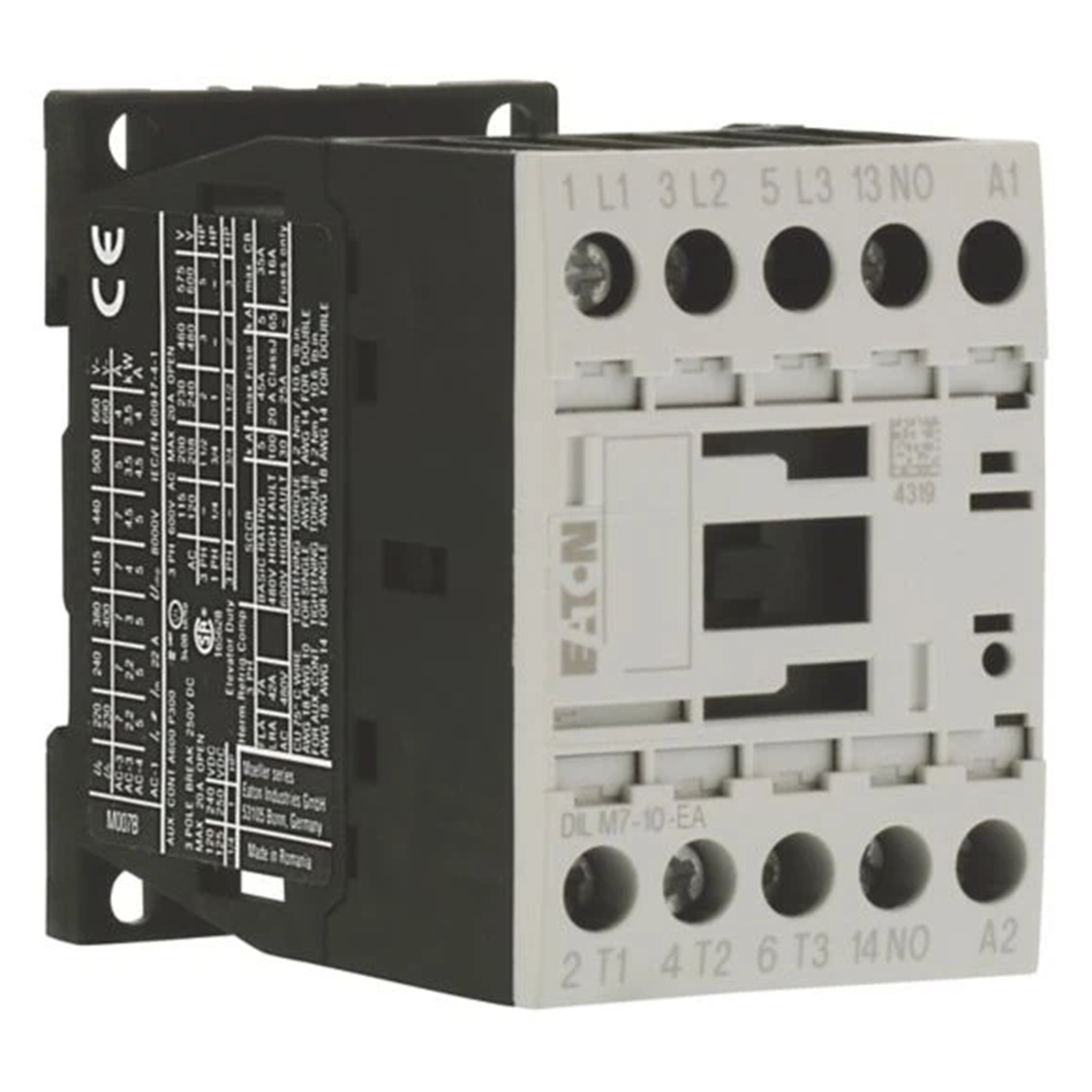

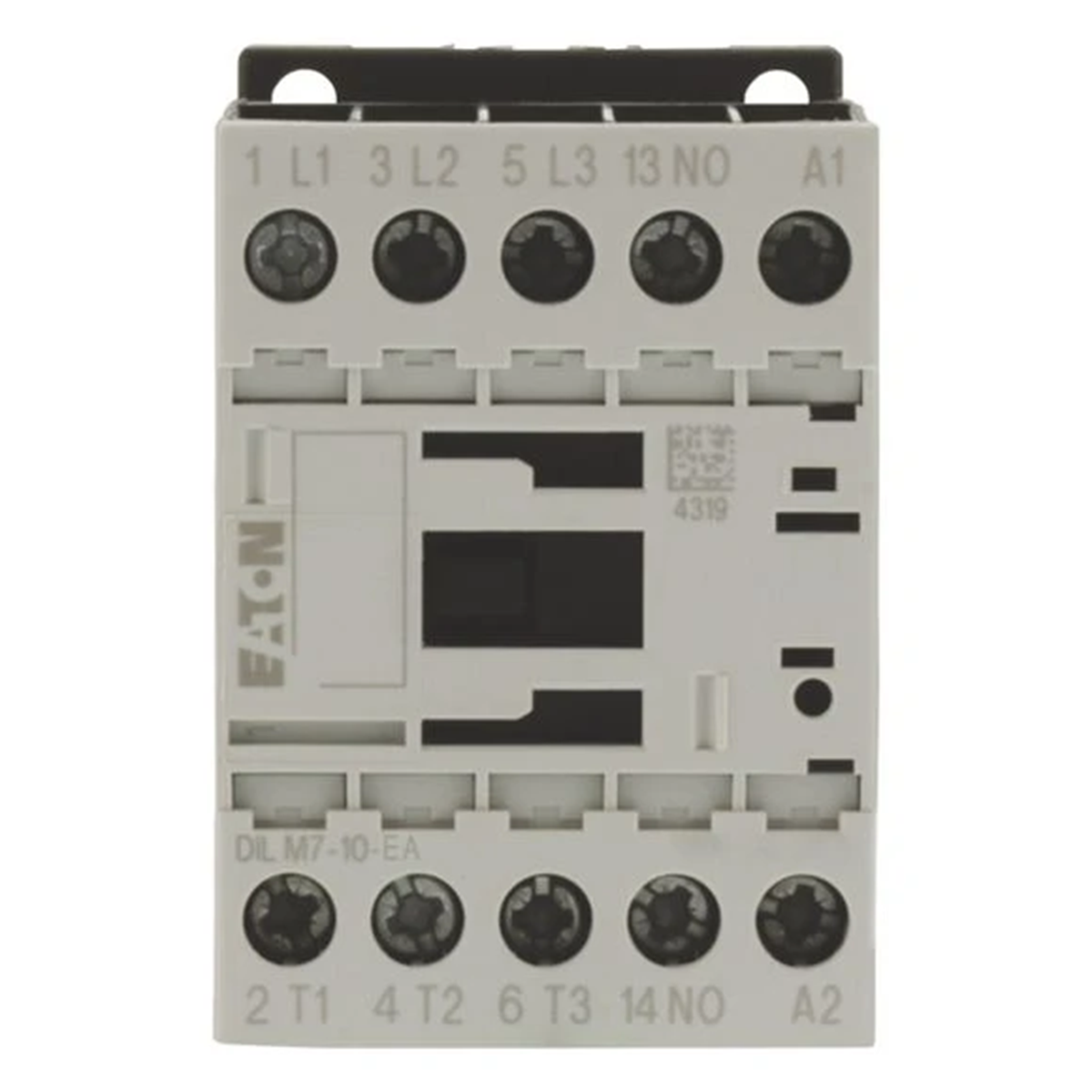

Contactor DILM7-10-EA 3P 3kW/400V IP00 230VAC

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Number of main contacts NO: 3

Number of auxiliary contacts NO: 1

Overvoltage category: III

Voir la description complète

Prix:

18,66 €

gross / pcs.

(y compris la TVA 23%)

Accessible 35 pcs.

Quantité pcs.

(plusieurs:

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.

Données techniques

Number of main contacts NO

3
Overvoltage category

III
Installation

On the TH-35 rail
Rated insulation voltage [V]

690
Degree of contamination

3
Maximum operating voltage [V]

690
Rated operating power at AC-3 400V [kW]

3
Rated operational current Ie for AC-3 400V [A]

7
Rated operating power at AC-4 400V [kW]

2.2

Number of auxiliary contacts NO

1
Number of poles

3
AC control voltage [V]

230
Level of security

IP20
Mechanical durability [Number of connections]

10000000
Rated surge voltage [V]

8000
Rated operational current Ie for AC-1 400V [A]

22
Rated operational current Ie for AC-4 400V [A]

5

Autres données techniques

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

22 A
Rated operation power at AC-3, 400 V

3 kW
Rated operation power at AC-4, 400 V

2.2 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

7 A
Rated operation current Ie at AC-4, 400 V

5 A
Rated operation power NEMA

2.2 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Détails du fabricant

Producteur

EATON Electric Sp. z o.o.
Adresse

80-299 Gdańsk ul. Galaktyczna 30
Numéro identifiant TVA

5841022327

Emballage en vrac

Une sorte de paquet	Skrzynia
Quantité	1 pcs.
poids (kg)	0,256
Volume (m3)	0,000
Largeur (m)	0,046
Longueur (m)	0,079
Profondeur (m)	0,070
