Contactor DILM7-10-EA 3P 3kW/400V IP00 230VAC 190025

Name: Contactor DILM7-10-EA 3P 3kW/400V IP00 230VAC
Brand: EATON
SKU: ATA088MOEL
Price: 127.83 PLN
Availability: InStock

Indeks lokalny:

ATA088MOEL

Numer katalogowy:

190025

Kod EAN:

4015081880218

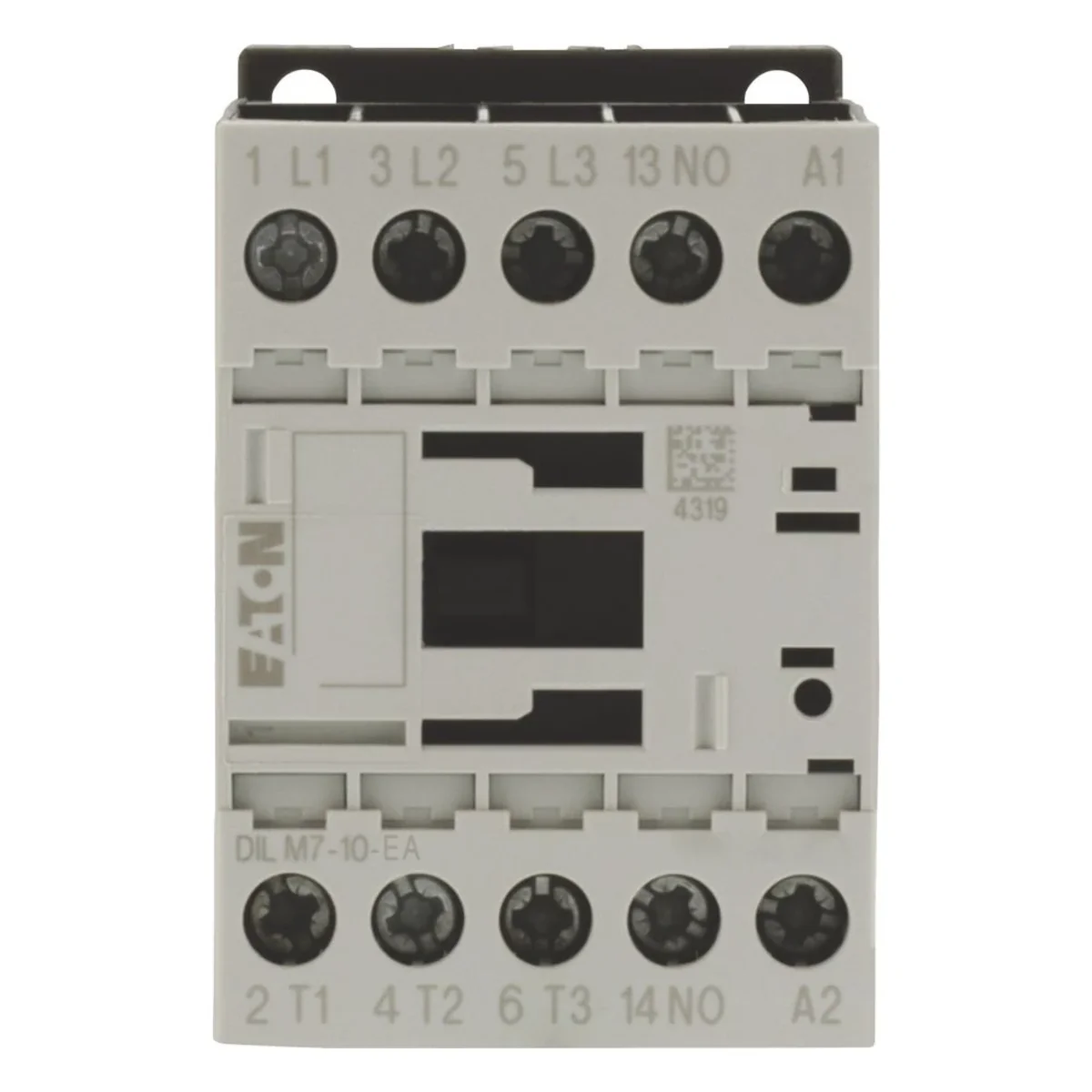

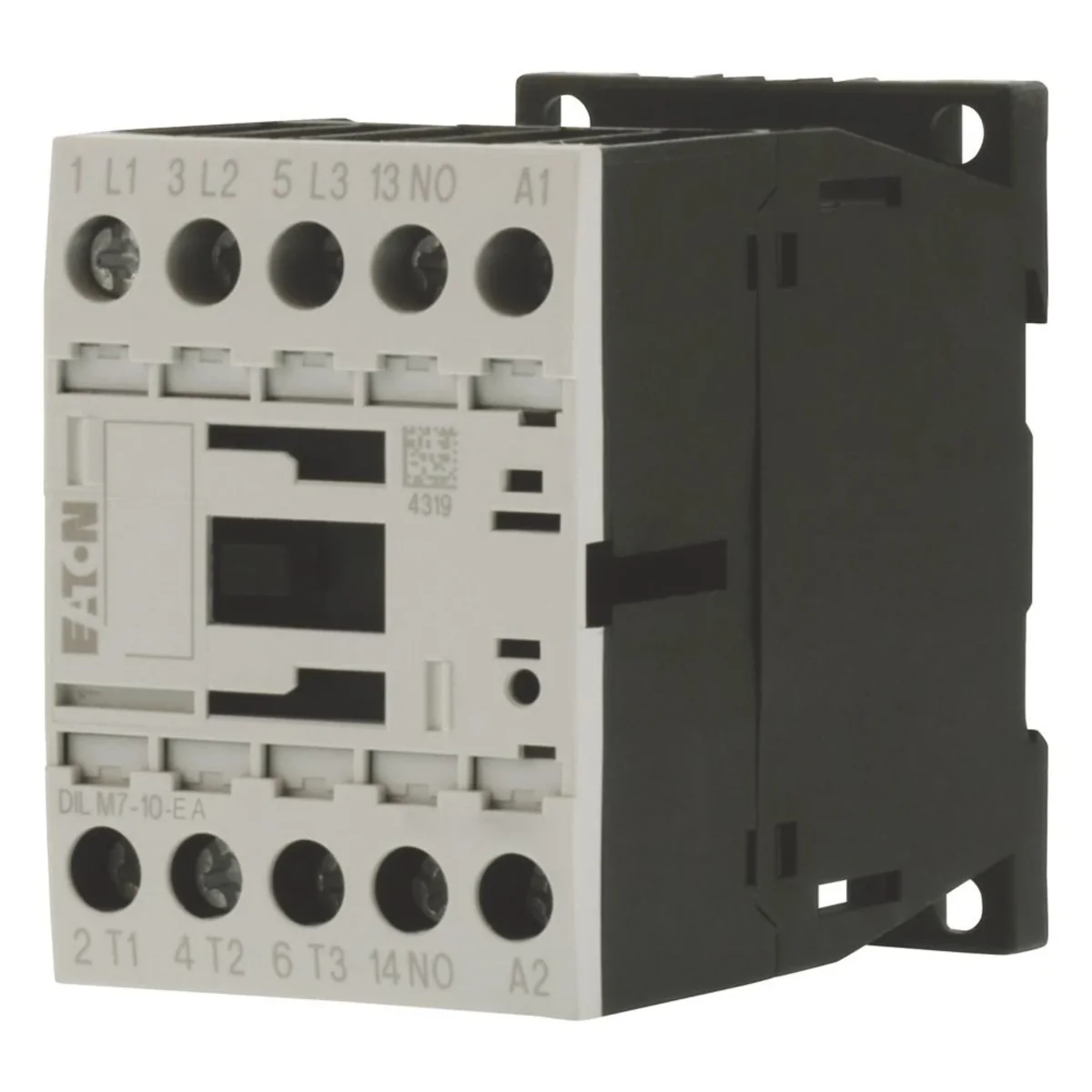

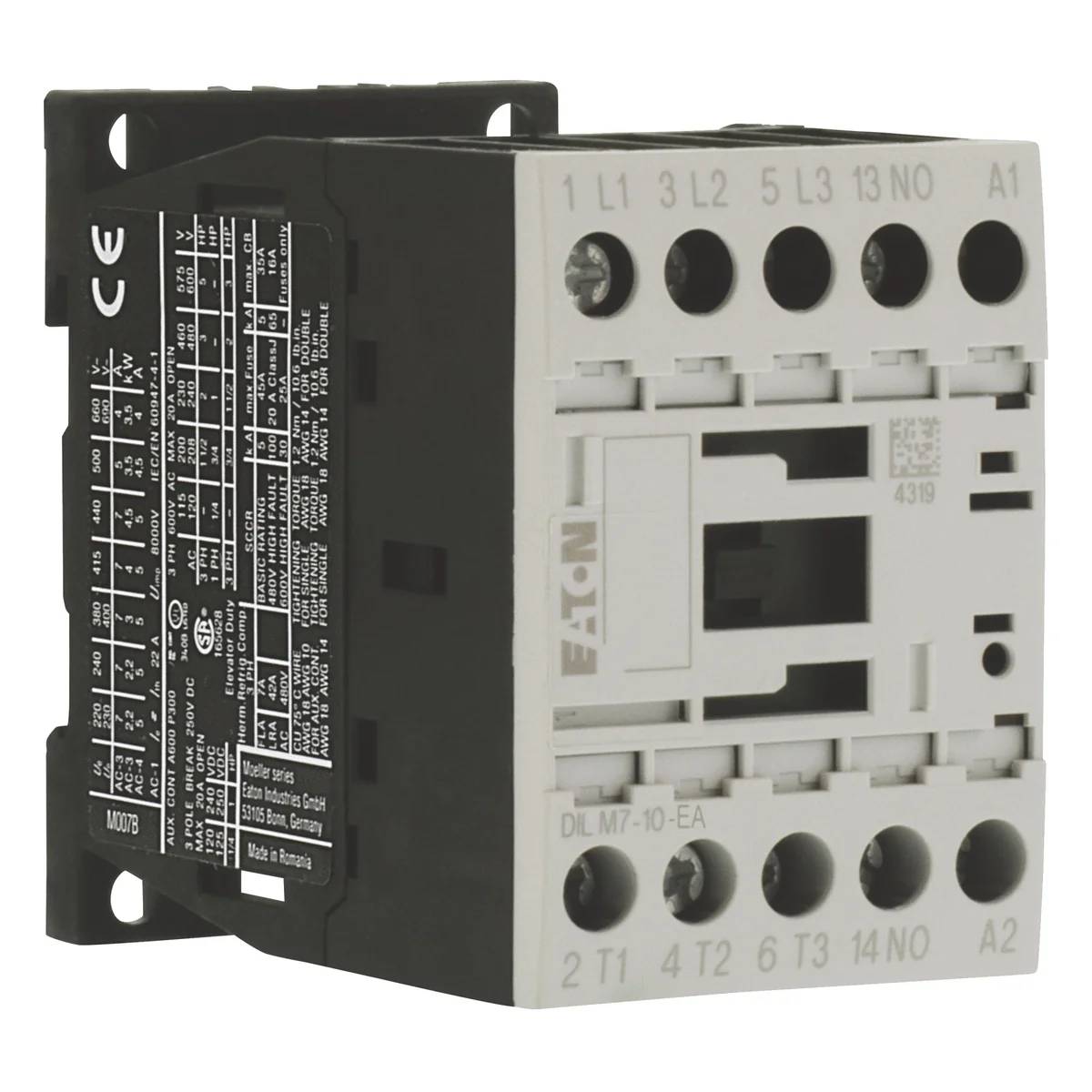

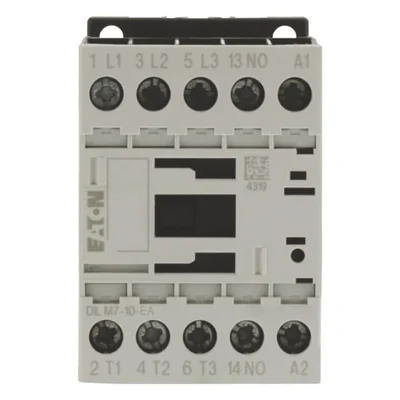

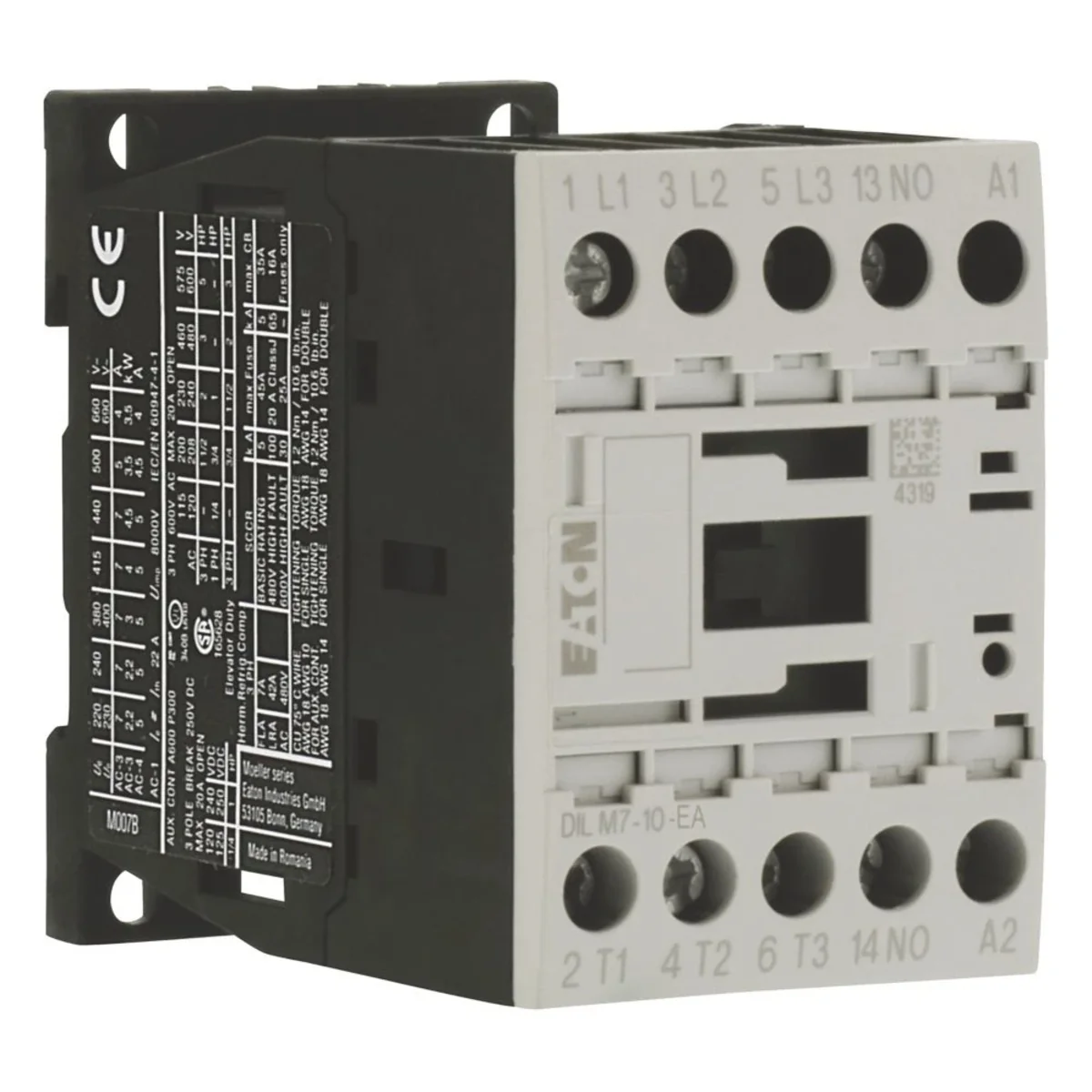

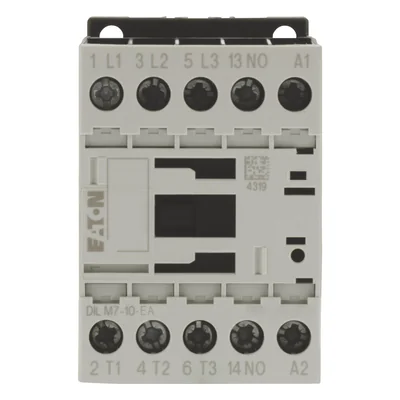

Contactor DILM7-10-EA 3P 3kW/400V IP00 230VAC

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of main contacts NO: 3

Number of auxiliary contacts NO: 1

Overvoltage category: III

Zobacz cały opis

Cena:

127,83 zł

gross / szt.

(w tym VAT 23%)

Dostępne 26 szt.

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.

Dane techniczne

Number of main contacts NO

3
Overvoltage category

III
Installation

On the TH-35 rail
Rated insulation voltage [V]

690
Degree of contamination

3
Maximum operating voltage [V]

690
Rated operating power at AC-3 400V [kW]

3
Rated operational current Ie for AC-3 400V [A]

7
Rated operating power at AC-4 400V [kW]

2.2

Number of auxiliary contacts NO

1
Number of poles

3
AC control voltage [V]

230
Level of security

IP20
Mechanical durability [Number of connections]

10000000
Rated surge voltage [V]

8000
Rated operational current Ie for AC-1 400V [A]

22
Rated operational current Ie for AC-4 400V [A]

5

Pozostałe dane techniczne

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

22 A
Rated operation power at AC-3, 400 V

3 kW
Rated operation power at AC-4, 400 V

2.2 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

7 A
Rated operation current Ie at AC-4, 400 V

5 A
Rated operation power NEMA

2.2 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Dane producenta

Producent

Eaton Electric Sp. z o.o.
Adres

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Opakowania zbiorcze

Rodzaj opakowania	Skrzynia	Karton	Skrzynia	Karton
Ilość	1 szt.	1 szt.	1 szt.	1 szt.
Waga (kg)	0,240	0,256	0,240	0,256
Objętość (m3)	0,000	0,000	0,000	0,000
Szerokość (m)	0,047	0,046	0,047	0,046
Długość (m)	0,077	0,079	0,077	0,079
Głębokość (m)	0,070	0,070	0,070	0,070
