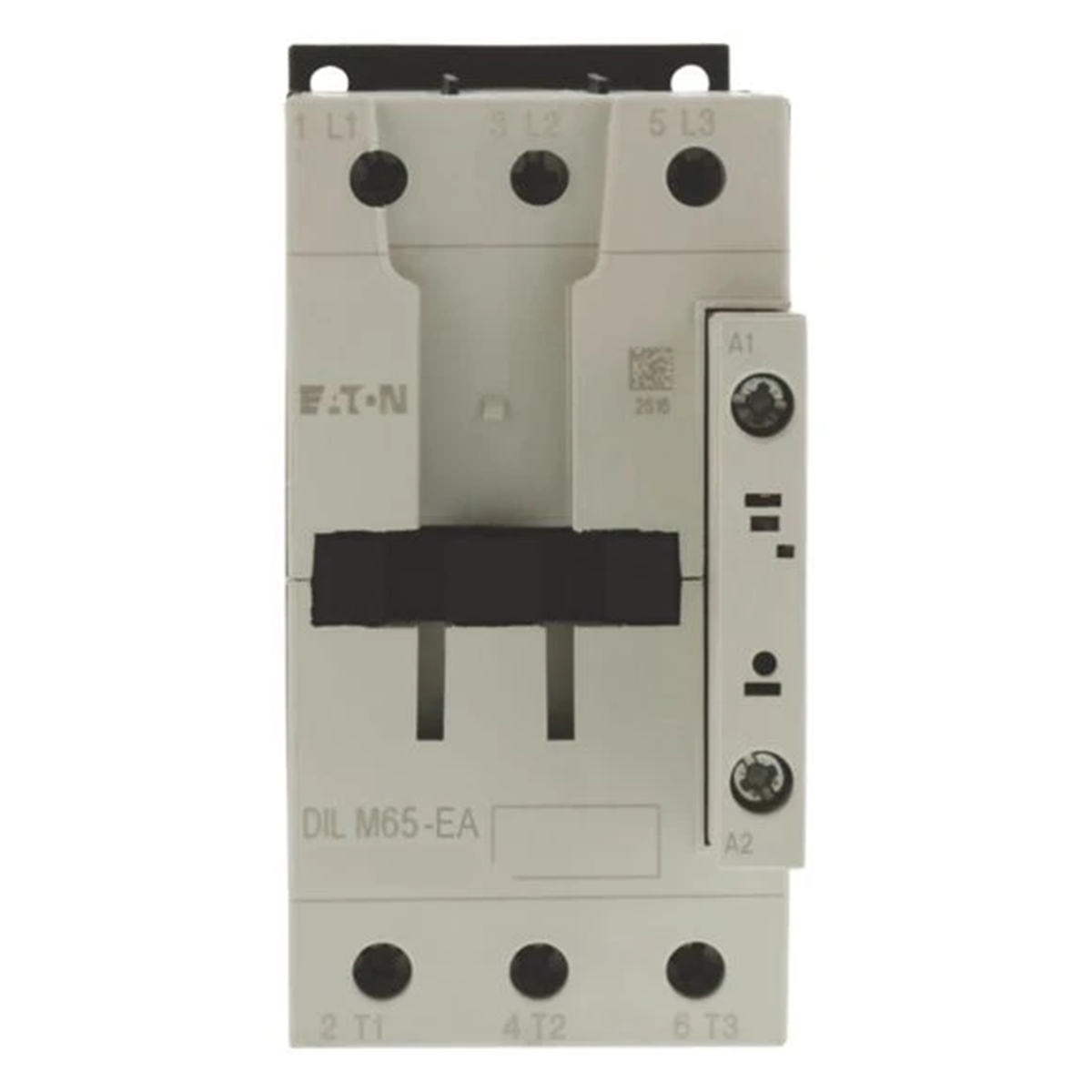

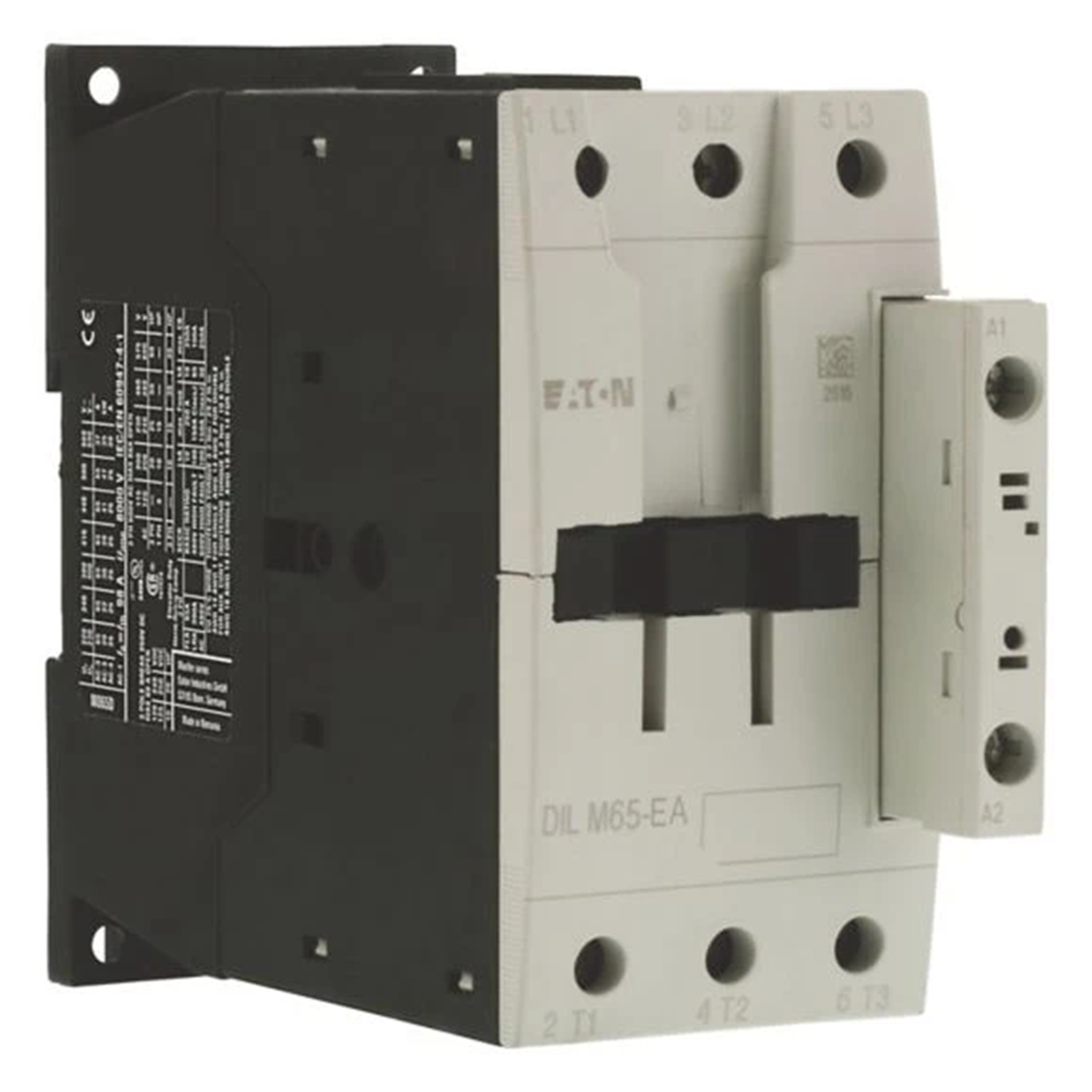

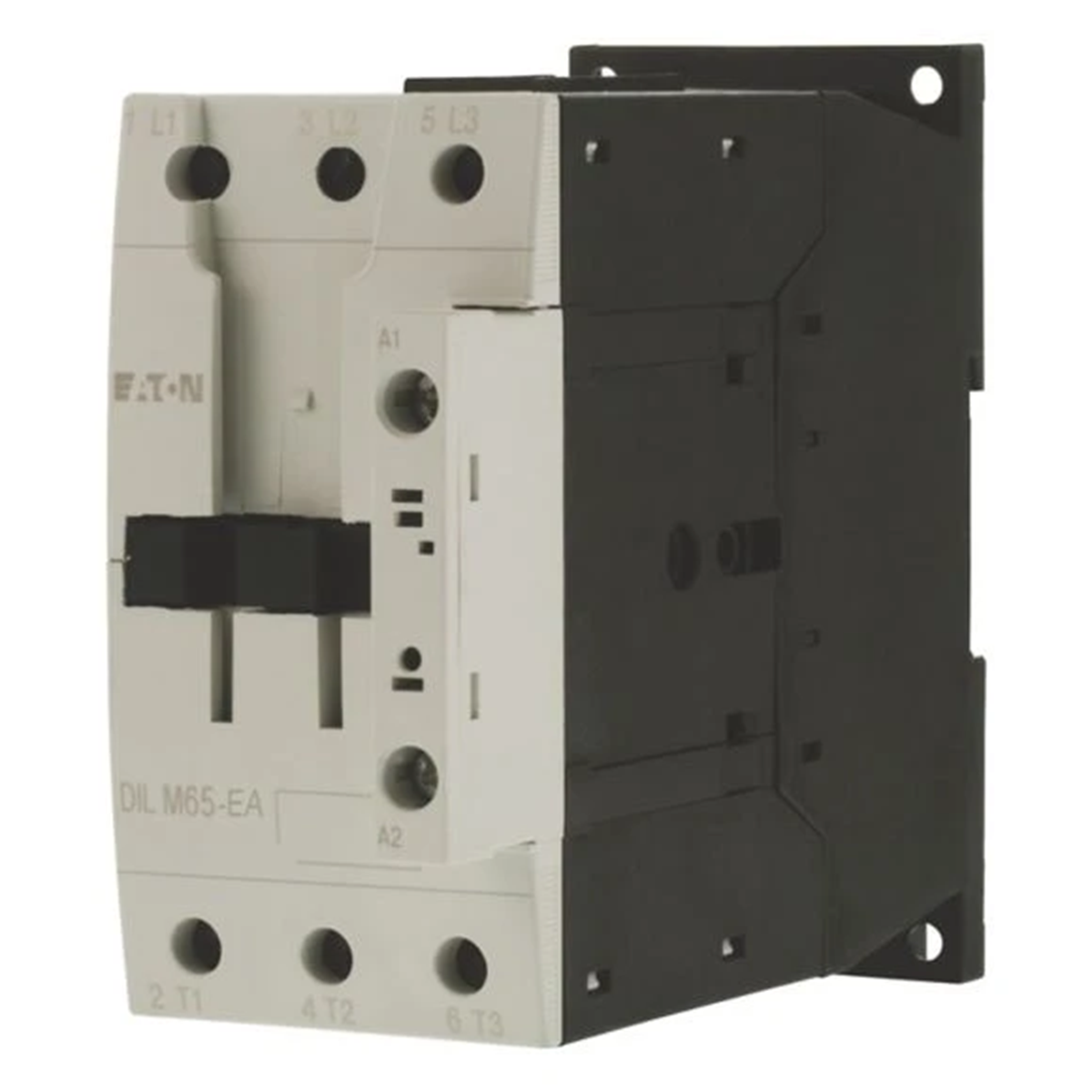

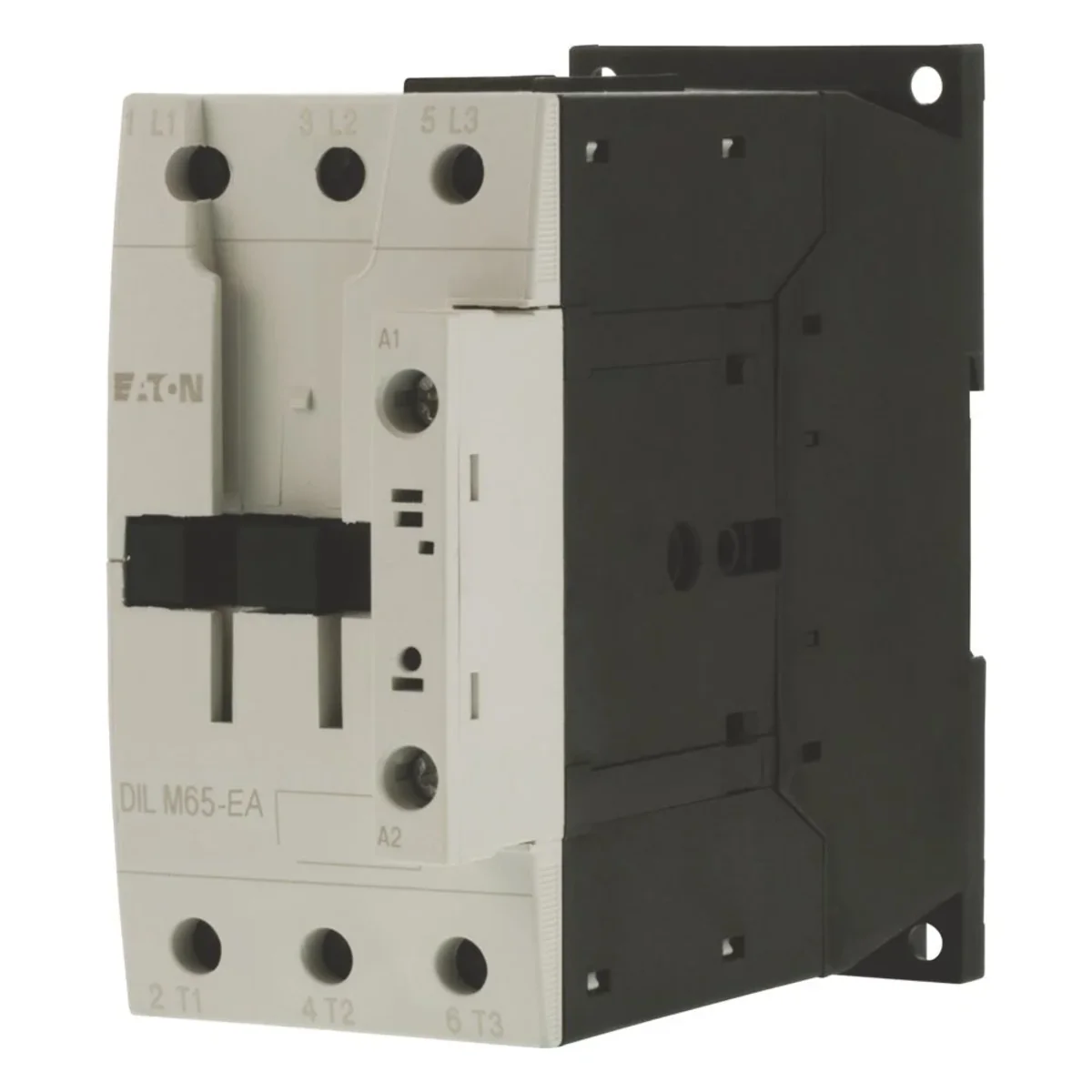

Contactor DILM65-EA 3P 30kW/400V IP00 230VAC 190013

Name: Contactor DILM65-EA 3P 30kW/400V IP00 230VAC
Brand: EATON
SKU: ATA069MOEL
Price: 137.93 PLN
Availability: InStock

Index local:

ATA069MOEL

Numéro de catalogue:

190013

Code EAN:

4015081880096

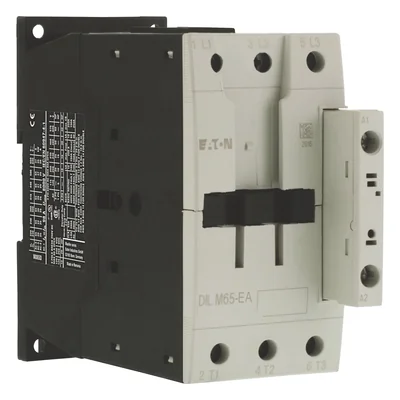

Contactor DILM65-EA 3P 30kW/400V IP00 230VAC

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Number of main contacts NO: 3

Overvoltage category: III

Number of poles: 3

Voir la description complète

Prix:

137,93 €

gross / pcs.

(y compris la TVA 23%)

Accessible 22 pcs.

Quantité pcs.

(plusieurs:

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.

Données techniques

Number of main contacts NO

3
Number of poles

3
AC control voltage [V]

230
Level of security

IP00
Mechanical durability [Number of connections]

10000000
Rated surge voltage [V]

8000
Rated operational current Ie for AC-1 400V [A]

98
Rated operational current Ie for AC-4 400V [A]

25

Overvoltage category

III
Installation

On the TH-35 rail
Rated insulation voltage [V]

690
Degree of contamination

3
Maximum operating voltage [V]

690
Rated operating power at AC-3 400V [kW]

thirty
Rated operational current Ie for AC-3 400V [A]

65
Rated operating power at AC-4 400V [kW]

12

Autres données techniques

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

98 A
Rated operation power at AC-3, 400 V

30 kW
Rated operation power at AC-4, 400 V

12 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

65 A
Rated operation current Ie at AC-4, 400 V

25 A
Rated operation power NEMA

37 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Détails du fabricant

Producteur

EATON ELECTRIC SP. Z O.O.
Adresse

80-299 UL. GALAKTYCZNA 30
E-mail

pl-zamowienia@eaton.com
Numéro identifiant TVA

5841022327

Emballage en vrac

Une sorte de paquet	Skrzynia
Quantité	1 pcs.
poids (kg)	0,923
Volume (m3)	0,001
Largeur (m)	0,057
Longueur (m)	0,151
Profondeur (m)	0,118
