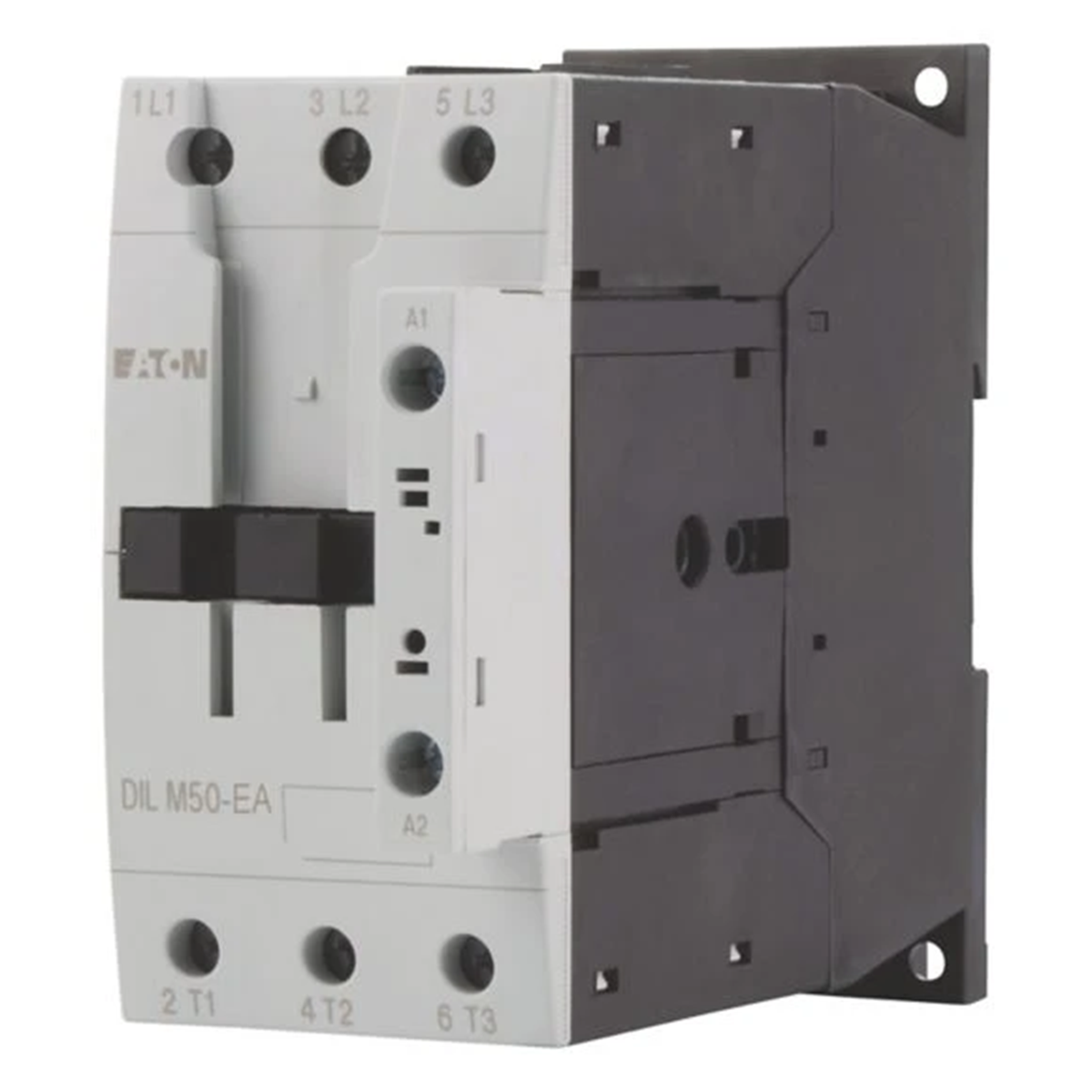

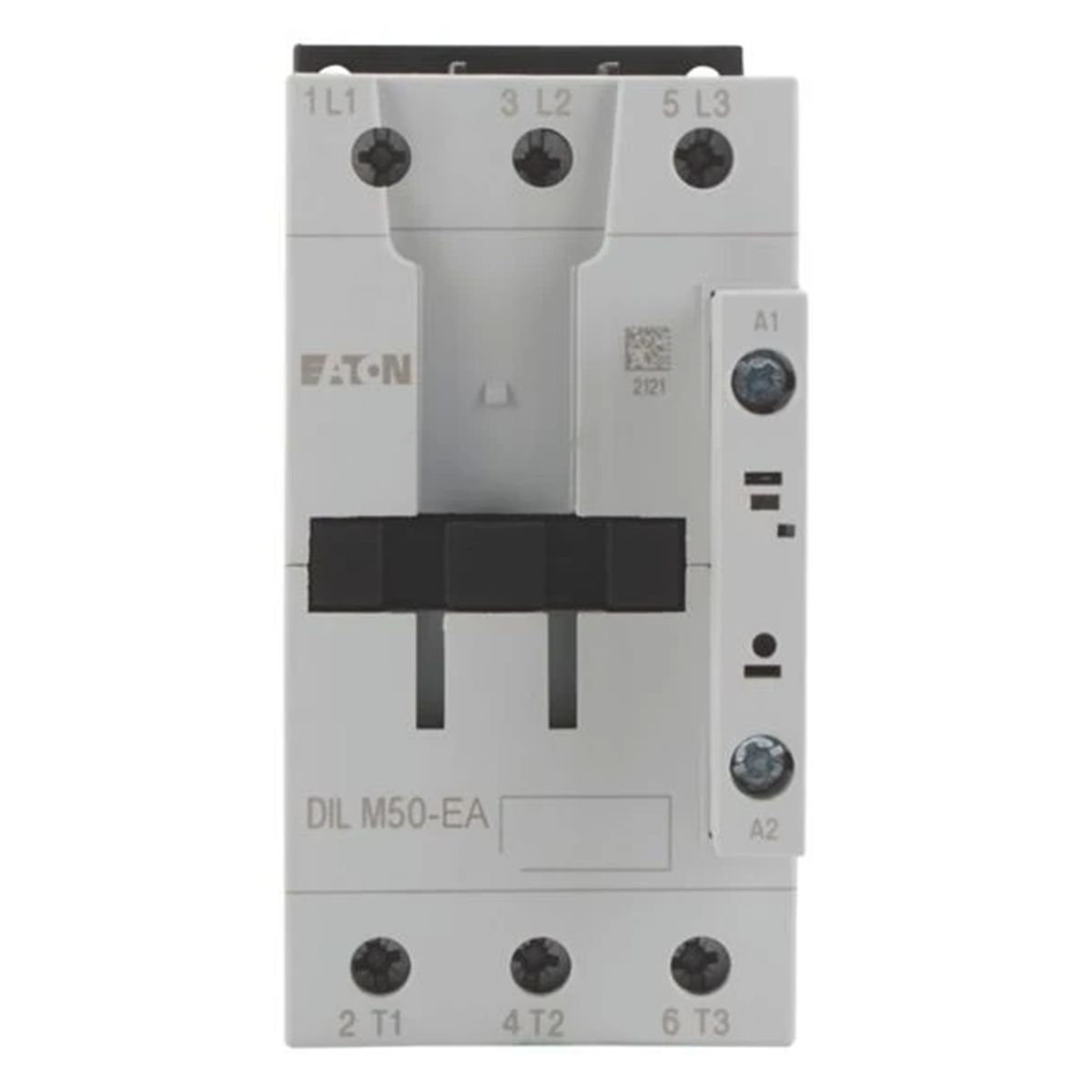

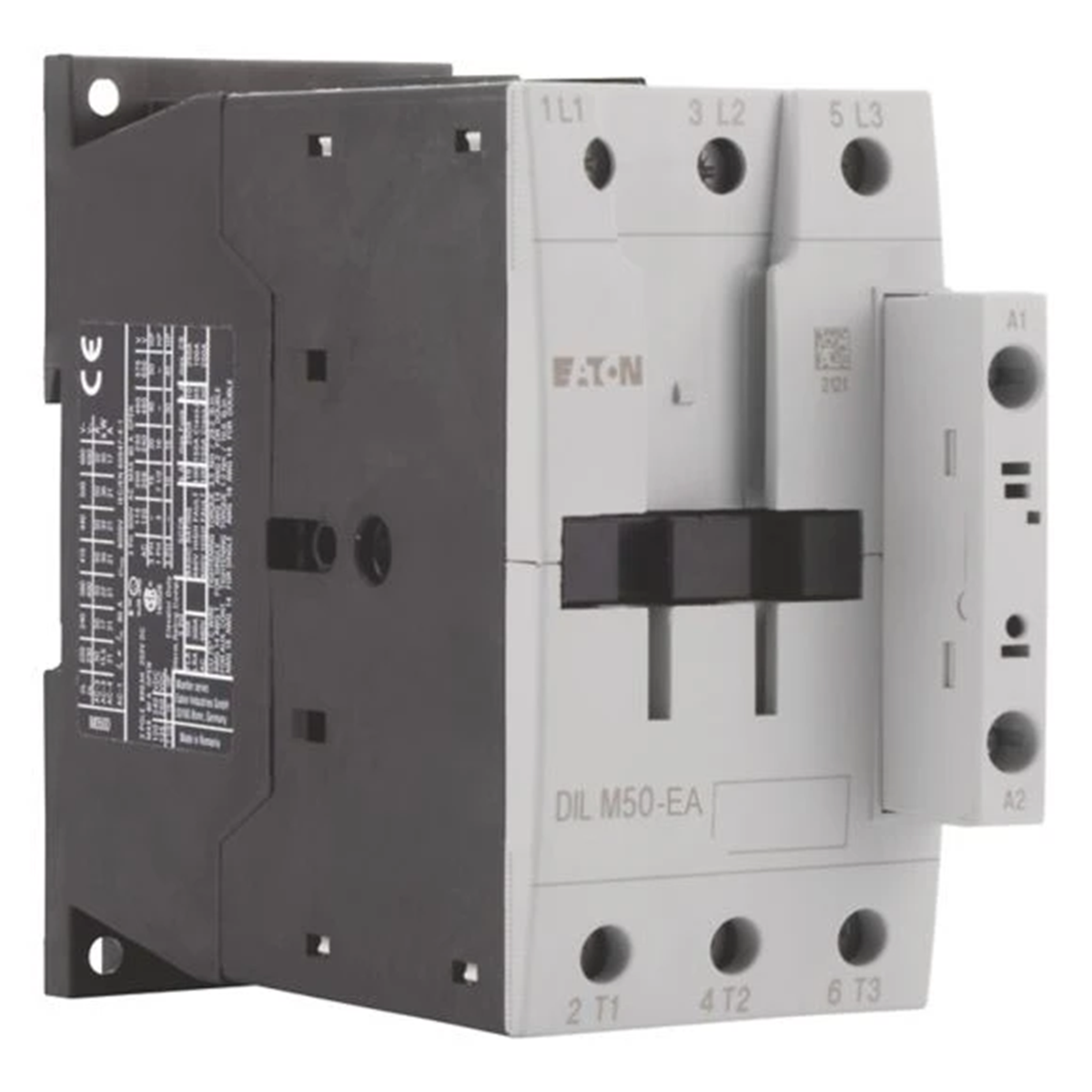

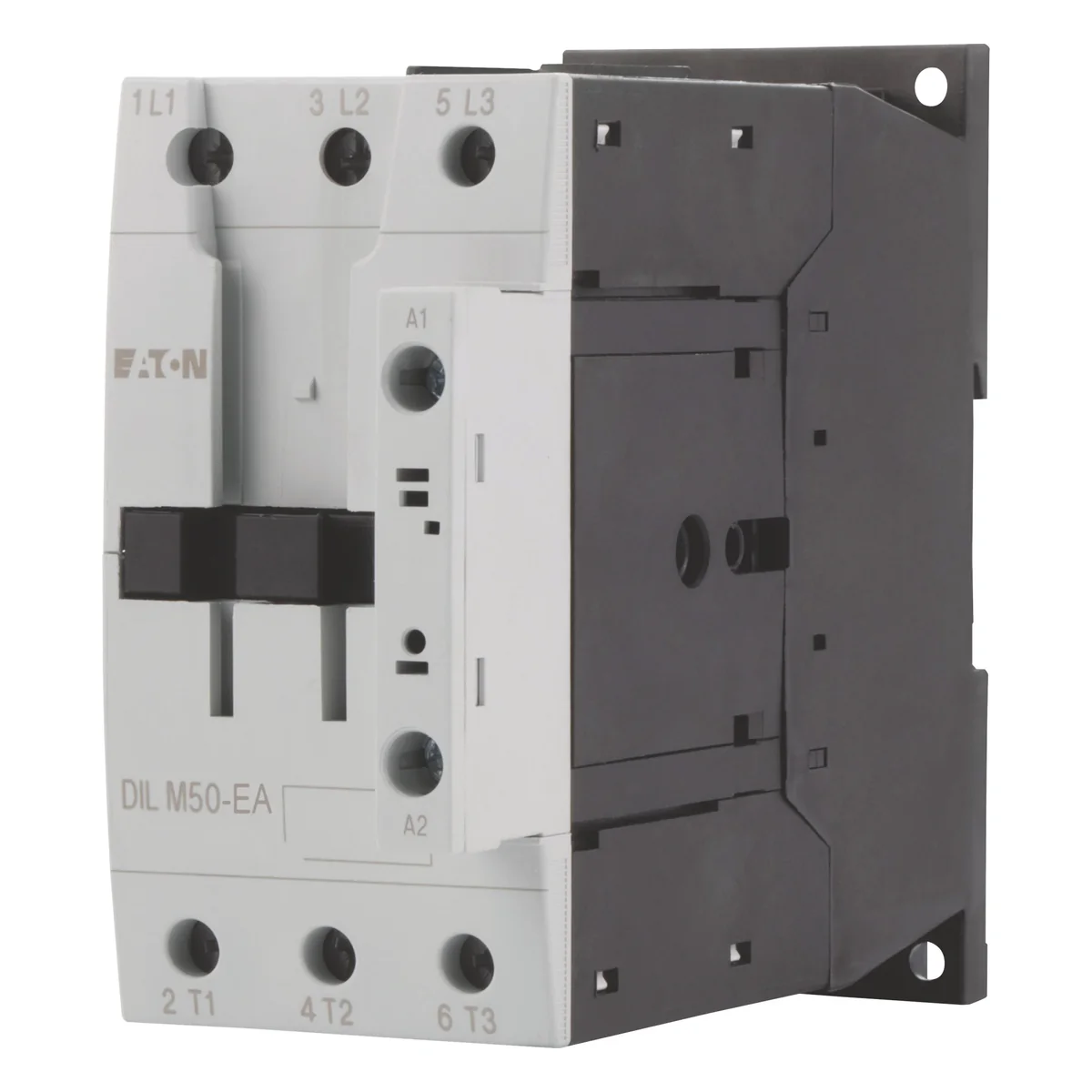

Contactor DILM50-EA 3P 22kW/400V IP00 230VAC 190011
Index local:
ATA018MOEL
Numéro de catalogue:
190011
Code EAN:
4015081880072
Livraison en 3h
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.
Données techniques
-
Number of main contacts NO3
-
Number of poles3
-
AC control voltage [V]230
-
Level of securityIP00
-
Mechanical durability [Number of connections]10000000
-
Rated surge voltage [V]8000
-
Rated operational current Ie for AC-1 400V [A]80
-
Rated operational current Ie for AC-4 400V [A]21
-
Overvoltage categoryIII
-
InstallationOn the TH-35 rail
-
Rated insulation voltage [V]690
-
Degree of contamination3
-
Maximum operating voltage [V]690
-
Rated operating power at AC-3 400V [kW]22
-
Rated operational current Ie for AC-3 400V [A]50
-
Rated operating power at AC-4 400V [kW]10
Autres données techniques
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V80 A
-
Rated operation power at AC-3, 400 V22 kW
-
Rated operation power at AC-4, 400 V10 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz240 ... 240 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V50 A
-
Rated operation current Ie at AC-4, 400 V21 A
-
Rated operation power NEMA29.8 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Détails du fabricant
-
ProducteurEATON Electric Sp. z o.o.
-
Adresse80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Numéro identifiant TVA5841022327
-
GLN5900009970944
Emballage en vrac
| Une sorte de paquet | Skrzynia | |
| Quantité | 1 pcs. | 1 pcs. |
| poids (kg) | 0,872 | 0,923 |
| Volume (m3) | 0,001 | 0,001 |
| Largeur (m) | 0,055 | 0,057 |
| Longueur (m) | 0,132 | 0,151 |
| Profondeur (m) | 0,115 | 0,118 |
