Contactor DILM40-EA 3P 18.5kW/400V IP00 230VAC 190009

Name: Contactor DILM40-EA 3P 18.5kW/400V IP00 230VAC
Brand: EATON
SKU: ATC035MOEL
Price: 78.89 PLN
Availability: InStock

Índice local:

ATC035MOEL

Número de catálogo:

190009

Código EAN:

4015081880058

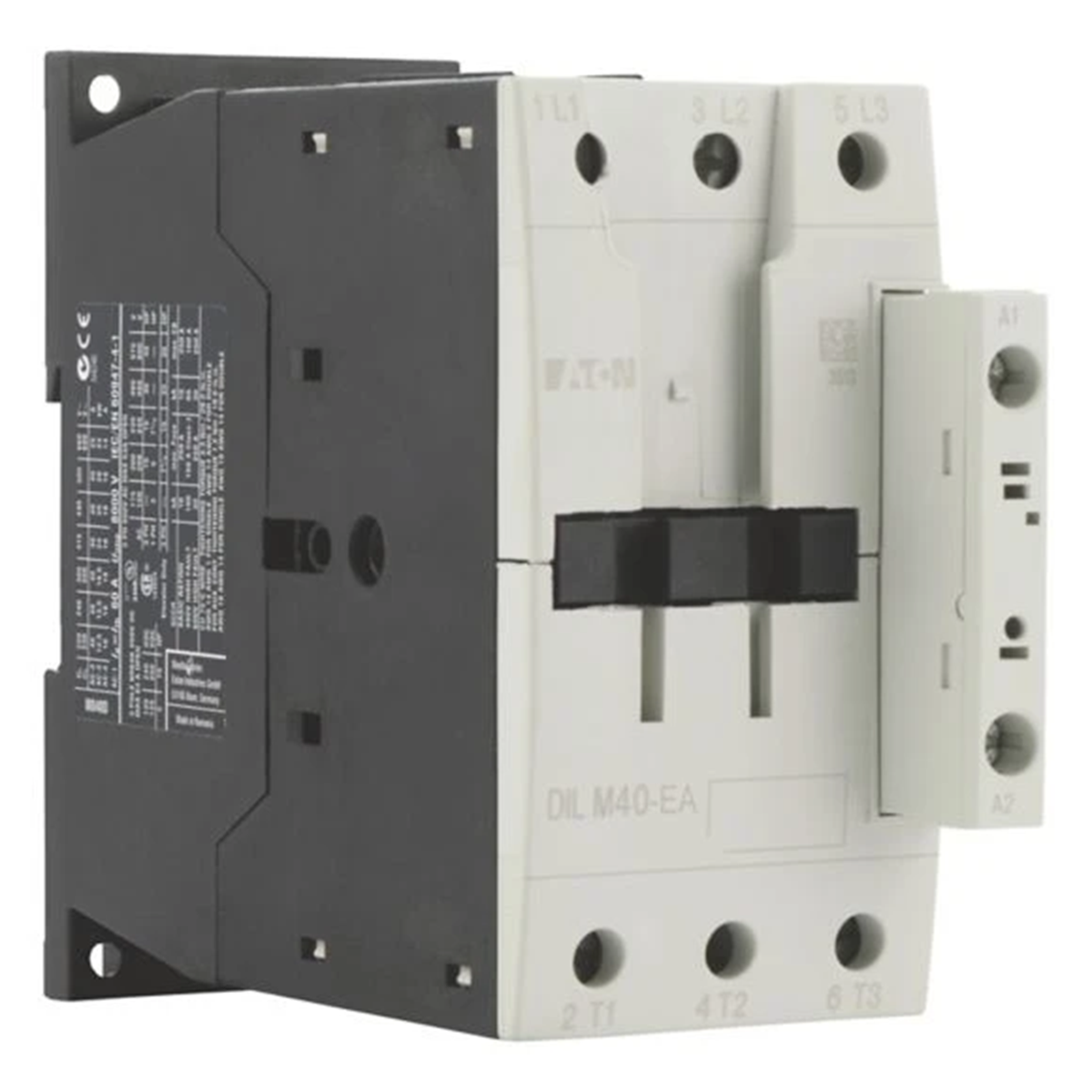

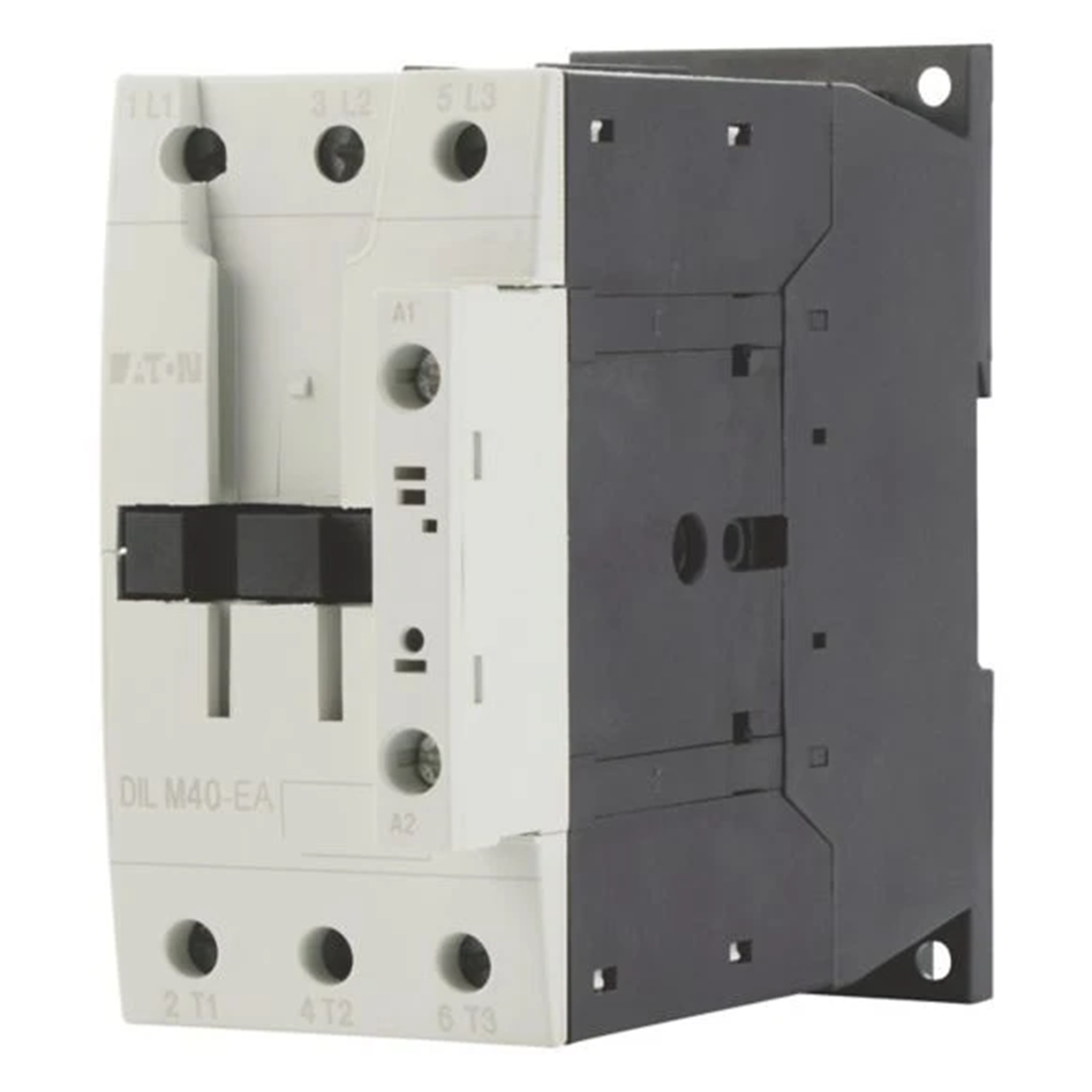

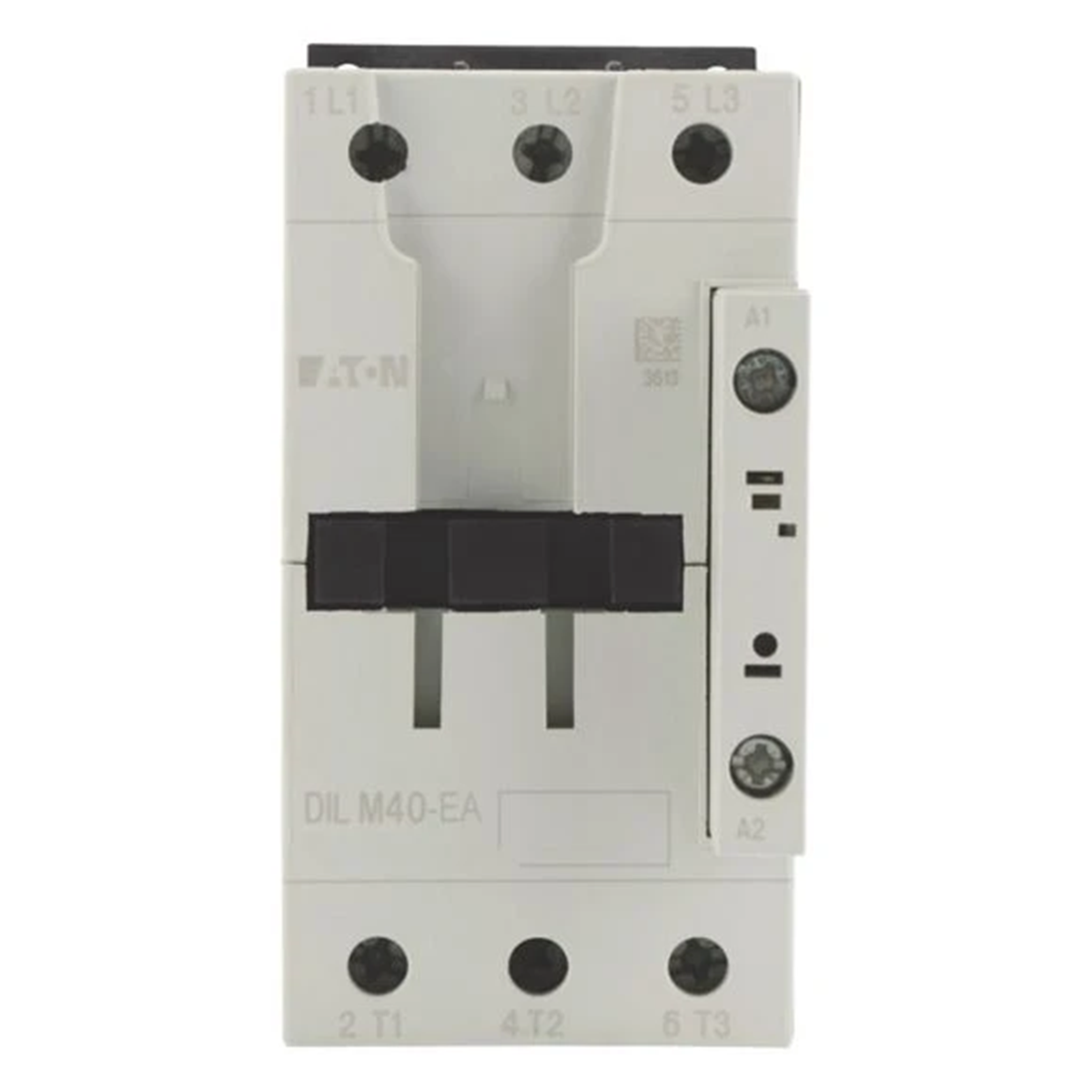

Contactor DILM40-EA 3P 18.5kW/400V IP00 230VAC

Haga clic en la foto para ampliar

Fabricante: EATON

Number of main contacts NO: 3

Overvoltage category: III

Number of poles: 3

Ver descripción completa

Precio:

78,89 €

gross / uds.

(IVA incluido 23%)

Accesible 11 uds.

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.

Datos técnicos

Number of main contacts NO

3
Number of poles

3
AC control voltage [V]

230
Level of security

IP00
Mechanical durability [Number of connections]

10000000
Rated surge voltage [V]

8000
Rated operational current Ie for AC-1 400V [A]

60
Rated operational current Ie for AC-4 400V [A]

18

Overvoltage category

III
Installation

On the TH-35 rail
Rated insulation voltage [V]

690
Degree of contamination

3
Maximum operating voltage [V]

690
Rated operating power at AC-3 400V [kW]

18.5
Rated operational current Ie for AC-3 400V [A]

40
Rated operating power at AC-4 400V [kW]

9

Otros datos técnicos

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

60 A
Rated operation power at AC-3, 400 V

18.5 kW
Rated operation power at AC-4, 400 V

9 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

40 A
Rated operation current Ie at AC-4, 400 V

18 A
Rated operation power NEMA

22 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia
Cantidad	1 uds.
Peso (kg)	0,923
Volumen (m3)	0,001
Ancho (m)	0,057
Longitud (m)	0,151
Profundidad (m)	0,118
