Contactor DILM25-10-EA 3P 11kW/400V IP00 230VAC 189913

Name: Contactor DILM25-10-EA 3P 11kW/400V IP00 230VAC
Brand: EATON
SKU: ATA062MOEL
Price: 291.30 PLN
Availability: InStock

Lokaler Index:

ATA062MOEL

Katalognummer:

189913

EAN-Code:

4015081879090

Contactor DILM25-10-EA 3P 11kW/400V IP00 230VAC

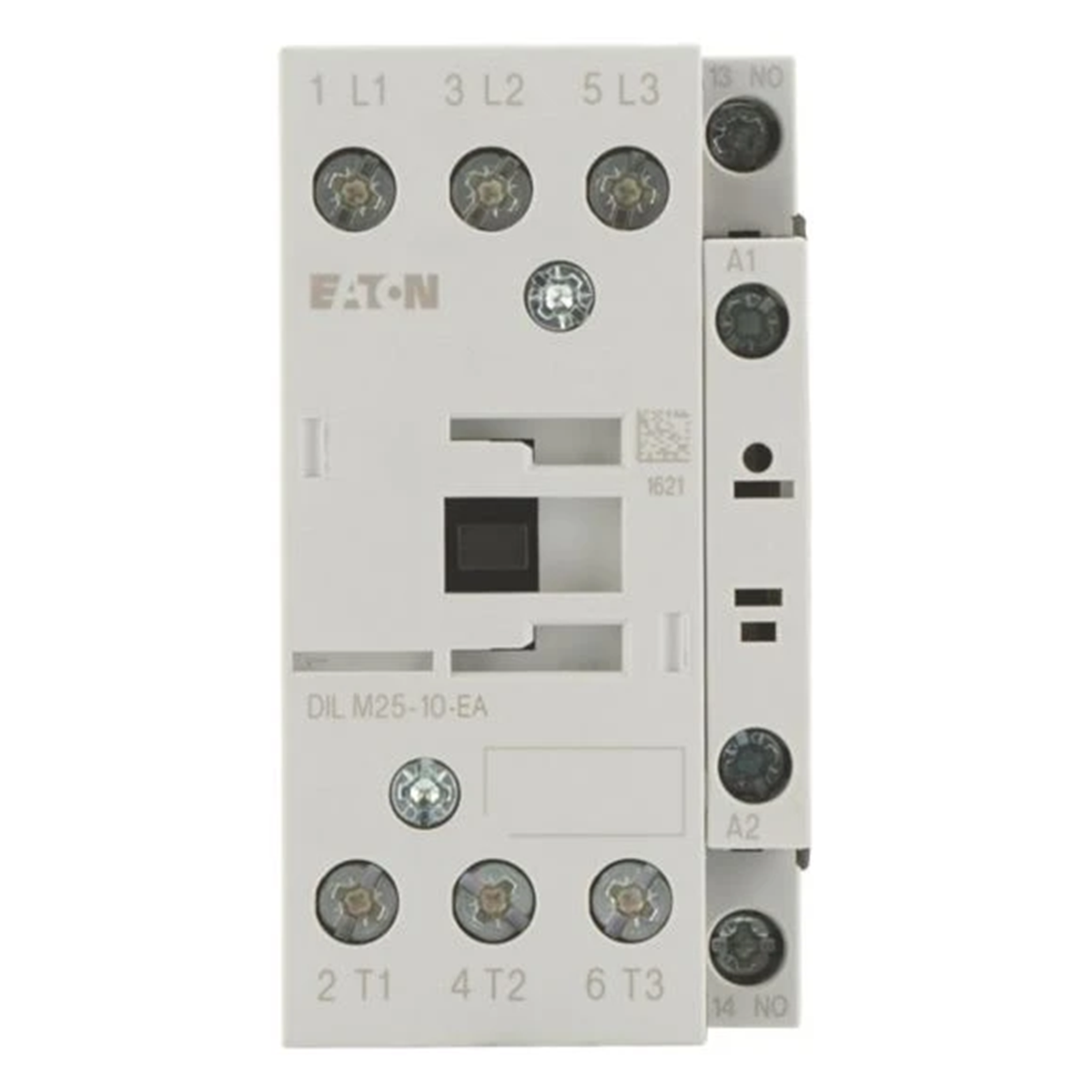

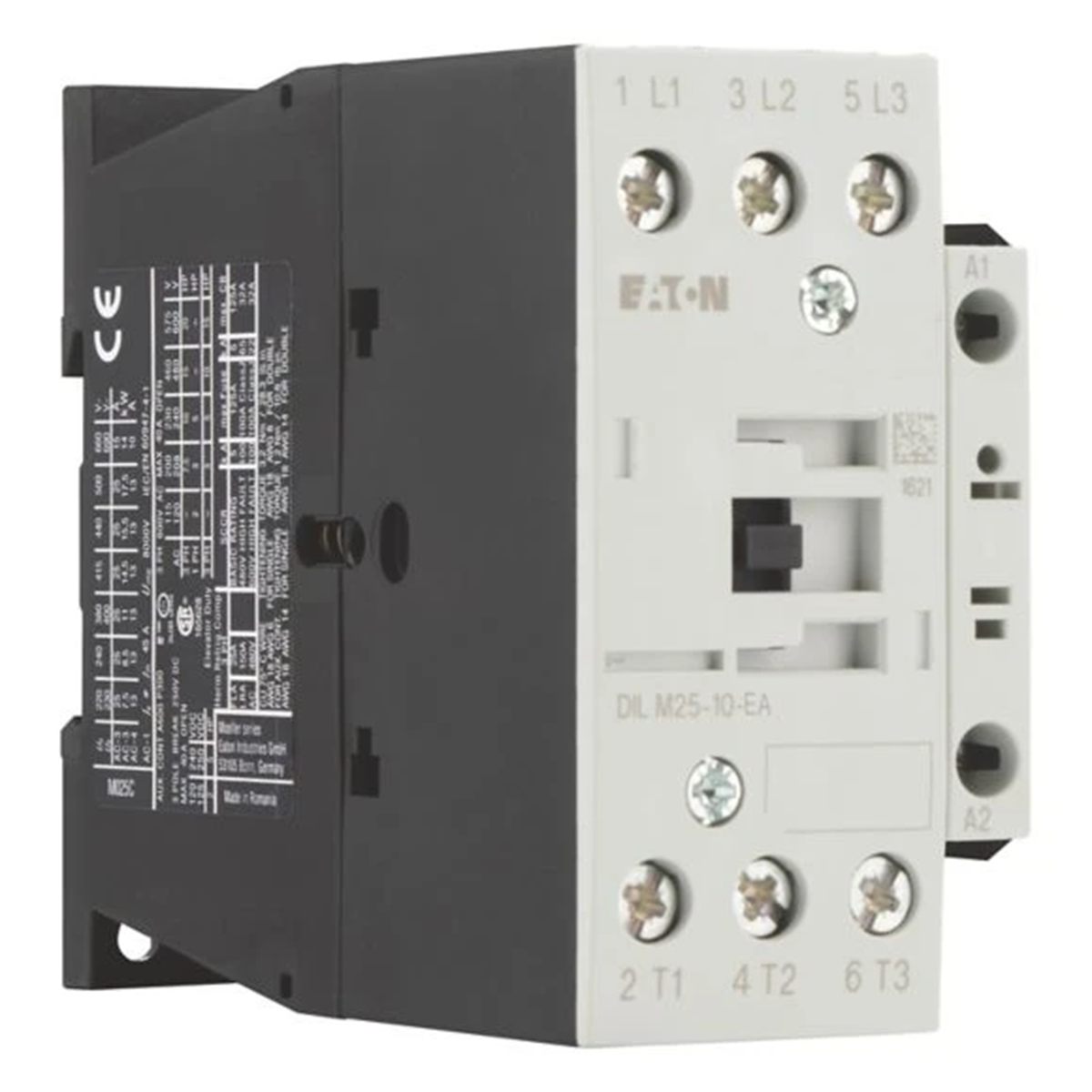

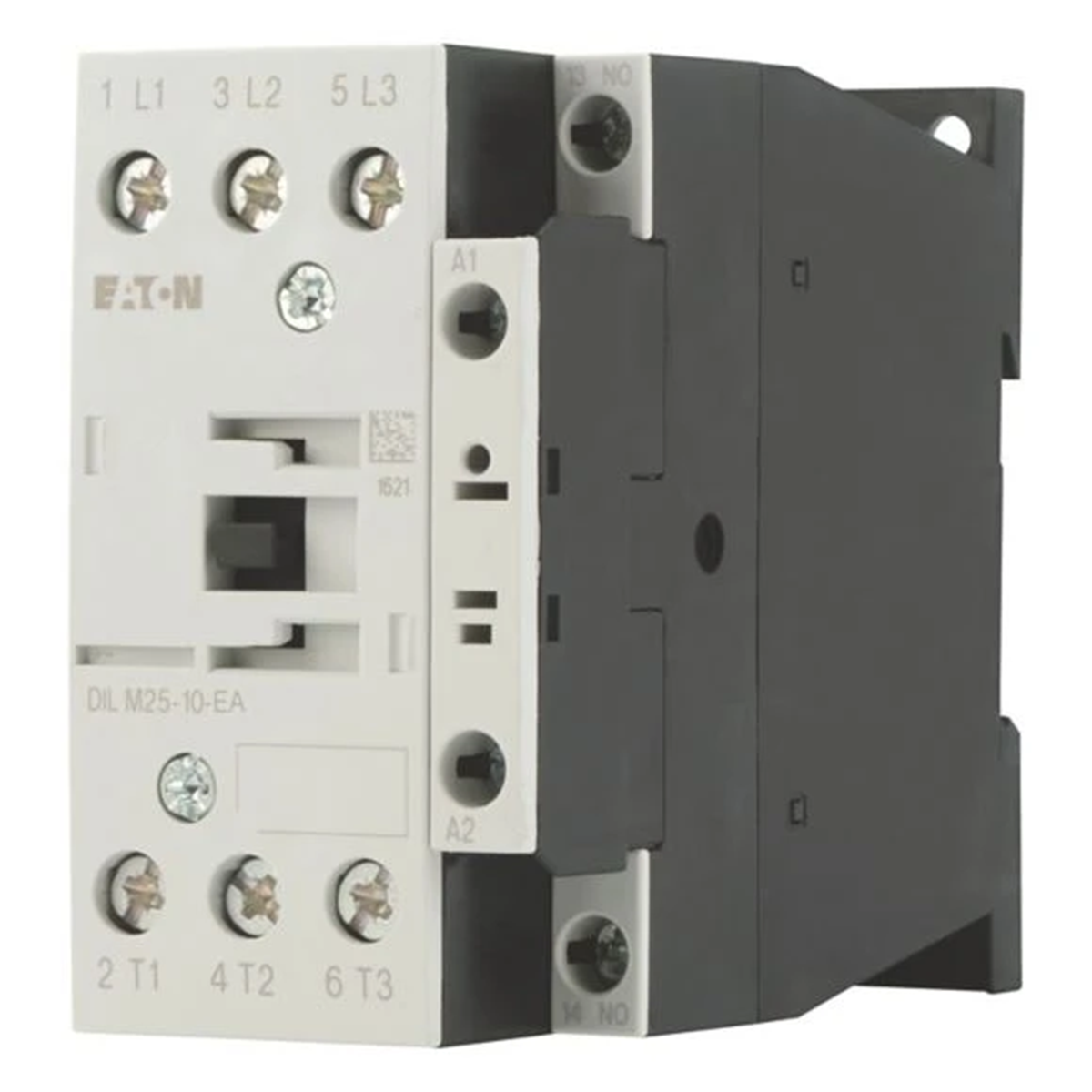

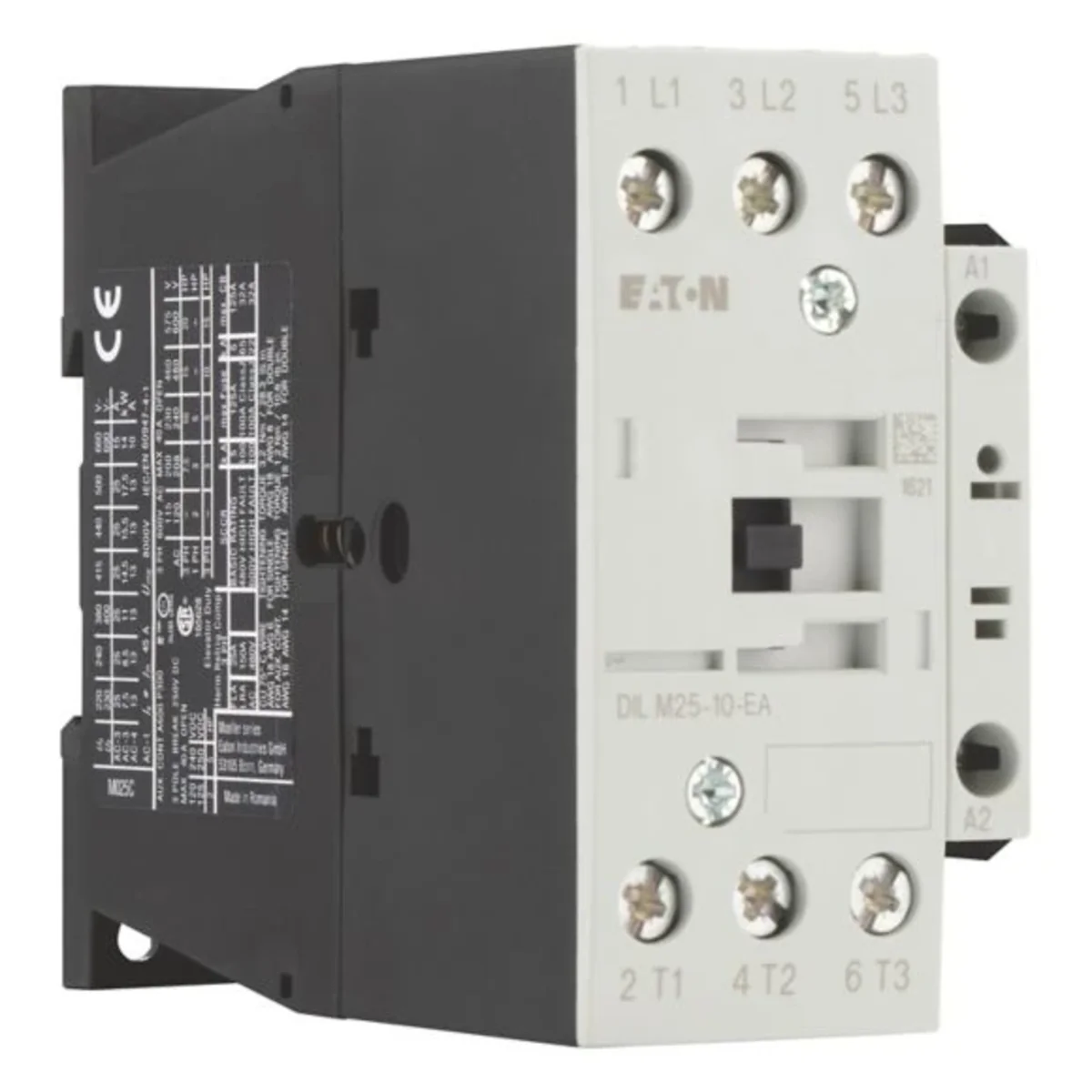

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Number of main contacts NO: 3

Number of auxiliary contacts NO: 1

Overvoltage category: III

Siehe vollständige Beschreibung

Preis:

291,30 zł

gross / stk.

(inklusive MwSt 23%)

Zugänglich 37 stk.

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.

Technische Daten

Number of main contacts NO

3
Overvoltage category

III
Installation

On the TH-35 rail
Rated insulation voltage [V]

690
Degree of contamination

3
Maximum operating voltage [V]

690
Rated operating power at AC-3 400V [kW]

11
Rated operational current Ie for AC-3 400V [A]

25
Rated operating power at AC-4 400V [kW]

6

Number of auxiliary contacts NO

1
Number of poles

3
AC control voltage [V]

230
Level of security

IP00
Mechanical durability [Number of connections]

10000000
Rated surge voltage [V]

8000
Rated operational current Ie for AC-1 400V [A]

45
Rated operational current Ie for AC-4 400V [A]

13

Weitere technische Daten

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

45 A
Rated operation power at AC-3, 400 V

11 kW
Rated operation power at AC-4, 400 V

6 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

25 A
Rated operation current Ie at AC-4, 400 V

13 A
Rated operation power NEMA

11 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton	Skrzynia	Karton
Menge	1 stk.	1 stk.	1 stk.	1 stk.
Gewicht (kg)	0,428	0,447	0,428	0,447
Volumen (m3)	0,000	0,000	0,000	0,000
Breite (m)	0,047	0,047	0,047	0,047
Länge (m)	0,099	0,099	0,099	0,099
Tiefe (m)	0,087	0,087	0,087	0,087
