Contactor DILM17-10-EA 3P 7.5kW/400V IP00 24VDC 189910

Name: Contactor DILM17-10-EA 3P 7.5kW/400V IP00 24VDC
Brand: EATON
SKU: ATA005MOEL
Price: 241.51 PLN
Availability: InStock

Indice locale:

ATA005MOEL

Numero di catalogo:

189910

Codice EAN:

4015081879069

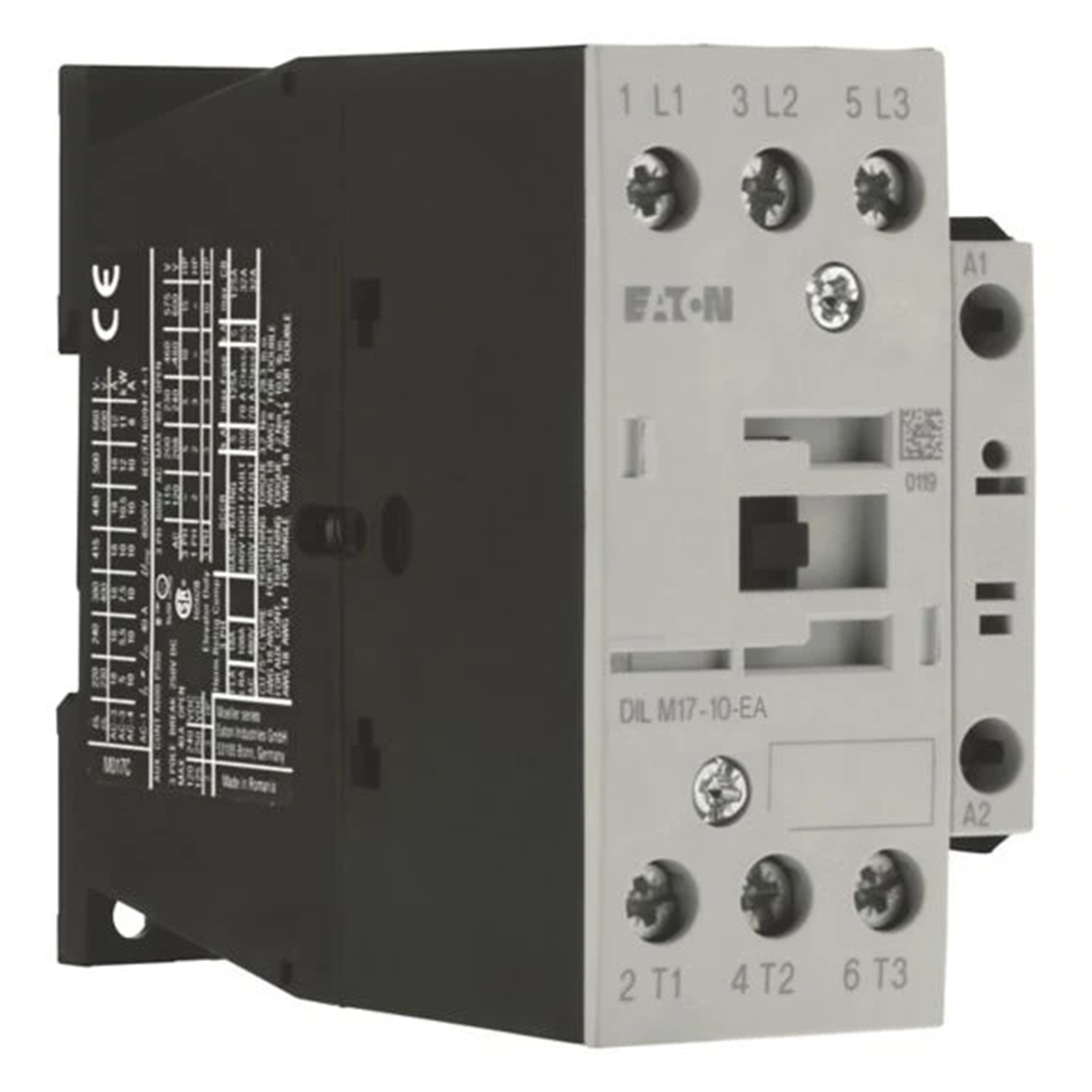

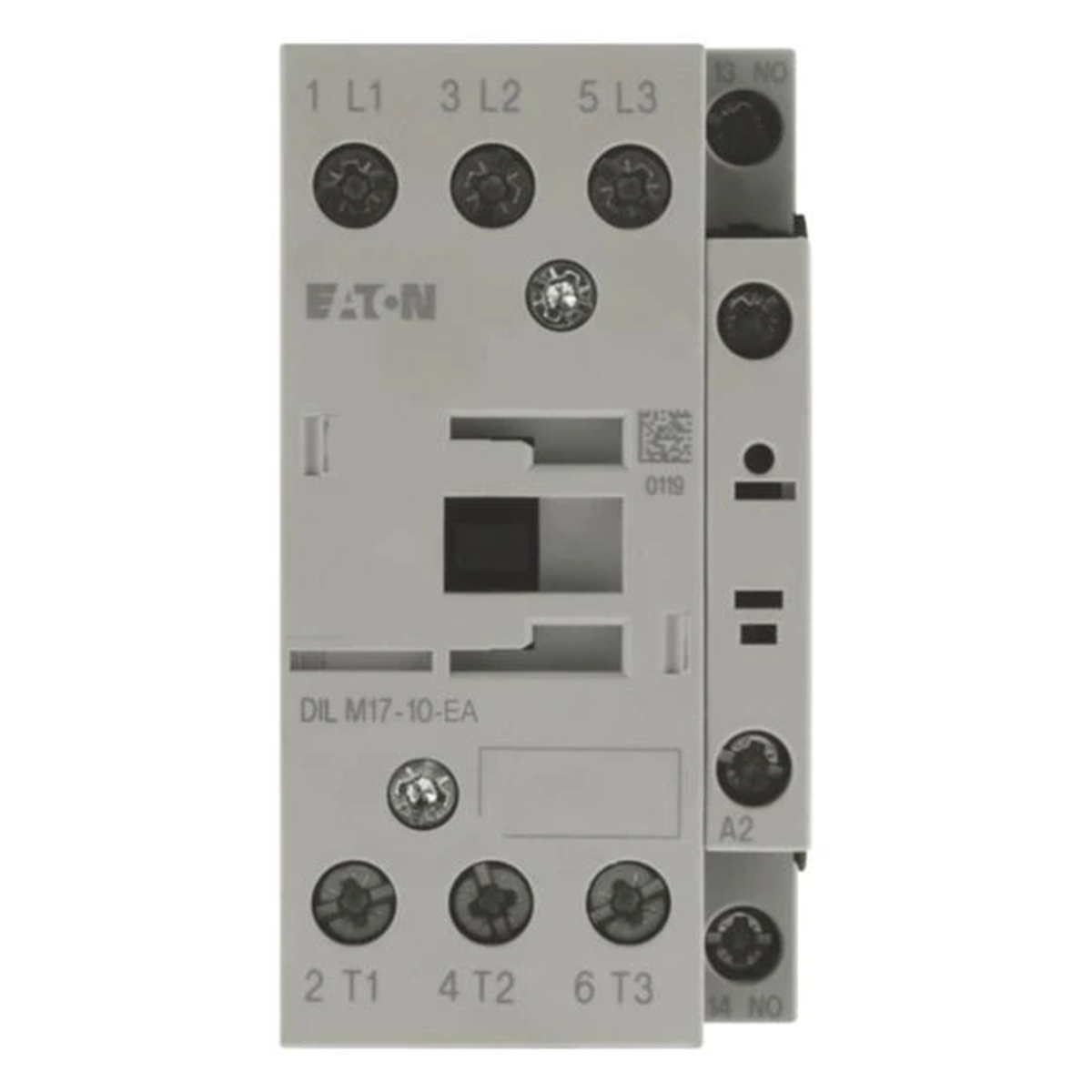

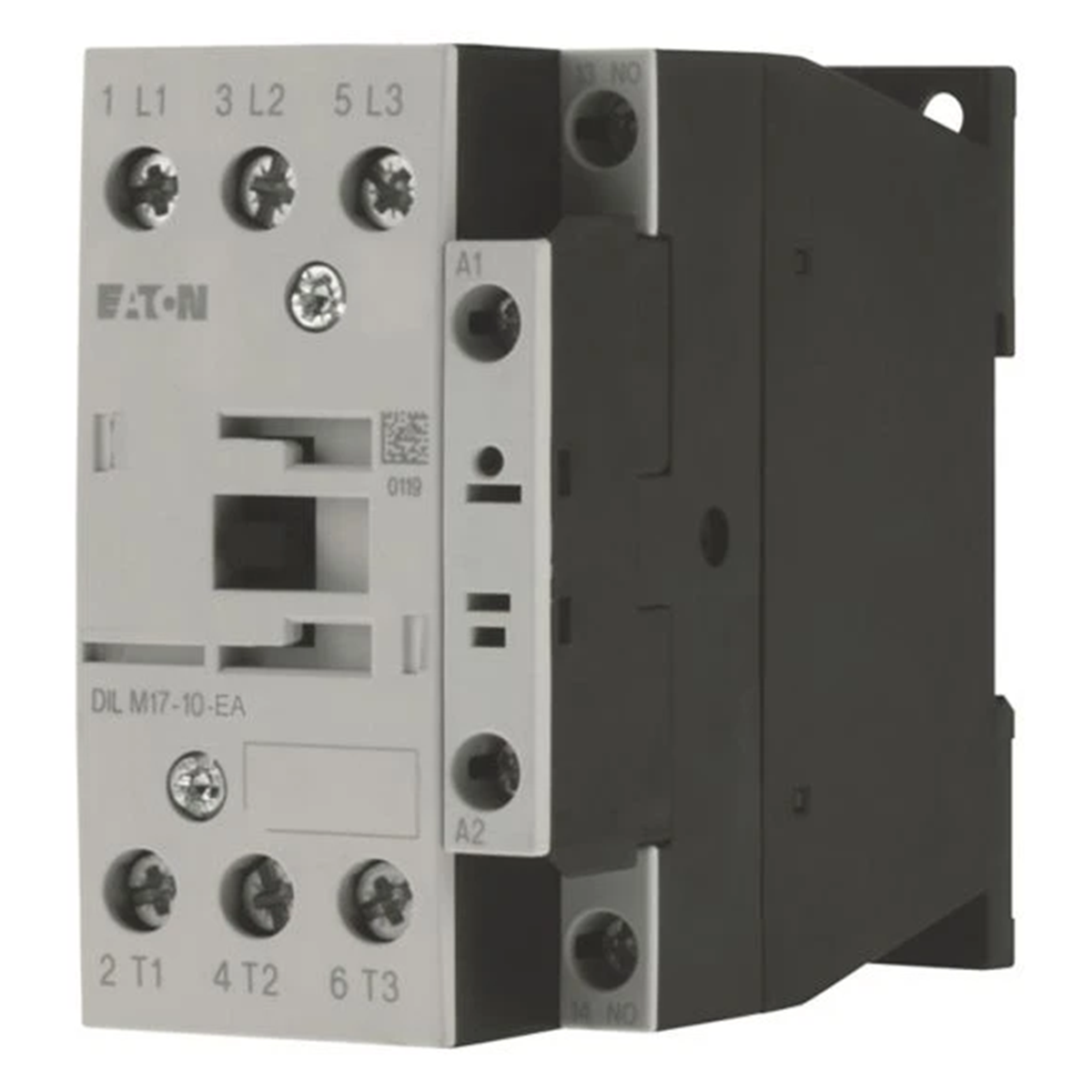

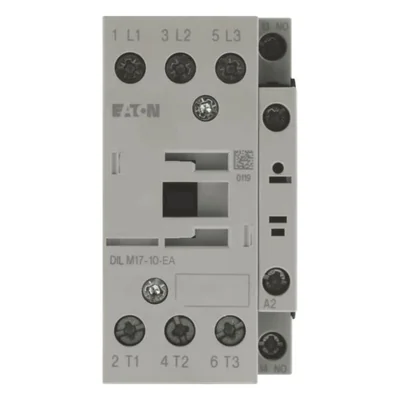

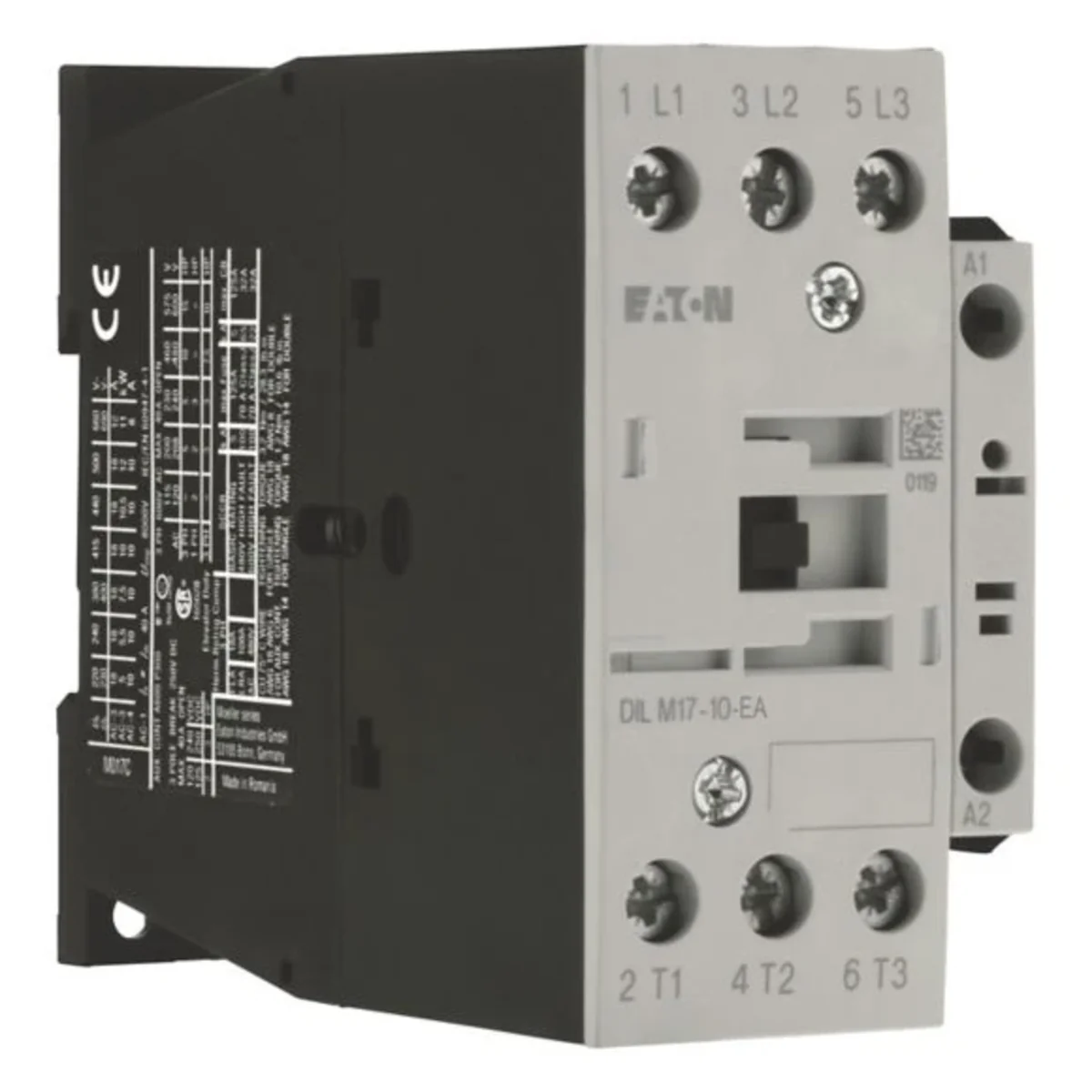

Contactor DILM17-10-EA 3P 7.5kW/400V IP00 24VDC

Clicca sulla foto per ingrandire

Produttore: EATON

Number of main contacts NO: 3

Number of auxiliary contacts NO: 1

Overvoltage category: III

Vedi la descrizione completa

I più venduti

Prezzo:

241,51 zł

gross / pezzi

(inclusa IVA 23%)

Prezzo più basso da 30 giorni prima dello sconto: 219,56 zł gross

Prezzo del produttore: 478,47 zł gross

Accessibile 18 pezzi

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.

Dati tecnici

Number of main contacts NO

3
Overvoltage category

III
Installation

On the TH-35 rail
Rated insulation voltage [V]

690
Degree of contamination

3
Maximum operating voltage [V]

690
Rated operating power at AC-3 400V [kW]

7.5
Rated operational current Ie for AC-3 400V [A]

18
Rated operating power at AC-4 400V [kW]

4.5

Number of auxiliary contacts NO

1
Number of poles

3
DC control voltage [V]

24
Level of security

IP00
Mechanical durability [Number of connections]

10000000
Rated surge voltage [V]

8000
Rated operational current Ie for AC-1 400V [A]

40
Rated operational current Ie for AC-4 400V [A]

10

Altri dati tecnici

Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

24 ... 27 V
Rated operation current Ie at AC-1, 400 V

40 A
Rated operation power at AC-3, 400 V

7.5 kW
Rated operation power at AC-4, 400 V

4.5 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

0 ... 0 V
Voltage type for actuating

DC
Rated operation current Ie at AC-3, 400 V

18 A
Rated operation current Ie at AC-4, 400 V

10 A
Rated operation power NEMA

7.4 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Dettagli del produttore

Produttore

Eaton Electric Sp. z o.o.
Indirizzo

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Imballaggio sfuso

Una specie di pacchetto	Skrzynia
Quantità	1 pezzi
Peso (kg)	0,553
Volume (m3)	0,000
Larghezza (m)	0,047
Lunghezza (m)	0,099
Profondità (m)	0,087
