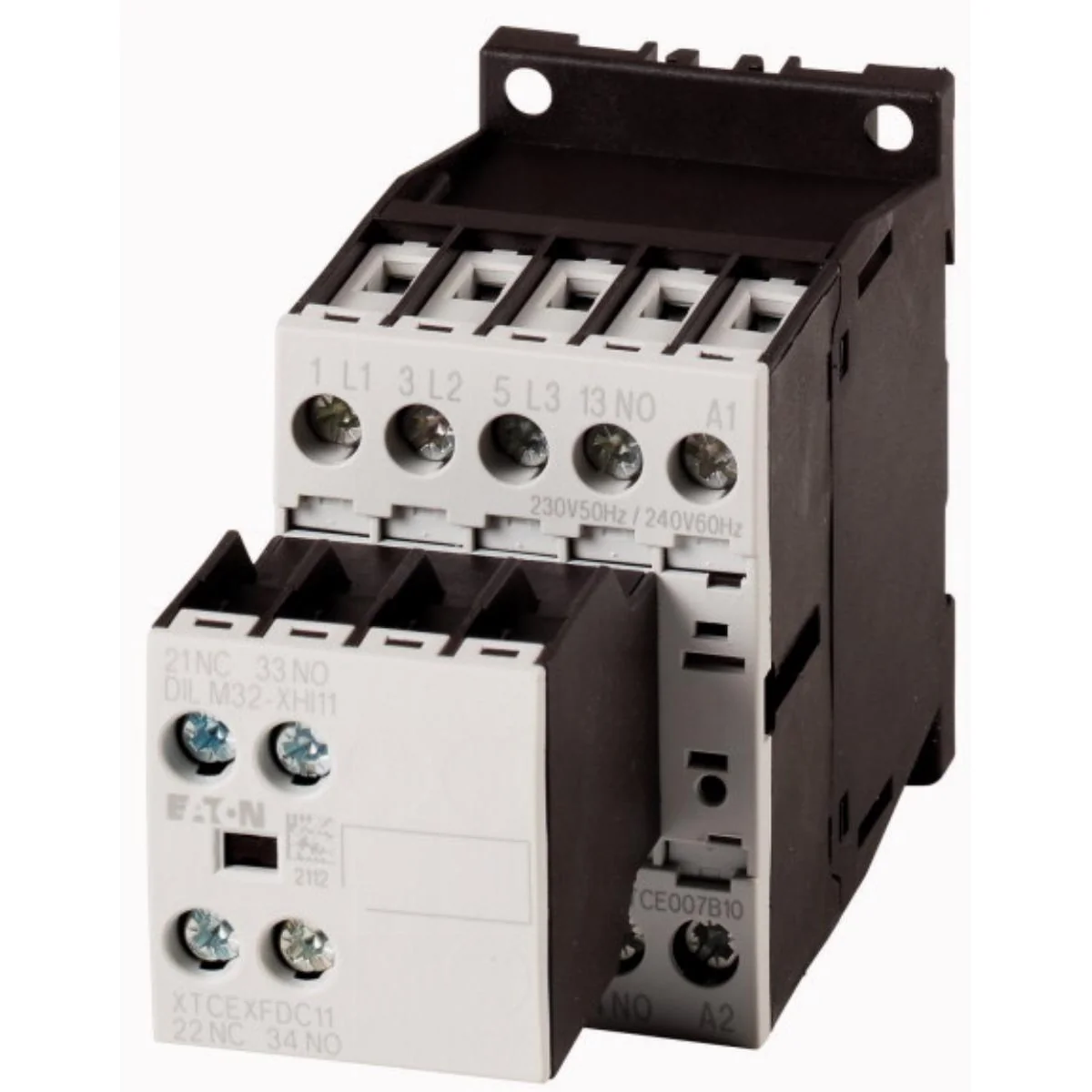

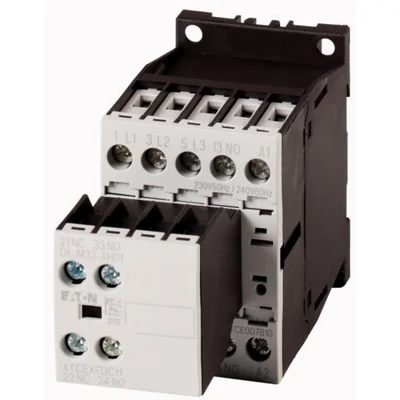

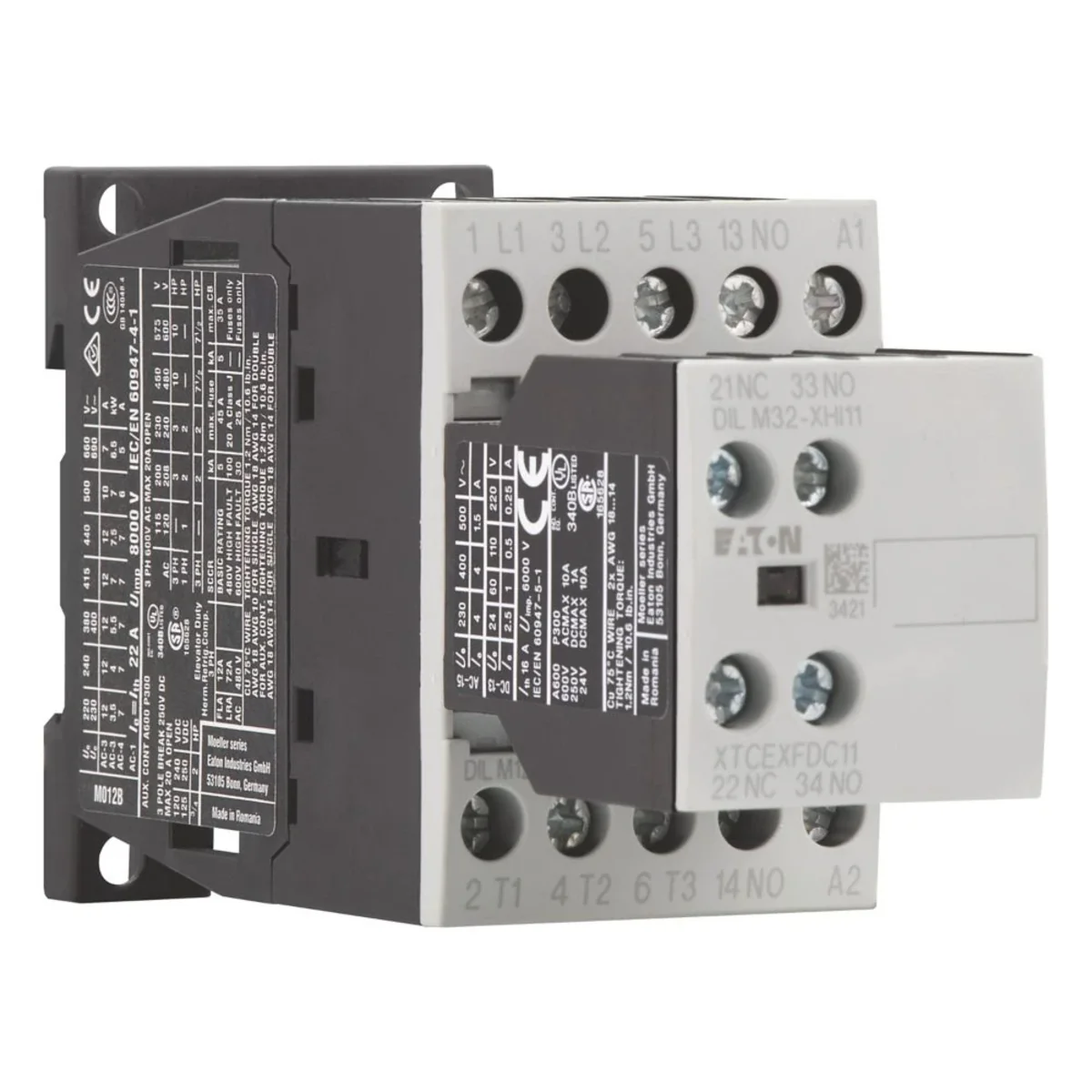

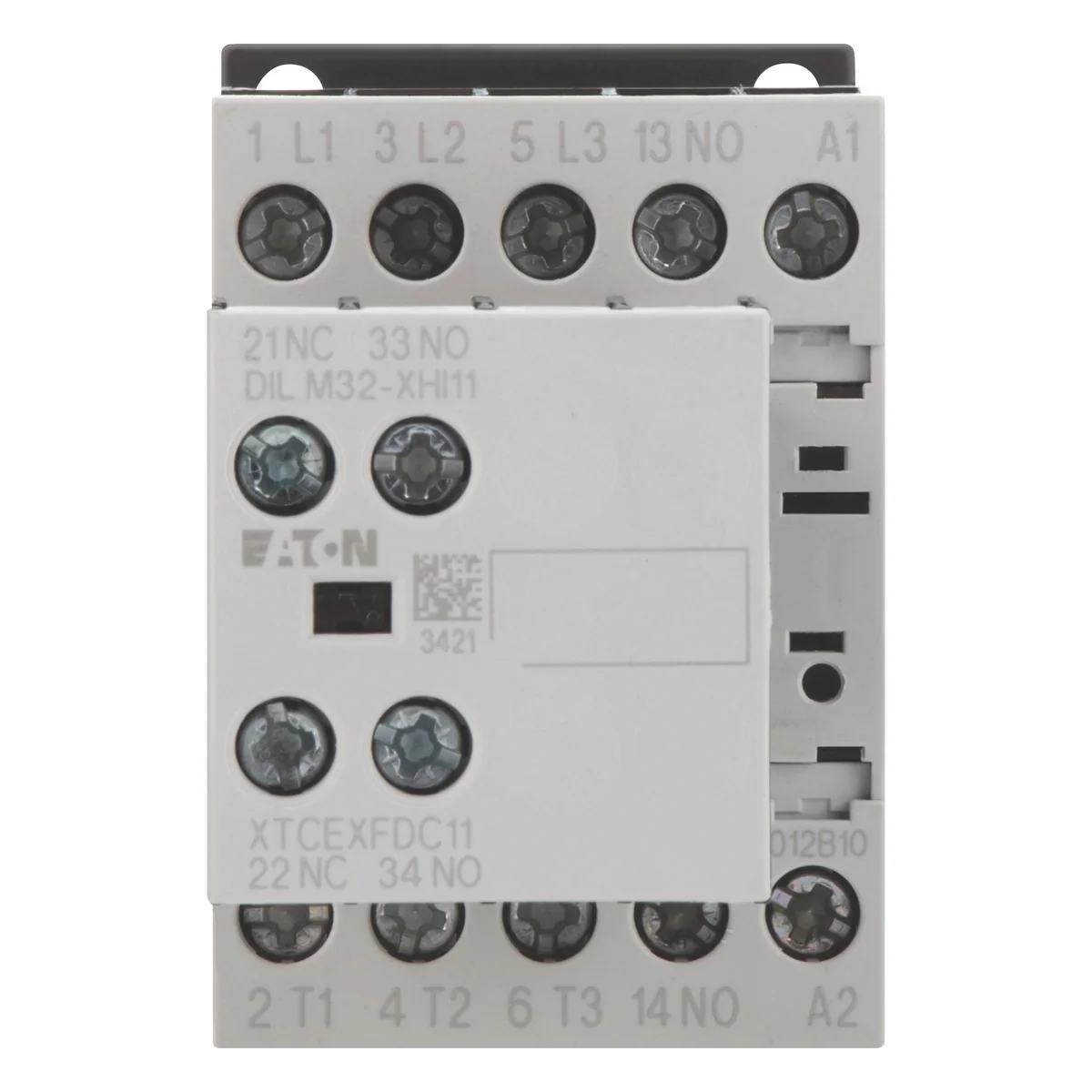

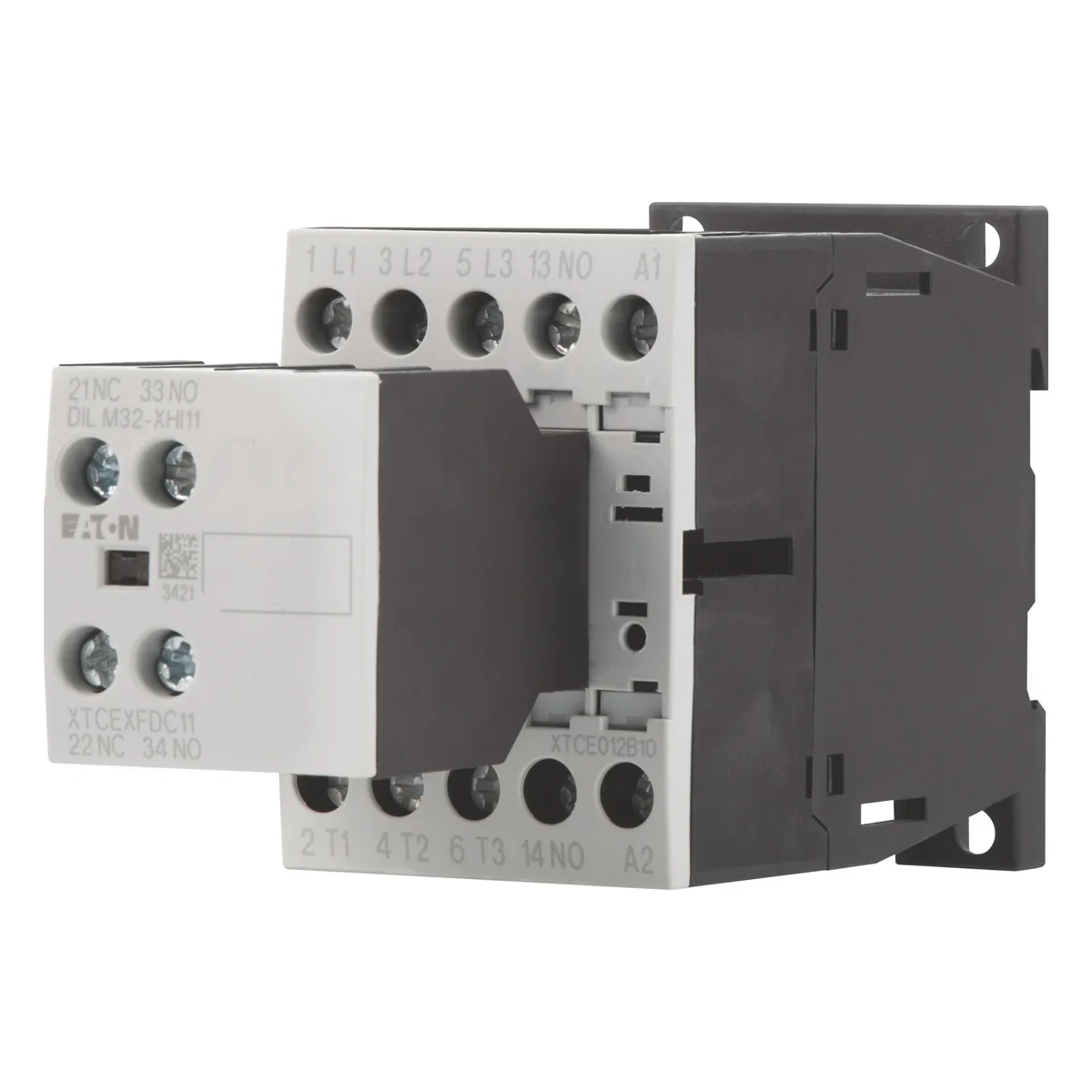

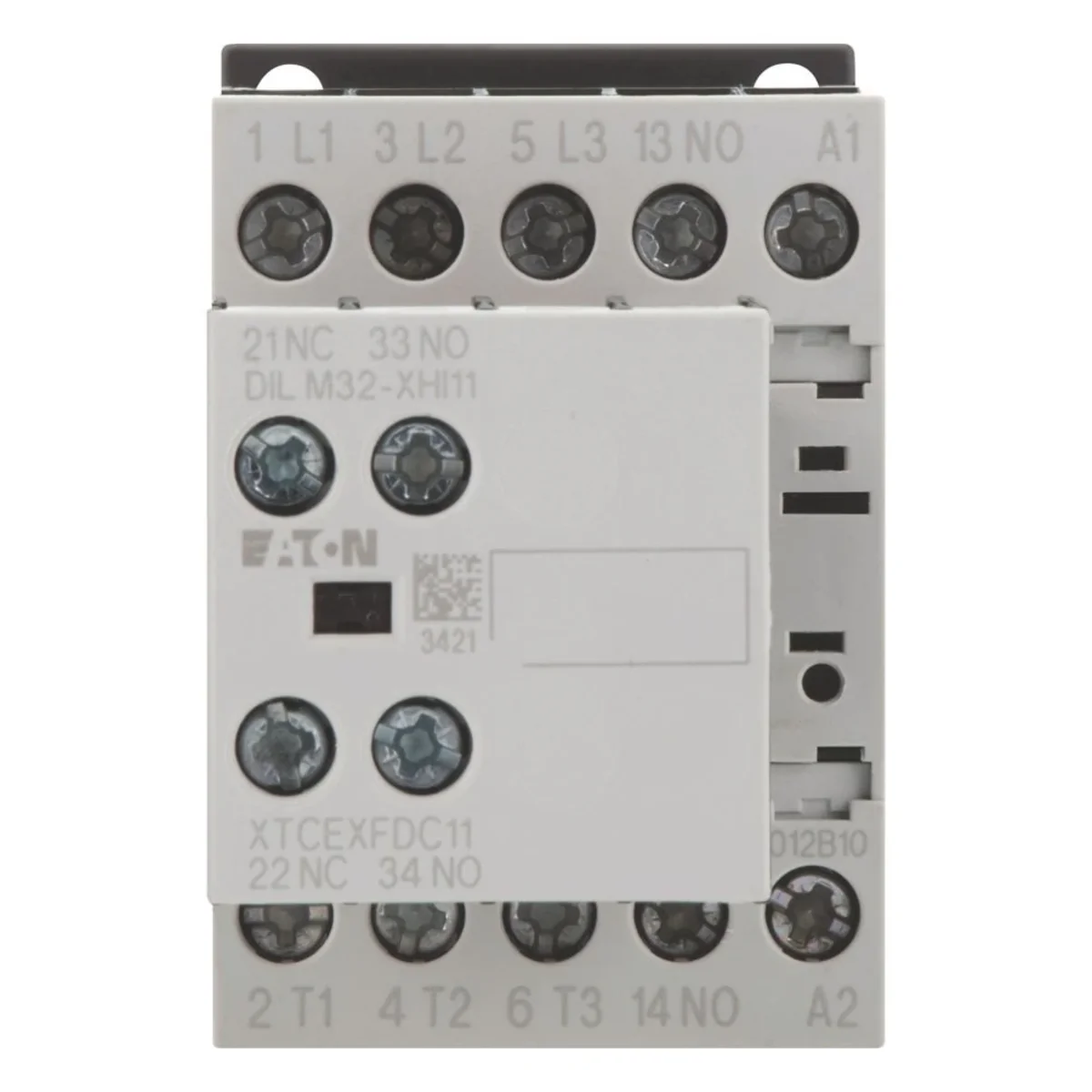

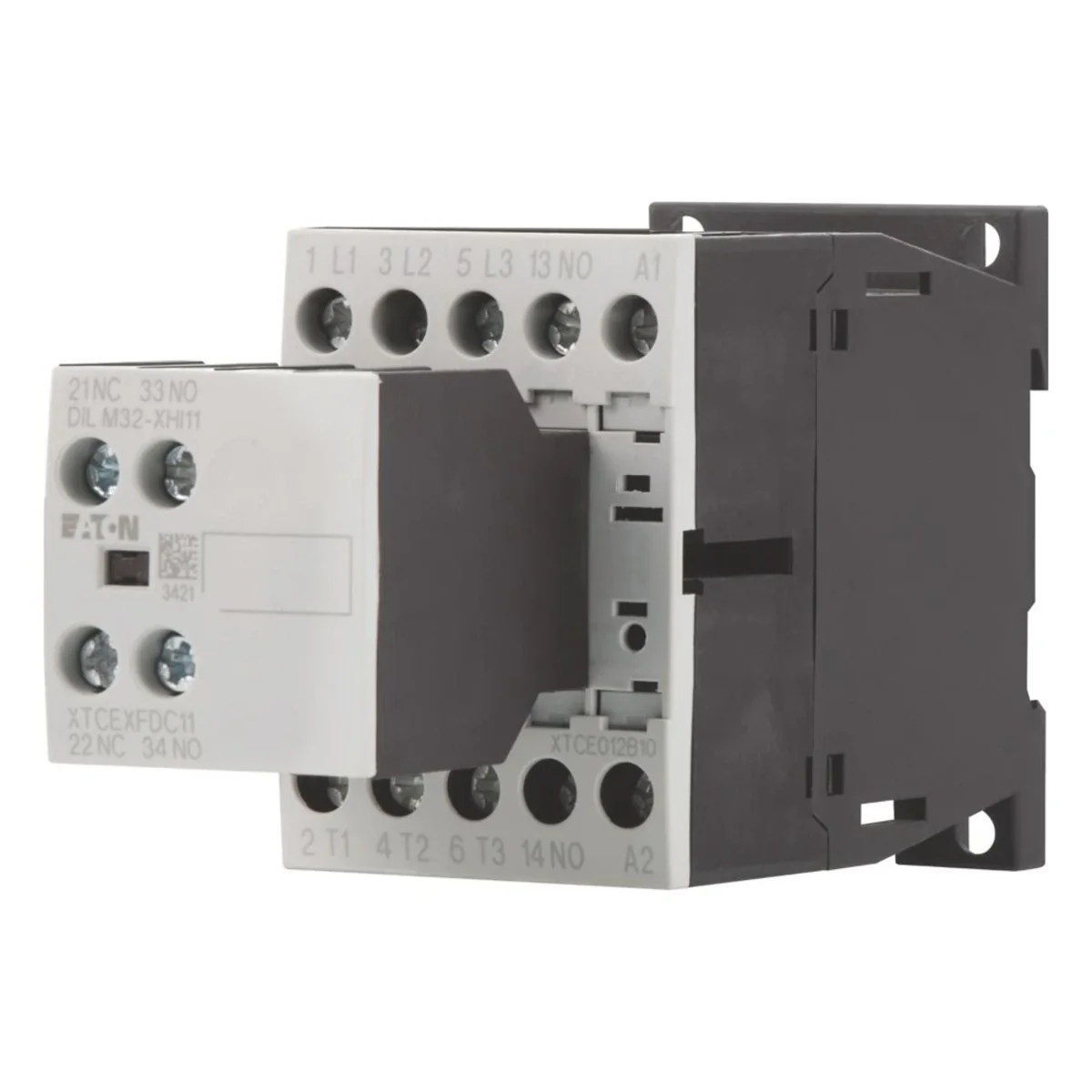

Contactor, DILM12-21 276900

local index:
ATA403MOEL
Catalog No:
276900
EAN code:
4015082769000
Manufacturer: EATON
Rated voltage [V]: 230
Price:
68,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Contactor, DILM12-21

Technical data

  • Rated voltage [V]
    230

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    22 A
  • Rated operation power at AC-3, 400 V
    5.5 kW
  • Rated operation power at AC-4, 400 V
    3 kW
  • Modular version
    no
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    240 ... 240 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    12 A
  • Rated operation current Ie at AC-4, 400 V
    7 A
  • Rated operation power NEMA
    7.4 kW
  • Number of auxiliary contacts as normally open contact
    2
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,304
Volume (m3) 0,000
Width (m) 0,045
Length (m) 0,138
Depth (m) 0,078
